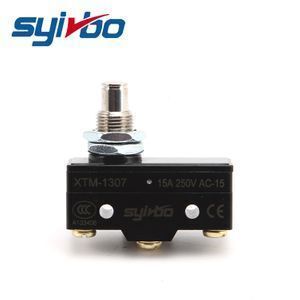

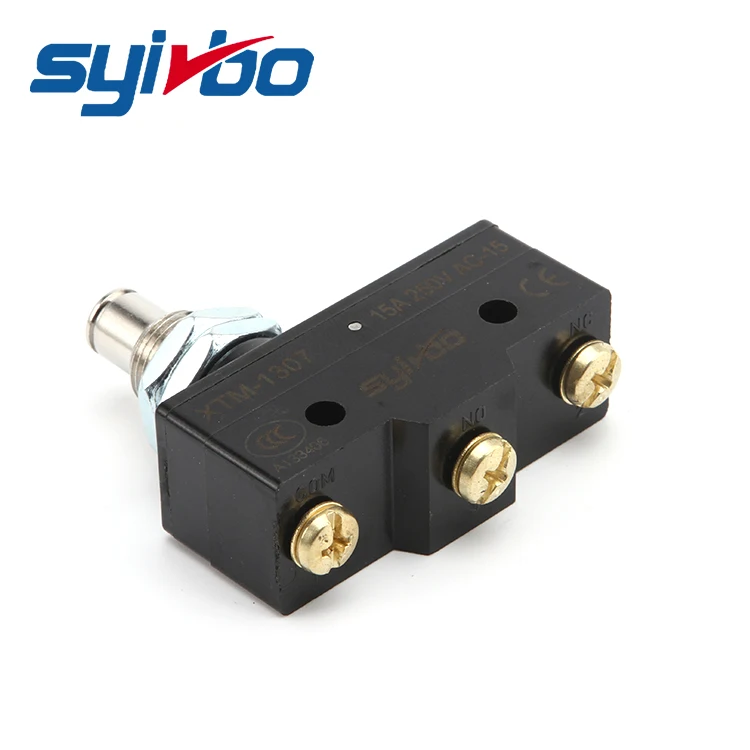

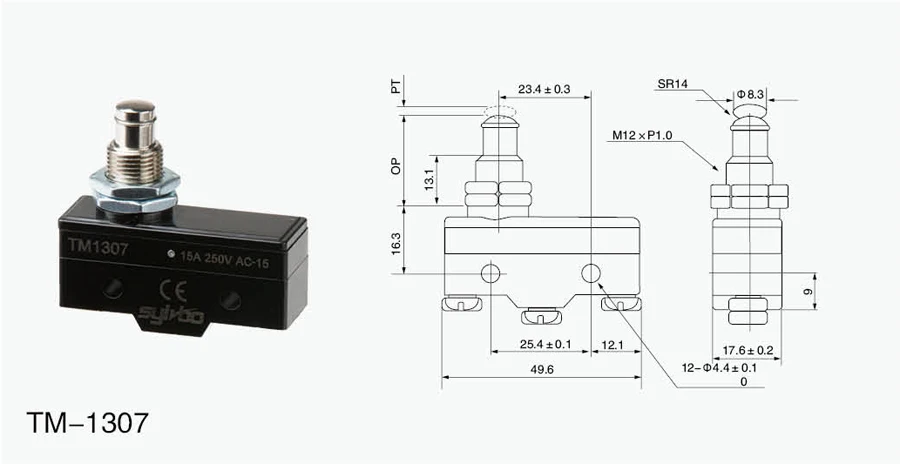

Xingbo High capacity panel mount plunger micro switch 15a

Supplier: Zhejiang Xingbo Electrical Appliance Co., Ltd.
Region: Zhejiang, China
Contact: Ms Grace Ying
Price: $0.95 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Max. Voltage:	250V;	Selling Units:	Single item;
Max. Current:	15A;	Model Number:	XTM-1307;
Single package size:	10X8X6 cm;	Single gross weight:	0.08 KG;
Operating Temperature:	-5-+65;	Brand Name:	XINGBO;
Protection Level:	IP40;	Place of Origin:	china;

Product Description

Features:

Various of actuators, action position is adjustable

High switch on and off capacity (15A)

High accuracy

Wide range of operation speed

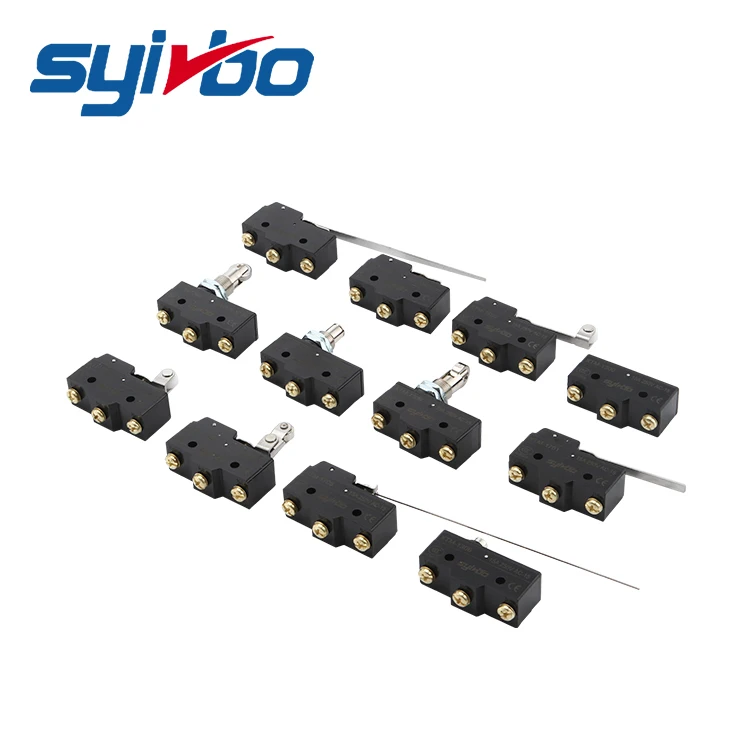

Each type of TM series has solder terminal, screw terminal and tab terminal are selective

Add A for solder terminal, add C for tab terminal, blank for screw terminal

Ratings

Rated voltage	Non-inductive Load(A)				Inductive Load(A)				Inrush current(A)
	Resistance Road		Lamp Load		Inductive Load		Motor Load
	NC	NO	NC	NO	NC	NO	NC	NO	NC	NO
125VAC	15		3	1.5	15		5	2.5	30max.	15max.
250VAC	15		2.5	1.25	15		3	1.5
500 VAC	3		1.5	0.75	2.5		1.5	0.75
8VDC	15		3	1.5	15		5	2.5
14VDC	15		3	1.5	10		5	2.5
30VDC	6(2)		3	1.5	5		5	2.5
125VDC	0.4		0.4	0.4	0.05		0.05	0.05
250VDC	0.2		0.2	0.2	0.03		0.03	0.03

Characteristics

Operation speed	0.01mm-1m/s
Operating frequency	Mechanical: 240 operations/minute Electrical: 20 operations/minute
Contact resistance	15MΩ Max. (initial value)
Insulation resistance	100MΩ min. (at 500VDC)
Dielectric strength	1000VAC, 50/60Hz for 1 minute between terminals of the same polarity
	1500VAC. 50/60Hz for 1 minute between current-carrying and non-current-carrying metal parts
	1500VAC, 50/60Hz for 1 minute between each terminal and ground
Vibration	10-55Hz, 1.5mm double amplitude
Shock	Mechanical durable: 1,000m/ Sec2 (about 100G’ S) Malfunction: 300m/ Sec2 (about 30G’ S)
Ambient temperature	General type: -25℃- 80℃, Sealed type: -15-80℃
Humidity	General type: 85%RH, Sealed type: 95% RH
Life	Mechanical: 20,000,000 operations above (under rated OT) Electrical: 500,000 operations above
Weight	Approx. 22 to 58g

Operating Characteristics

Model	TM1300	TM1301	TM1303	TM1305	TM1306	TM1307	TM1308
OF(Max.)	350g	300g	300g	350g	350g	350g	350g
RF(Min.)	114g	50g	50g	114g	114g	114g	114g
PT(Max.)	0.4mm	4mm	4mm	0.4mm	0.4mm	0.4mm	0.4mm
OT(Max.)	0.13mm	1.6mm	1.6mm	1.6mm	1.6mm	5.5mm	3.58mm
MD(Max.)	0.05mm	1.3mm	1.3mm	0.05mm	0.05mm	0.05mm	0.05mm
FP(Max.)		20.6mm	31.8mm
OP(mm)	15.9±0.4	17.4±0.8	28.6±0.8	28.2±0.5	21.5±0.5	21.8±0.8	33.4±1.2

+

Models	TM1309	TM1701	TM1702	TM1703	TM1704	TM1705	TM1743
OF(Max.)	350g	70g	160g	100g	160g	10g	160g
RF(Min.)	114g	14g	28g	22g	42g	3g	42g
PT(Max.)	0.4mm	10mm	5mm	7.1mm	2.7mm	20mm	2.7mm
OT(Max.)	3.58mm	5.6mm	2mm	4mm	2.4mm	5.6mm	2.4mm
MD(Max.)	0.05mm	1.27mm	1mm	1.02mm	0.5mm	3mm	0.5mm
FP(Max.)		28.2mm	24.8mm	38.5mm	32.5mm		43.6mm
OP(mm)	33.4±1.2	19±0.8	19±0.4	30.2±0.8	30.2±0.4	19±0.8	43.1±0.8
