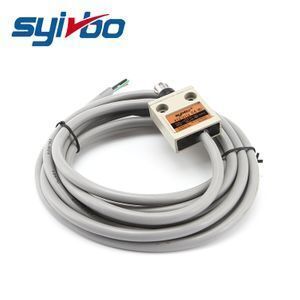

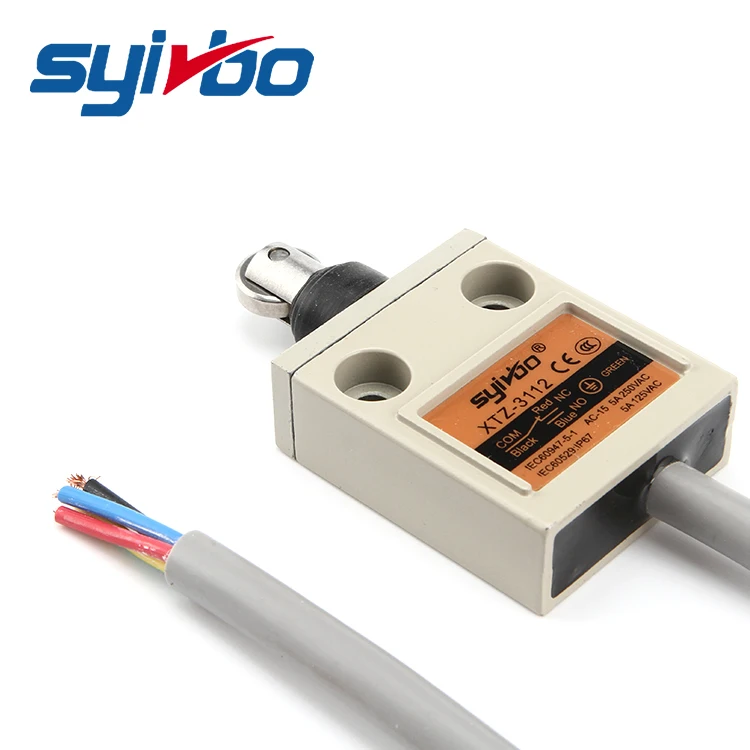

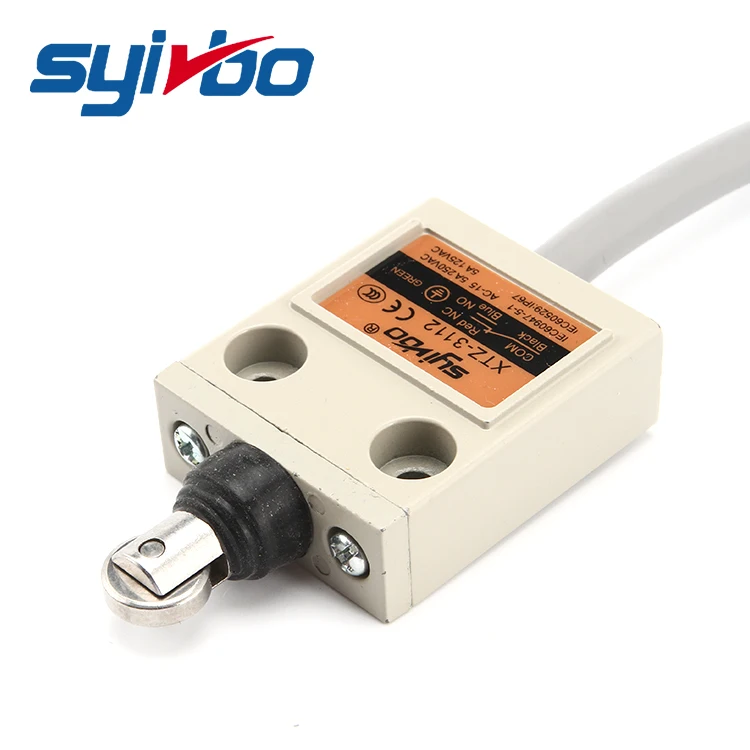

XINGBO waterproof stainless roller plunger limit switch/switch push button
-
Supplier: Zhejiang Xingbo Electrical Appliance Co., Ltd. -
Region: Zhejiang, China -
Contact: Ms Grace Ying -
Price: $6.52 / >=2 pieces -
Min. Order: 2 pieces
| Selling Units: | Multiple of 2; | Protection Level: | IP67; |
| Type: | Enclosed switch; | Operating Temperature: | -10℃-70℃; |
| Gross weight per batch: | 0.87 KG; | Max. Current: | 5A; |
| Material: | Aluminum; | contact form: | NC,NO; |
| Inrush current: | N.C:below 24A, N.O:below 12A; | Model Number: | XTZ-3112; |
| Feature: | DPDS; | Max. Voltage: | 250VAC; |
| Packaging Detail: | 1pc/plastic bag; 2pc/inner box; 20pcs/master box; | Brand Name: | syivbo; |
| Place of Origin: | China; | Package size per batch: | 25.5X16.2X5.5 cm; |
| 3m cable: | waterproof, oil-proof; |
Features:
DPDS limit switch for multiple applications
Aluminum alloy diecast housing
High mechanical strength
Oil resistance, waterproof and dustproof
Ratings
Rated voltage | Non-inductive Load(A) | Inductive Load(A) | ||||||
Resistance Load | Lamp Load | Inductive Load | Motor Load | |||||
NC | NO | NC | NO | NC | NO | NC | NO | |
125VAC | 5(0.1) | 1.5 | 0.7 | 3 | 2.5 | 1.3 | ||
250VAC | 3 | 1 | 0.5 | 2 | 1.5 | 0.8 | ||
8VAC | 5(0.1) | 2 | 5 | 4 | 3 | |||
14VDC | 5(0.1) | 2 | 4 | 4 | 3 | |||
30VDC | 4(0.1) | 2 | 3 | 3 | 3 | |||
125VDC | 0.4 | 0.05 | 0.4 | 0.4 | 0.05 | |||
250VDC | 0.2 | 0.03 | 0.4 | 0.2 | 0.03 | |||
Characteristics
Rated value | 5A 125V, 3A 250VAC |
Operation speed | 1mm-2m/s |
Operating frequency | Mechanical: 120 operations/minute Electrical: 30 operations/minute |
Contact resistance | 15MΩ Max. (initial value) |
Insulation resistance | 100MΩ min. (at 500VDC) |
Dielectric strength | 1000VAC, 50/60Hz for 1 minute between terminals of the same polarity |
1500VAC. 50/60Hz for 1 minute between current-carrying and non-current-carrying metal parts | |
1500VAC, 50/60Hz for 1 minute between each terminal and ground | |
Vibration | 10-55Hz, 1.5mm double amplitude |
Shock | Mechanical durable: 1,000m/ Sec2 (about 100G’ S) Malfunction: 50m/ Sec2 (about 30G’ S) |
Ambient temperature | -10℃- 7℃ (with no icing) |
Humidity | 95% RH |
Life | Mechanical: 10000,000 operations above (under rated OT) Electrical: 200000 operations above |
Weight | Approx. 360g(cable length 3m) Approx. 540g(cable length 5m) |
Protection | IEC specification: IP67 |

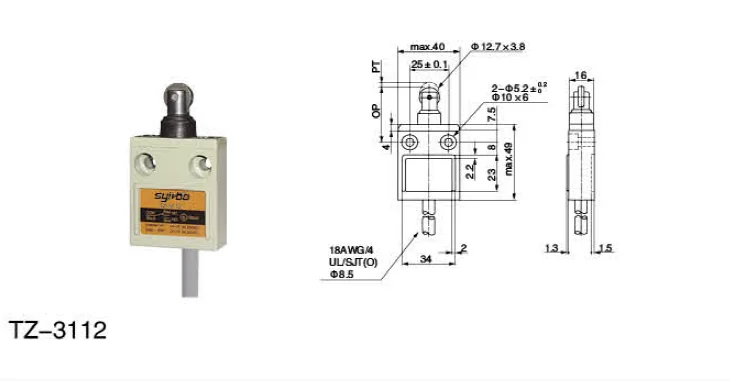

Operating Characteristics
Model | TZ-3110 | TZ-3111 | TZ-3112 | TZ-3113 | TZ-3169 |
OF(Max.) | 1200gf(11.77N) | 1800gf(17.65N) | 1800gf(17.65N) | 1800gf(17.65N) | 150gf(1.47N) |
RF(Min.) | 450gf(4.41N) | 450gf(4.41N) | 450gf(4.41N) | 450gf(4.41N) | - |
PT(Max.) | 1.8mm | 1.8mm | 1.8mm | 1.8mm | 15° |
OT(Min.) | 3mm | 3mm | 3mm | 3mm | - |
MD(Max.) | 0.2mm | 0.2mm | 0.2mm | 0.2mm | - |
OP | 28.5±mm | 24.9±mm | 34.3±mm | 34.3±mm | - |
Q: Are you a factory or trading company?
A: We are factory of limit switch, micro switch, foot switch and so on, welcome to visit our factory.
Q: How about your quality control?
A: All the products will be 100% inspected before shipping.
Q: Would you accept use our logo?
A: We can make OEM, ODM and customized specification.
Q: What is your delivery time?
A: Usually it takes 5 days, 15 days for bulk.
-
