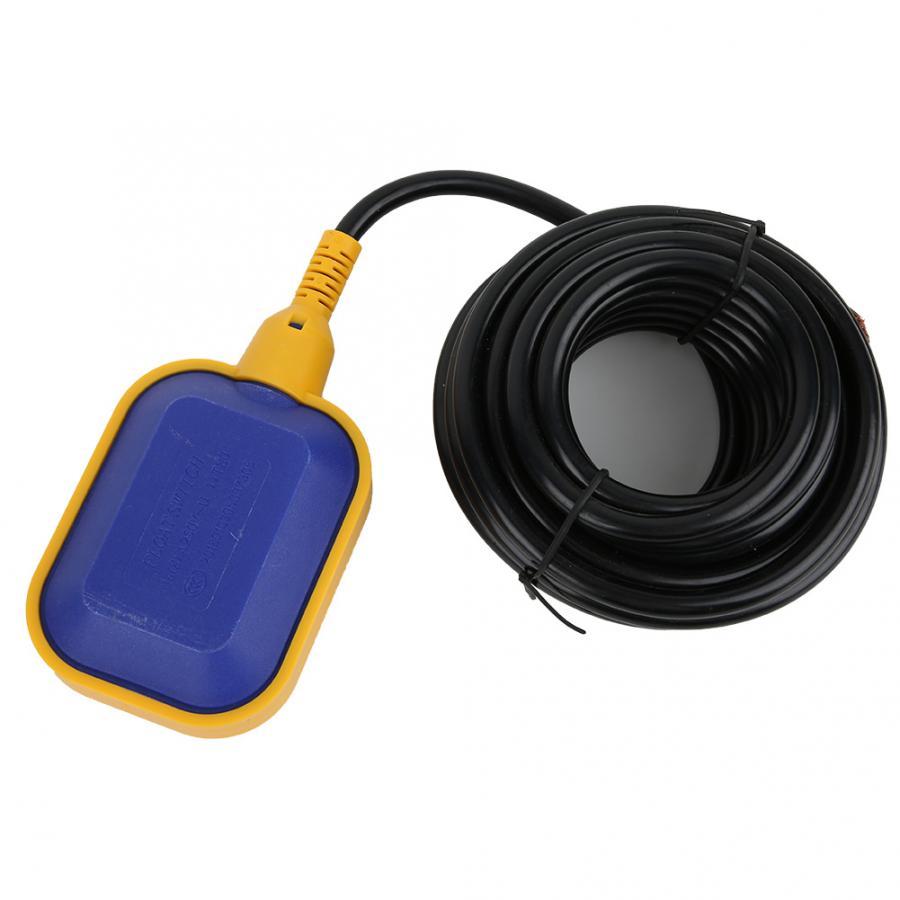

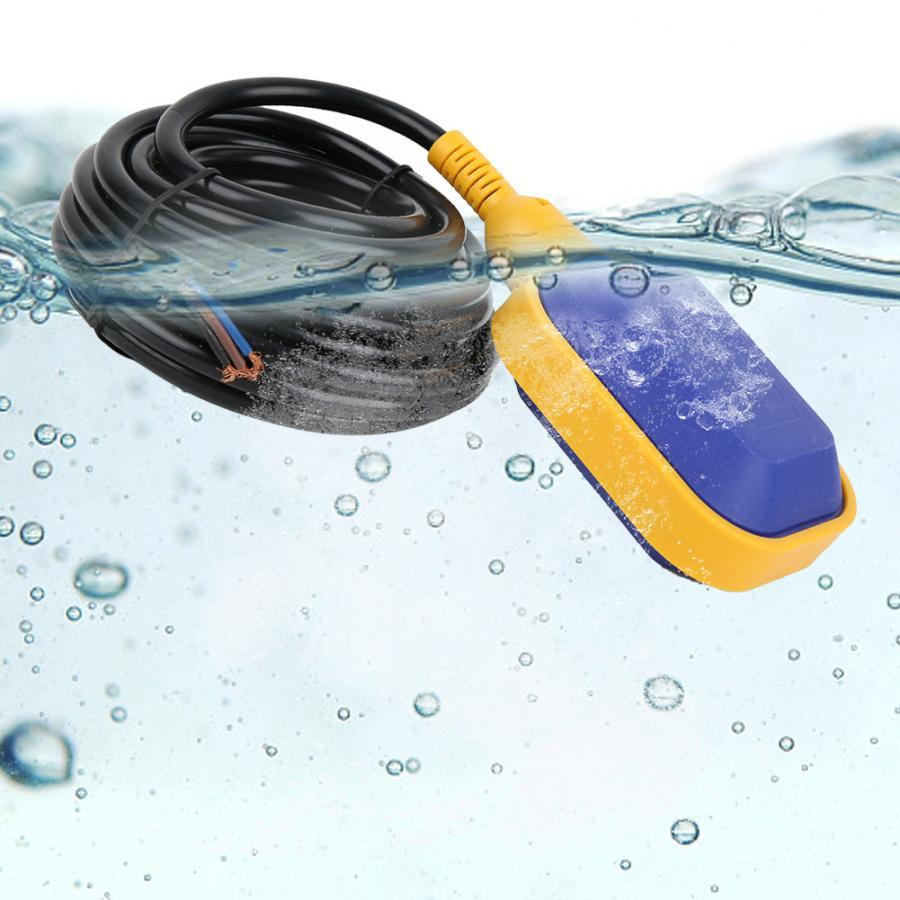

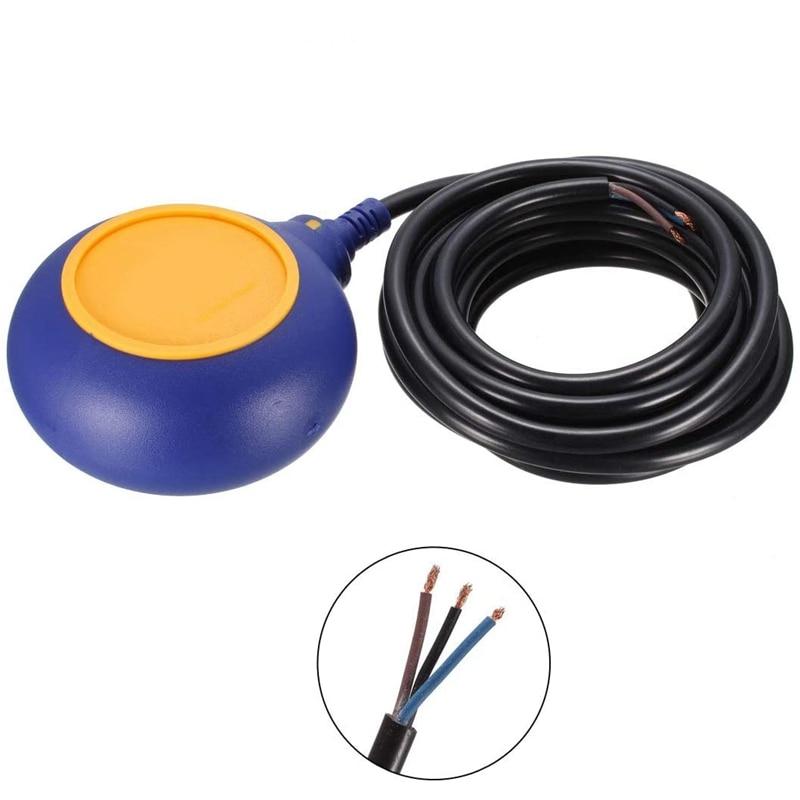

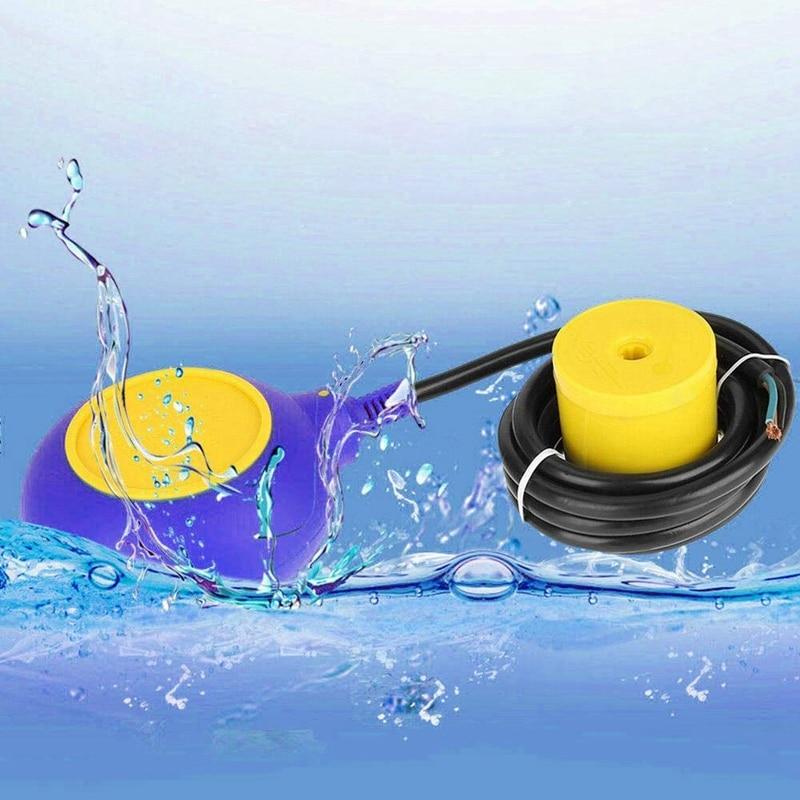

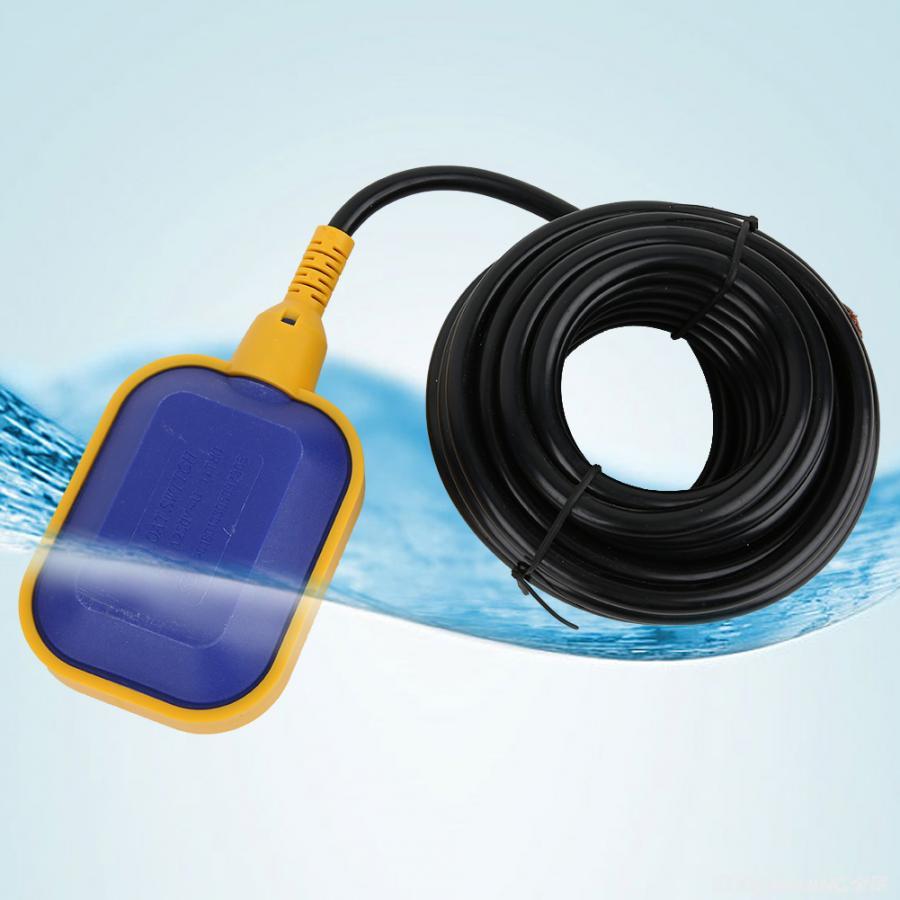

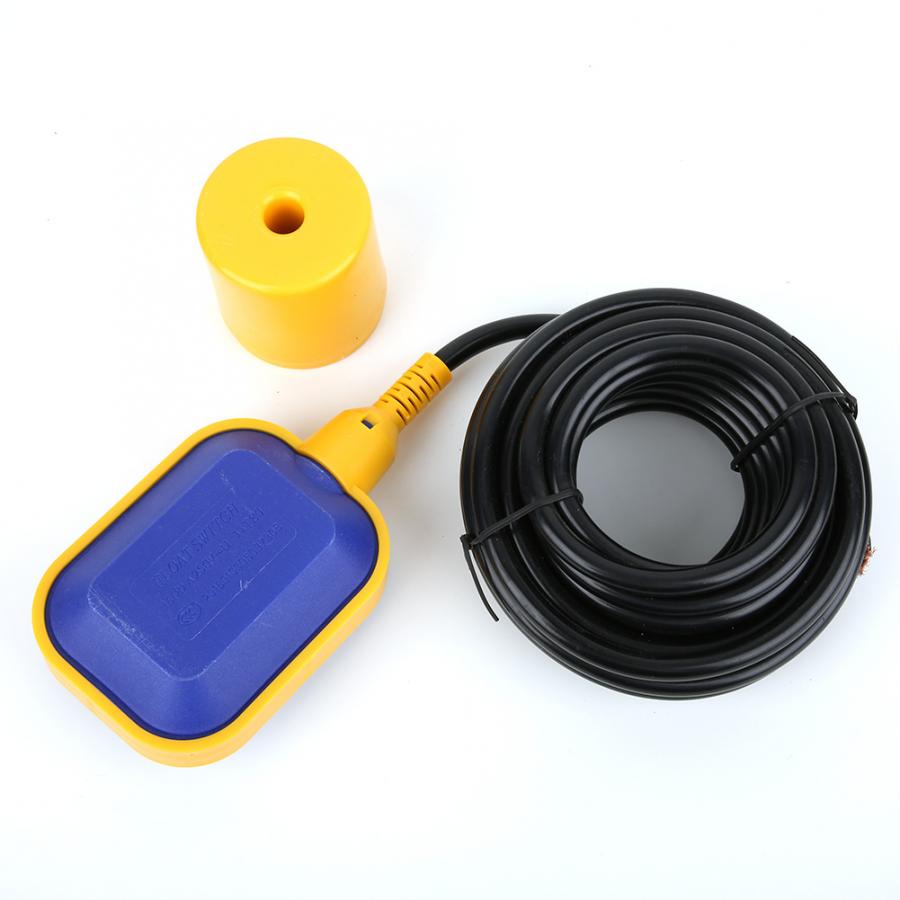

Cable float level switch for pool submersible pump

Supplier: Dongguan Fuen Electronics Co., Ltd.
Region: Guangdong, China
Contact: Ms Fion Zhou
Price: $2.00 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

payment terms:	Wire transfer, PayPal	Certification:	.
model:	FD-polypropylene	Supply capacity:	10000 pieces per week
Is it smart:	Yes	brand:	Faun
application:	liquid level sensor	Packaging Details:	Standard export packaging
maximum. current:	1.5A	type:	cable level switch
Origin:	Guangdong, China	Protection class:	IP67
Maximum power:	50W	Maximum voltage:	220V
Maximum touch current:	1.5A	Package preview:
Material:	Polypropylene	Certificate:	EU Directive
maximum. Voltage:	200VDC	Line length:	customizable
Name:	Float switch with cable	port:	Shenzhen or Guangzhou
Operating temperature:	-10~+85℃

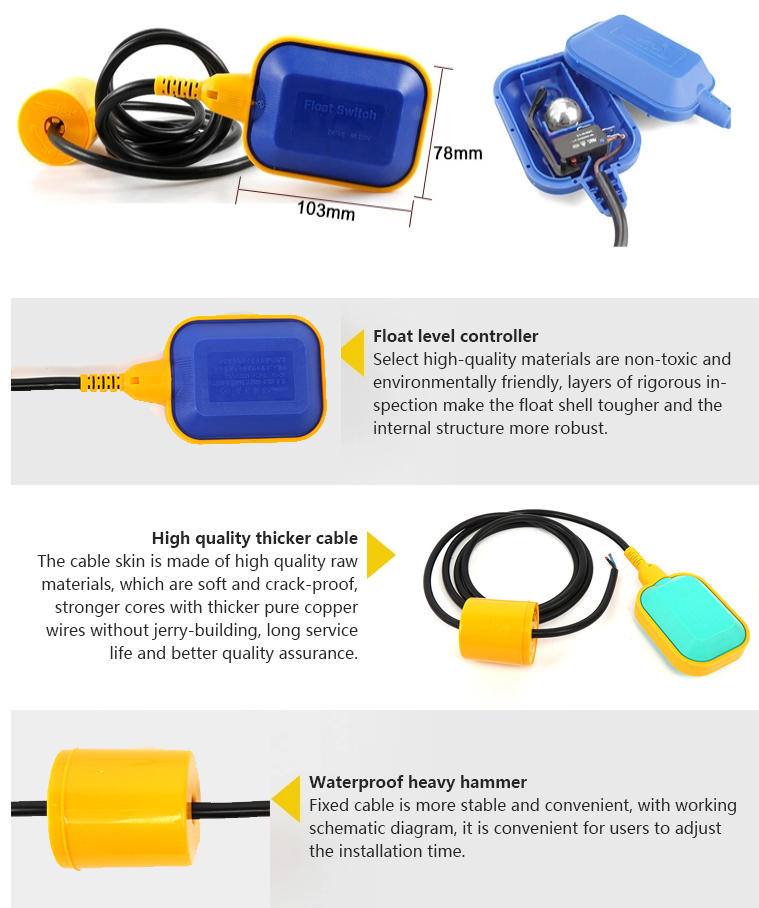

Product Description

product name	Cable float switch
Material	PVC/Rubber
size	Cable length: 1m, 2m, 3m, 4m, 5m or as your request, terminal/connector: as your request
application	Cable float switch is widely used in automatic alarm and control of liquid level in waste water and sewage treatment.
payment terms	T/T (30% deposit, balance before shipment); Western Union; PayPal. Trade Assurance
pack	Packed with bubble, then in carton

Product performance description

1. The user should select the appropriate switch according to the working temperature, pressure, gravity, and pH of the liquid to be tested.
Temperature: PVC maximum temperature 80°C, PP maximum temperature 80°C, PVDF maximum temperature 150°C, SUS304/316L
The maximum temperature is 200°C. Pressure: the maximum pressure resistance of plastic float is 5kg/cm2, the maximum pressure resistance of SUS304/316L
40kg/cm

2. Viscosity: For viscous liquids, it is best to use a float with a large diameter and low gravity to overcome the liquid surface
fluid tension. Acid-base liquid: Please choose PP or PVDF, if temperature. Above 80°C, PVDF ONLY alcohol and oil etc.
Liquid: Stainless steel SUS is recommended. For the food field, please choose food grade SUS316L. Gravity: The gravity SG of the float should be
less than the test liquid.
