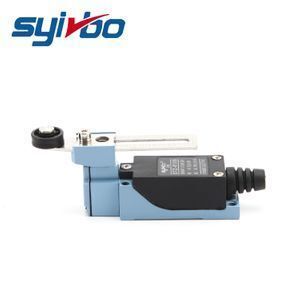

XINGBO Factory price High quality adjustable roller lever tz8108 limit switches/rotary limit switches

Product details
Operating Temperature:-5℃-+65℃;Brand Name:XINGBO;
Max. Current:10A;Max. Voltage:250VAC;
Place of Origin:China;Material:intensive plastic and zinc cast;
Gross weight per batch:1.98 KG;Model Number:TZ-8108;
Type:TZ-8 series;Selling Units:Multiple of 10;
Packaging Detail:Xingbo individual color box, 10pcs/inner box, 100pcs/master box, 21kgs/ctn;contact form:NO,NC;
Package size per batch:16.2X25.5X5.5 cm;Protection Level:IP65;
Circuit:Double circuit type;Inrush current:N.C:below 24A, N.O:below 12A;
Product Description

 Features:



Double circuit type of limit switch

Highly rigid construction, consists of zinc cast and intensive plastic

Small volume, water-proof and oil-proof construction

Built-in basic switch with double spring mechanism, longer mechanical life

Smooth operation with greater OT

Easy-to-wire circuit opening design

Wide variety of actuators, easily use



Characteristics

Operation speed

0.5mm-50cm/sec

Operating frequency

Mechanical: 120 operations/m, Electrical: 30 operations/m

Contact resistance

25mΩ max. (initial value)

Insulation resistance

100mΩ min. (Below 500VDC)

Dielectric strength

1000VAC, 50/60HZ for 1 minute between noncontinuious terminal



1500VAC, 50/60 HZ for 1 minute between load current

and no load current



1500VAC, 50/60 HZ for 1 minute between each terminal and ground

Vibration

10-55HZ,1.5mm double amplitude

Shock

Mechanical durability 1000m/ sec2 (about 100G'S)

Malfunction: 300m/ sec2 (about 30G'S)

Ambient temperature

-5℃ to +65℃

Humidity

<95% RH

Life

Mechanical: 10,000,000 operations above

Electrical: 500,000 operations above

Weight

About 130 to 190g

IEC

IP65



Ratings

+

Rated Voltage

Noninductive Load
(A)

Inductive Load
(A)

Resistance Load

Lamp Load

Inductive Load

Motor Load

NC

NO

NC

NO

NC

NO

NC

NO

125VAC
250VAC
500VAC

5
5

5
5

1.5
1

0.7
0.5

3
3

3
3

2
1.5

1
0.8

8VDC
14VDC
30VDC
125VDC
250VDC

5
5
5
0.4
0.2

5
5
5
0.4
0.2

3
3
3

3
3
3

5
4
4

4
4
4

3
3
3

3
3
3

Inrush Current

N.C: below 24A, N.O: below 12A



NOTES:
1.Inductive load has a power factor of 0.4 min.(AC) and a time constant of 7 msec.max.(DC).
2.Lamp load has an inrush current of 10 times the steady-state current,while motor load has
an inrush current of 6 times the steady-state current.



+


Models

TZ-8104

TZ-8108

TZ-8107

TZ-8111

TZ-8112/8122

TZ-8166/8167/8168/8169

OF Max.

750g

750g

750g

900g

900g

150g

RF Min.

100g

100g

100g

150g

150g

-

PT Max.

20º

20 º

20 º

1.5mm

1.5mm

30mm

OT Min.

50 º

50 º

50 º

4mm

4mm

-

MD Max.

12 º

12 º

12 º

1mm

1mm

-

OP

-

-

-

26 ± 0.8mm

37 ± 0.8mm

-
