Various torque 5-pin 4-speed juicer selector switch 15.1A 125V/250VAC rotary switch
-
Supplier: Dongguan Yanlun Electric Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Tracy Pan -
Price: $0.22 / >=500 pieces -
Min. Order: 500 pieces
Product details
| terminal: | Quick connect terminal | port: | Shenzhen |
| Certification: | UL, CE, CB, ROHS, CQC | Terminal material: | copper alloy |
| Place of origin: | Guangdong, China | Contact resistance: | <20mΩ |
| brand: | Baoke Town | Operating temperature: | 0~85 |
| Protection level: | IP20 | maximum. current: | 15.2A |
| Is it smart: | No | Packaging details: | 100 pieces/box with foam inside |
| model: | SC725 | maximum. Voltage: | 250V |
| Actuator: | flat button | Supply capacity: | 10,000 pieces per day |
| product name: | Rotary switch | shell material: | Nylon 66 |
| Contact material: | Silver or silver cadmium oxide | Protection type: | IP20 |
| payment terms: | Letter of credit, wire transfer, Alipay | Position: | 2/3/4/5/6/7/8 positions |
| Package preview: |
product description
Various torque 5-pin 4-speed juicer selector switch 15.1A 125V/250VAC rotary switch
Excellent rotary switch with long service life
for fans, portable heater, humidifier. The switch works well, is very easy to install and feels solid in the hand.
for fans, portable heater, humidifier. The switch works well, is very easy to install and feels solid in the hand.
Function overview
Model: SC725 rotary switch
* Electrical rating: 15.1A 125V/250VAC;
16(4)A 250VAC T125
*A variety of torques for you to choose from
*Multiple input and output functions
* Excellent steel spring supports sufficient contact force and ensures mechanical life
*Multiple functions, shells and terminals for you to choose from
* Rotary switch for fans, portable heaters, humidifiers. The switch works well, is very easy to install and feels solid in the hand.

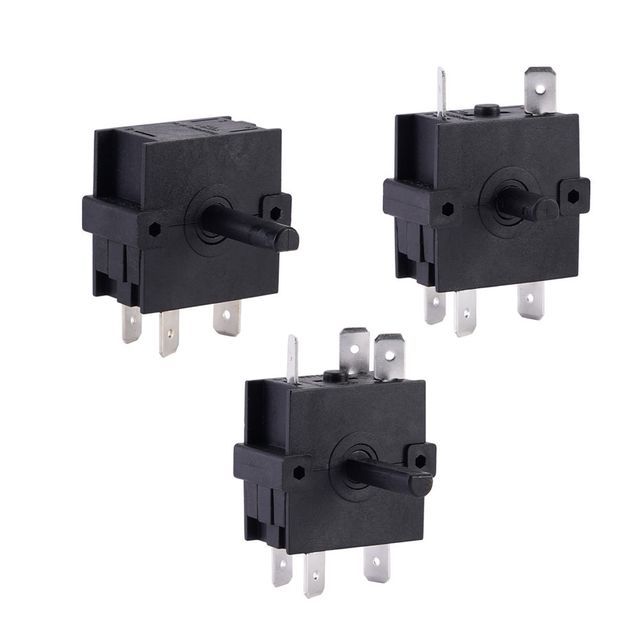

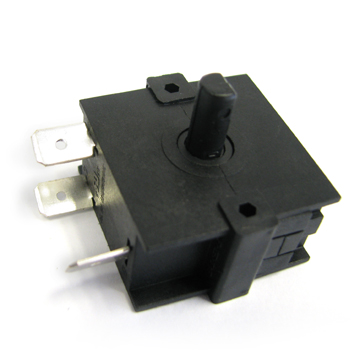

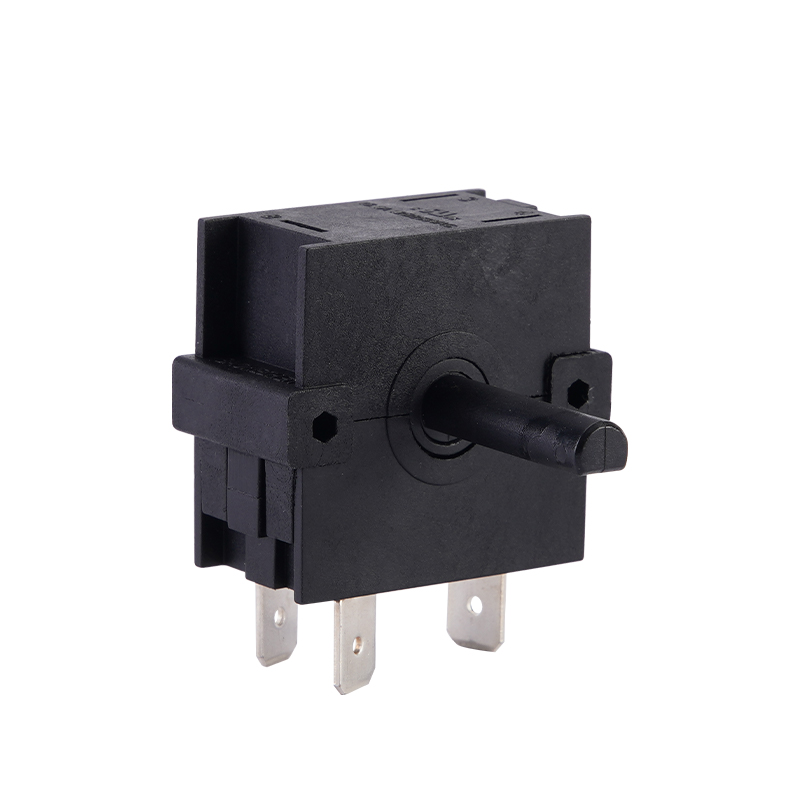

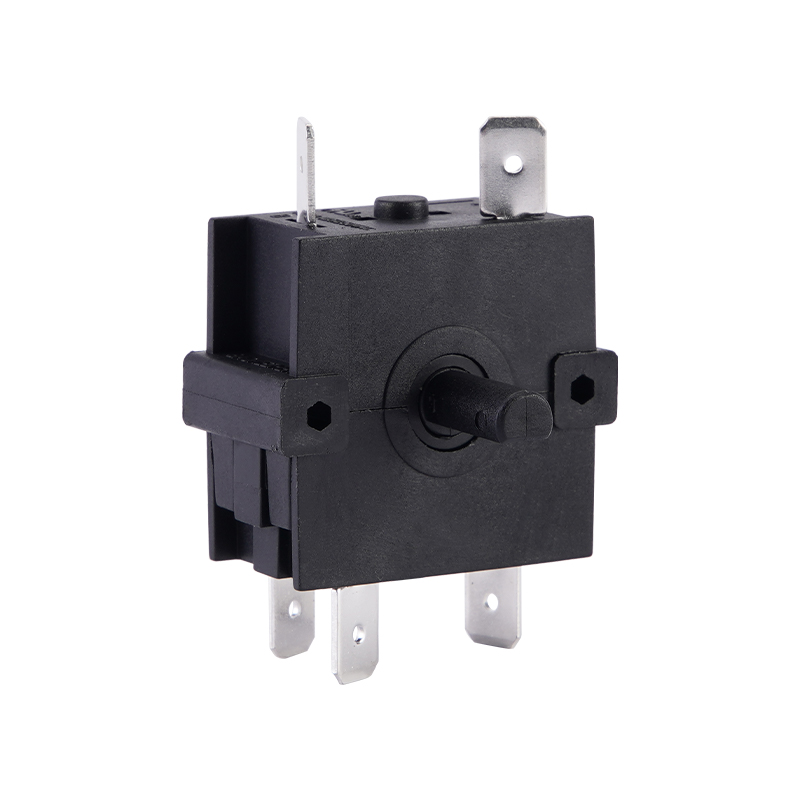

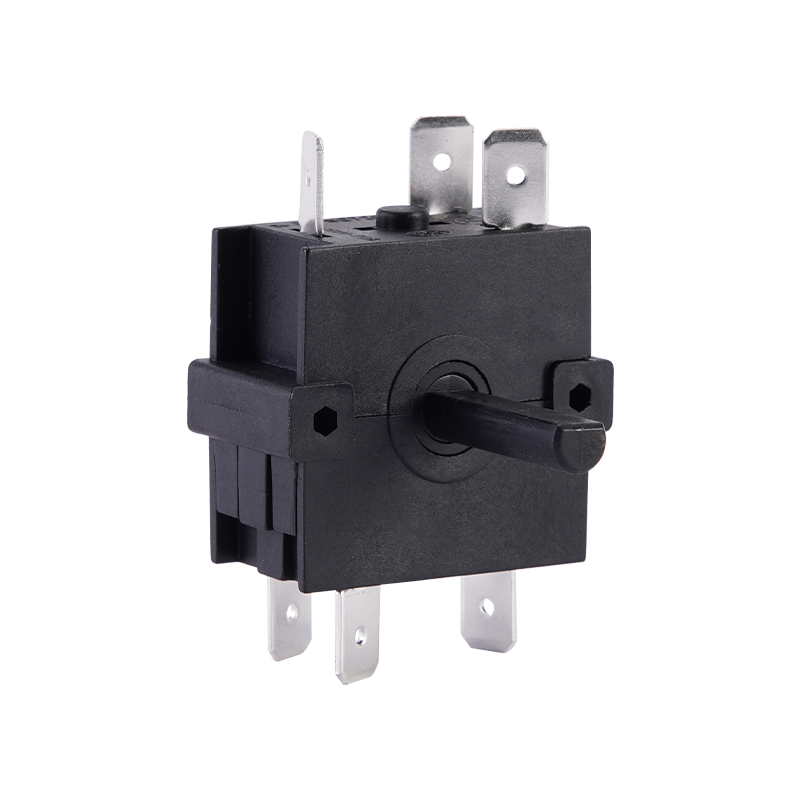

Rotary switch photo display

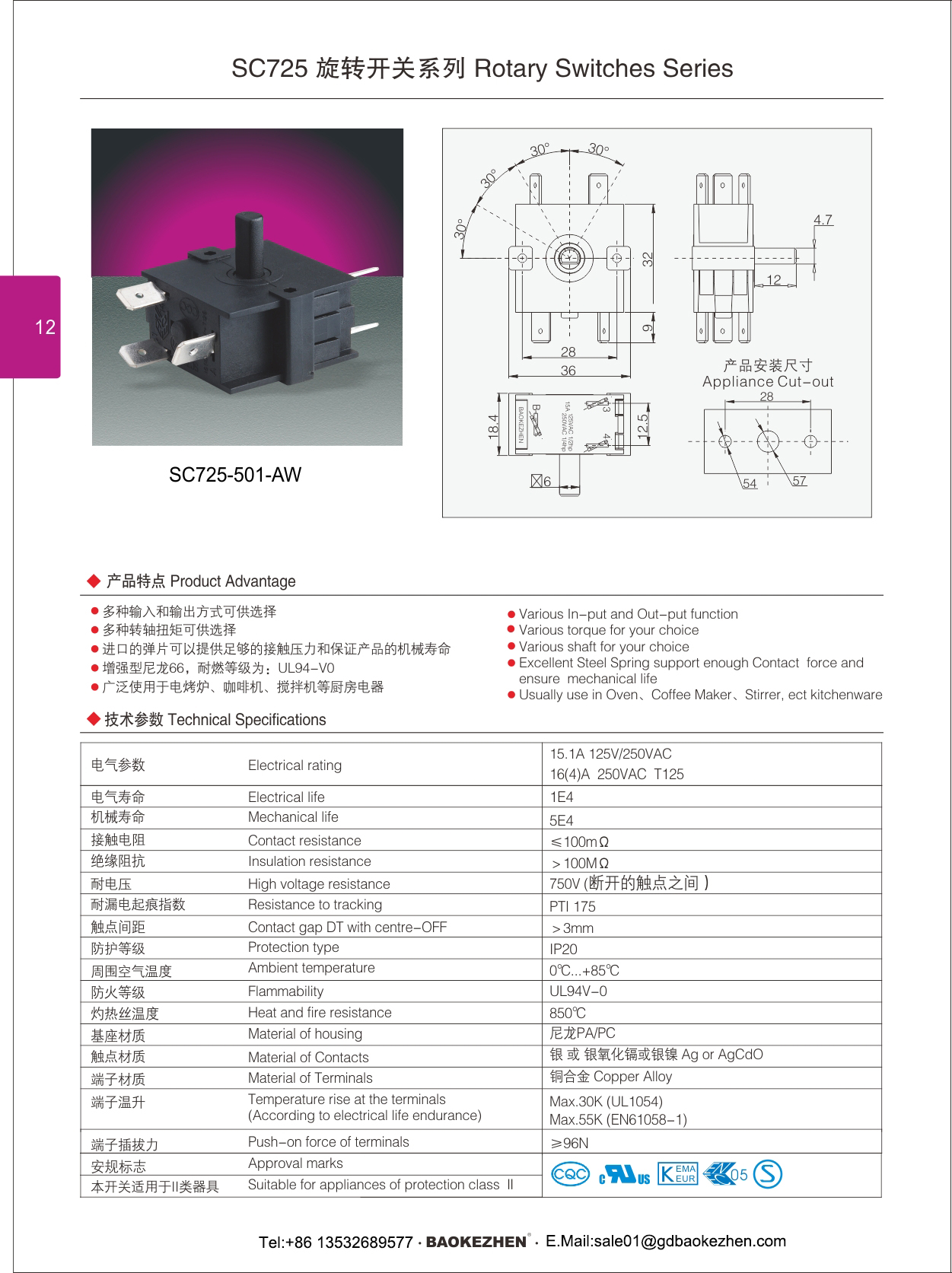

product specifications
No | thing | data |
1 | Electrical ratings | 15.1A 125V/250VAC; 16(4)A 250VAC T125 |
2 | Electrical life | 1E4 |
3 | Mechanical life | 5E4 |
4 | Contact resistance | <20mΩ |
5 | Insulation resistance | >100MΩ |
6 | High pressure | 1500VAC |
7 | Protection type | IP20 |
8 | Terminal material | copper alloy |

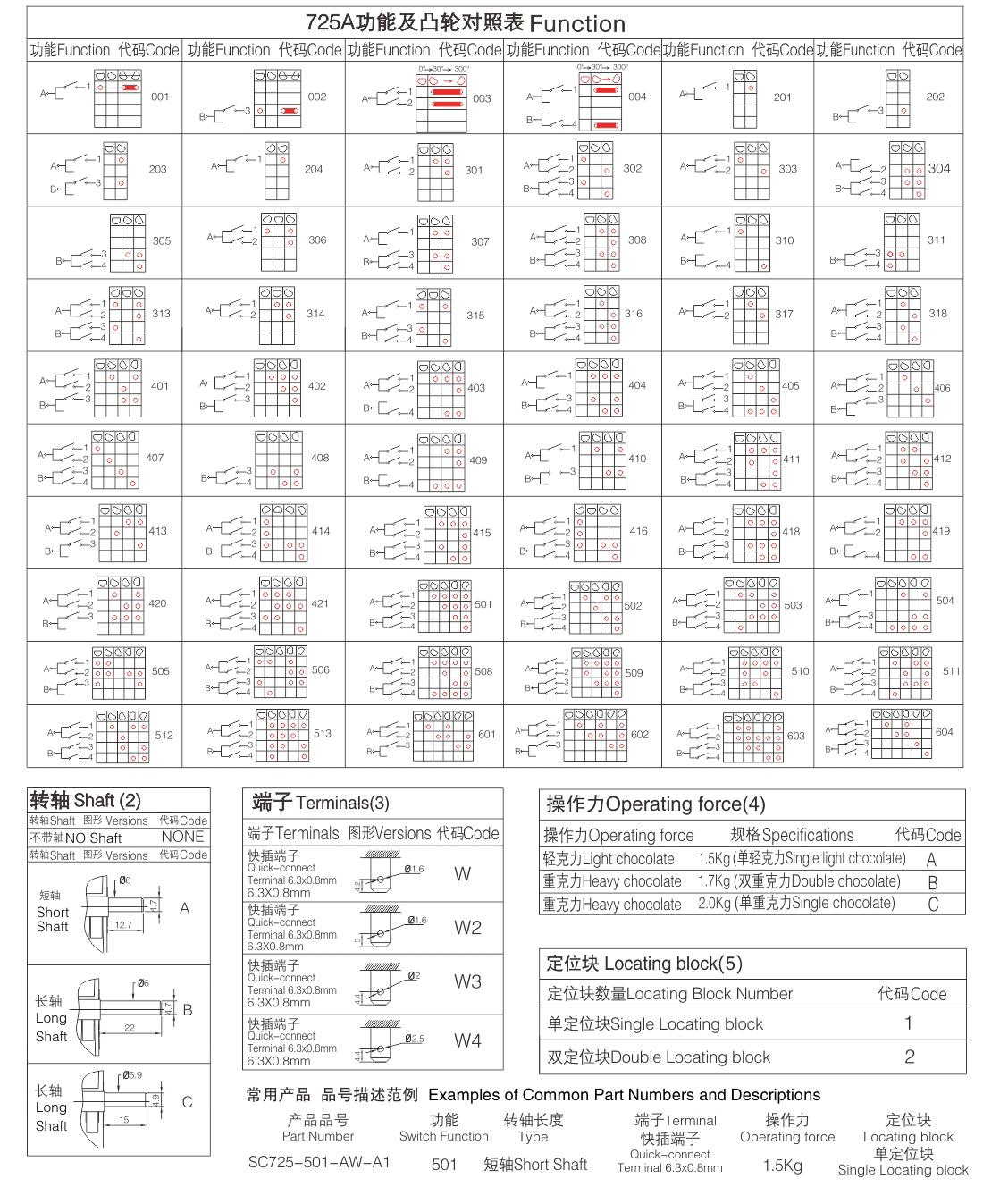

Product configuration
Sales and service network
pack:
Each rocker switch is properly placed in the box and protected by a cardboard box outside.
There are various transportation channels to choose from, such as air transportation, rail transportation, and sea transportation. Via UPS, ARAMEX, EMS, FEDEX, TNT, DHL, etc.
successful projects
Usually used in household appliances, kitchen and bathroom equipment, power tools, medical equipment, industrial instruments and other industries
