XURUI 10A 250VAC 6A 380VAC 1NO1NC waterproof roller lever plunger limit switch XZ-9503M

Supplier: Zhejiang Xurui Electronic Co., Ltd.
Region: Zhejiang, China
Contact: Ms Nancy Yang
Price: $3.50 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Mechanical Life:	1,000,000 times above;	Insulation resistance:	100mΩ (Above) DC500V;
Material:	zinc-formed housing;	Place of Origin:	Zhejiang China;
Operating speed:	5mm-0.5m/s;	Max. Voltage:	250VAC;
Packaging Detail:	100pcs/carton;	Certification:	CE,CCC;
Max. Current:	10A;	Electrical Life:	100,000 times above;
Contact:	1NO+1NC;	Payment Terms:	L/C,T/T,Western Union,PAYPAL;
Operating humidity:	<85%;	Operating Temperature:	-25-80C;
Certifications:	CE;	Contact resistance:	25mΩ initial value;
Protection Level:	IP65;	Model Number:	XZ-9503M;
Type:	winch limit switch;	Port:	Ningbo or Shanghai;
Package Preview:	;	Supply Ability:	1000 Piece/Pieces per Day;
Brand Name:	XURUI;

XURUI 10A 250VAC 6A 380VAC 1NO1NC waterproof roller lever winch limit switch XZ-9503M

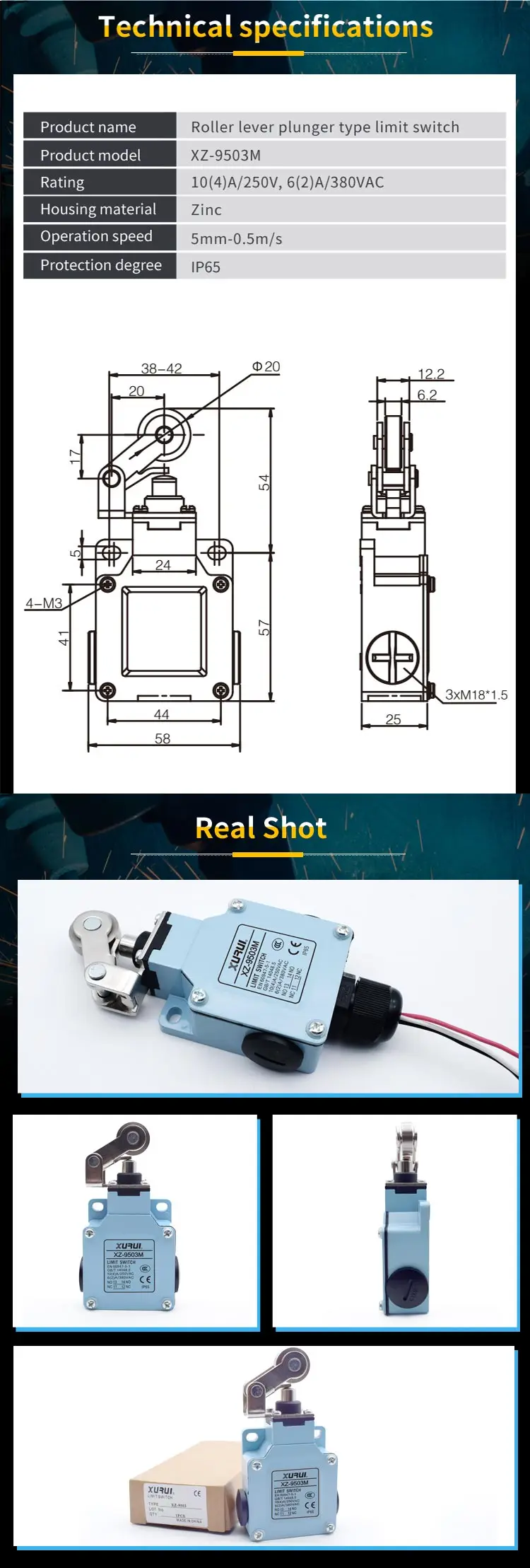

Item	Data
Rating load	10 (4) A /250VAC, 6 (2) A 380VAC
Operation speed	5mm-0.5m/s
Operation frequency	Mechanical 120times/min
Operation frequency	Electrical 30 times/min
Contact resistance	≤25mΩ initial value
Insulation resistance	≥100MΩ DC500V
Withration voltage	Non-connection wire 1000VAC
Withration voltage	Every terminal 1500VAC

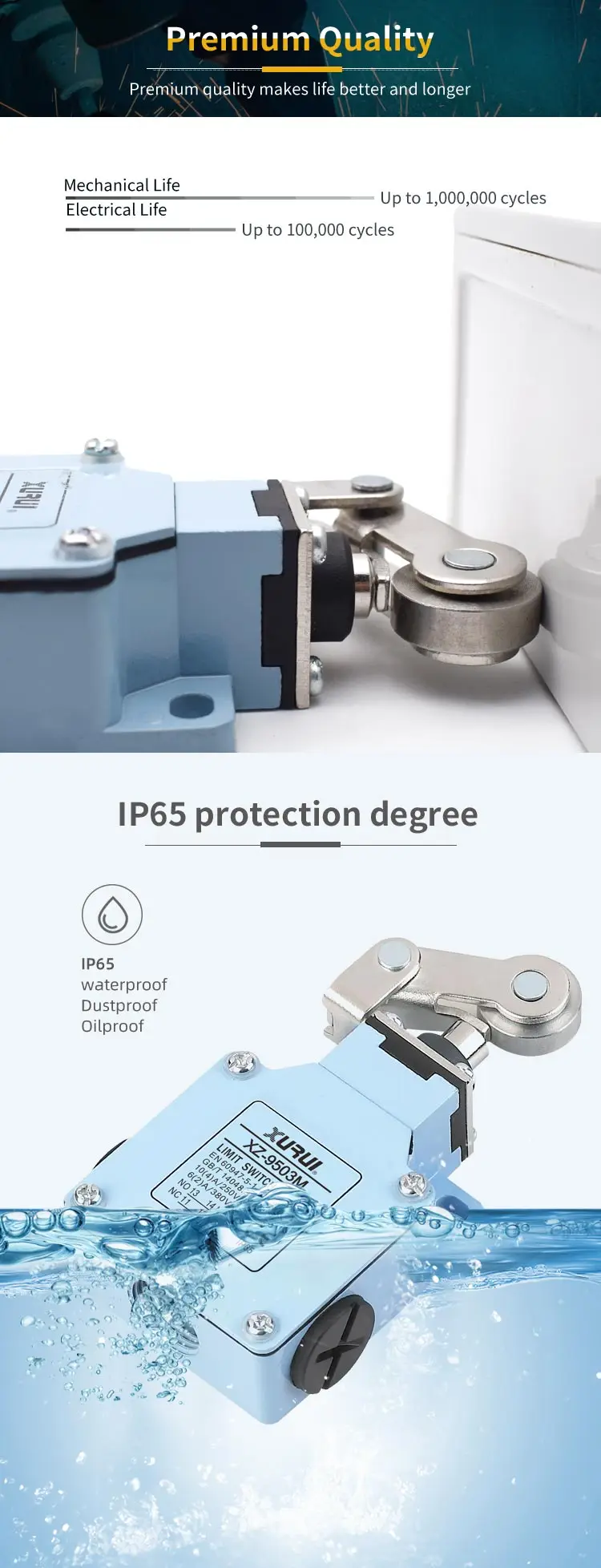

Operating life	Electrical 100,000 above
Operating life	Mechanical 1000,000 above
Protection degree	IP65
Operating temperature	-10°C-70°C
Operating humidity	≤85%

OF MAX	500g (4.9N)
RF MIN	80g(0.78N)
PT MAX	30°
OT MIN	70°
MD MAX	15°
TT	90°

About Us

XURUI Electronics Co., Ltd was established in 2002, which is mainly engaged in the research, production and marketing of micro switch, limit switch,solid state relay , foot switch, toggle switch, proximity switch etc.

XURUI products have made their way to countries and regions such as the United States, Germany, South Korea, Japan, Turkey, Blegium and Egypt. The company also established sales agents as well as customer service centers in the United States, Italy, South Korea, and Egypt.

The company was approved by ISO9001, and a number of the products are also certified by other certification authorities such as CCC(China), CE(European Union), TUV(Germany),UL(US), KC(South Korea), and RoHS etc. Currently, the company boasts over fifty national patents, four patented products, and fifteen provincial-level new products etc.
