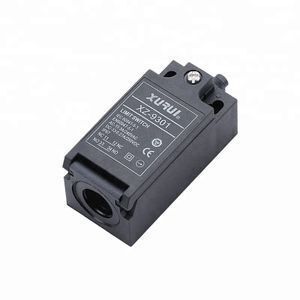

XURUI 1NO1NC push plunger schmersal limit switch 24v with TUV CE certifications

Supplier: Zhejiang Xurui Electronic Co., Ltd.
Region: Zhejiang, China
Contact: Ms Nancy Yang
Price: $2.50 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Port:	Ningbo or Shanghai;	Type:	schmersal limit switch;
Place of Origin:	Zhejiang China;	Operating Temperature:	-10-70C;
Contact Form:	1NC1NO;	Whether the smart:	No;
Certification:	TUV CE;	Certifications:	TUV and CE( EMC & LVD);
Max. Current:	10A;	Packaging Detail:	100pcs/carton;
Supply Ability:	1000 Piece/Pieces per Day;	Cable Gland:	M20*1.5;
Payment Terms:	L/C,T/T,paypal;	Body Material:	Plastic;
Electrical Life:	100,000 times above;	Mechanical Life:	1,000,000 times above;
Brand Name:	XURUI;	Package Preview:	;
Rating Load:	AC-15 3A 240VAC, 0.27A/250VDC;	Max. Voltage:	250VAC;
Protection Level:	IP65;	Model Number:	XZ-9301;

1NO1NC push plunger schmersal limit switch 24v

Characteristics:

Plastic case outer shell, strong structure and high mechanical strength;

Preventing oil and water;

Double way switch,double spring inner switch;

Variety of levers.

Widely used in mechanical equipment,automatic machine,and instrument,electro motion tool etc.

Contact Forms & Mounting Hole Dimensions:

Technical Specificatons:

Item		Data
Rating Load		AC-15 3A/240VAC 0.27A/250VDC
Operating speed		1mm-1m/s
Operating Frequency	Mechanical	120times/min
	Electrical	30 times/min
Insulation resistance		100MΩ Above DC500V
Contact resistance		25mΩ (Inditial Value)
Withstand voltage	Non-connection wire	1000VAC
	Every terminal	1500VAC
Vibration	Misoperation	10-55HZ Amplitude 1.5mm
Impact	Durable	1000m/s
	Misoperation	300m/s
Life	Electrical	100,000times above
	Mechanical	1,000,000times above
Protection degree		IP65
Operating temperature		-10-70°c
Operating humidity		‹85%

Product Structure:

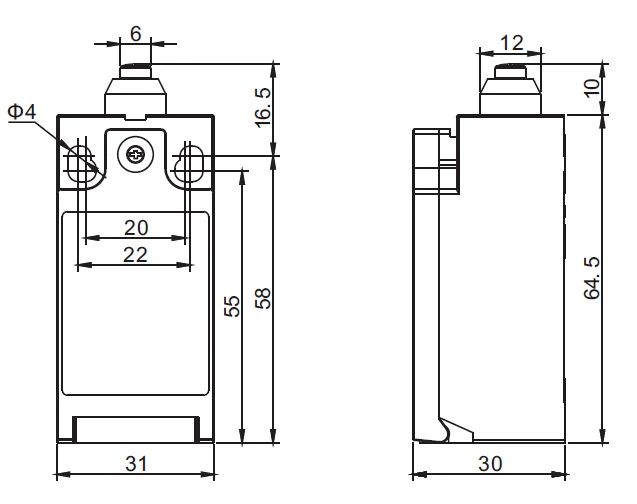

Dimensions & Operating Characteristics:

OF Max	660g (6.5N)
RF Min	150g(1.47N)
PT Max	2.2mm
OT Min	3mm
MD Max	1.2mm
TT	6mm
