CLS103R roller plunger reset limit switch for elevator

Supplier: Zhejiang Xurui Electronic Co., Ltd.
Region: Zhejiang, China
Contact: Ms Nancy Yang
Price: $2.00 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Max. Voltage:	250VAC/380VAC;	Contact Material:	Silver Contact;
Housing Material:	PA66 plastic;	Model Number:	XZ-9102R reset limit switch;
Mechanical life:	1,000,000 times above;	Payment Terms:	L/C,T/T,Western Union,Paypal;
Operating speed:	5mm-0.5m/s;	Protection Level:	IP65;
Certification:	CCC CE TUV Rohs;	Electrical life:	100,000 times above;
Supply Ability:	10000 Piece/Pieces per Day;	Lever Type:	Roller plunger type;
Packaging Detail:	Standard export carton.100pcs/carton 412924.5 the delivery date depend on your quantity,we have stock for it.;	Place of Origin:	Zhejiang China;
Type:	reset limit switch;	Contact Form:	1NO1NC;
Operating Temperature:	-10~70;	Max. Current:	10A;
Brand Name:	XURUI or OEM;	Port:	Ningbo or Shanghai;
Rating Load:	10A 250VAC / 6A 380VAC;

CLS103R roller plunger reset limit switch for elevator

Features:

Economic plastic outer shell,strong structure and high mechanical strength.

Preventing oil and water.

Double way switch, double spring inner switch.

Variety of levers.

Widely used in Mechanical equipment,automatic machine,and instrument,electro motion tool etc.

Technical Specifications:

Item	Data
Rating load	10 (4) A /250VAC, 6 (2) A 380VAC
Operation speed	5mm-0.5m/s
Operation frequency	Mechanical 120times/min
Operation frequency	Electrical 30 times/min
Contact resistance	≤25mΩ initial value
Insulation resistance	≥100MΩ DC500V
Withration voltage	Non-connection wire 1000VAC
Withration voltage	Every terminal 1500VAC
Operating life	Electrical 100,000 above
Operating life	Mechanical 1000,000 above
Protection degree	IP65
Operating temperature	-10°C-70°C
Operating humidity	≤85%

Contact Form & Mounting Hole Dimensions:

Product Structure:

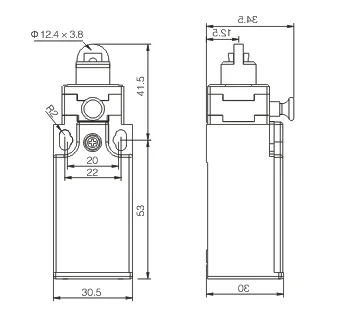

Outshape and Dimension Drawings:

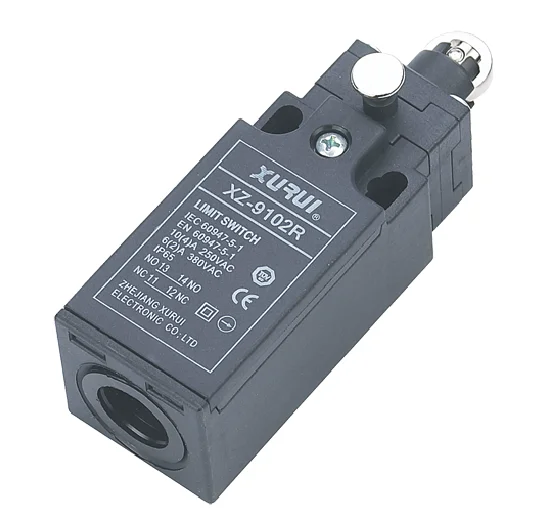

Roller plunger Model: XZ-9102R:

OF MAX	700g (6.86N)
RF MIN	180g(1.76N)
PT MAX	2.5MM
OT MIN	3MM
MD MAX	1.2MM
TT	5.8MM

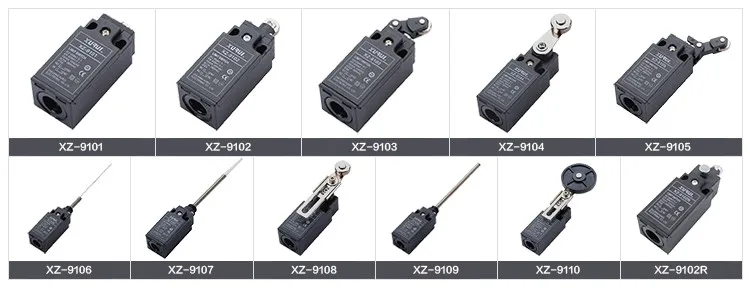

XZ9 Limit Switch Full Modes As Below:
