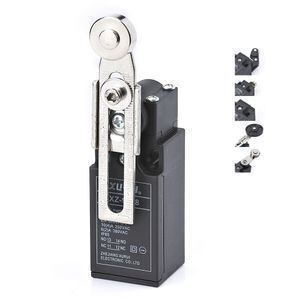

Adjustable roller arm type waterproof 12v limit switch

Supplier: Zhejiang Xurui Electronic Co., Ltd.
Region: Zhejiang, China
Contact: Ms Nancy Yang
Price: $1.90 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Mechanical life:	1,000,000 times above;	Operating Temperature:	-10~70;
Protection Level:	IP65;	Package Preview:	;
Model Number:	XZ-9108 12v limit switch;	Housing Material:	PA66 plastic;
Supply Ability:	10000 Piece/Pieces per Day;	Place of Origin:	Zhejiang China;
Operating speed:	5mm-0.5m/s;	Brand Name:	XURUI or OEM;
Electrical life:	100,000 times above;	Max. Voltage:	250VAC/380VAC;
Type:	12v limit switch;	Max. Current:	10A;
Certification:	CCC CE TUV Rohs;	Contact Form:	1NO1NC;
Rating Load:	10A 250VAC / 6A 380VAC;	Payment Terms:	L/C,T/T,Western Union,Paypal;
Packaging Detail:	Standard export carton.100pcs/carton 412924.5 the delivery date depend on your quantity,we have stock for it.;	Lever Type:	Adjustable roller arm type;
Port:	Ningbo or Shanghai;

Adjustable roller arm type waterproof 12v limit switch

Features:

Economic plastic outer shell,strong structure and high mechanical strength.

Preventing oil and water.

Double way switch, double spring inner switch.

Variety of levers.

Widely used in Mechanical equipment,automatic machine,and instrument,electro motion tool etc.

Technical Specifications:

Item	Data
Rating load	10 (4) A /250VAC, 6 (2) A 380VAC
Operation speed	5mm-0.5m/s
Operation frequency	Mechanical 120times/min
Operation frequency	Electrical 30 times/min
Contact resistance	≤25mΩ initial value
Insulation resistance	≥100MΩ DC500V
Withration voltage	Non-connection wire 1000VAC
Withration voltage	Every terminal 1500VAC
Operating life	Electrical 100,000 above
Operating life	Mechanical 1000,000 above
Protection degree	IP65
Operating temperature	-10°C-70°C
Operating humidity	≤85%

Contact Form & Mounting Hole Dimensions:

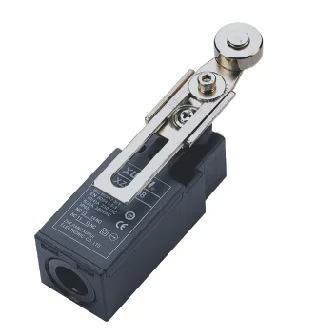

Product Structure:

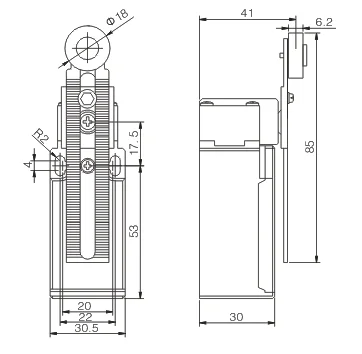

Outshape and Dimension Drawings:

Roller plunger Model: XZ-9108 Dimension

OF MAX	500g (4.9N)
RF MIN	80g(0.78N)
PT MAX	30°
OT MIN	70°
MD MAX	15°
TT	90°

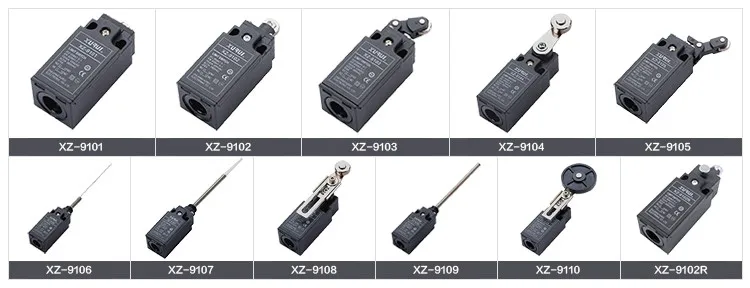

XZ9 Limit Switch Full Modes As Below:
