0.3-1.0mm steel coil galvanized fixed-length machine production line

Supplier: Cangzhou Zhongtuo International Trade Co., Ltd.
Region: Hebei, China
Contact: Mr Cary xu
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Leveling accuracy (±mm/m):	1±mm/m	use:	Efficient automatic cutting
weight:	3500	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
place of origin; place of origin:	Hebei china	Name:	0.3-1.0mm steel coil galvanized fixed-length machine production line
Cutting speed (m/min):	1 - 20 m/min	rated power:	13kW
Material thickness (mm):	0.3 - 1 mm	Cutting accuracy:	+/-1mm/2m
Coil Weight (T):	5-10	Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump
width:	1250mm or according to customer requirements	Core Components Warranty:	1 year
Supply capacity:	30 sets per month	Auto level:	Fully automatic machine
color:	Green or as customer's request	Packaging Details:	1. One 20ft or 40ft container loads one machine. 2. Apply anti-rust oil and foam film to cover the PLC controller. 3. Spare parts and some small parts are packed in a plastic tool box. 4. All parts of the roll forming machine are fixed with steel wire.
Health status:	new	pack:	container independent
Packaging Preview:		Video external inspection:	if
Applicable industries:	Construction engineering, building materials store, manufacturing plant	Coil Material:	GI,PPGI,GL,SS
Warranty:	One year, lifetime technical support, 1 year	Main selling point:	automatic
Dimensions (LWH):	as design	Showroom location:	India
thickness:	0.3-1.0mm or according to customer requirements	port:	Tianjing, China
Mechanical test report:	if	Cutting width (mm):	1 - 100000 mm
Marketing Type:	normal product	year:	2022
Voltage:	380V, 50Hz, 3Ph (or upon request)	brand:	ZTRFM

Product Description

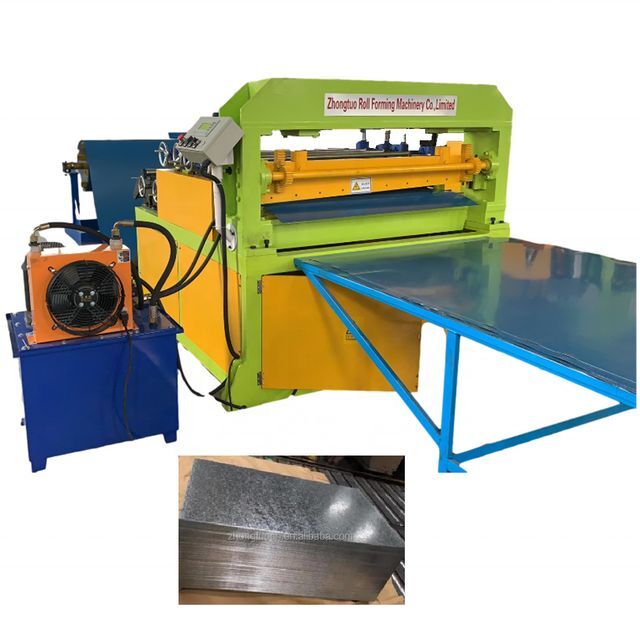

0.3-1.0mm steel coil galvanized fixed-length machine production line

brief introduction:

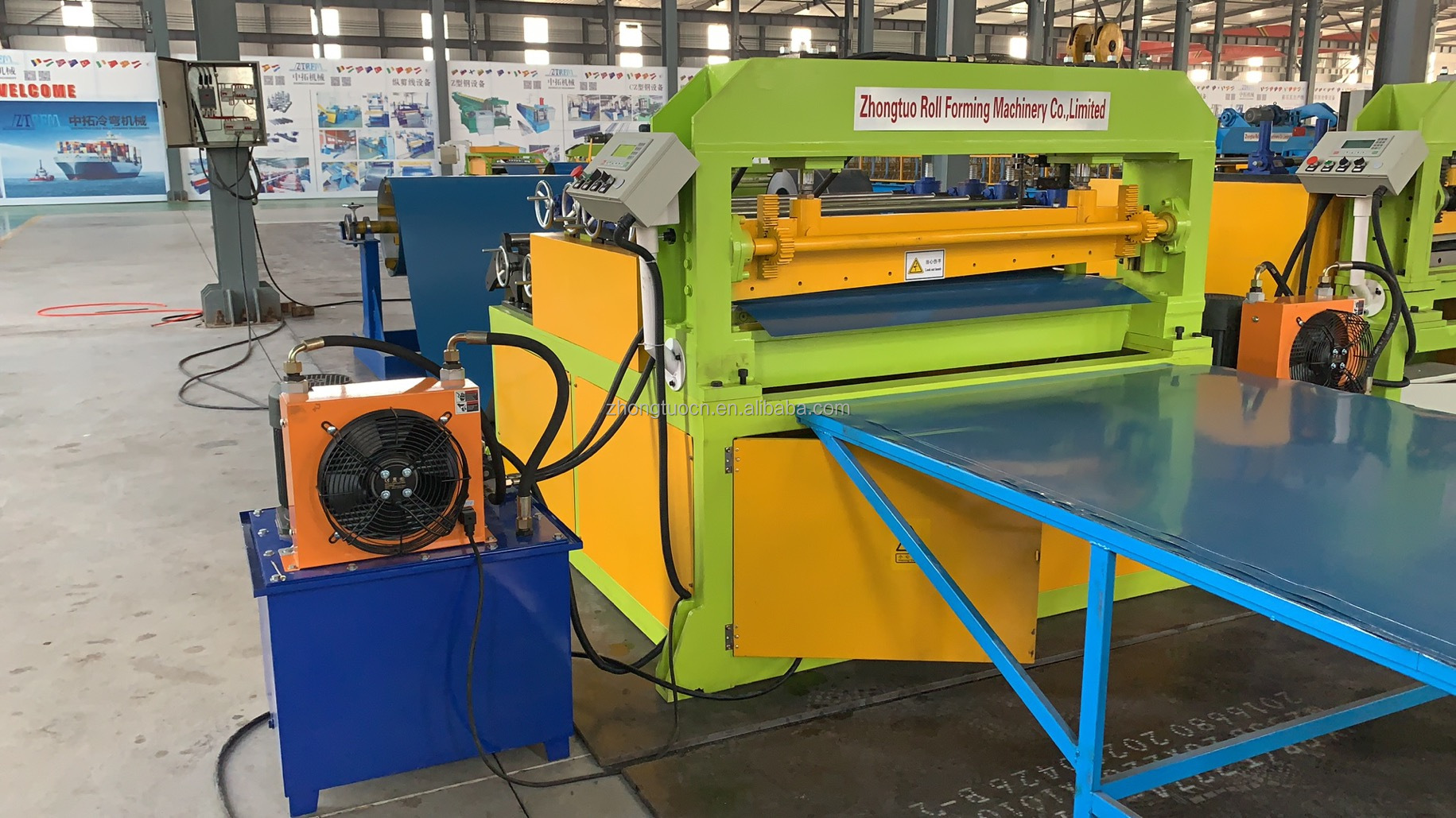

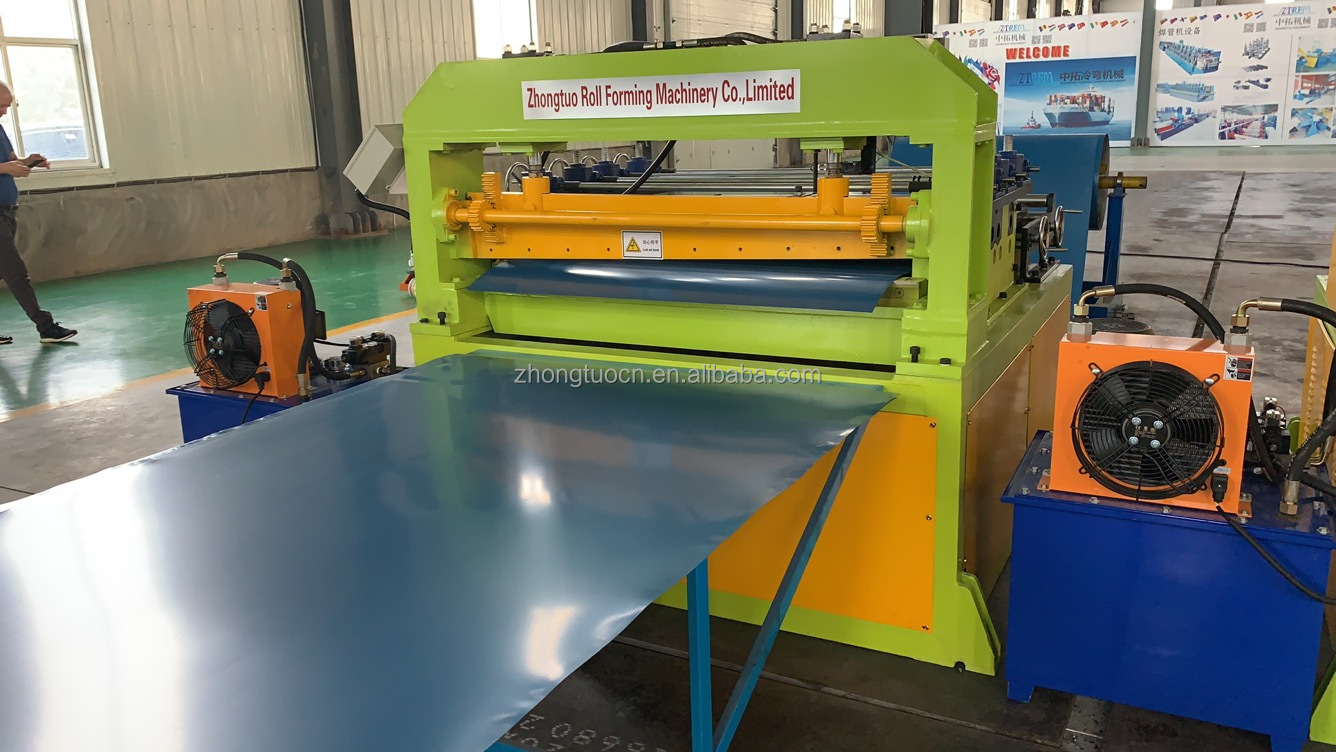

ZT-1*1250 sizing machine is mainly used for uncoiling, leveling and shearing of steel coils to prepare for the next process.

Material Information:

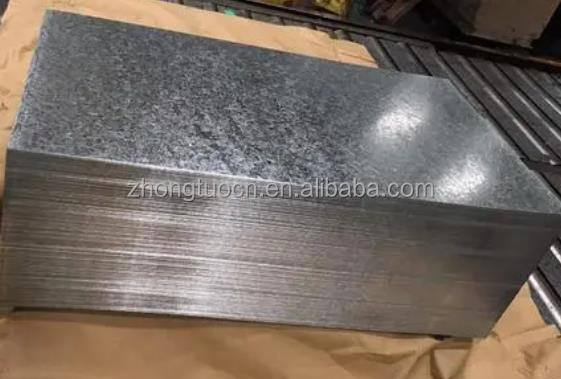

1. Raw materials: galvanized steel, color-coated steel coil, galvanized, stainless steel coil

2. Material thickness: 0.2-1.0mm
3. Material width: 1250/1500mm (or according to customer requirements)

0.3-1.0mm steel coil galvanized fixed-length machine production line

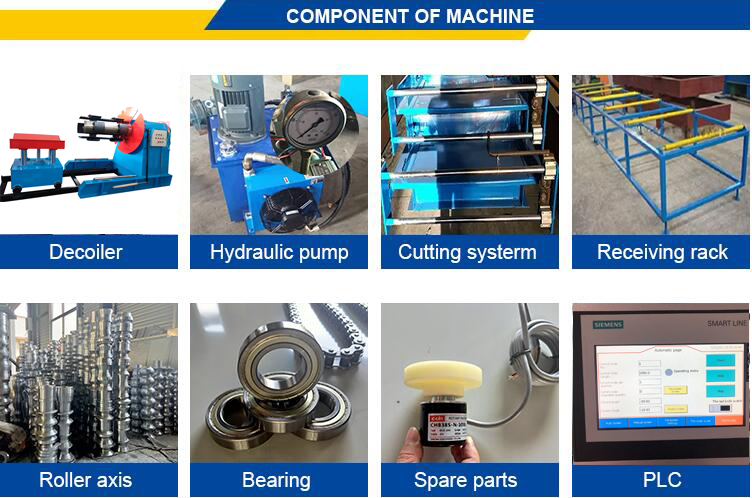

1. Molding material	PPGI, GI, AI		Thickness: 0.2-1.0mm Width: 1000mm/1250mm (customized)

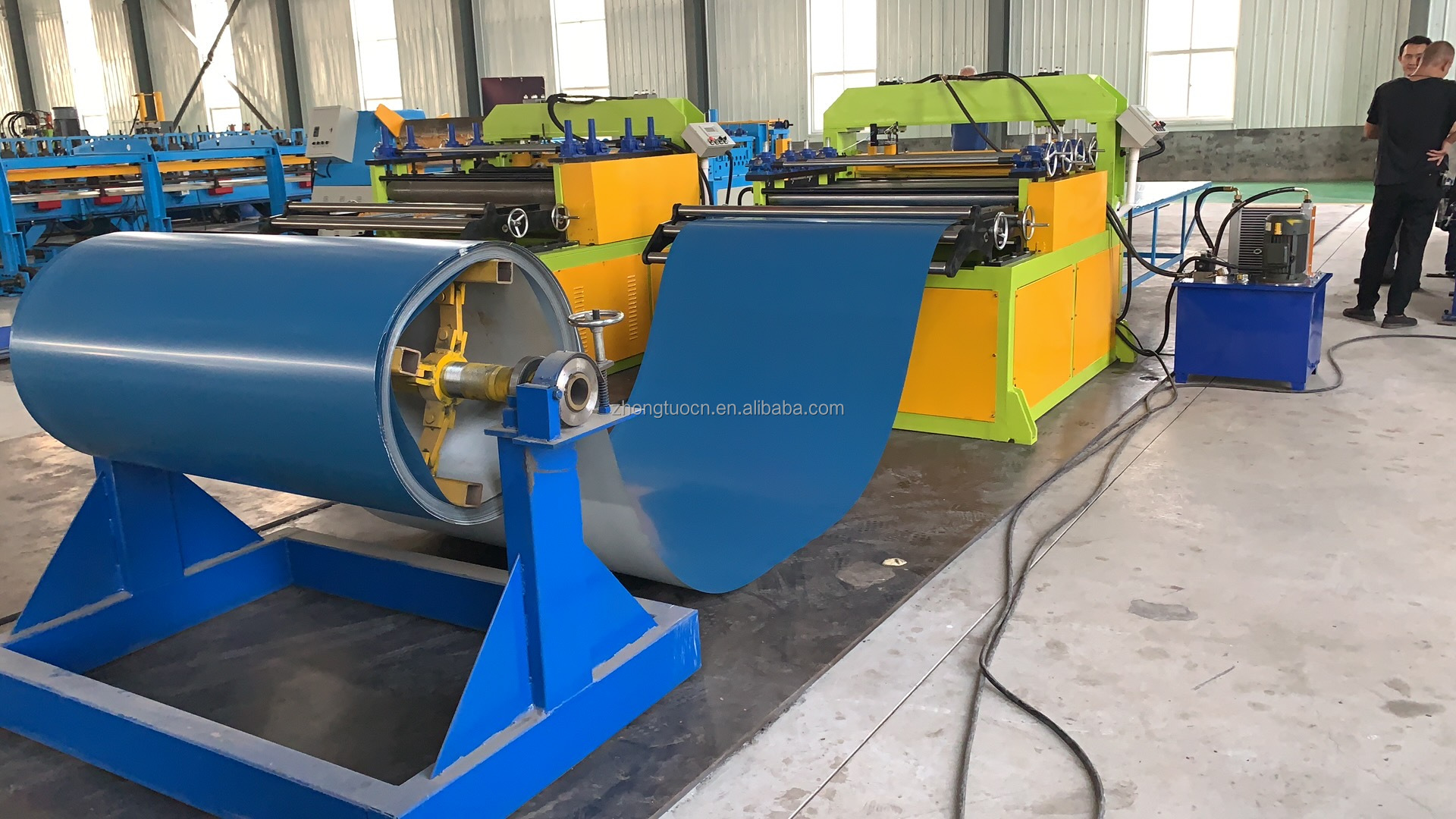

2. Uncoiler	Hydraulic automatic uncoiler		Manual uncoiler (free gift) Capacity: 5 tons or according to customer requirements

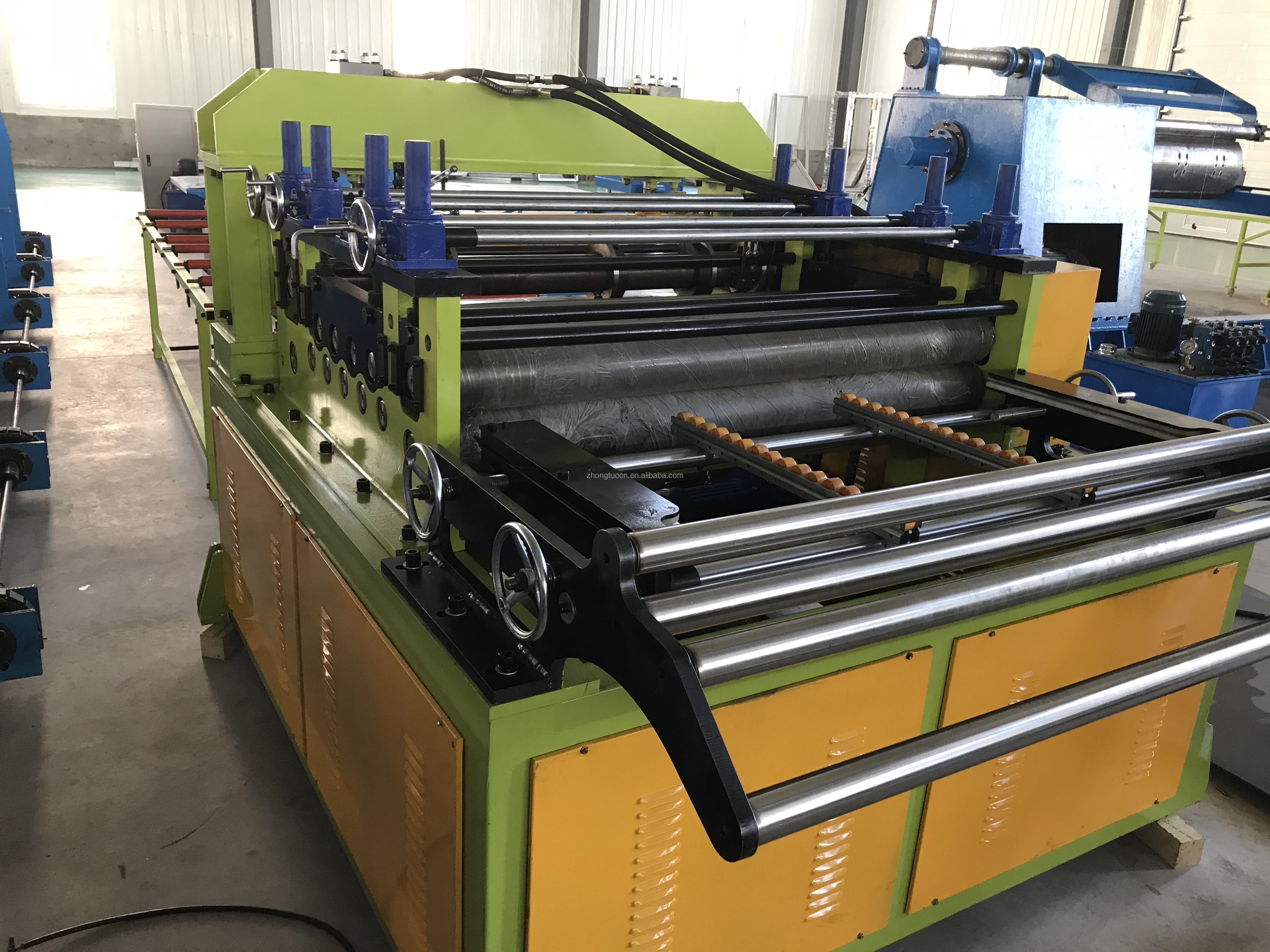

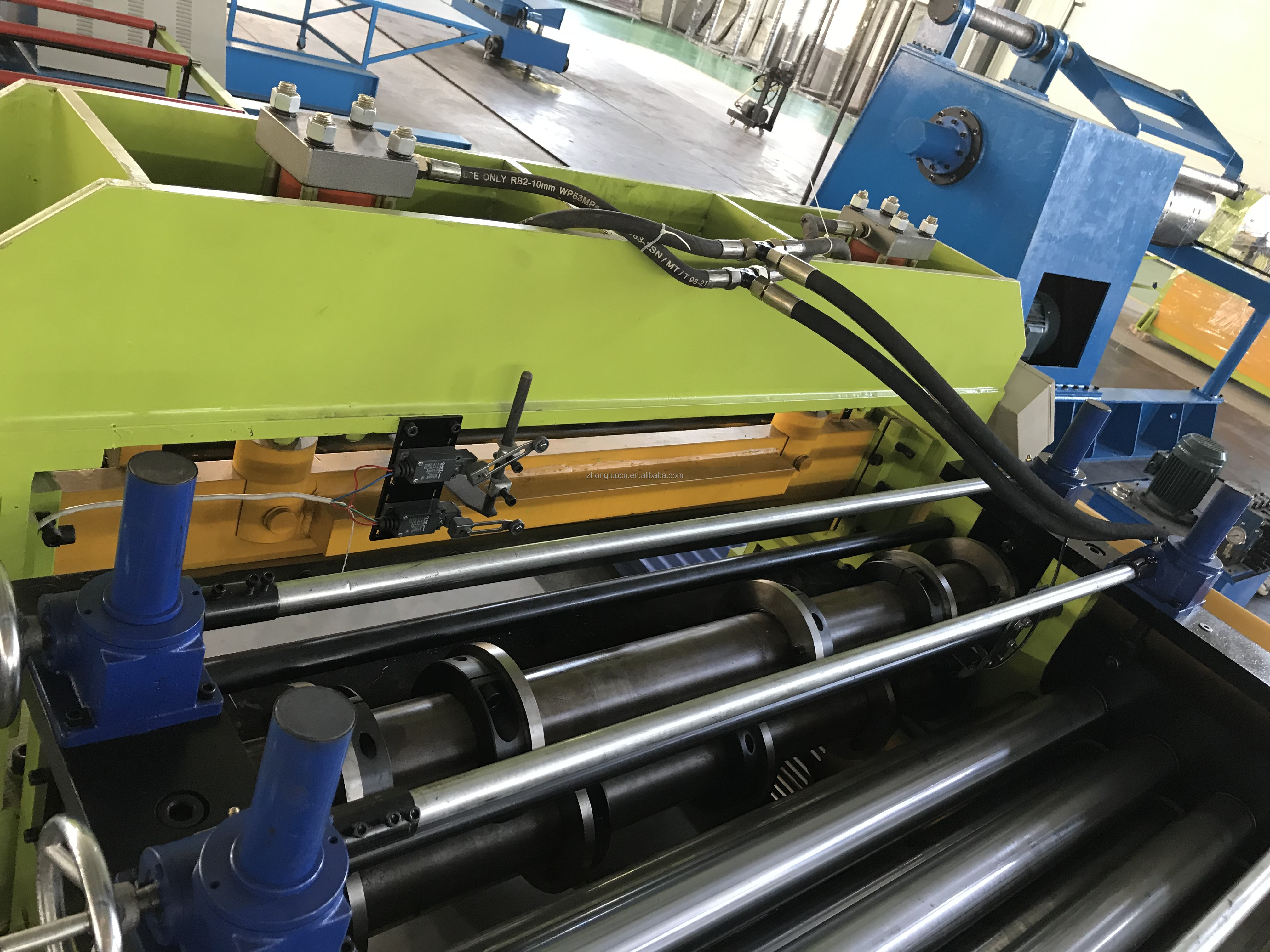

3. Straightening machine/straightening machine	leveling roller		11, with a pair of feeding rollers on the top 5 and the bottom 6
		Shaft diameter		70mm solid shaft
		Roller material		45# steel quenching treatment
		fuselage frame		Square tube welding
		drive		gear drive
		Size (LWH)		230016001600 (customized)
		weight		2.5T
4. Cutter	automatic		cr12mov material, no scratches, no deformation
5. Power	Motor Power		4KW
		Hydraulic system power		3KW
6. Voltage	380V 50Hz three-phase		according to your request
7. Control system	Electric box		Customized (well-known brands)
		language		English (multiple languages supported)
		programmable logic controller		Automatic production of the whole machine. Batch, length, quantity, etc. can be set.
18. Forming speed	0-15m/min		Speed depends on cut length
