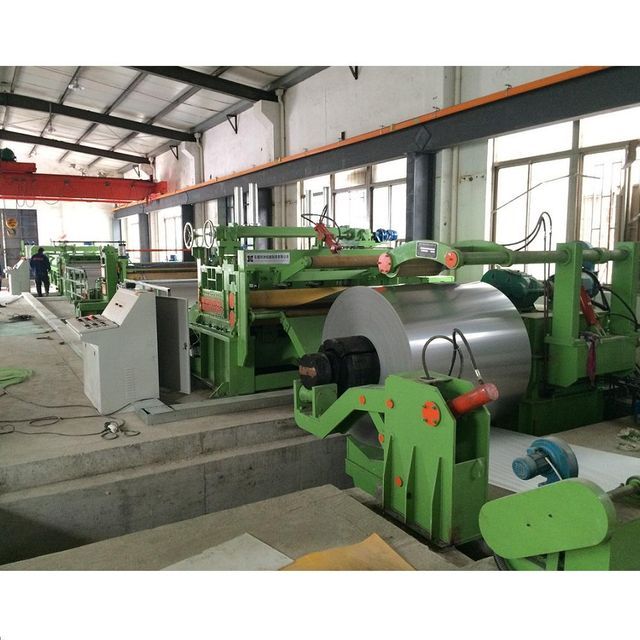

High speed aluminum coil cutting machine hr coil cutting machine

Supplier: Wuxi Bangzhou Machinery Manufacturing Co., Ltd.
Region: Jiangsu, China
Contact: Mr DAVID SHEN
Price: $141000.00 / 1 - 2 sets
$140000.00 / 3 - 4 sets
$139000.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Dimensions (lengthwidthheight):	23M8M2.2M	Material:	aluminum
Coil weight (T):	20	type:	Fully automatic
Supply capacity:	2 high-speed stainless steel coil slitting machines per quarter	Package preview:
brand:	benzalkonium	port:	Shanghai
weight:	35	Core component warranty:	1 year
Name:	cut	Control System:	PLC (Delta brand)
payment terms:	Letter of credit, wire transfer	Voltage:	380V
Function:	Steel coil processing	Warranty:	1 year
Video outbound inspection:	if	Cutting method:	automatic cutting
Cutting speed (m/min):	10 - 60 m/min	Year:	2023
Applicable industries:	Construction projects, building materials stores, manufacturing plants	Place of origin:	Jiangsu, China
Automatic level:	Automata	usage:	Automatic control operation
Main selling points:	High accuracy	rated power:	80kW
Material thickness (mm):	0.2 - 2 mm	Cutting width (mm):	500 - 1600mm
application:	cutting coil	Leveling accuracy (±mm/m):	1±mm/m
Packaging details:	High-speed slitting machine stainless steel coil suitable for shipping packaging	Health status:	new
Marketing type:	New products for 2023	Showroom location:	Egypt, Vietnam, Philippines, Saudi Arabia, Indonesia, India, Mexico, Russia, Thailand, Algeria, Bangladesh, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan, Malaysia
product name:	Automatic cut-to-length line	Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump
Mechanical test report:	if

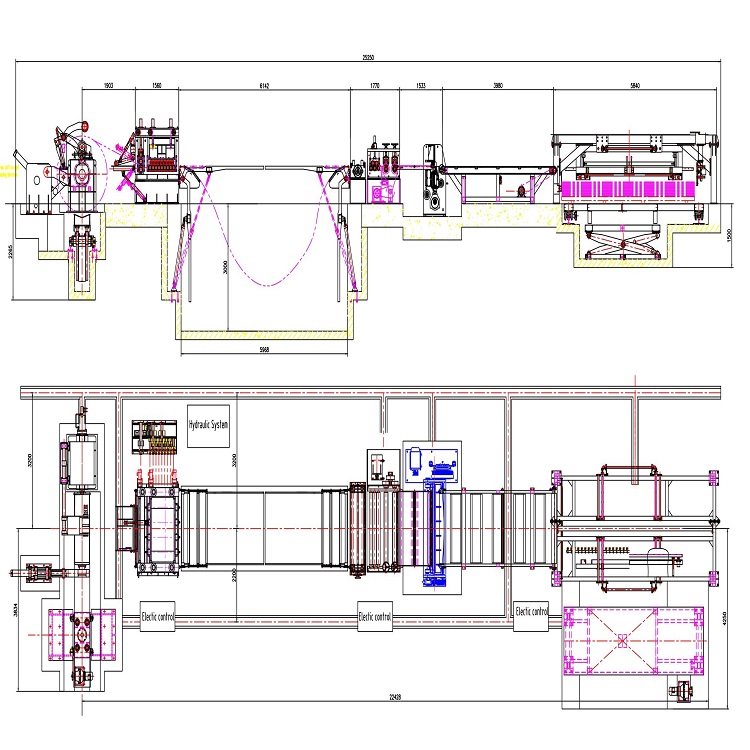

Fixed length cutting line layout

From left to right: Coiling trolley + uncoiler - compression clamping device + leveling machine - looper + suspension bridge - side guide device + servo straightener - high-speed cutter - transition table - pneumatic piling device + X-shaped lifting platform + export pallet truck-hydraulic and electrical control system

Technical Parameters

thing		Specification
raw material	Material properties	CR, GI, PPGI
	thickness	0.3mm—3.0mm
	width	500mm-1600mm
	outer diameter	Φ1000mm—Φ1800mm
	ID	φ508mm
	Coil weight	Maximum 20 tons
finished product	cutting length	500mm-4000mm
finished product	Cutting tolerance:	±0.5mm (length tolerance) ±1.0mm (diagonal tolerance) Comply with GB/T709-88 standard
Leveling speed		0—60m/minute
Maximum cutting thickness		3mm
Centerline of line (to ground)		800mm

Other machine model dimensions

Thin steel high-speed cross-cutting machine
Model	Board thickness (mm)	Coil width (mm)	Leveling accuracy (mm)	Tolerance (mm/m)	Line speed (m/min)	Roll weight(t)
2*750	0.3-2	200-750	1	±0.5	60	5,10
2*1000	0.3-2	300-1000	1	±0.5	60	5,10
2*1250	0.3-2	400-1250	1	±0.5	60	10,15
2*1600	0.3-2	500-1600	1	±0.5	60	15,20
3*1600	0.4-3	500-1600	1	±0.5	60	3,5
4*1600	0.5-4	400-1600	1.2	±0.5	60	10,15
4*2000	0.5-4	800-2000	1.2	±0.5	60	15,20
