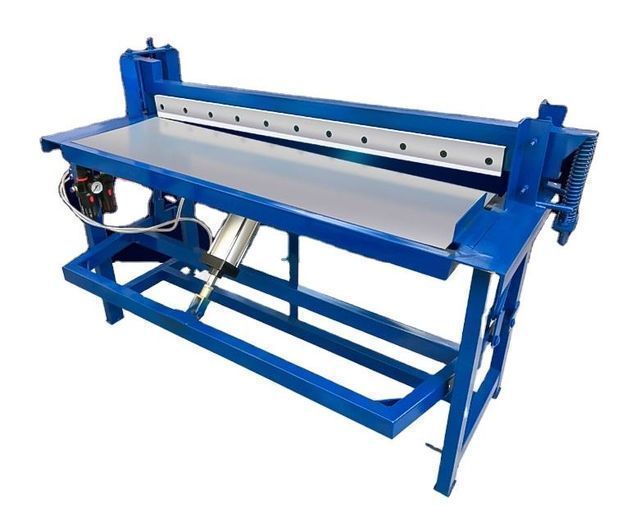

Padfoot plate shearing machine, metal material shearing machine, steel plate shearing machine
- 400.00 piece
| Mechanical test report: | if | Weight (kg): | 200 kg |
| Applicable industries: | Energy and Mining, Construction Engineering, Building Materials Stores, Machinery Repair Shops, Manufacturing Plants | Core component warranty: | 1 year |
| Certification: | International Organization for Standardization | Showroom location: | not any |
| Package preview: | Main selling points: | Versatile and productive | |
| product name: | metal shearer | Marketing Type: | New Products 2020 |
| Coil weight (T): | unlimited | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| place of origin; place of origin: | China | Local service location: | not any |
| Warranty: | 1 year | Video shipment inspection: | if |
| maximum. Cutting width (mm): | 1950 mm | Supply capacity: | 100 sets per month |
| Core components: | Engines, Motors, Pumps | Blade length (mm): | 2000 mm |
| After-sales service provided: | online support | Material Thickness (mm): | 1 - 1950mm |
| maximum. Cutting thickness (mm): | 2mm | Cutting width (mm): | 1 - 100000mm |
| Cutting speed (m/min): | 1 - 10 m/min | Automatic level: | semi-automatic |
| State of health: | new | Dimensions (L*W*H): | 2400*600*1000mm |
| port: | Qingdao, Shanghai, Guangzhou, Shenzhen, Tianjin | Leveling accuracy (±mm/m): | 1±mm/m |
| After warranty service: | online support |
Padfoot plate shearing machine, metal material shearing machine, steel plate shearing machine
The shearing machine is a machine that uses a reciprocating linear motion of one blade relative to the other to cut the plate. Through the moving upper blade and the fixed lower blade, using a reasonable blade gap, the shearing force is applied to the metal plates of various thicknesses, so that the plates are broken and separated according to the required size. The shearing machine is a kind of forging machinery, and its main function is the metal processing industry. Products are widely used in aviation, light industry, metallurgy, chemical industry, construction, shipbuilding, automobile, electric power, electrical appliances, decoration and other industries, providing the required special machinery and complete sets of equipment.
|
Types of |
Blade length |
Processing length |
thickness (iron) |
Thickness (aluminum) |
weight |
boundary size |
|
600 pedals |
600mm |
550mm |
1.2mm |
2mm |
70 kg |
1000*600*1000mm |
|
600 pneumatic |
600mm |
550mm |
1.2mm |
2 mm |
90 kg |
1000*600*1000mm |
|
800 pedals |
800mm |
750mm |
1.0mm |
2 mm |
80 kg |
1200*600*1000mm |
|
800 pneumatic |
800mm |
750mm |
1.0mm |
2 mm |
100 kg |
1200*600*1000mm |
|
1300 pedals |
1300mm |
1250mm |
1.0mm |
2mm |
145 kg |
1700*600*1000mm |
|
1300 Pneumatic |
1300mm |
1250mm |
1.0mm |
2mm |
165 kg |
1700*600*1000mm |
|
1600 pedals |
1600mm |
1550mm |
0.8mm |
1.5mm |
175 kg |
2000*600*1000mm |
|
1600 Pneumatic |
1600mm |
1550mm |
0.8mm |
1.5mm |
195 kg |
2000*600*1000mm |
|
2000 pneumatic |
2000mm |
1950mm |
0.5mm |
1.0mm |
220 kg |
2400*600*1000mm |
600 type pedal
Model 600 Pneumatic
1.3m pedal type
1.3m pneumatic
1.6 meters pneumatic
2 meters pneumatic
