Metal rolling shutter door forming machine shutter slat making machine

Product details
After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;Payment Terms:L/C,D/P,D/A,T/T;
Cutting material:Cr12 with quenched treatment;Place of Origin:China;
After-sales Service Provided:Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;Supply Ability:30 Set/Sets per Month;
Power:9.5kw;Frame:molding frame;
Packaging Detail:Anti-rust painting in the rollers and spacers,and wrap it in plastic wrap;Production Capacity:0-25m/min;
Condition:New;Warranty:1 year,1 Year;
Port:Tianjin port;Marketing Type:Ordinary Product;
Warranty of core components:1 Year;Brand Name:ZTRFM;
Name:Metal rolling shutter door forming machine shutter slat making machine;Application:shutter door;
Applicable Industries:Building Material Shops,Construction works ;Weight:as the profile drawing;
Control system:PLC(imported Brand);Package Preview:;
Voltage:Customer's Requirements,customize;Local Service Location:Peru,India;
Key Selling Points:Easy to Operate save cost;Machinery Test Report:Provided;
Function:making shutters;Applicable Material:Carbon Steel,Aluminum;
Showroom Location:Peru,India;Dimension(L*W*H):About 6x1.2x2 meter;
Video outgoing-inspection:Provided;Suitable material:GI,Carbon steel,Aluminum;
Certification:ISO9001,CE;Core Components:Motor,PLC;

                          Metal rolling shutter door forming machine shutter slat making machine

Product Description

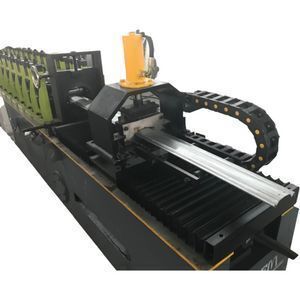

Zhongtuo Metal rolling shutter door forming machine shutter slat making machine  could be used to make the rolling shutters in batch fully automatically, especially this one, it can produce two types shutters at the same time, that means one machine for two profiles.  This rolling shutter door speed can reach 25 meter per minute.

Long lifetime: 10 year +++

Perfect shaping: no burr no distort

Cutting type:Servo motor drived flying cutter,cutting without stop

Quality warranty: Strict testing before shipment

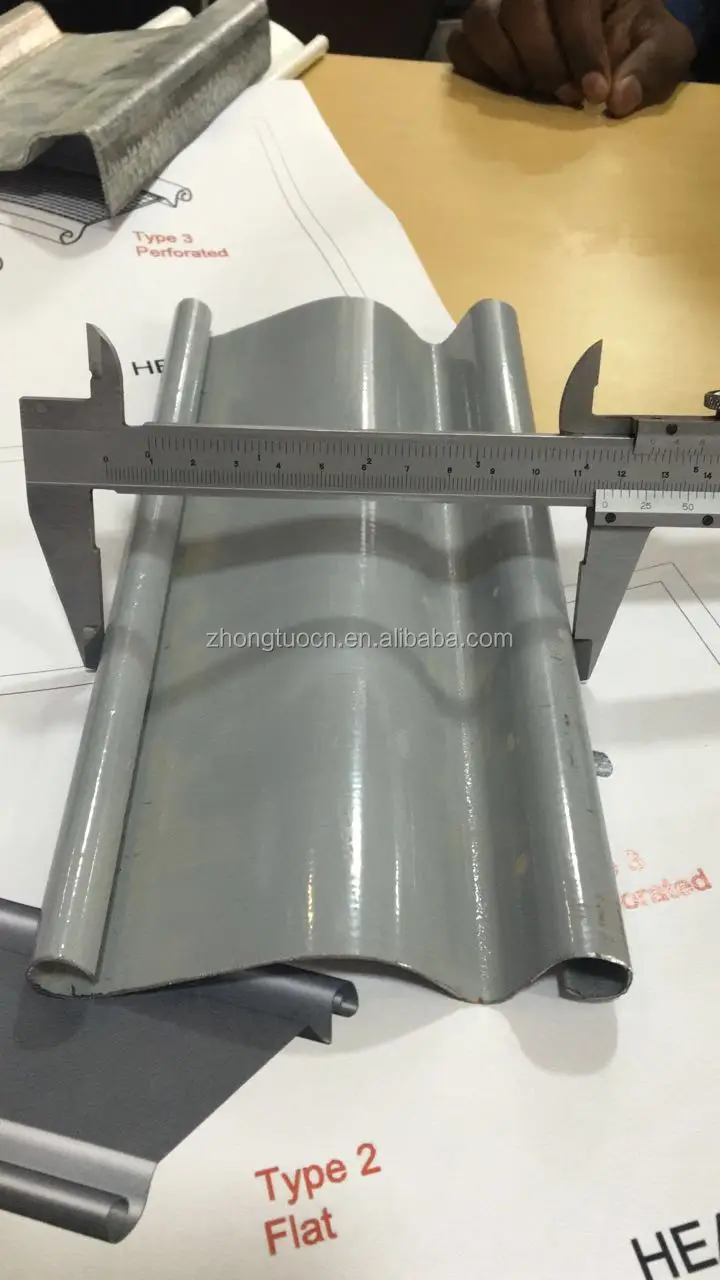

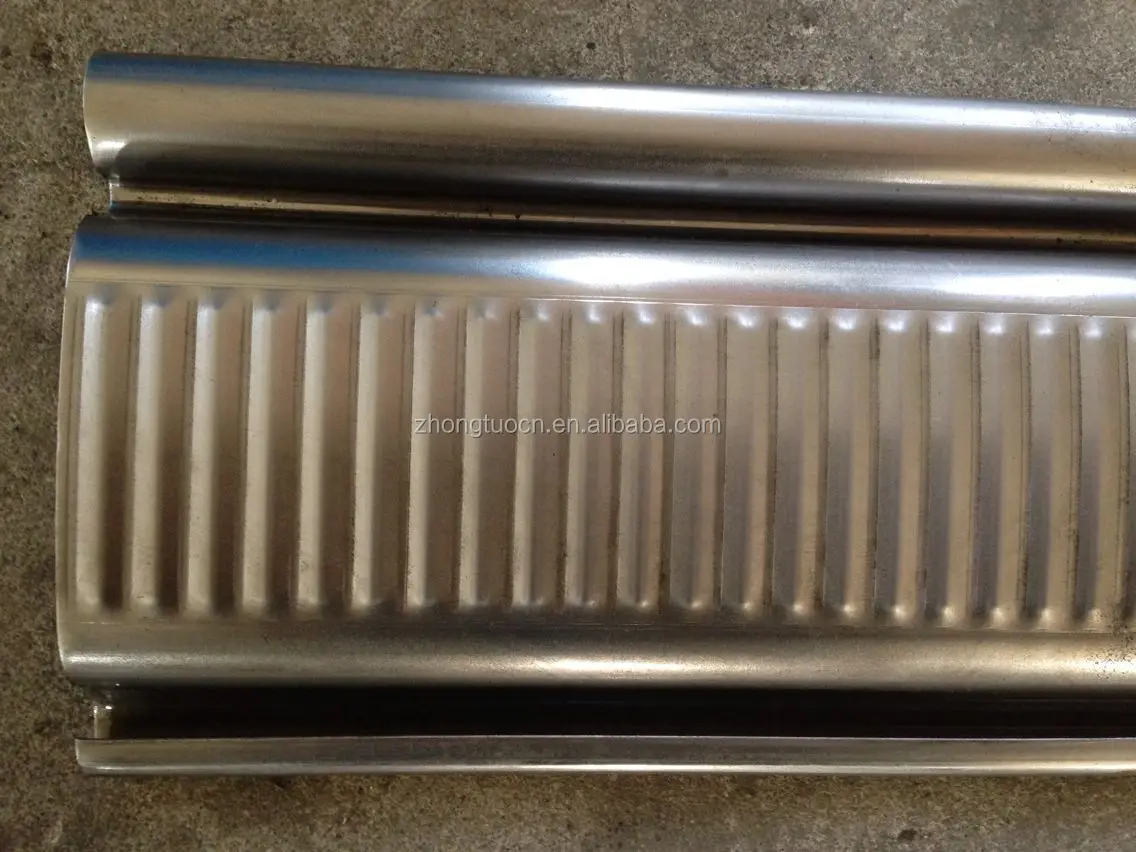

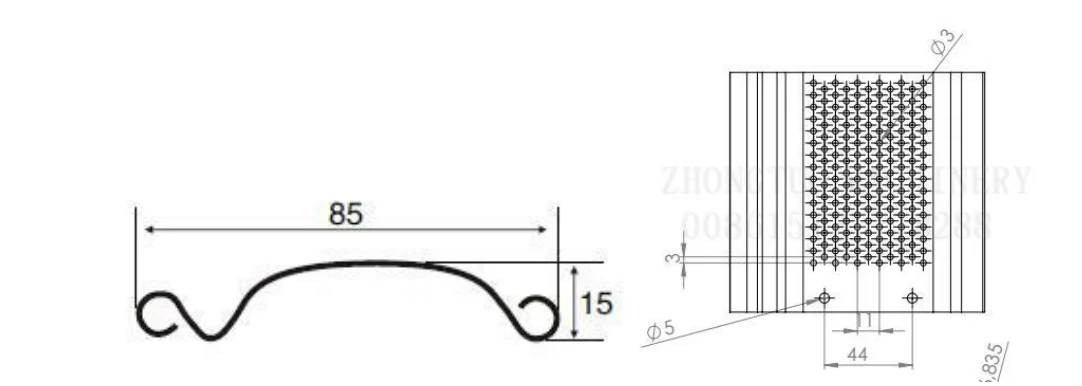

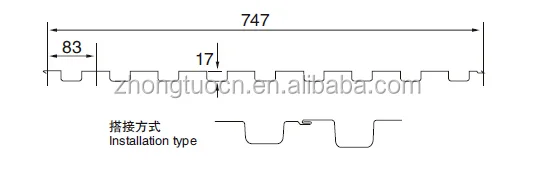

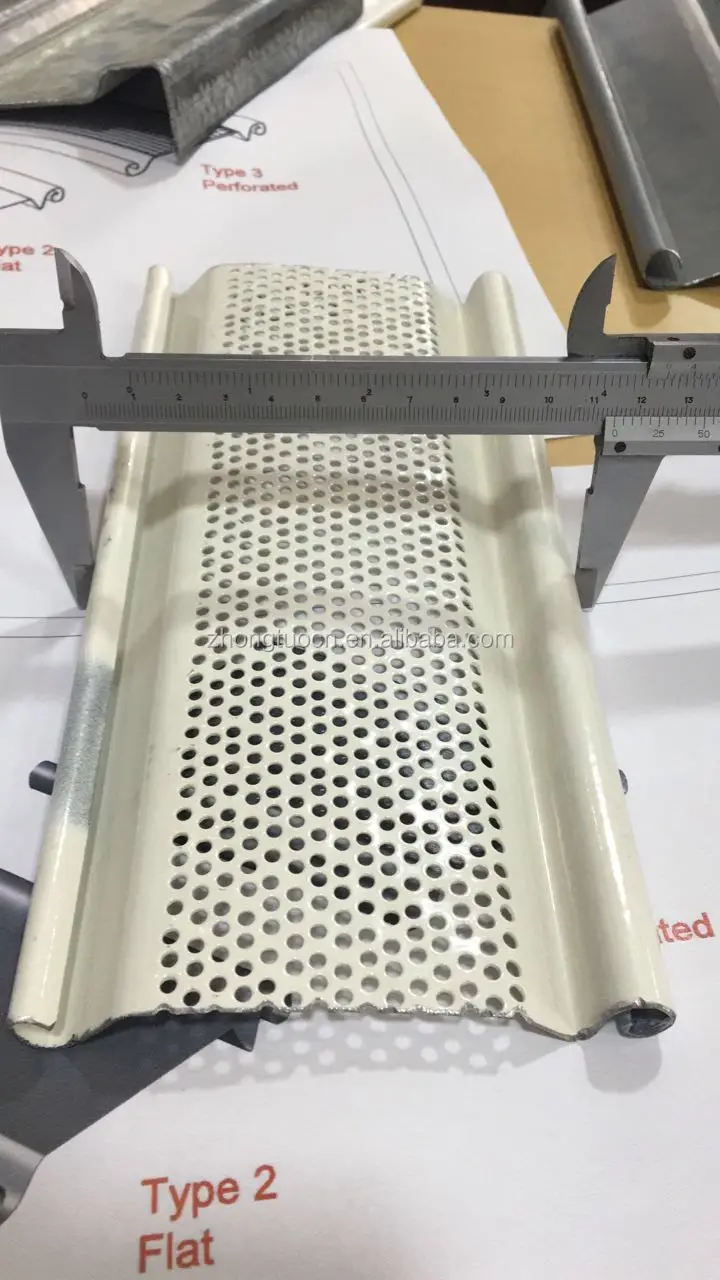

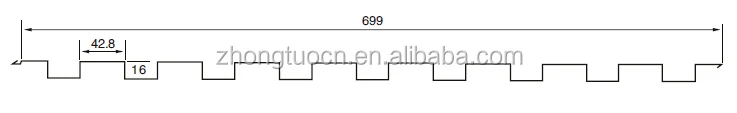

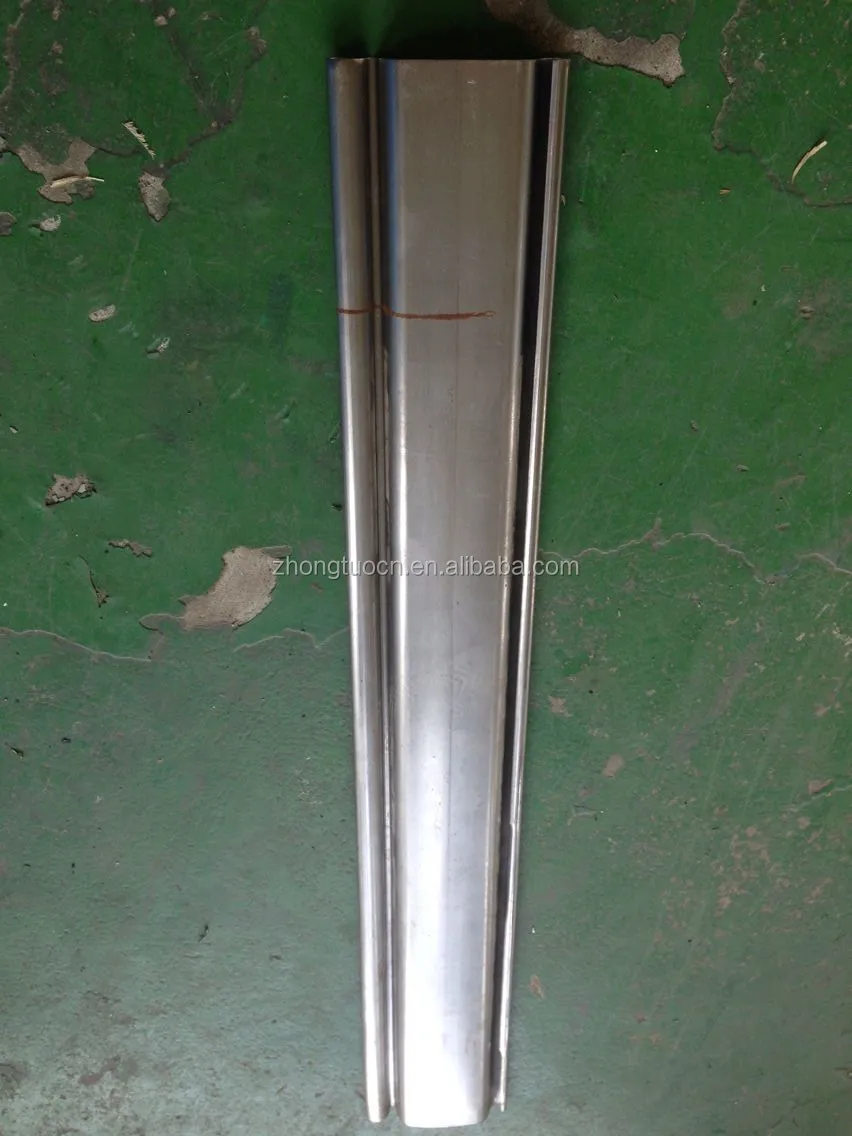

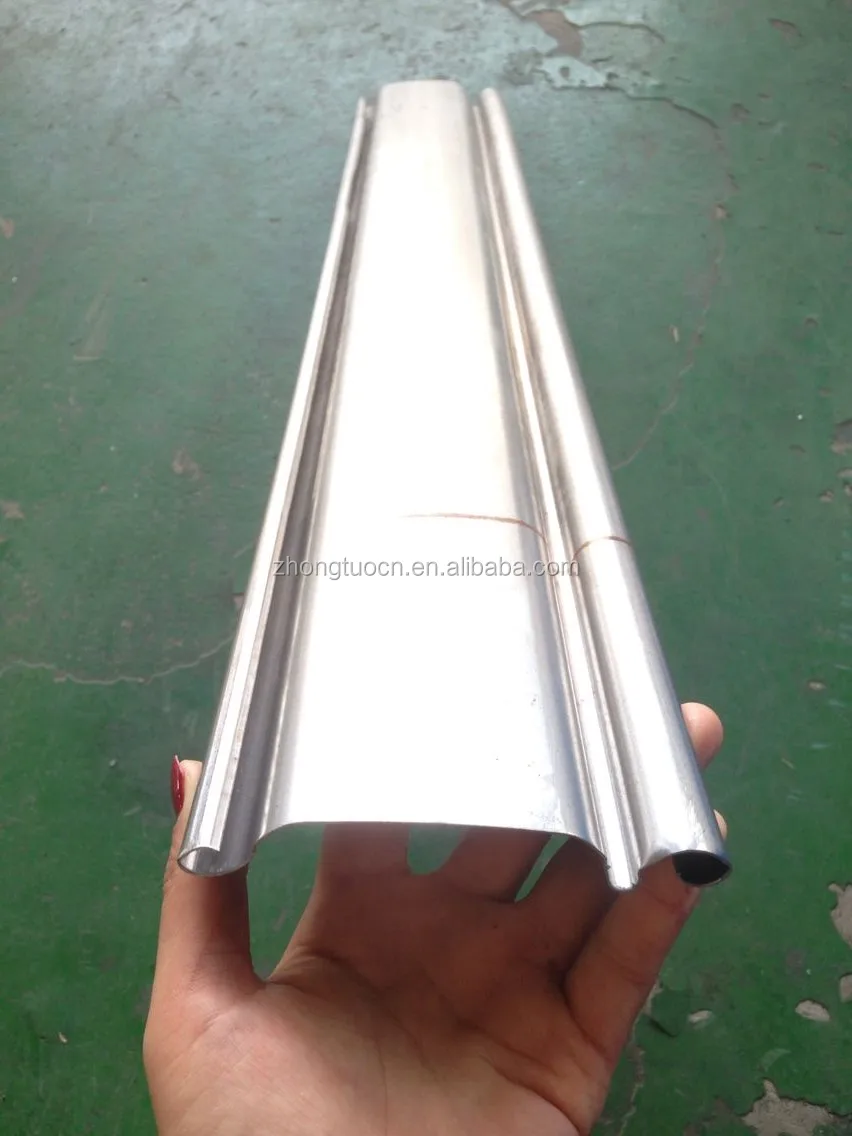

Here are popular drawing profiles of rolling shutter from clients:

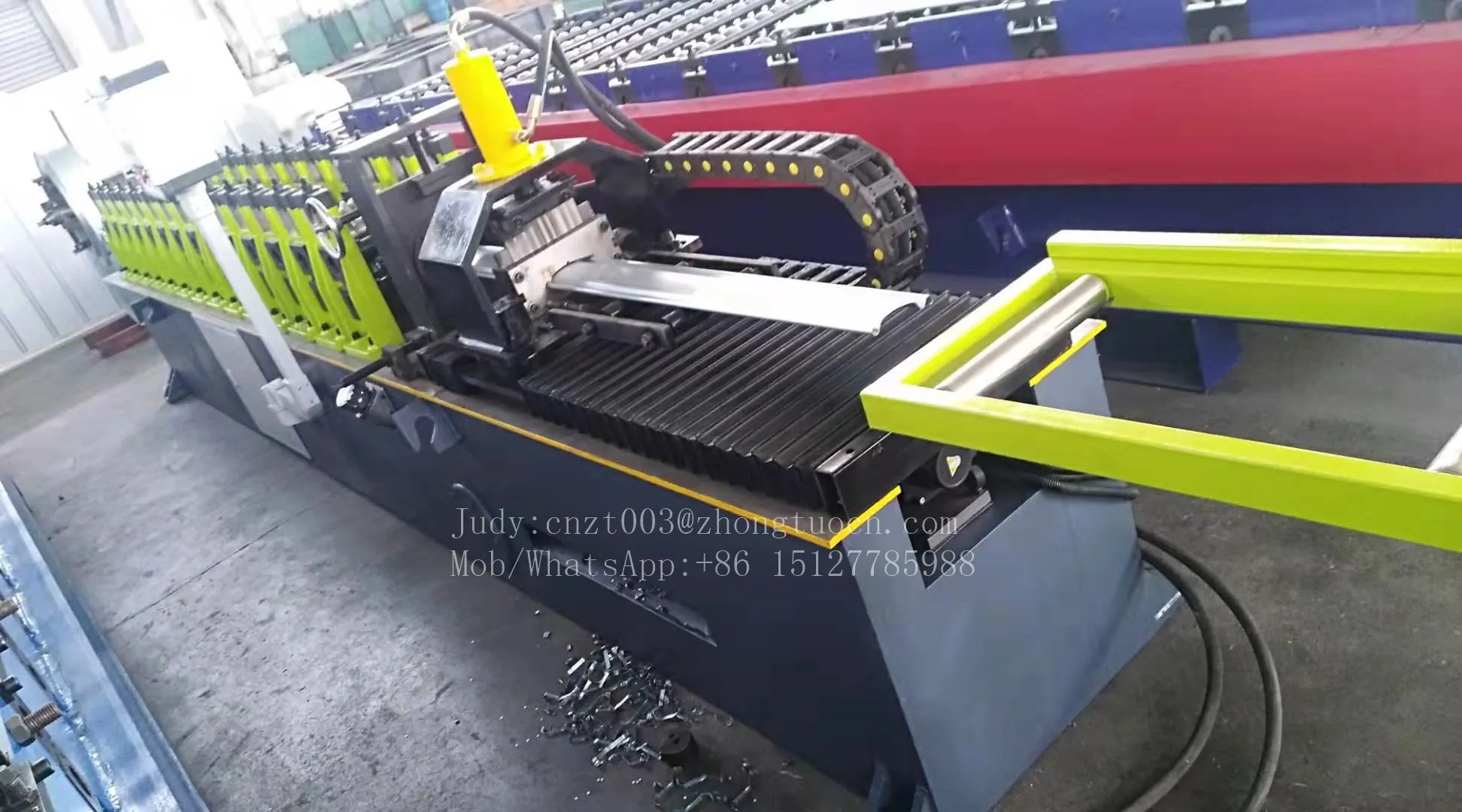

Metal rolling shutter door forming machine shutter slat making machine design for your reference:

Metal rolling shutter door forming machine shutter slat making machine parameters

Item Name Description
1 Machine structure Iron Cast steel structure
2 Main power 5.5KW
3 Forming stations 16 stations
4 Way of drive chain drive
5 Diameter of shaft 60mm
6 Max rolling speed 20-25m/min
7 Thickness 0.5-1.2mm galvanized steel or prepainted sheet,G550Mpa
8 Material  width 150-300mm (as the profile drawing design)
9 Material of roller Cr12 with quenched treatment
10 Material of blade mould Cr12, quenched 58-62
11 Way of cutting hydraulic cutting(stop to cut)
12 Length cutting tolerance +/-1.0mm
13 Hydraulic pressure 16Mpa
14 Hydraulic power 4kw
15 Control system PLC  control from Taiwan
16 Encoder Omron











Work Flow of Metal rolling shutter door forming machine shutter slat making machine:

Decoil---Feeding steel belt---punching holes if needed--roll forming--hydraulic cutting and punching head holes--hydraulic shearing--receive table

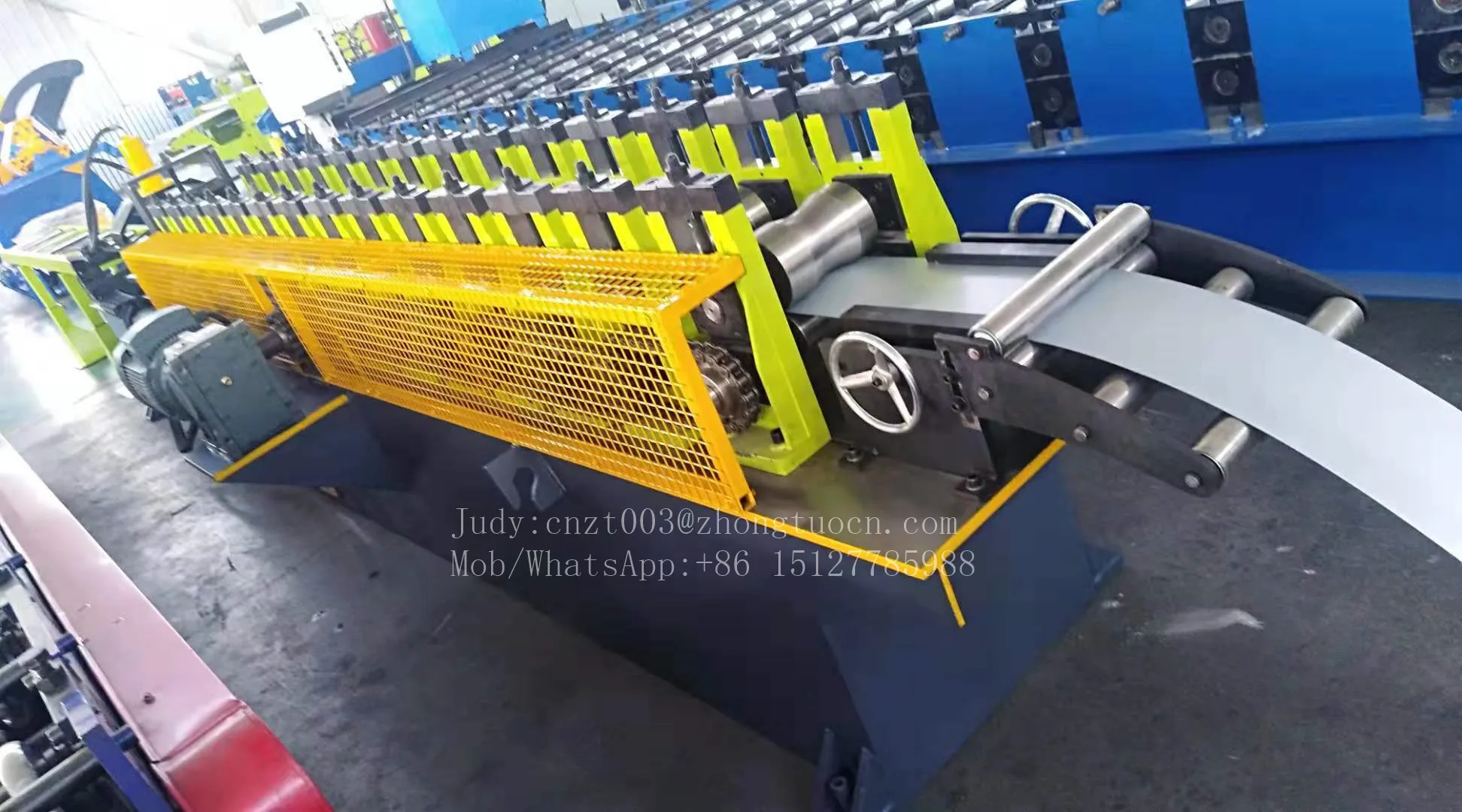

No.1 Feeding part of Metal rolling shutter door forming machine shutter slat making machine

Scientific design: Our feeding part adopts bearings on each side

Advantage: Protect PPGI & Help raw material go ahead  smoothly

Bearing Brand: China Famous Harbin Brand





No.2 Shaping Part of Metal rolling shutter door forming machine shutter slat making machine



Scientific Design A: Cast Steel Roller Fixer

Advantage: Compared with middle plate, Cast steel can support more stable shaping

Scientific Design B:  we put counter inside of rollers

Advantage :To ensure count accuracy

Scientific Design C:Gears set on Shaft

Advange: To balance strength of each roller. Ensure better shaping.

Scientific Design D:Control station installed on the machine

Advange: 1.Save place.2.No neet to connect the wire any more,easy to install

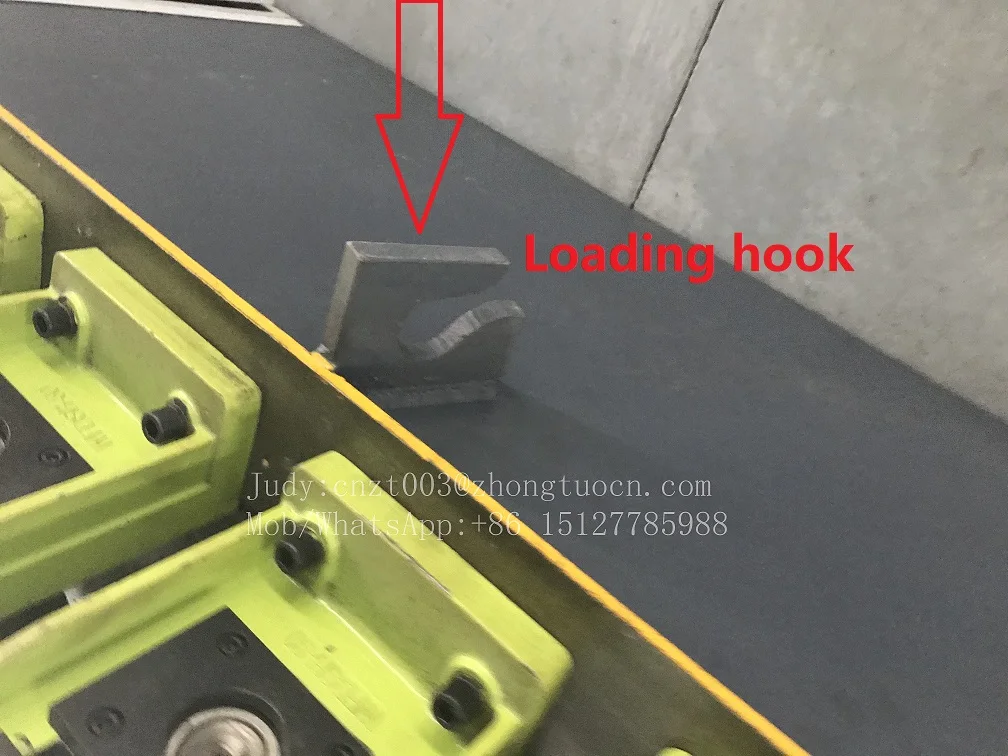

Scientific Design E:Loading hook installed in the machine

Advange: Easy to load the machine,will not damage the body of machine

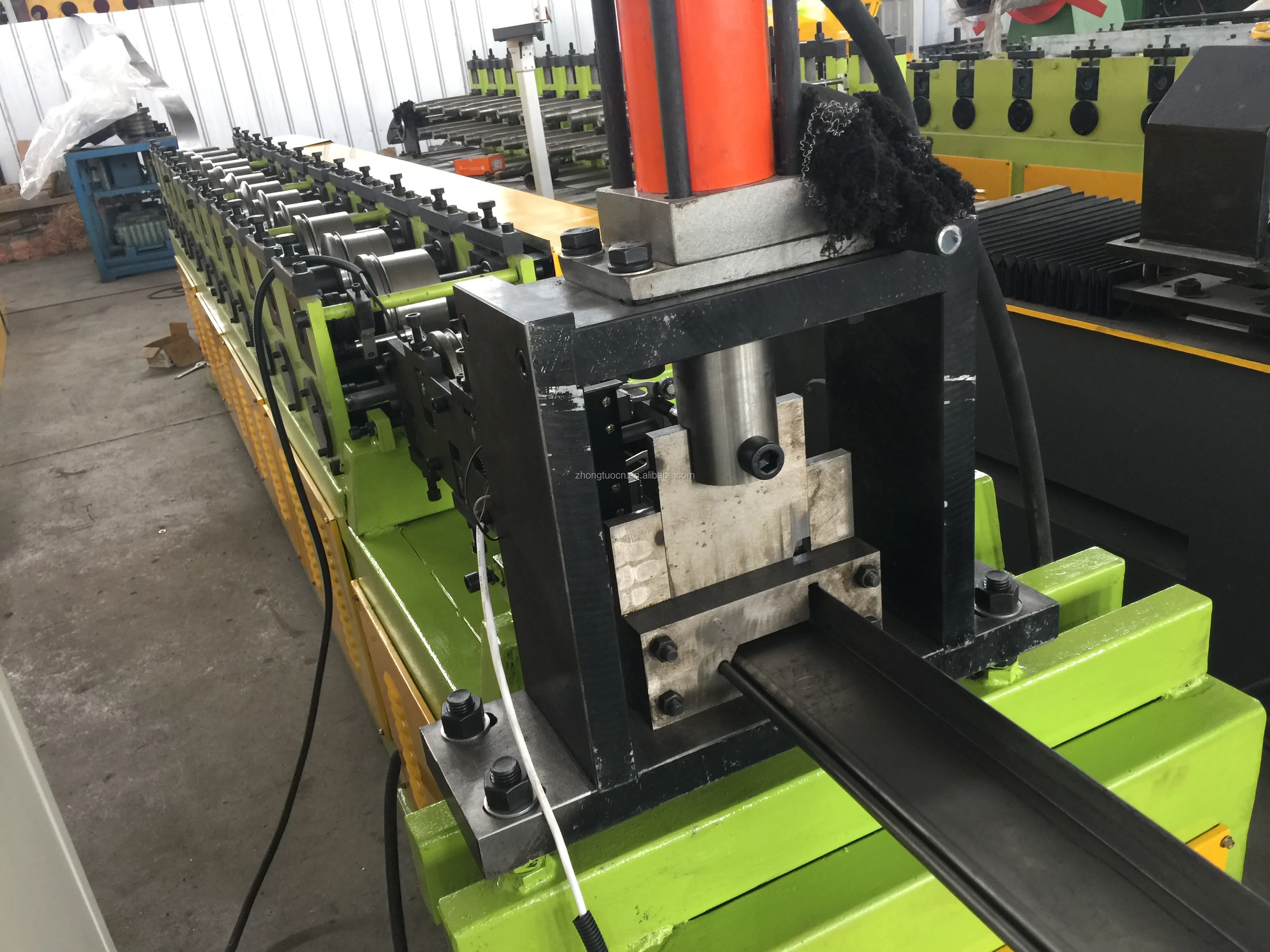

No.3 Hydraulic Cutting of Metal rolling shutter door forming machine shutter slat making machine

Scientific Design A: It adopts High quality steel pillars

Advantage: Considering that the thickness of the steel strip is generally thick,

the high quality steel column can withstand the pressure and reaction force better.

Therefore, the life of the machine will be extended and the cutting effect will be better.

Scientific Design B: It adopts powerful motor

Advantage:The motor power is enough to ensure that the cutting effect is neat.

Scientific Design C: Bigger fans

Advantage: The wind is strong to ensure that the hydraulic oil cools down quickly.

This design has a better cutting effect and a longer working time.

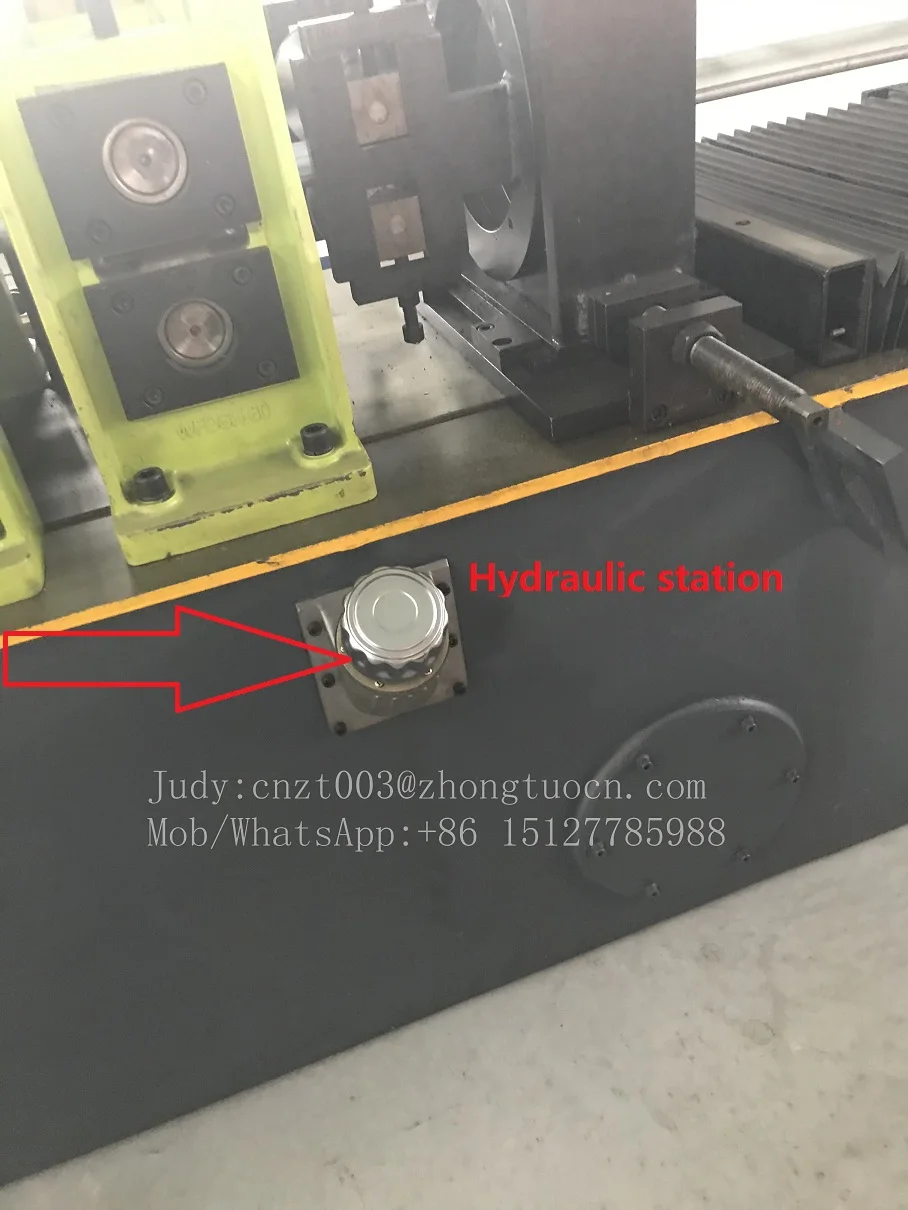

Scientific Design D:Oil pump installed inside of the machine

Advange: Can save place for customers



No.4 Control system of Metal rolling shutter door forming machine shutter slat making machine

Scientific Design A: Control panel installed in the machine

Advantage: No need to connect the wire when the machine arrive at customers' factory,easy to install



No.4 Rolling Shutter Door Machine Installation and Training

Technical team has more than 10 years of work experience

7 * 365 Online service

Welcome to our factory to communicate. We provide face-to-face technical guidance.
We also provide video tutorials and detailed instructions for use.

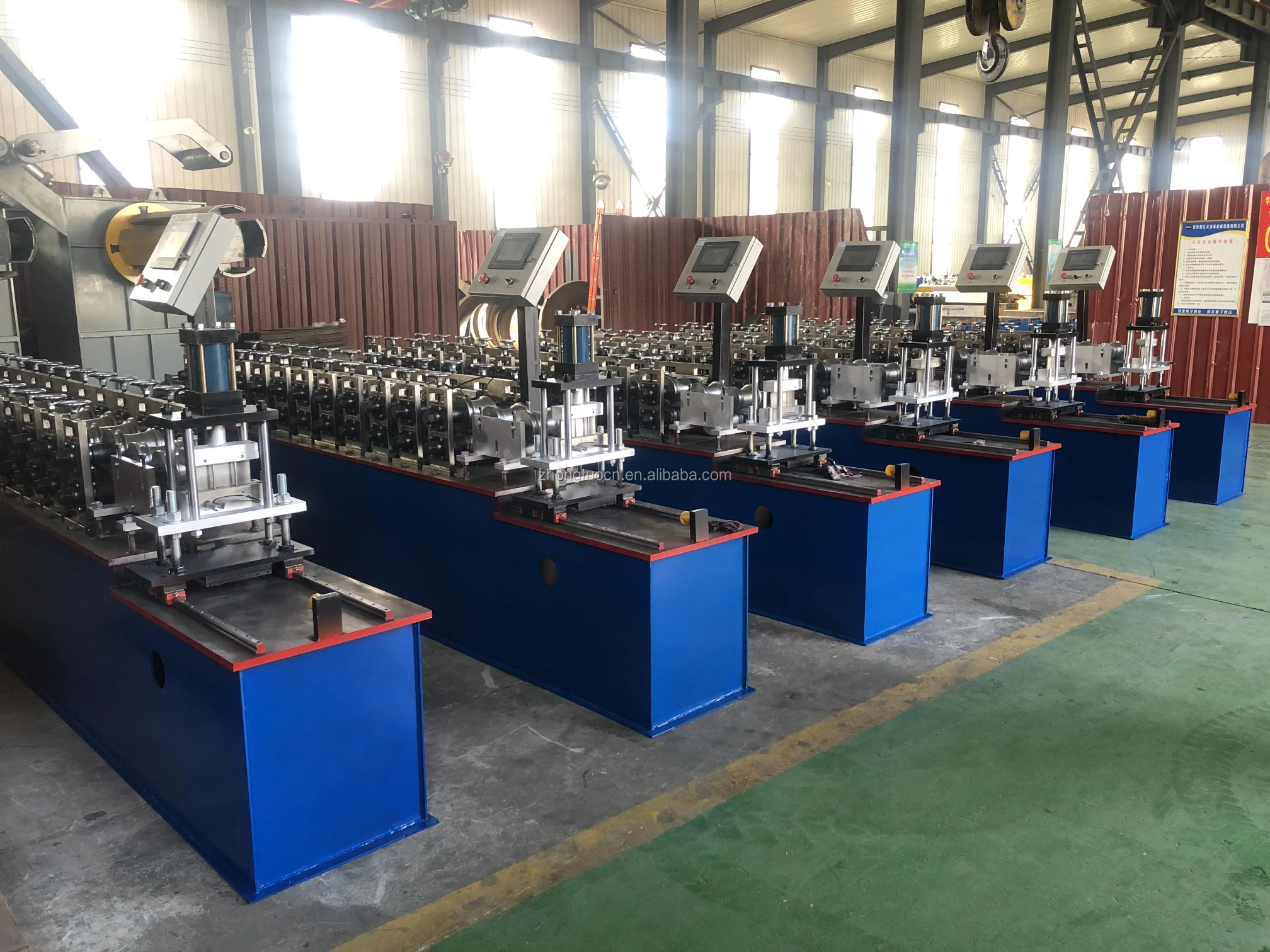

Other types metal rolling shutter door machine:

1. For this machine we design one shaft with two set of rollers, then it can produce two types at the same time no need to change the rollers.

2.If you just one profile to make, Zhongtuo machinery could design one profle one machine either in high speed or slow speed:

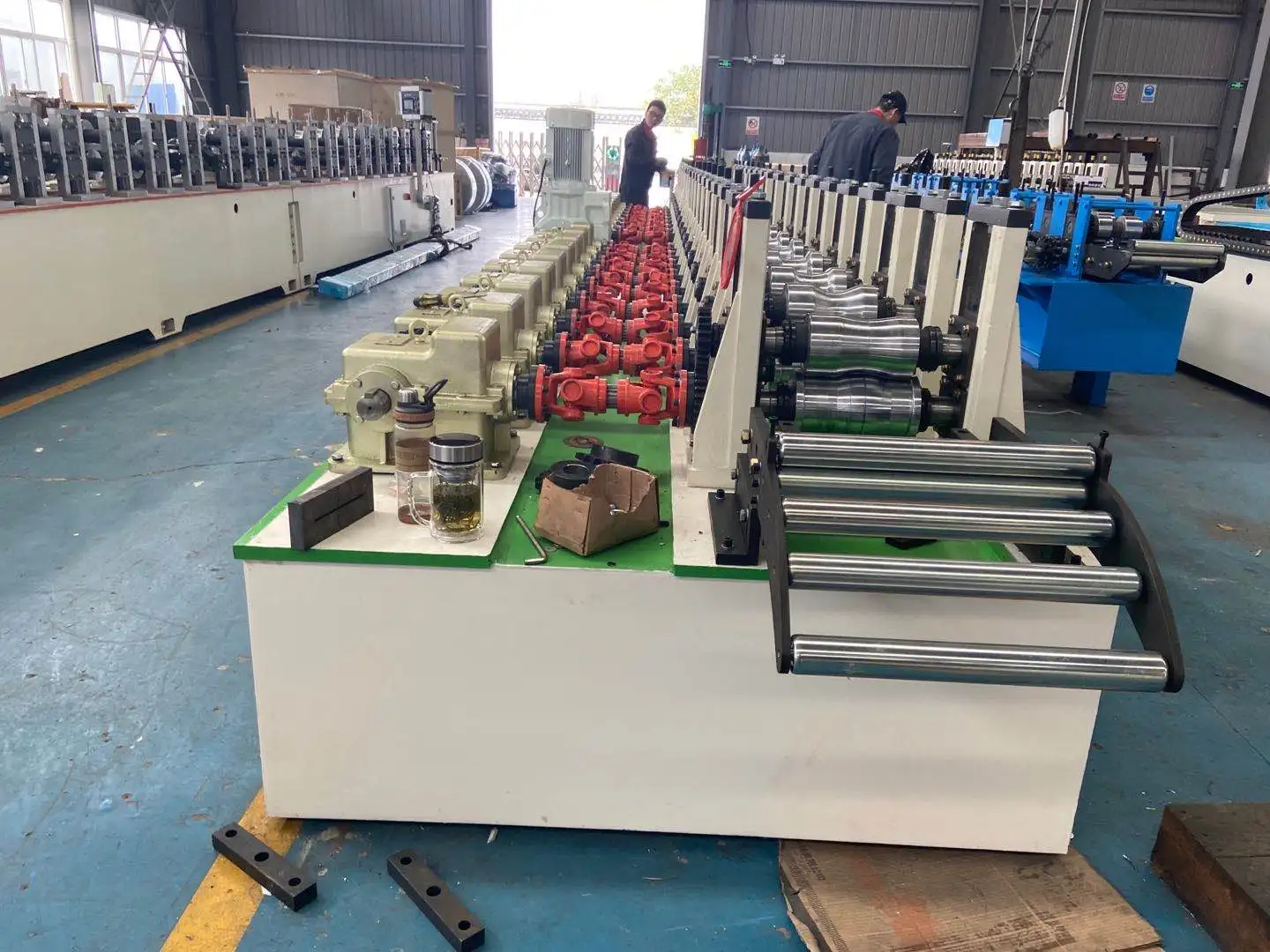

3. For some area, the customer needs the rolling shutter profile thickness to 1.2m, then we will recommand the gearbox type as transmission like the following pictures:



Some other related machines are avaliable:



Single set rolling shutter forming machine                                       Roll shutter guide forming machine





Roll shutter end forming machine                                               Normal speed roll shutter forming machine





Australian type rolling shutter machine

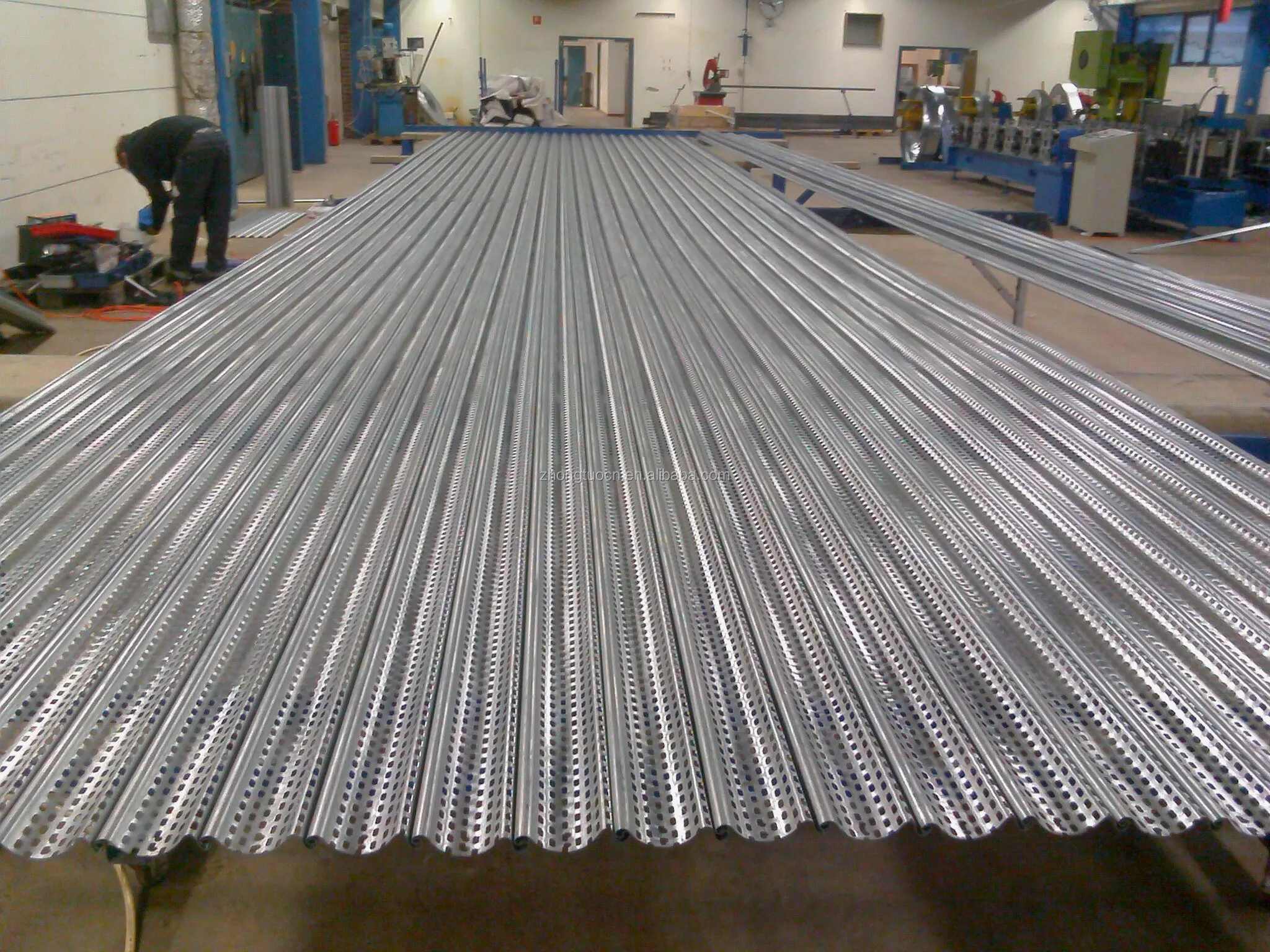

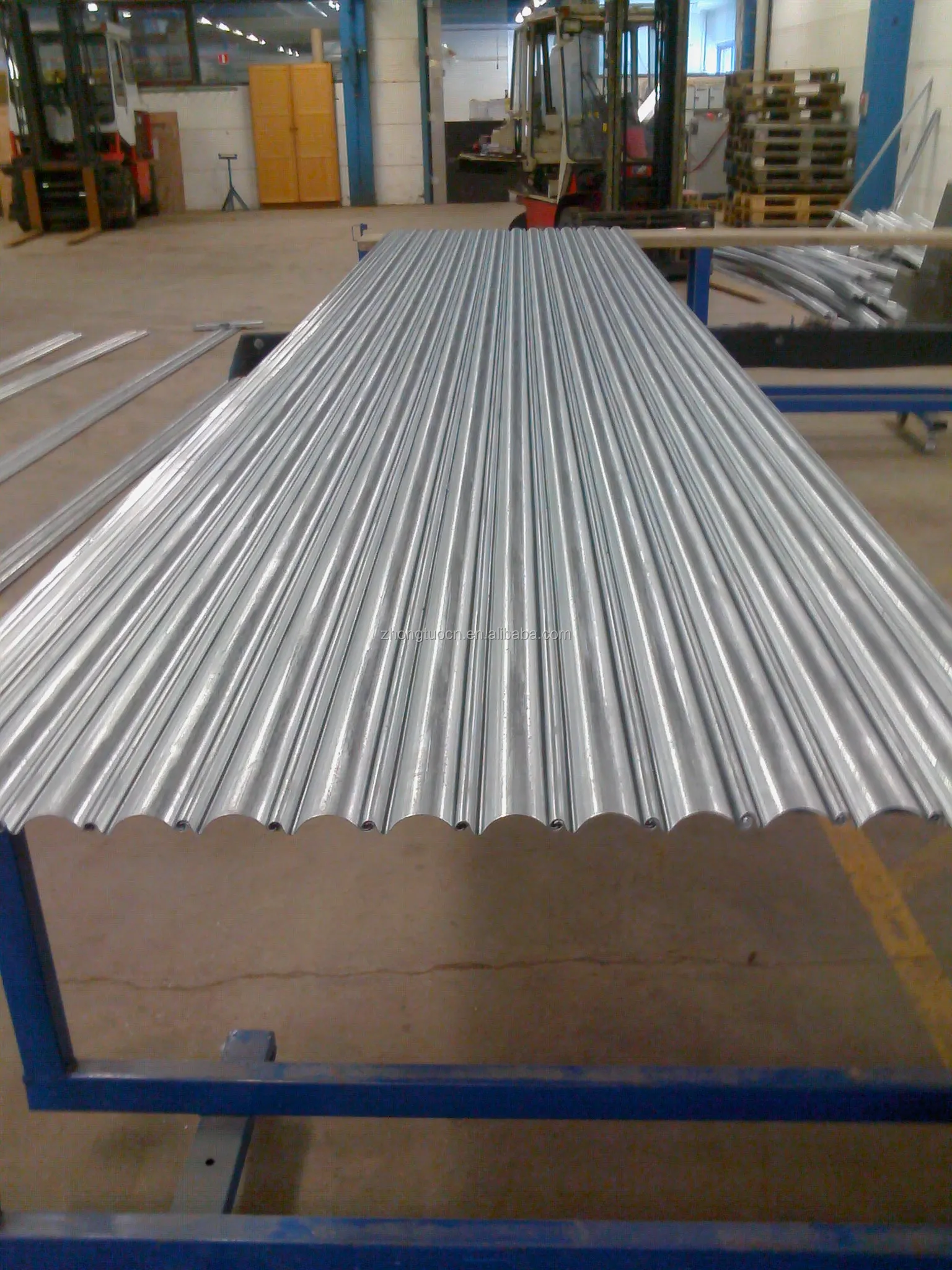

More profiles of the rolling shutter:











Our Services

1. Quality Control

A. Every parts of machine is examed carefully without any omit.

B. Welcome to our factory to check machine

2. Installation & Training

A. We supply video to teach buyer how to install and operate machine

B. Welcome customers come to our factory, we are glad to teach you face to face.

C. Our technicians could come to customers' factory to install machine

3. After-sale service

A. One year warranty for parts and shipment of parts is free.

B. 24hours*365 days technical support online.

Company Information





FAQ

Q: Are you factory or trade company?

A: We are factory and we have a professional engineer team which can design the machine as customers' request

Q: Do you have after sales support?

A: Yes, we are happy to give advice and we also have skilled technicians available. Our technicians will go to your factory to help you on time.

Q: How do your machines compare with other big companies in this market?

A: We are up to date with the latest technology and rich experience about machines and global market. We boast of professional engineer team and  after-sale service team.

Q: Once we've bought a machine from you, are you able to supply us with material?

A: We can assist you in finding the appropriate materials to suit your machine

Q: Which is your main market?

A: We supply machine to UK,USA, Austrila and South Korea. Besides, India is our main market, we have Indian sales manager and branch company in India.

Q: Do you sell only standard machines?

A: No, most of our machines are built according to customers specifications, using top brand name.
