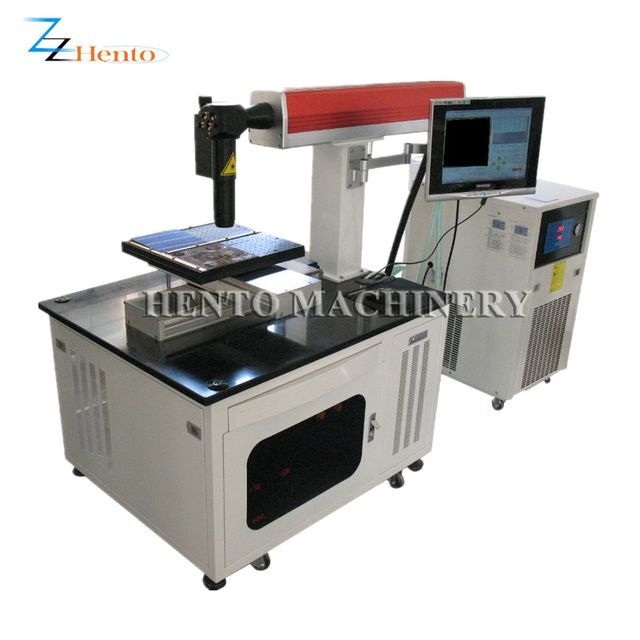

High quality solar cell laser scribing machine, factory price
- 6000.00 set
| Applicable materials: | Glass | Supported graphic formats: | AI, BMP, DXP |
| power supply: | 380V(220V)/50Hz/5kVA | Packaging Details: | Fumigation-free wooden box laser marking machine |
| product name: | Laser Scribing Machine | application: | Laser Scribing |
| Certification: | ce | Laser wavelength: | 1.064um |
| Maximum scribing speed: | 140mm/sec | After-sales service provided: | Engineers can repair machinery overseas |
| Supply capacity: | 100 laser scribing machines per month | place of origin; place of origin: | Henan, China |
| Laser Type: | Diode Pumped Laser | Scribe Accuracy: | ≤±10um |
| Line width: | ≤30um | model: | HT-SDS50A |
| cooling method: | on the norm | brand: | Gento |
| Laser repetition rate: | 200Hz~50kHz | Maximum laser power: | ≥50W |
| payment terms: | L/C,T/T,Western Union,Laser Scribing Machine | CNC or not: | Yes |
| Delivery Details: | 5-7 days after receipt of customer deposit or viable L/C | cooling method: | Externally suspended constant temperature circulating water cooling |
| controlling software: | on the norm | Work platform: | 350*350mm |
| port: | Shanghai, or as customer's request |

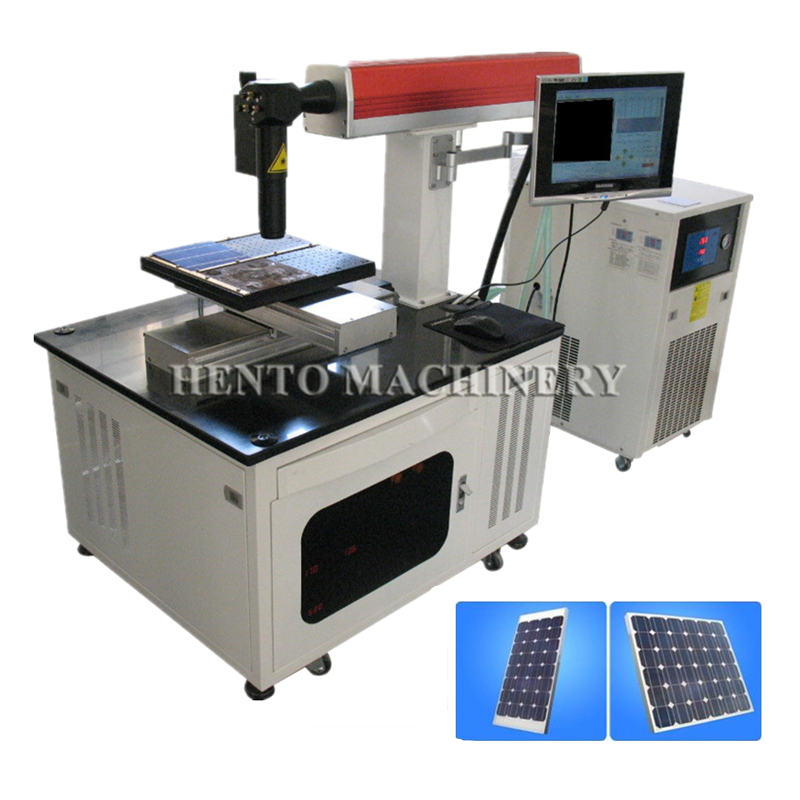

High quality solar cell laser scribing machine, factory price
1. Laser wavelength: 1.064um
2. Line width: less than 30um
3. Maximum scribing speed: 140mm/s
This machine adopts diode-pumped laser, which has the characteristics of high integration, good beam quality, low operating cost, and less long-term maintenance; the key components are imported products, the whole machine has a simple structure, fast marking speed, high precision, and can be continuous for 24 hours Work.
Applicable fields:
Scribing of monocrystalline silicon, polycrystalline silicon, amorphous silicon, solar cells, water in the solar energy industry; cutting of monocrystalline silicon and polycrystalline silicon in the electronics industry.
Model | HT-SDS50A |
Laser wavelength | 1.064um |
Laser maximum power | ≥50W |
Line width | ≤30um |
Laser repetition rate | 200Hz~50kHz |
Maximum scribing speed | 140mm/sec |
work platform | 350*350mm |
power supply | 380V(220V)/50Hz/5kVA |
Scribe Accuracy | ≤±10um |
cooling method | Externally suspended constant temperature circulating water cooling |
worksheet | Double air chamber vacuum adsorption, T-shaped platform In turn is a dual-position wok. |
