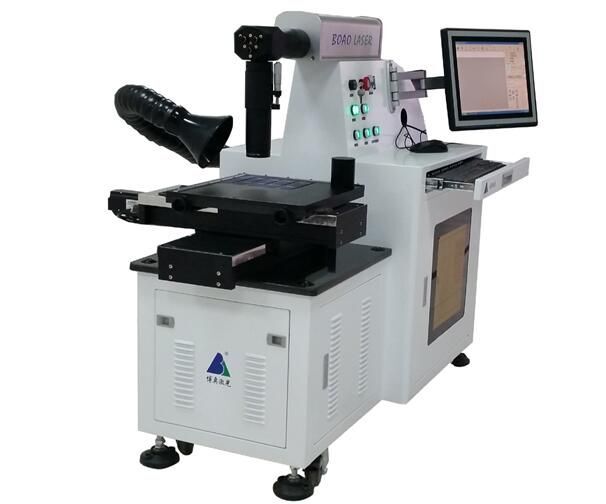

YAG Laser Solar Scribing Machine

Supplier: Beijing Boao Laser Tech Co., Ltd.
Region: Beijing, China
Contact: Mr Andy Yue
Price: $560.00 /set
Min. Order: 1 set

Click here to contact

Product details

operating hours:	20,000 hours	Main selling point:	easy to operate
Local service location:	Canada, Italy, Brazil, India, Japan, Argentina, Algeria, Kazakhstan, Tajikistan	application:	laser scribing
Supported graphic formats:	AI,BMP,Dst,Dwg,DXF,DXP,LAS,PLT	payment terms:	letter of credit, wire transfer
Core components:	laser generator	Laser power:	50W
cooling method:	water cooling	Marketing Type:	Hot Products of 2019
After-sales service provided:	Provide overseas service center, online support	controlling software:	automatic control
Weight (kg):	89 kg	Video external inspection:	if
Mechanical test report:	if	Supply capacity:	50 sets per month
Core Components Warranty:	2 years	Packaging Details:	Standard wooden case with bottom pallet
Health status:	new	CNC or not:	Yes
Warranty:	2 years	Applicable materials:	Monocrystalline silicon, polycrystalline silicon, amorphous silicon
brand:	Boao Laser	Showroom location:	Canada, Italy, Brazil, India, Morocco, UAE, Bangladesh, Nigeria, Australia
Certification:	Certification, ISO	place of origin; place of origin:	Beijing China
port:	Tianjin	Laser source brand:	other
Applicable industries:	Manufacturing Plant, Advertising Agency	Cuba:	2.5 cubic meters
After Warranty Service:	Video technical support, online support, spare parts	Laser Type:	Yager

Machine introduction

Workbench type:	Servo motor type
Actual cutting size:	300x300mm
Cutting thickness:	<0.5-1.5mm
Material:	Silicon wafer, glass
Laser power:	20W 30W 50W 100W
delivery time:	20 working days
Warranty and Service:	2 years

main part

laser source

Original Raycus fiber laser source

Laser cutting head

Boao Laser China

Laser Cutting Software

CNC2000/3000

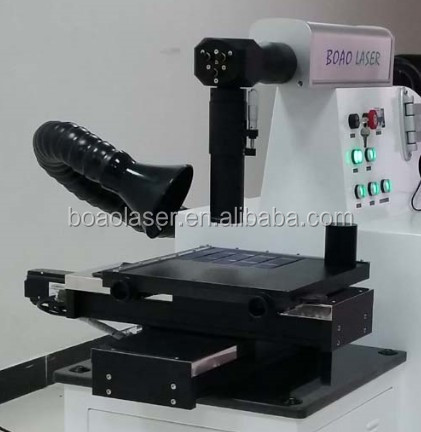

worksheet

300*300mm stroke, PC software control, accuracy +-0.015mm

Vacuum adsorption function

Vacuum suction function with table

Servo motor system

Servo Motor Control Table

technical parameter

model:	BFC20/30/50/100
Laser type	Raycus China
Laser wavelength	1060nm
Laser maximum power	20W/30W/50W/100W
maximum. Cutting thickness	1.2mm-1.5MM
suitable material	silicon water, glass, solar panel
Cut size	300*300mm
Laser repetition rate	200Hz~50kHz
Scribe Accuracy	≤±10μm
Maximum scribing speed	150mm/s / 180mm/s
Minimum line width	≤0.15mm
Scribing accuracy	±10 microns
work platform	Adsorption of a vacuum pump on a 2D programmed mobile platform.
cooling system	air cooling
Continuous working time	24 hours
ambient temperature	0-35°C
Power Requirements	220V(220V)/50Hz/1kvA

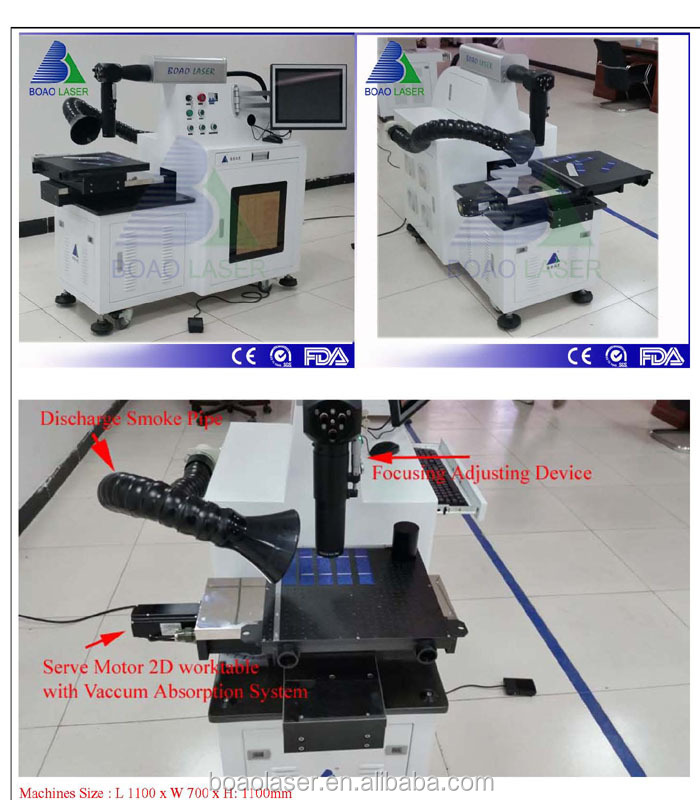

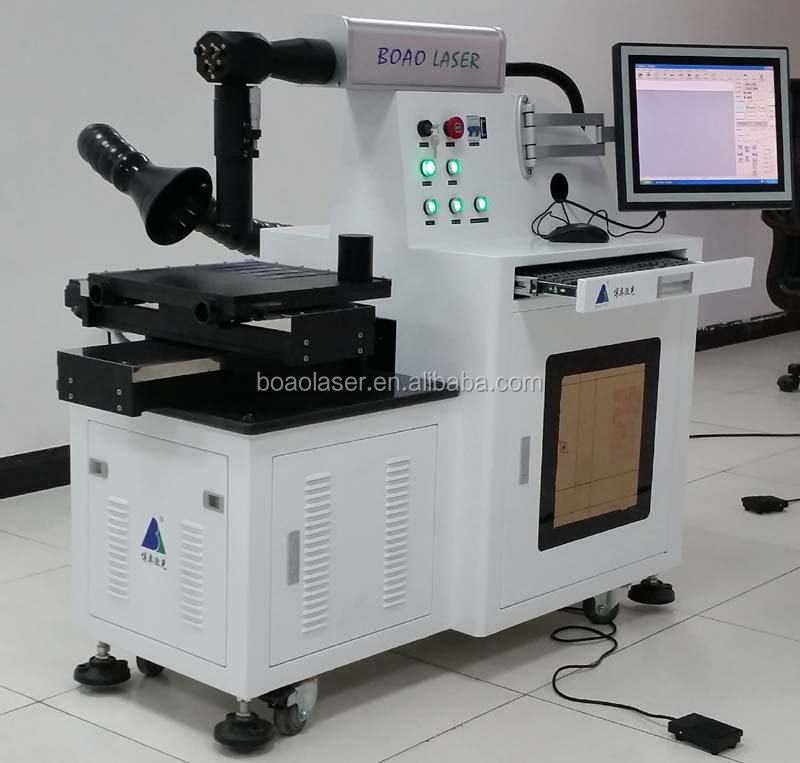

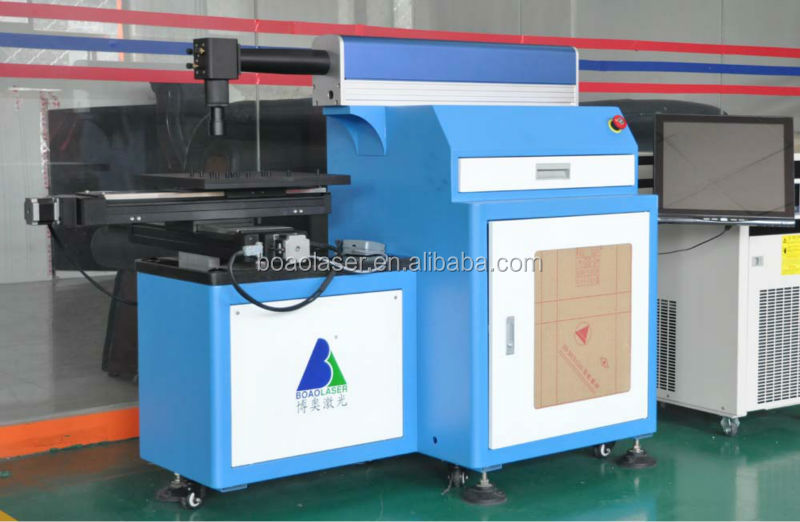

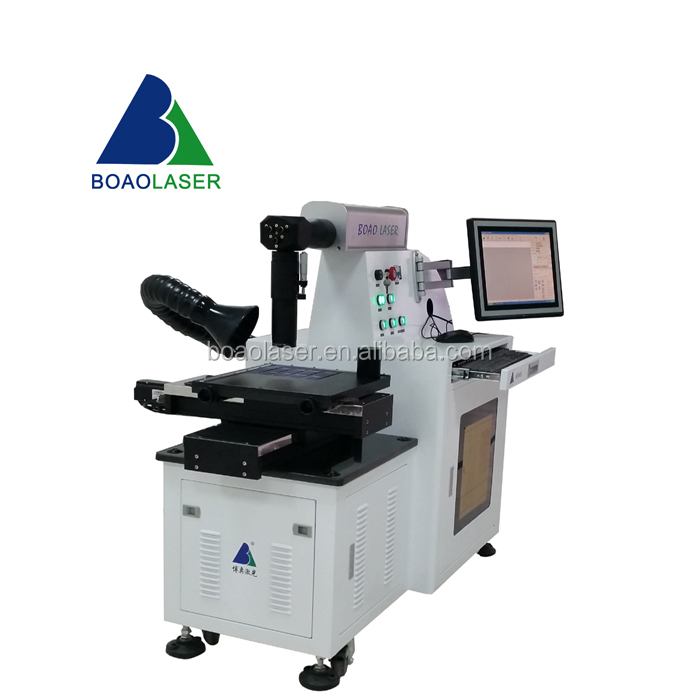

Machine and cutting photos

customer group photo

Germany

Slovenia

Indonesia

Romania

Vietnam

Kazakhstan

Italy

Russia

South Korea

turkey

Pakistan

Mexico

Boao Laser

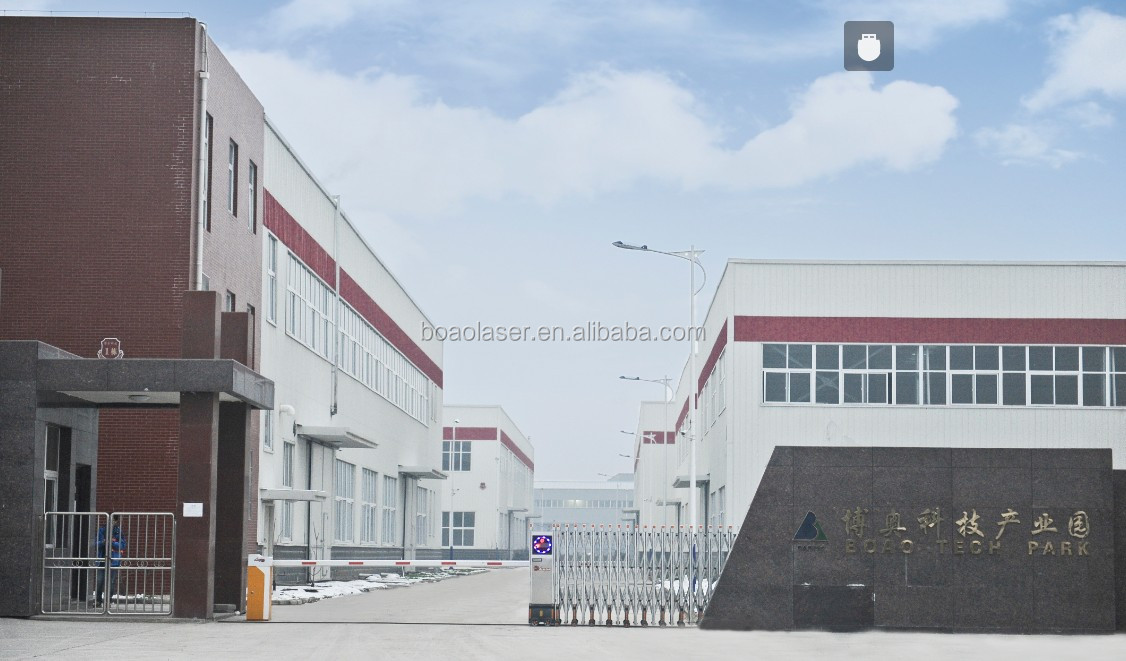

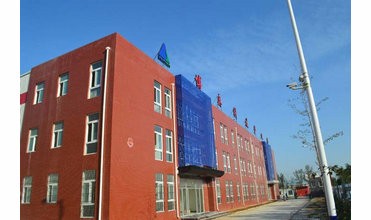

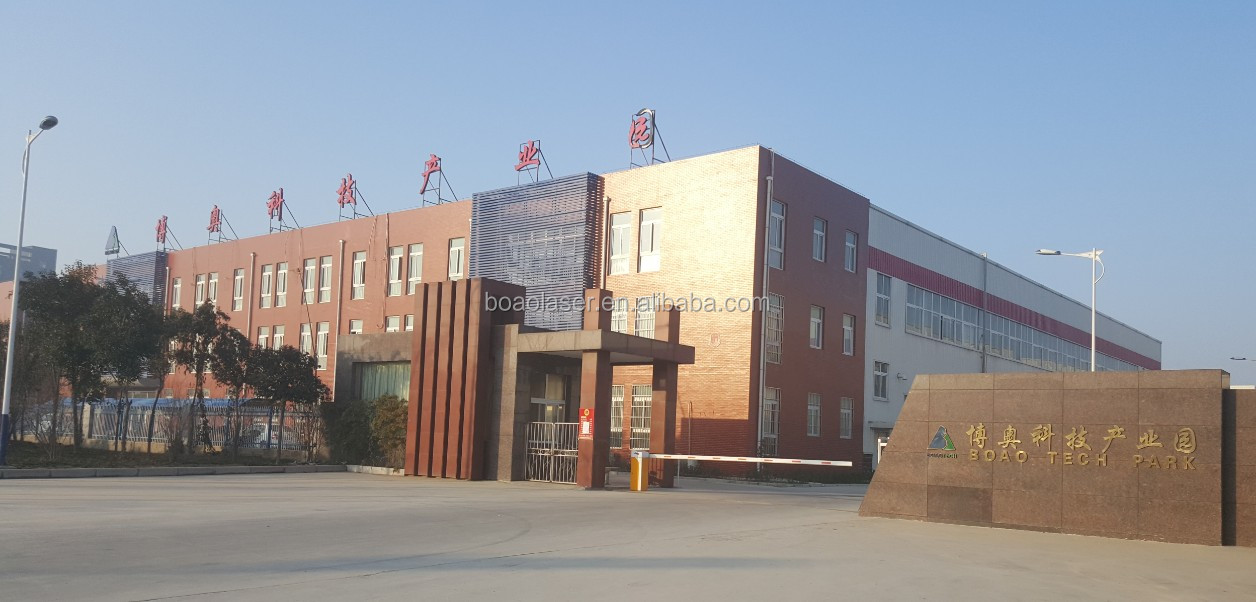

Founded in 2006, Boao Laser Group is located in Beijing and Zhengzhou, China. It is a high-tech enterprise specializing in the research and development, manufacturing and sales of various laser machinery. It is a high-tech enterprise approved by the Chinese Academy of Sciences and the largest and most comprehensive scientific and technological research institution in China.

product:

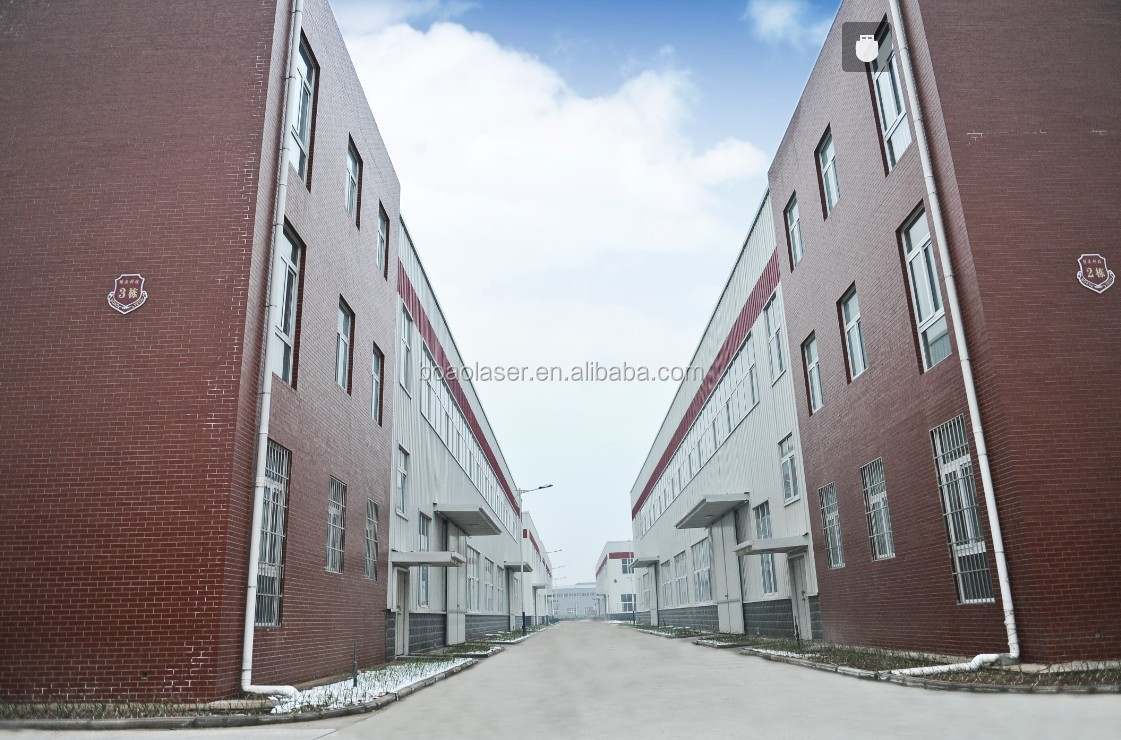

Boao Laser mainly develops and produces large-scale laser cutting machines, small and medium-sized laser welding machines and laser marking machines in China. Invested 30 million yuan to build the Boao Industrial Park, covering an area of 64,000 M2, dedicated to the R&D and production of large-scale fiber laser cutting machines. Main laser machine production:

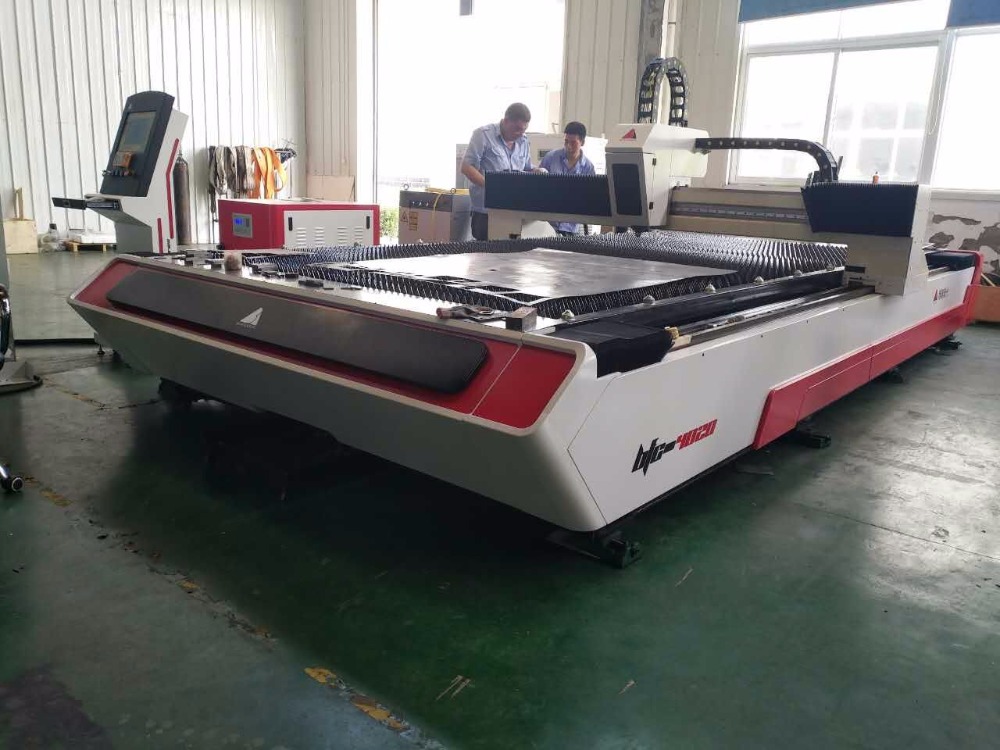

Fiber laser cutting machine series from 300W--8000W, cutting size from 500x500mm to 8000x2000mm. Laser welding machine series, laser marking machine series.

Staff:

The company has 130 employees, including 10 doctoral and master students, and 80% of the company has a college degree or above.

Quality Control:

Boao Laser produces according to ISO9001 quality system standards and European standards, and carries out strict quality control in all aspects of the production process to ensure the quality and reliability of laser machines.

Serve:

Boao Laser has established a relatively complete sales and after-sales service network, an international trade sales management center, and a group of effective international agents and distributors. Strategies to provide 24-hour online service and 48-hour customer problem solving

Serve

website:	www.boaolaser.com
General manager:	Mr. Yue
e-mail:	sales@boaolaser.com andy@boaolaser.com
Telephone:	0086-13910058345 0086-13911547331 0086-10-82895922
WeChat/Whatsapp:	0086-13910058345
