Solar Cell Laser Scribing Machine Solar Equipment

Product details
Laser source brand:Raycus Fibers, Chinacontrolling software:CNC2000
Video external inspection:ifMaximum scriber thickness:1.2mm
Supply capacity:30 units per monthSolar cell cutting:color cell line
Packaging Preview:Weight (kg):156 kg
port:TianjinHealth status:new
Line width:≤30μmApplicable materials:glass, metal, plastic, plexiglass, stone
Work platform size:300x300mmCore Components Warranty:1.5 years
brand:Boao LaserApplicable industries:Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Stores, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Works, Energy and Mining, Food and Beverage Stores, Advertising Agencies
Mechanical test report:ifLaser Type:fiber-optic laser
cooling method:air coolingCore components:laser source
After-sales service provided:Engineers can repair machinery overseasShowroom location:Canada, Turkey, United Kingdom, Italy, France, Germany, Peru, Saudi Arabia, Mexico, Kenya, United Arab Emirates, Colombia
Packaging Details:wooden boxSupported graphic formats:AI,BMP,Dst,Dwg,DXF,DXP,LAS,PLT
application:laser scribingMarketing Type:New Products 2019
Warranty:2 yearspayment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram
Main selling point:high accuracyCNC or not:Yes
Certification:ceplace of origin; place of origin:China
Machine introduction
Workbench type:
Servo motor type
Actual cutting size:
300x300mm
Cutting thickness:
<0.5-1.5mm
Material:
Silicon wafer, glass
Laser power:
20W 30W 50W 100W
delivery time:
20 working days
Warranty and Service:
2 years
main part
laser source
Original Raycus fiber laser source
Laser cutting head
Boao Laser China
Laser Cutting Software
CNC2000/3000
worksheet
300*300mm stroke, PC software control, accuracy +-0.015mm

Vacuum adsorption function
Vacuum suction function with table
Servo motor system
Servo Motor Control Table
technical parameter
model:
BFC20/30/50/100
Laser type
Raycus China
Laser wavelength
1060nm
Laser maximum power
20W/30W/50W/100W
maximum. Cutting thickness
1.2mm-1.5MM
suitable material
silicon water, glass, solar panel
Cut size
300*300mm
Laser repetition rate
200Hz~50kHz
Scribe Accuracy
≤±10μm
Maximum scribing speed
150mm/s / 180mm/s
Minimum line width
≤0.15mm
Scribing accuracy
±10 microns
work platform
Adsorption of a vacuum pump on a 2D programmed mobile platform.
cooling system
air cooling
Continuous working time
24 hours
ambient temperature
0-35°C
Power requirements
220V(220V)/50Hz/1kvA

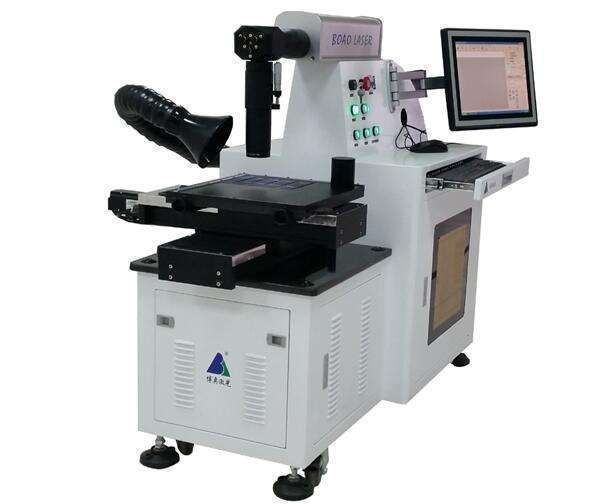

Machine and cutting photos
