Laser irradiating solar cell engraving machine
-
Supplier: Qinhuangdao Radiant Automation Equipment Co., Ltd. -
Region: Hebei, China -
Contact: Ms Michelle zhou -
Price: $15000.00 /set -
Min. Order: 1 set
| Certification: | Certification, ISO | Control system brand: | Beckhoff |
| Laser source brand: | coherent | Laser Type: | fiber-optic laser |
| Packaging Details: | wooden box | Weight (kg): | 500kg |
| Modulation frequency: | 20-80kHz | application: | laser scribing |
| Supply capacity: | 10000 sets per month | After-sales service provided: | Engineers can repair machinery overseas, online support |
| Laser head brand: | Hagrid | power supply: | 1 phase 220 VAC +/- 10%, 50 Hz |
| Core components: | programmable logic controller | Health status: | new |
| Lined area: | less than 200*200 | controlling software: | automatic control |
| Supported graphic formats: | Dst,Dwg,DXF,DXP,PLT | Production name: | 156 125 Laser Scribing Machine |
| Applicable materials: | crystal, metal, paper, plastic, plywood | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram |
| Mechanical test report: | if | CNC table accuracy: | 0.01 mm |
| place of origin; place of origin: | Hebei china | Beam Power: | Max 20W |
| Showroom location: | not any | port: | Tianjin/Shanghai Port |
| Main selling point: | easy to operate | Marketing Type: | New Products 2020 |
| Line speed: | up to 200 mm/s | input power: | 1.5kW max |
| Core Components Warranty: | 1 year | Applicable industries: | other |
| Video external inspection: | if | cooling method: | air cooling |
| Minimum dash width: | 0.05mm | Local service location: | not any |
| Warranty: | 3 years | Rail brand: | THK |
| CNC or not: | Yes | brand: | shining |
| After Warranty Service: | Online support |
Yudian is a professional provider of intelligent equipment products and comprehensive automation solutions. After decades of development, Yudian has continued to forge ahead in the field of photovoltaic manufacturing equipment, and has gradually formed a comprehensive service system integrating R&D, production, sales and professional technical consultation, and has been recognized as a national high-tech enterprise.
We provide turnkey solutions for solar PV module production lines! !

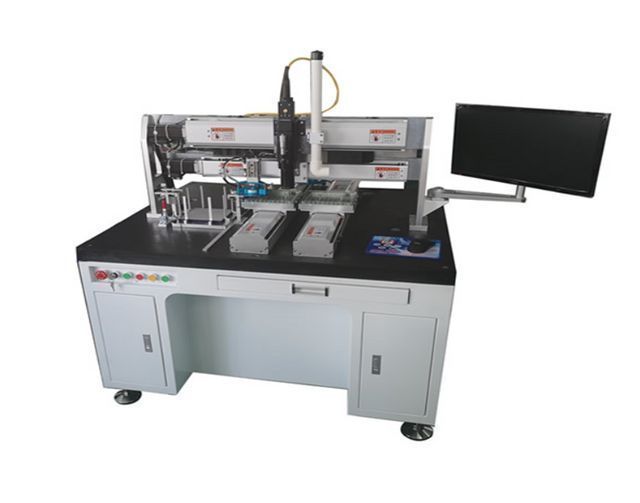

Fiber Laser Scribing Machine
application
Scribing processing in the field of solar photovoltaics, such as monocrystalline silicon, polycrystalline silicon, amorphous silicon, solar cells/wafers
technical parameter:
Modulation Frequency: 20-80 kHz
Beam power: adjustable, max 20W
Scribing speed: adjustable, up to 200 mm/s
Minimum scribe width: 0.05 mm
Scribing area: 156mmX156mm, 125mmX125mm
CNC table accuracy: 0.01mm
Power: 1 phase 220 VAC +/- 10%, 50 Hz (regulator may
Irregular scribing quality caused by sharp voltage fluctuations should be avoided).
Input power: maximum 1.5kW
feature
1. Better laser beam quality
2. No need to replace wearing parts, saving maintenance costs
3. Imported Delta servo motor working system, stable operation and faster cutting speed
-
