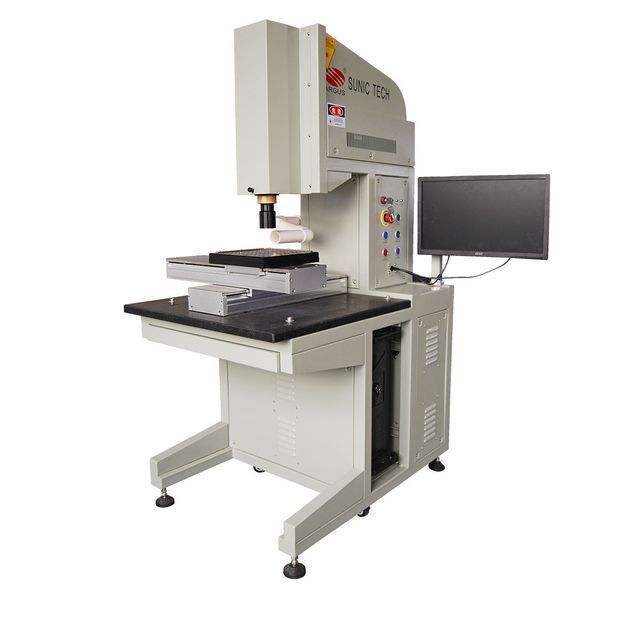

Silicon Wafer Photovoltaic Solar Cell Laser Cutting Machine, With Sorting Function, Can Be Customized

Product details
Applicable materials:Monocrystalline, polycrystalline, amorphous silicon, solar cells.Main selling point:high accuracy
Control system brand:SunickLaser Type:fiber-optic laser
Supply capacity:120 sets per monthpayment terms:L/C,Western Union,T/T
Health status:newLaser frequency:20kHz~200kHz
Solar cell dicing power supply:220V/50Hz (customized)application:laser scribing
Applicable industries:Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Stores, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Works, Energy and Mining, Food and Beverage Stores, Advertising AgenciesCNC or not:Yes
Laser source brand:RexSolar cell dicing machine cooling method:air cooling
place of origin; place of origin:ChinaCertification:ce,ISO,Sgs
cooling method:air coolingLine width:<30μm
Maximum scribing speed:200mm/s solar cell dicing machineSolar cell scriber accuracy:≤±10μm
Packaging Details:Standard wood packaging for export, customs free for fiber laser scribers.brand:Argus
After Warranty Service:Video technical support, online supportShowroom location:UK, Mexico, Romania, Australia
working desk size:210*210mm or 350*350mm solar cell dicing machineAfter-sales service provided:Engineers can repair machinery overseas
Supported graphic formats:AI,PLT,DXF,BMP,Dst,Dwg,LAS,DXPLocal service location:UK, Mexico, Australia, Romania
Operating temperature:0-35℃port:China's main ports
Laser wavelength:1064 nmcontrolling software:SUNIC
Product Description
Laser cutting machine for semiconductor wafer cutting
Laser Scribing Machine, Fiber Laser Scribing Machine, Solar Cell Cutting Machine, Solar Cell Laser Scribing Machine, Solar Cell
Scribing machine, silicon wafer fiber laser scribing machine.

1. New product sunic laser solar cell dicing machine laser dicing machine. The newly designed mechanical structure makes the whole machine
Simpler and easier to operate. Rewrite part of the source code of the solar cell dicing machine laser dicing machine software,
Make sure to run more and more stable and fast.

2. High quality laser dicing machine/solar cell dicing machine. Imported fiber lasers show better laser beam quality (standard
base model), thinner cutting seams and smoother cutting edges.

3. Independent research and development of photovoltaic cell laser cutting/solar cell dicing machine. International standard module design, no need
Maintenance can keep the new solar cell dicing machine laser dicing machine running continuously.

4. Easy to operate It is integrated into the machine, the equipment is smaller and the operation is more convenient. controlling software
Solar cell dicing machine Laser dicing machine is specially designed for fiber laser dicing machine by our company Sunic Laser.

5. The T-type double-sided worktable of the fiber laser dicing machine runs alternately to improve work efficiency.
The laser scribing machine can reach 20mm/s.
technical parameter
Technical indicators
technical parameter
Model Specifications
SFS20
Laser wavelength
1064 nm
Laser power
20W
Laser repetition rate
20Khz-100khz
Maximum scribing speed
200mm/sec
Line width
±10 microns
Line width
<30μm
Work platform size
350x350mm
power supply
380V(220V)/50HZ/1.5KVA (customized)
cooling method
forced air cooling
Operating temperature
0-35℃
Working humidity
5-95%
pack
Export standard wooden packaging, free from suffocation by customs
work platform
Double air chamber vacuum adsorption, T-shaped platform double station work in turn
