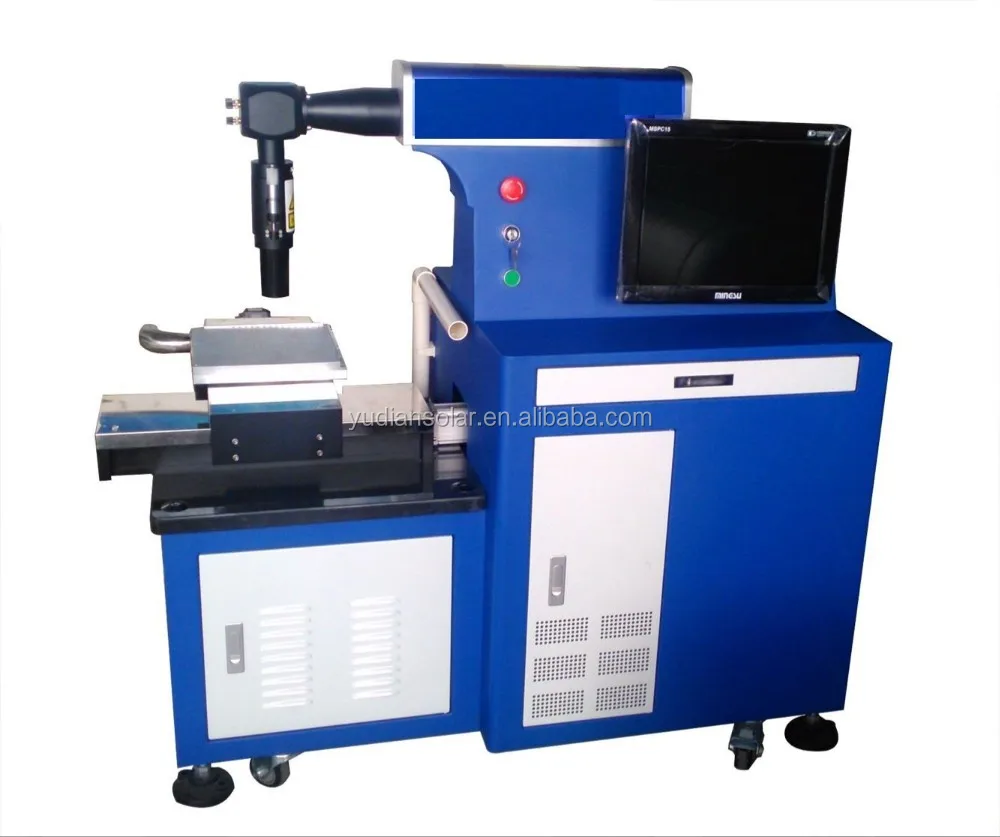

Radiant high speed Fiber laser cell cutting machine from Radiant fiber scribing cutting machine
- 9000.00 set
| Model Number: | YDFLS-20W; | Laser Type: | Fiber Laser; |
| Port: | TIANJIN PORT; | Control Software: | RADIANT SOFTWARE; |
| Cooling Mode: | Air Cooling; | Place of Origin: | Hebei China; |
| Applicable Material: | Metal; | After-sales Service Provided: | Overseas service center available; |
| Supply Ability: | 10000 Set/Sets per Month; | Packaging Detail: | wooden case; |
| Application: | Laser Scribing; | Delivery Detail: | Shipped in 10 days after payment; |
| CNC or Not: | Yes; | Brand Name: | RADIANT; |
| Certification: | CE; | Graphic Format Supported: | AI,BMP,DST,DWG,DXF,DXP,LAS,PLT; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
Radiant provides professional and high efficiency 20W fiber scribing cutting machine for solar panel manufacurer.
Introduction:
The 20W fiber laser with optics isolation system has high stability and good scribing quality, better than traditional lamp-pumped laser. Its 1064 nm laser wavelength could scribe on silicon wafer/ solar cell/ ceramic wafer/ thin metal sheet.
Application and Market

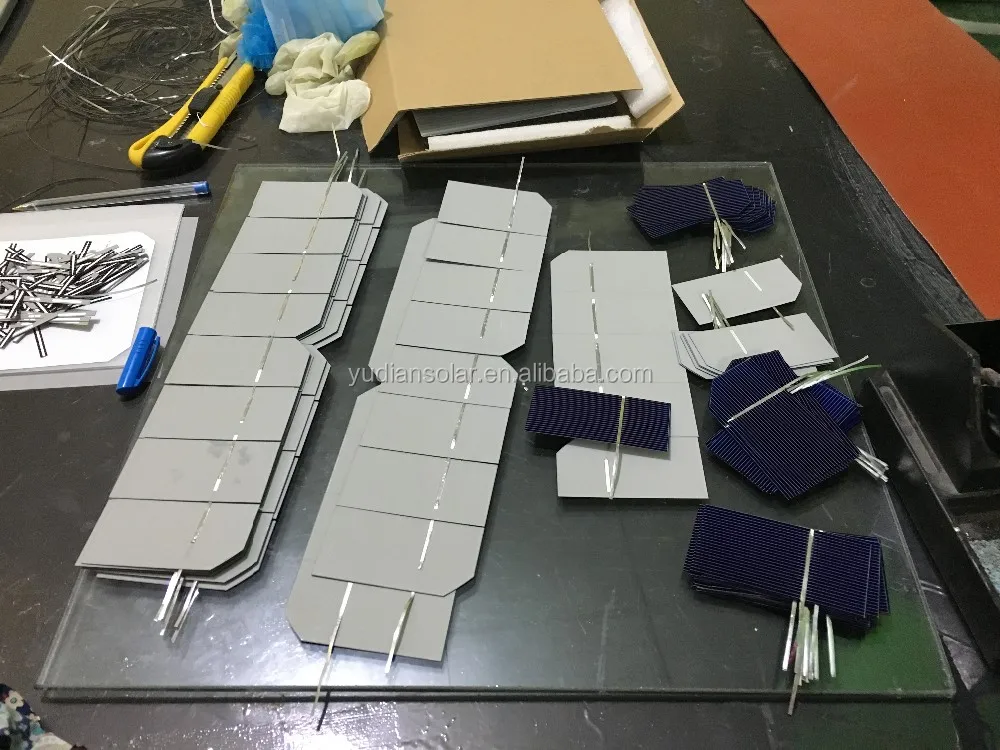

Scribing and cutting for mono-crystalline silicon, poly-crystalline silicon, amorphous-crystalline silicon, solar cell, Silicon, germanium and Gallium arsenic semiconductor materials.
Technical Parameters
Modulated frequency: 20- 80 kHz
Beam power: Adjustable, max 20W
Scribing speed: Adjustable, max 200 mm/ s
Min scribing line width: 0.05 mm
Scribing area: 156mm × 156mm,125mm × 125mm
CNC worktable accuracy: 0.01 mm
Power supply: 1-phase 220 VAC +/- 10%, 50 Hz (A voltage stabilizer might
be required to avoid irregular scribing quality caused by severe voltage fluctuation)
Input power: Max 1.5kW
Features:
Great laser quality/ reliability
Very Low operation cost
Maintenance-free
Compact design

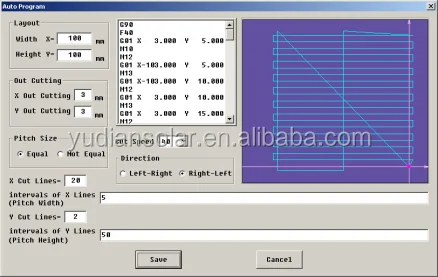

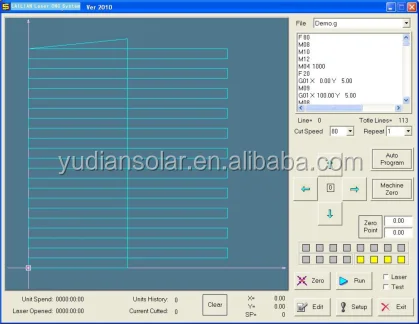

Easy operation and professional software
Contact Radiant if you need machine for solar panel production!!
