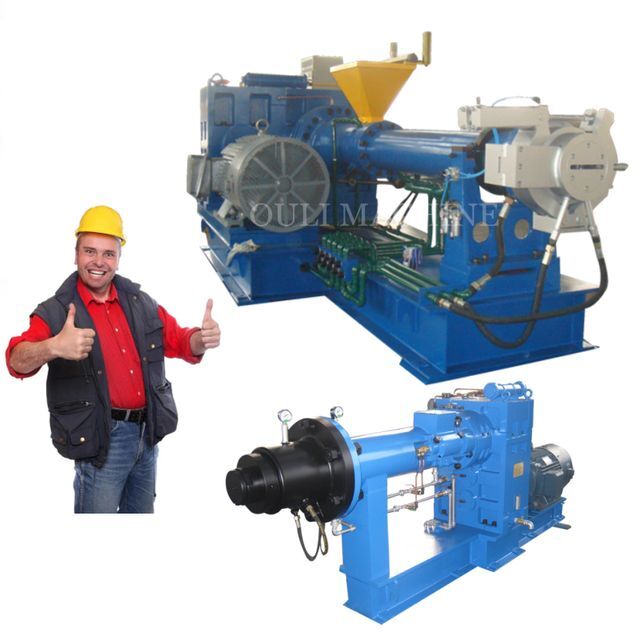

Rubber extruder for rubber lining, rolls, profiles, EPDM, floors, gaskets, pipes, seals, frozen rubber, tire extrusion
- 5000.00 set
| Showroom location: | Argentina, Sri Lanka, Kyrgyzstan, Australia, United States, Brazil, Mexico | Electrical parts: | Chint or Schneider |
| payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | color: | ral5015 |
| Health status: | new | Key words: | rubber extruder |
| Power (kW): | 220 | Screw speed (rpm): | 0 - 50 revolutions |
| Marketing Type: | New Products 2020 | brand: | Ollie |
| Gearbox: | Hard gear reducer | Warranty: | 3 years |
| Screw aspect ratio: | 16 | application: | rubber extrusion |
| Weight (kg): | 7500kg | year: | 2022 |
| motor: | Chinese brand or European brand | Packaging Preview: | |
| Voltage: | Required, 380V | Dimensions (L*W*H): | 4000X1810X1620 |
| Name: | rubber extruder | Core parts warranty: | 3 years |
| Video external inspection: | if | Core components: | PLC, gearbox, motor |
| port: | Qingdao Port, Dalian Port, Shanghai Port, Tianjin Port, etc. | Output (kg/hour): | 2000kg/hour |
| Applicable industries: | rubber industry | Main selling point: | long lasting |
| Mechanical test report: | if | Screw diameter (mm): | 150 mm |
| Packaging Details: | Packing: Standard export wooden box | advantage: | high efficiency |
| control: | Manual or automatic | Supply capacity: | 100 sets per month |
| place of origin; place of origin: | Shandong China |
Rubber extruder for rubber lining, rolls, profiles, EPDM, floors, gaskets, pipes, seals, frozen rubber, tire extrusion
introduce
Rubber extruders are used to extrude rubber semi-finished products of different shapes, such as rubber hoses, rubber tubes, cables, sealing strips, or to provide rubber materials for calender production lines.
Extruder type: hot feed extruder, needle type cold feed extruder, syringe type cold feed extruder, rubber filter.
|
Parameters/Models |
XJD-75 |
XJD-90 |
XJD-120 |
XJD-150 |
XJD-200 |
XJD-250 |
|
Screw diameter (mm) |
75 |
90 |
120 |
150 |
200 |
250 |
|
long/deep |
8-14 |
12-16 |
12-16 |
12-18 |
12-18 |
12-18 |
|
Screw speed (r/min) |
60 |
~60 (55) |
~50 |
~45 |
~33 |
~26 |
|
Motor power (kw) |
37-45 |
45~75 |
75~110 |
160~250 |
220~355 |
355~450 |
|
Capacity (kg/hour) |
100-180 |
250~350 |
600~800 |
1000-1500 |
1600-2500 |
2800-3500 |
|
Total weight (t) |
2.1 |
3 |
4.2 |
5.5 |
9.8 |
15 |
