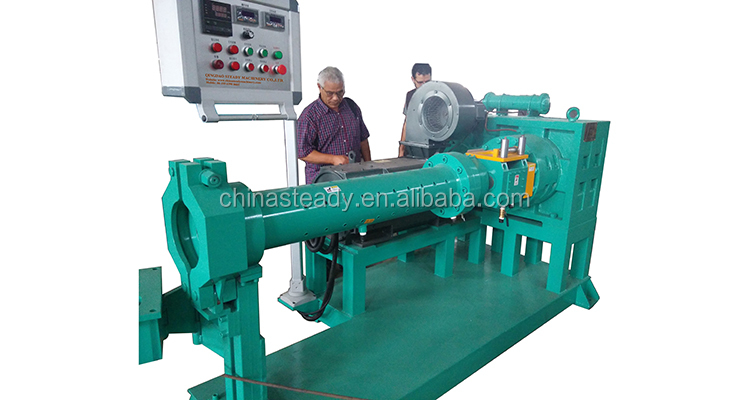

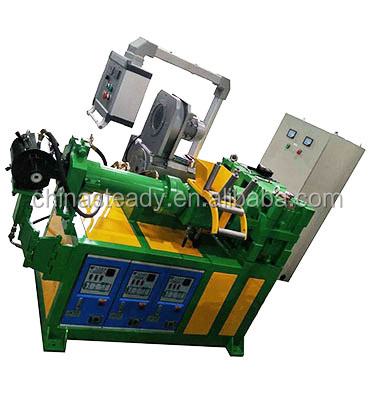

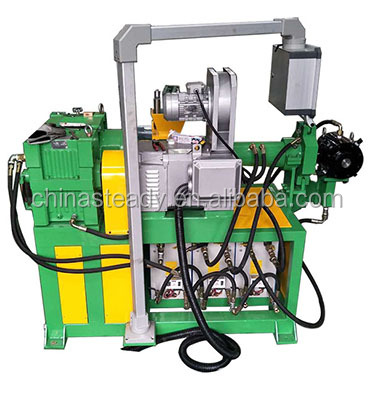

Rubber Screen Extruder For Rubber Filtration

Supplier: Qingdao Steady Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Bob Cheng
Price: $20600.00 / 1 - 1 sets
$20400.00 / 2 - 2 sets
$20200.00 / >=3 sets
Min. Order: 1 set

Click here to contact

Product details

color:	client needs	type:	rubber extruder
Video shipment inspection:	if	Origin:	Shandong China
port:	Chinese port	Showroom location:	Morocco, Sri Lanka, Romania, Nigeria, Malaysia, Australia, Egypt, United Kingdom, United States, Vietnam, Philippines, Brazil, Indonesia, Pakistan, India, Russia, Thailand
Core components:	Bearings, gearboxes, motors, gears	Main selling points:	long lasting
Key words:	Rubber filter	Core component warranty:	1.5 years
Screw aspect ratio:	1:14	Weight (kg):	2500 kg
Warranty:	1.5 years	application:	extruded rubber or plastic products
brand:	stable	Screw diameter (mm):	90 mm
After-sales service provided:	Engineers available to service machinery overseas	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,PayPal, Ali E-pay
raw material:	rubber material	Output (kg/h):	400 kg/h
Dimensions (LWH):	230011501750mm	Mechanical test report:	if
Packaging Details:	Secure into containers and handle properly for larger machines. Rubber filter extruder for rubber filtration is available in fumigation-free cassette with tray base for small sizes. Size: Depends on the specific model purchased	Voltage:	380V/50HZ
Screw speed (rpm):	6 - 60 rpm	Name:	Rubber Screen Extruder For Rubber Filtration
advantage:	high efficiency	Supply capacity:	A professional manufacturer of 20 sets of syringe hot-feed rubber extruders per month
Power (kW):	55	Package preview:
Health status:	new	Feed:	Automatic feed roller
Applicable industries:	manufacturing plant

Company Profile

Product Description

Model	XJD-50	XJD-65	XJD-75	XJD-90	XJD-120	XJD-150	XJD-200	XJD-250
Screw diameter(mm)	Ф50	Ф65	Ф75	Ф90	Ф90	Ф150	￥200	Ф250
Screw aspect ratio	12:1 or 14:1	12:1 or 14:1	12:1 or 14:1	12:1 14:1 or 16:1	14:1 or 16:1	14:1 or 16:1	18:01	12:01
Screw speed(r/min)	7-73	6.7-70	6-60	6.7-60	5-50	5-44	5-33	5-23
maximum. Production capacity(kg/h)	60	120	180	350	1000	1800	2600	3000
Power(kw)	11	twenty two	37	55	110	135	250	315
reducer	hardening reducer (square box shape)	hardening reducer (square box shape)	hardening reducer (square box shape)	hardening reducer (square box shape)	hardening reducer (square box shape)	hardening reducer (square box shape)	hardening reducer (square box shape)	hardening reducer (square box shape)
Machine weight (T)	1.1	1.65	1.8	2.5	5	6.5	9.8	15
Dimensions (length × width × height) mm	1550×1050 ×1500	1900×800 ×1500	2340×1150 ×1250	2300×1150 ×1400	3500×1450 ×1700	5200×1650 ×1600	7150×1950 ×2300	8500×2450 ×2600

Applications

Syringe-type hot-feed rubber extruder is suitable for extruding rubber or plastic products (usually used to extrude pipes, sheets, strips, pellets, treads, inner tubes, etc.), filter materials (used to filter rubber impurities). This machine can also be used for mastication, mixing, rubber mixing of rubber and plastic, and mixing of rubber and synthetic rubber.

main feature

1) The syringe-type hot-feed rubber extruder has a simple structure and is easy to install and maintain.

2) The hydraulic parts, electrical parts and operating parts of the syringe type hot-feed rubber extruder adopt the world's advanced famous brand components.

3) The syringe-type hot-feed rubber extruder has the characteristics of energy saving, high productivity, good plasticization, and good glue quality.

4) The syringe-type hot-feed rubber extruder can be equipped with various extruder heads according to user requirements.

5) Install the temperature measuring and indicating device of the rubber extruder body, equipped with a feeding area

With side rollers for enhanced feeding capacity.

6) The screw and bushing have been nitrided to have sufficient strength and wear resistance.
7) The reducer is equipped with a forced lubrication device, which has high transmission efficiency, long life and low noise.
8) The rubber extruder is driven by a variable speed motor.
9) The side roller is designed as a side-opening type, which is convenient for degumming.

10) ISO, CE, SGS, GOST certificates.
