Hot selling 65mm cold feed silicone rubber extruder

Supplier: Qingdao Chaoguangyue Industry Co., Ltd.
Region: Shandong, China
Contact: Mr Daguang Qiu
Price: $3000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging details:	Standard export packaging or according to your requirements.	Video outbound inspection:	if
Power (kW):	11	Certification:	ISO/CE/SGS
application:	For extruded silicone rubber products	Screw diameter (mm):	65mm
Voltage:	210v,220v,230v,240v,380v,400v,415v,440v	Tighten:	Advanced and novel design
Marketing type:	normal product	efficiency:	higher
Warranty:	three years	port:	Qingdao Port or any port in China
Health status:	new	Output (kg/hour):	150kg/hour
Applicable industries:	manufacturing plant	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Main selling points:	Energy saving	Supply capacity:	20 sets per month
Place of origin:	Shandong Province, China	After-sales service provided:	Engineers can repair machinery overseas
Showroom location:	Argentina, Chile, Malaysia, Turkey, Brazil, Russia	Dimensions (lengthwidthheight):	16007001500mm
Weight (kg):	1600kg	Feeding:	automatic
Core component warranty:	More than 5 years	Core components:	PLC, engine, bearing, gearbox, motor, gear, pump
type:	Rubber extruder	Mechanical test report:	if

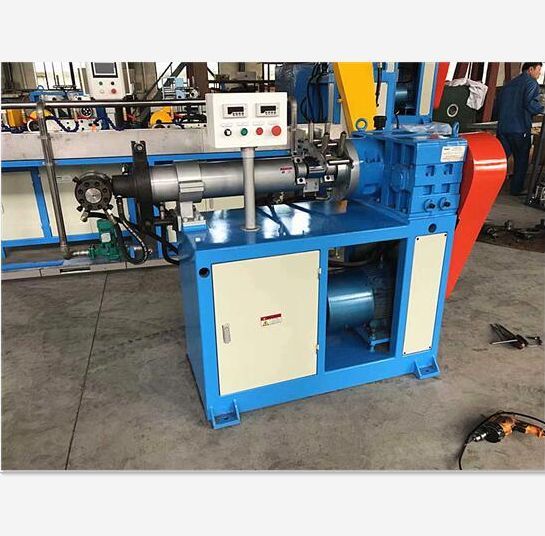

Hot selling 65mm cold feed silicone rubber extruder

application

It is used for efficient extrusion and continuous short-time vulcanization of silicone special-shaped materials such as silicone tubes, composite silicone tubes, and silicone sealing strips. The unique design of the silicone extruder and the successful application of the feeding device facilitate production. Good stability, reducing dependence on workers. The screw with high compression ratio and high aspect ratio enables better extrusion density and mixing effect. The extruded product has the characteristics of smooth internal and external surfaces, no bubbles, and stable and uniform dimensions.

feature

This silicone rubber extruder adopts advanced variable pitch and variable depth screws, synchronous counter-rotating feed rollers and new machine heads to meet the requirements of silicone rubber products.

The screw compression ratio is high and the silicone rubber is fully plasticized. The filter plate can improve the uniformity and fluidity of materials and reduce impurities in silicone rubber materials.

The main technical parameters

Screw diameter: 65mm

Aspect ratio: 12:1

Screw speed: 0-55rpm

Screw and barrel material: 38CrMoAI, nitrided

Feeding method: cold feeding by feeding roller

Feeding device: very convenient for cleaning materials

Motor power: 11kw, frequency conversion control

Screw and barrel cooling method: water cooling

Output: 130kg/hour

Weight: 800kg

Overall dimensions (length*width*height): 1600*700*1500mm

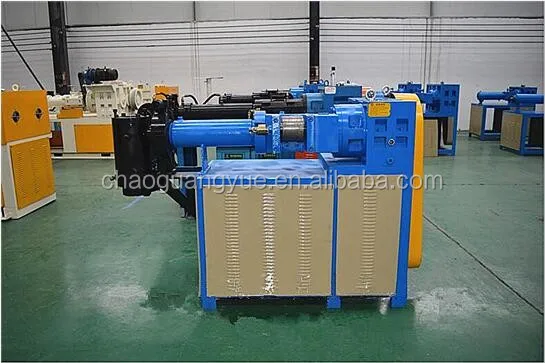

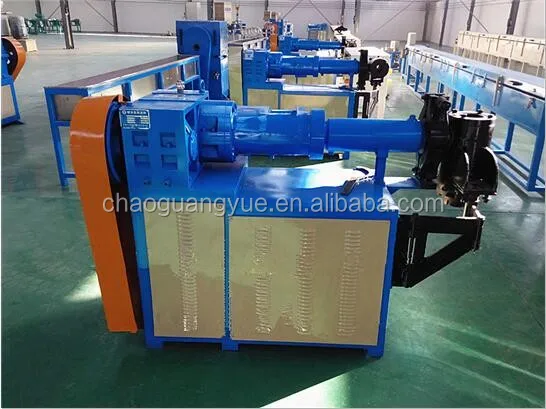

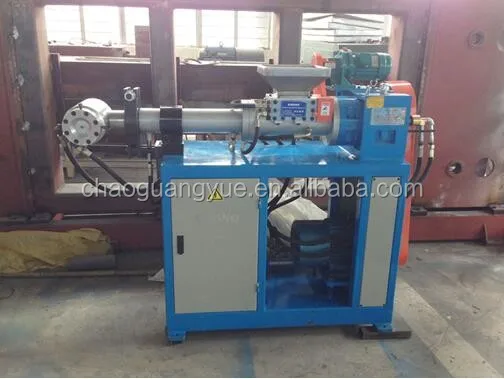

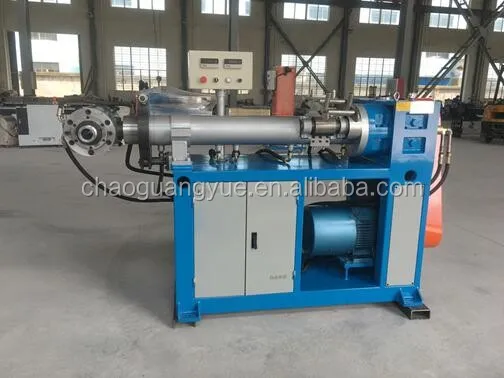

Cold feed silicone rubber extruder

Our packaging method: export standard wooden packaging or according to your requirements.

our service:

1. We will design, manufacture, install and test machines according to customer requirements. Provide relevant personnel training to customers to ensure that customers fully understand the use and maintenance of technology.

2. Our service department listens to customer feedback at any time and provides spare parts in a timely manner.

Welcome to visit our factory, we can show you the machine in working condition:

If our products win your interest, please send us an inquiry and we will provide you with details. We can also make non-standard machines according to your requirements.
