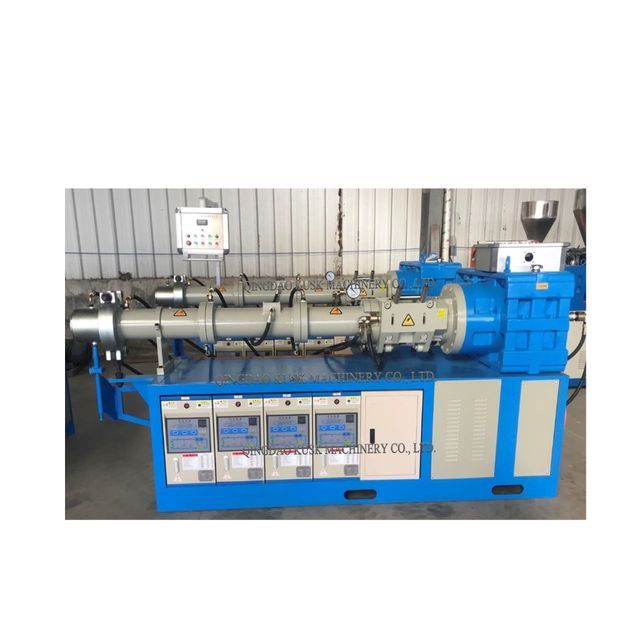

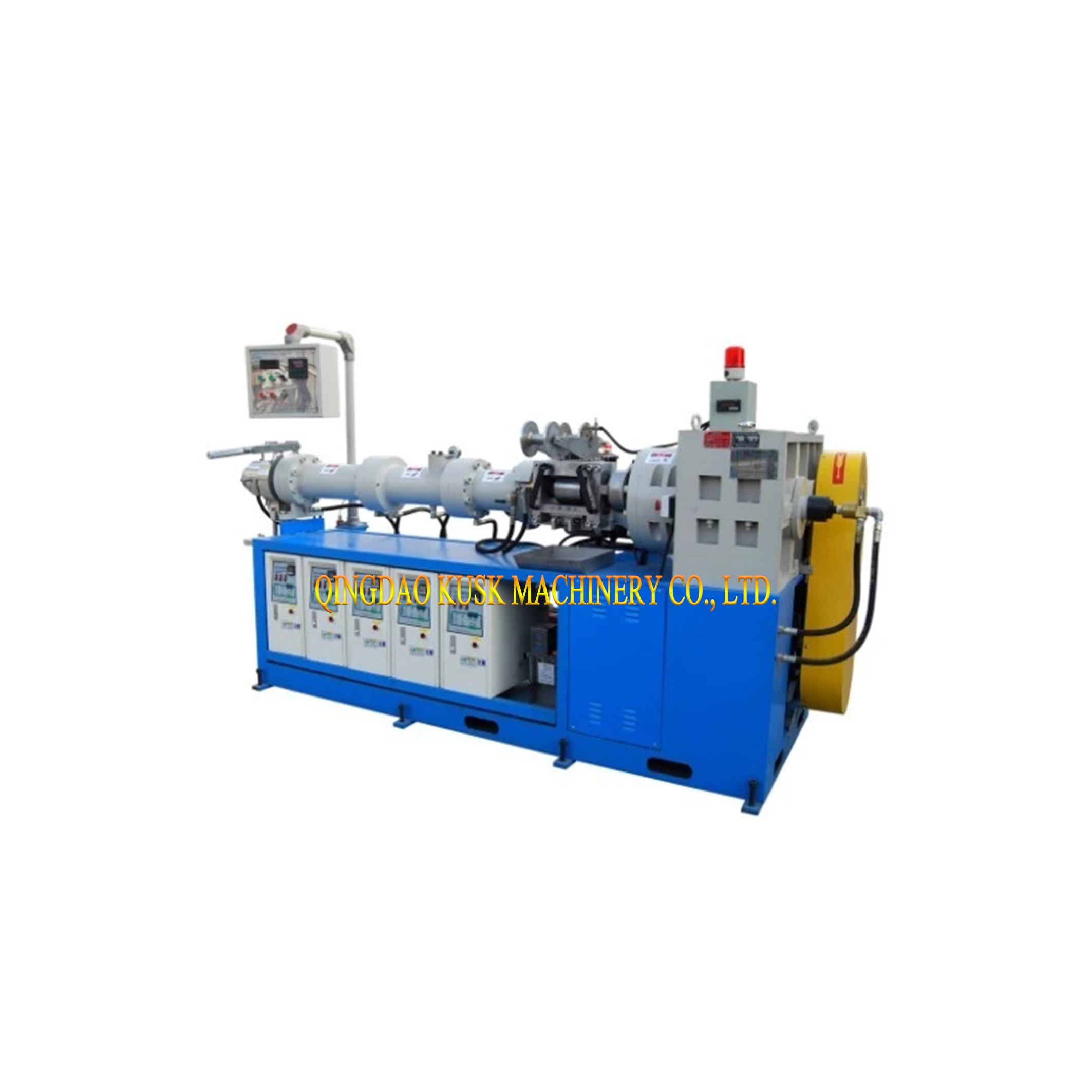

Rubber extrusion vulcanization production line Machine for making EPDM rubber profiles
- 40000.00 1 - 2 sets
- 20000.00 >=3 sets
| Video outbound inspection: | if | Origin: | Shandong Province, China |
| payment terms: | L/C, D/P, D/P, T/T | Key words: | Rubber filter filter extruder |
| warranty service: | Video technical support, online support | Mechanical test report: | if |
| Showroom location: | not any | Main selling points: | easy to operate |
| Weight (kg): | 4500 kg | Certificate: | CE |
| Applicable industries: | Clothing store, building material store, food and beverage factory, restaurant, retail, printing shop, construction project, advertising agency | Warranty: | 3 years |
| color: | client needs | Core components: | PLC, engine, bearing, gearbox, pump |
| Packaging Details: | export package | Output (kg/h): | 400 kg/h |
| advantage: | high efficiency | strength: | Post-90s |
| Screw speed(rpm): | 30 - 60 rpm | brand: | Cusk |
| aspect: | 3500*3200*2800 | Supply capacity: | 300 sets per year |
| Screw diameter (mm): | 90 mm | Health status: | new |
| Applicable industries: | Manufacturing plants, machinery repair shops | Year: | 2023 |
| Voltage: | 400V/480V/220V | Core component warranty: | 3 years |
| type: | rubber extruder |
Widened Rubber Sheet Extrusion Line
Product Description
application:
This extrusion/calendering line is used to produce various specifications ofContinuous Extrusion Production of Rubber Sheet. Such as radial tire anti-leakage layer, bias tire inner liner, buffer layer, isolation layer, waterproof material, anti-corrosion lining, conveyor belt cover layer extrusion, etc.
feature:
The production line is mainly composed of needle-type cold-feed extruder, sheet extruder, unwinding device, thickness measuring device, trimming device, storage device, cooling and let-off device, etc.
Temperature control system, electrical control components.
This extrusion line has a remarkable plasticizing effect on high-performance rubber sheet extrusion. The airtightness is good, eliminating the quality problem that the calender is not easy to make a sheet with poor airtightness due to the accumulation of composite bubbles. The production line has the advantages of high efficiency, energy saving, and space saving.
figure:
- Rubber sheet width range:800-2500mm(custom made)
- Rubber sheet thickness: 04-12mm
- Tape speed: 0.5 -20m/min
- Supporting rubber extruder: 120, 150, 200, 250
|
parameter |
Version |
||||
|
XJ-65 |
XJ-85 |
XJ-115 |
XJ-150 |
XJ-200 |
|
|
Screw outer diameter |
65 |
85 |
115 |
150 |
200 |
|
aspect ratio |
4 |
4.3 |
4.8 |
4.43 |
4.35 |
|
compression ratio |
|
1.3 |
1.3 |
1.34 |
|
|
Screw speed(min) |
20.27.35.47 |
28.40.56.80 |
60.46.33 |
27-81 |
22.4-67.2 |
|
strength |
7.5 |
11/15 |
twenty two |
18.3-55 |
25-75 |
|
Product output (kg/h) |
50-80 |
70-210 |
100-420 |
700-1200 |
1500-2200 |
|
steam pressure |
0.2-0.3 |
0.3-0.4 |
0.4-0.6 |
0.6 |
0.6-0.8 |
|
cooling water pressure |
0.2-0.3 |
0.2-0.3 |
0.2-0.3 |
0.2 |
0.2-0.3 |
|
compressed air pressure |
|
|
|
|
0.3-0.6 |
|
size |
1630*604*1050 |
2050*700*1200 |
1630*604*1050 |
3411*814*1470 |
4564*1800*150 |
|
Weight (kg) |
1200 |
2500 |
3000 |
5000 |
8000 |
...
