Higher Efficiency XJG-75 Cold Feed Silicone Tube Extruder/Silicone Rubber Tube Extruder

Supplier: Qingdao Chaoguangyue Industry Co., Ltd.
Region: Shandong, China
Contact: Mr Daguang Qiu
Price: $3000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Marketing Type:	normal product	Screw diameter (mm):	75 mm
Applicable industries:	manufacturing plant	Core components:	PLC, engine, bearing, gearbox, motor, gear, pump
Tighten:	Advanced and new designs	Voltage:	210v, 220v, 240v, 380v, 400v, 415v, 440v
Packaging Details:	Standard export packing or as your request.	Core Components Warranty:	5+ years
Output (kg/hour):	150 kg/h	After Warranty Service:	Video technical support, online support, spare parts, on-site maintenance and repair services
place of origin; place of origin:	Shandong China	Weight (kg):	1300kg
Supply capacity:	20 sets per month	Local service location:	Argentina, Chile, Turkey, Brazil, Peru, Mexico, Russia
After-sales service provided:	Engineers can service machinery overseas, free spare parts, on-site maintenance and repair services, video technical support, on-site installation, commissioning and training, online support	Main selling point:	high productivity
port:	Qingdao Port or any port in China	Warranty:	5+ years
brand:	cgy	Showroom location:	Argentina, Chile, Turkey, Brazil, Peru, Mexico, Russia
Health status:	new	Certification:	ISO/CE/SGS
type:	rubber extruder	application:	For extruding silicone rubber products
Video external inspection:	if	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
Mechanical test report:	if	Power (kW):	15
efficiency:	higher	Dimensions (LWH):	220010001520mm

Higher Efficiency XJG-75 Cold Feed Silicone Tube Extruder/Silicone Rubber Tube Extruder

application

It is used for high-efficiency extrusion and continuous short-time vulcanization of silicone rods such as silicone tubes, composite silicone tubes, and silicone seals. The unique design of the silicone extruder and the successful application of the feeding device promote production stability and reduce worker dependence. The screw with high compression ratio and high aspect ratio makes extrusion compactness and mixing effect better. The extruded product has the characteristics of smooth inner and outer surface, no bubbles, stable and uniform size.

feature

This silicone rubber extruder adopts advanced variable pitch and deep screw. The extruder adopts synchronous counter-rotating feeding rollers and a new type of head, which can meet the requirements of silicone rubber products.

Silicone rubber can be fully plasticized, and the screw compression ratio is high. The filter plate can improve the uniformity and fluidity of the material and reduce the impurities of the silicone rubber material.

The main technical parameters

Screw diameter: 75mm

Aspect ratio: 14:1

Screw speed: 0-55rpm

Screw and barrel material: 38CrMoAl, nitrogen treatment

Feeding method: cold feeding by feeding rollers

Feeding device: cleaning is very convenient

Motor power: 22kw, frequency conversion control

Screw barrel cooling method: water cooling

Output: 150 kg/hour

Weight: 1500kg

Dimensions (L*W*H): 2200*1000*1520mm

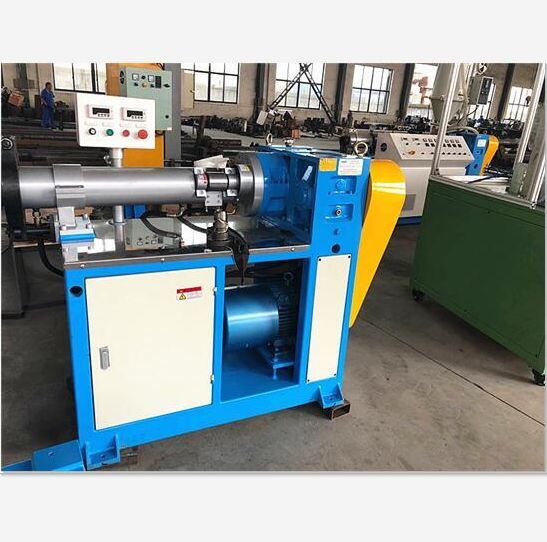

Cold Feed Silicone Rubber Extruder

Our packing way: export standard wooden packing or as your request.

our service:

1. We will design, manufacture, install and test the machine according to customer's requirements. Provide relevant personnel training for customers to ensure that customers fully grasp the use and maintenance of technology.

2. Our service department listens to customer feedback at any time and provides spare parts in time.

Welcome to visit our factory, we can show you the working state of the machine:

If our products win your interest, please send us an inquiry and we will provide you with details. We can also make non-standard machines according to your requirements.
