EPDM door and window rubber sealing strip production line extrusion production line

Product details
Screw aspect ratio:14:1brand:CGY
Marketing Type:New Products 2022port:Qingdao
Applicable industries:Manufacturing plants, machinery repair shopsSupply capacity:30 sets per month
Core components:Bearings, gearboxes, motorsHealth status:new
Main selling point:long lastingScrew speed (rpm):60 - 100 rpm
Dimensions (L*W*H):23200x1900x1800mmplace of origin; place of origin:Shandong China
Showroom location:Japan, Malaysia, United Kingdom, United States, Italy, France, Germany, Vietnam, Brazil, Peru, Pakistan, India, Mexico, Russia, Spain, ThailandPackaging Details:Standard export packing or according to customer demand
Warranty:3 yearstype:rubber extruder
Mechanical test report:ifAdvantage:high efficiency
Screw diameter (mm):75 mmcommentator:Chrome plated and polished
Voltage:client needsOutput (kg/hour):150 kg/h
Core Components Warranty:3 yearsVideo external inspection:if
payment terms:L/C,Western Union,T/T,MoneyGramName:sealing strip extruder
year:2022color:according to your needs
Weight (kg):2000kgPower (kW):18



EPDM door and window rubber sealing strip production line extrusion production line



PVC sealing strip making machine

Process flow: mixing - granulation - extrusion - cooling - winding



parameter:



Model

SJ-45

SJ-55

SJ-65

SJ-80

SJ-90

Screw diameter (mm)

φ45

φ55

φ65

φ80

φ90

Center height (mm)

1000

1000

1000

1000

1000

Production capacity (kg/hour)

60

80

120

180

220

Screw speed (r/min)

60

60

60

60

60

Main power (kw/h)

7.5

11

15

twenty two

30

Radiator

3+2

3+2

4+2

4+2

4+4

Total installed capacity (kw)

12

20

30

42

55

Weight (tons)

1

1.2

1.5

1.8

2.2

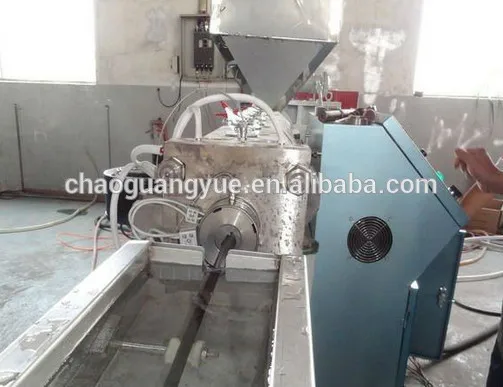

Soft PVC sealing strip extruder
1-Raw material: soft PVC
2- Screw diameter: 65mm

The whole factory is composed of extruder, water-cooling tank, tractor, and double-roller, and cooperates with different specifications of molds to produce soft PVC sealing strips for aluminum doors and windows, instead of rubber strips.

Complete production line:



1- Automatic material dryer and feeder SJ-65



2-Extruder

Model: LXSJ-65/28

Screw diameter: φ65mm

Capacity: 70-80kgs/h

long: deep: 28:1

Screw Material: 38CrMoALA Nitriding HV: >800

Barrel Material: 38CrMoALA Nitriding HV: >800

Motor power: 22kw

Inverter: Fuji

Components: TE and OMRON

Heating element material: ceramic heating element

Material: best stainless steel

3-Water cooling box

Length: 4 meters

Material: Stainless steel

Adjustment distance: 500mm

Adjustment Orientation: 3D

4-Tractor

Fixture length: 500mm

Fixture width: 120mm

Adjustment distance: 500mm

Clamping: Pneumatic

Speed: 0.6-6m/min

Motor power: 1.1kw

Inverter: Fuji

5-Two-roller tractor (easy to operate)

6-Air compressor

7- Crusher

8-Mold

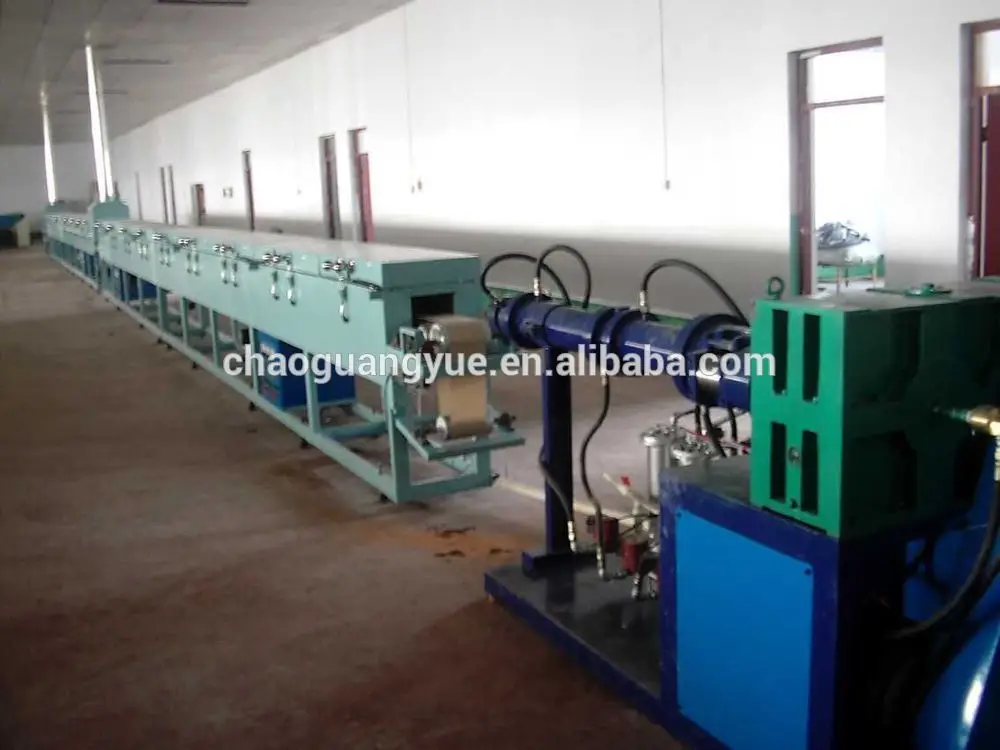

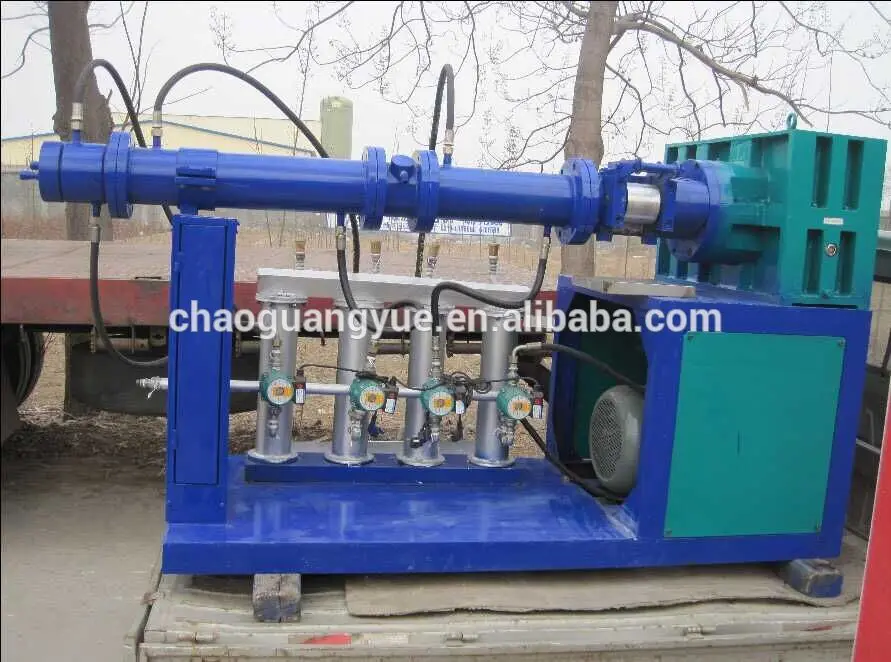

EPDM sealing strip extruder

Process flow: kneader-open mill-extruder-solidification-cooling-winder







Do not.

project

Specification

quantity



HX-55 Glass Gasket Extrusion Line



1 set

2.1

55 single screw extruder

Φ55*28D

1 set

2.2

die

Depends on customer samples

1 set

2.3

Horizontal vulcanizing furnace

4M



2.4

Stainless steel water cooling tank

3M

1 set

2.5

traction device

PU V belt

1 set

2.6

Single station winder

standard

1 set



The main technical parameters:

  1. 1. Screw diameter: 55mm
  2. 2. L/D: 28:1;
  3. 3. Screw rated speed: 0-90rpm (adjustable)
  4. 4. Output speed: 10-15m/min
  5. 5. Center height: 1050mm±50mm
  6. 6. Motor (AC): variable frequency motor
  7. 7. Main motor power: 15kw
  8. 8. Inverter: ABB (Switzerland)
  9. 9. Temperature control table: high-precision main control temperature control table, tolerance: ±1 degree Celsius.
  10. 10. Color: blue and white (depending on customer preference)
  11. 11. Wire size: about 12000mm*1000mm*1650mm
  12. 12. Three-phase voltage: 380V, 3PH, 50 Hz

Why choose us?



Qingdao Chaoguangyue Rubber Machinery Manufacturing Co., Ltd.



1. Specialized in rubber machinery for more than 20 years;

2.100% real manufacturer, not a trading company;

3. The whole machine is guaranteed for two years

4. Various non-standard machinery can be designed and manufactured according to customer requirements.

5. Our products have passed ISO9001:2008 international quality management system certification, European certification

6. Main customers: Southeast Asia, Central Asia, Middle East, North and South America, Europe and other countries and regions.



product::

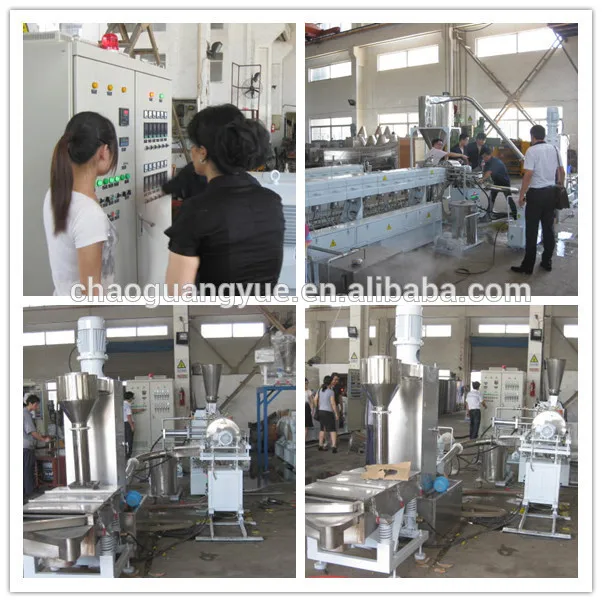

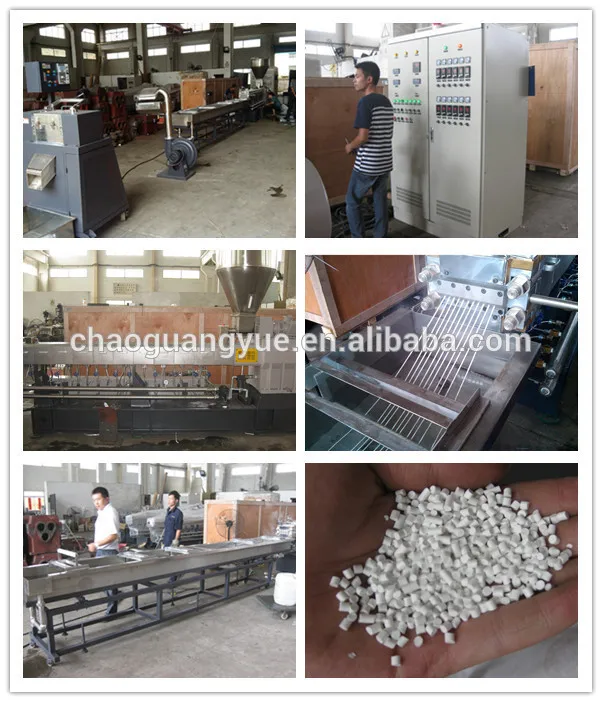

Our factories and machines:





Packaging and Delivery:







Certification: CE, SGS, ISO9001



FAQ:

1. Q: Are you a factory or a trading company? A: We are a factory.

2. Q: Where is your factory? How can I visit?

A: Our factory is located in Qingdao city. You can fly to Qingdao Liuting Airport, then we can pick you up to visit our factory. A warm welcome to visit us.



3. Q: How does your factory control the machine quality and after-sales service?

A: Our machines have passed CE, ISO, SGS certification, please confirm the quality. All our machines have a 1 year warranty and will provide lifetime maintenance.



4. What is your payment term?

A: It is common to pay 30% deposit by T/T, and the balance to be paid according to the shipping documents.

or letter of credit at sight.



5. Q: Can you design new products for us?

A: We have a professional development team that can make new products according to your requirements.
