Rubber Duplex Extruder Filtration Line Price Hot and Cold Feed Extrusion Tablet Press, Laboratory Use, Small, 65,90mm Vacuum Type.

Product details
Power (kW):220brand:Ollie
Key words:rubber extruderVoltage:Required, 380V
application:rubber extrusionPackaging Preview:
Dimensions (L*W*H):4000X1810X1620Showroom location:Argentina, Sri Lanka, Kyrgyzstan, Australia, United States, Brazil, Mexico
Screw speed (rpm):0 - 50 revolutionsWarranty:3 years
Health status:newVideo external inspection:if
Mechanical test report:ifCore parts warranty:3 years
advantage:high efficiencyElectrical parts:Chint or Schneider
Supply capacity:100 sets per monthScrew diameter (mm):150 mm
motor:Chinese brand or European brandScrew aspect ratio:16
Gearbox:Hard gear reducerName:Butyl Silicone 38mm Packing Rubber Band Extruder
control:Manual or automaticCore components:PLC, gearbox, motor
year:2022port:Qingdao Port, Dalian Port, Shanghai Port, Tianjin Port, etc.
Applicable industries:rubber industryMarketing Type:New Products 2020
payment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGramPackaging Details:Packing: Standard export wooden box
Weight (kg):7500kgplace of origin; place of origin:Shandong China
Main selling point:long lastingcolor:ral5015
Output (kg/hour):2000kg/hour

Rubber Duplex Extruder Filtration Line Price Hot and Cold Feeding Extrusion Tablet Machine Production Line, Laboratory Use, Small, 65, 90mm, Vacuum, Exhaust



Product Description



introduce

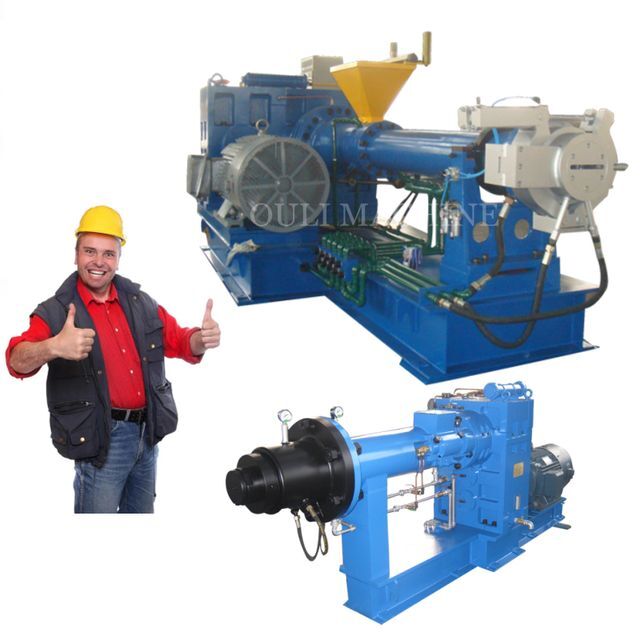

Rubber extruders are used to extrude rubber semi-finished products of different shapes, such as rubber hoses, rubber tubes, cables, sealing strips, or to provide rubber materials for calender production lines.


Extruder type: hot feed extruder, needle type cold feed extruder, syringe type cold feed extruder, rubber filter.



thing

Screw diameter

(mm)

Aspect ratio

Maximum screw speed (r/min)

output

(kg/hour)

Dimensions (mm)

weight

(Kilogram)

XJD-60

60

12:1

80

120

1800x1310x1400

2500

XJD-65

65

12:1

80

150

1800x1310x1400

2800

XJD-90

90

12:1

60

360

2300x950x1450

3800

XJD-120

120

12:1/14:1

55

780

3250x1250x1550

6200

XJD-120

120

16:1

55

800

3250x1250x1550

6800

XJD-150

150

14:1

55

1600

3880x1700x1700

7500

XJD-150

150

16:1

45

1800

3880x1700x1700

7800

XJD-200

200

12:1/14:1

32

2100/2300

4900x1900x1850

11000

XJD-200

200

16:1

32

2600

5500x1900x1850

11400

XJD-250

250

12:1

26

3200

5400x2400x1950

18600

XJD-250

250

16:1

26

3800

6077x2400x1920

19000
