Industrial Rubber Processing Machinery Gravel Cutting Machine/Hydraulic Rubber Pack Cutting Machine
- 4200.00 1 - 4 sets
- 3900.00 5 - 9 sets
- 3700.00 10 - 19 sets
- 3500.00 >=20 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Related names: | Rubber cutting machine | port: | Qingdao |
| Main selling points: | competitive price | Showroom location: | Morocco, South Korea, Chile, United Arab Emirates, Colombia, Algeria, Romania, Japan, Malaysia, Australia, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Brazil, Peru, India, Mexico, Russia, Spain, Thailand |
| Cutting force: | 5T-20T optional | Voltage: | custom made |
| Name: | Rubber cutting and bundling machine | After-sales service provided: | if |
| Place of origin: | Shandong Province, China | Suitable: | Rubber processing plant |
| Video outbound inspection: | if | Pressurization type: | Hydraulic |
| Knife width: | 500-3000mm optional | Core component warranty: | 3 years |
| Cutting stroke (mm): | 600 | Year: | 2023 |
| Supply capacity: | 300 sets per year | Post-warranty service: | if |
| application: | rubber cutting | Dimensions (length*width*height): | 1500*500*2200 |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Applicable industries: | Rubber processing plant, raw rubber production line, waste tire recycling line |
| Health status: | new | Power (kW): | 5.5kW |
| model: | XQL-80/XQL-160 | Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump |
| Mechanical test report: | if | brand: | Ouli |
| Cutting force (T): | 15 tons | Weight (kg): | 1200kg |
| Package preview: | Packaging details: | Standard packaging or customized We have professional equipment and workers to pack your products and keep them intact during transportation. | |
| Warranty: | 2 years | Certification: | EU CE certification |
| Energy source: | Hydraulic |
1 product description
Model | XQL-8 | XQL-15 |
Glue cutting machine width (mm) | 660 | 1000 |
Glue cutting machine stroke (mm) | 300-600 | 600 |
Total cylinder pressure (KN) | 80-150 | 150-300 |
Glue cutting travel time (s) | 16～25 | 16～25 |
Power (kW) | 4 | 7.5 |
Dimensions (length × width × height) | 1900×720×2580 | 1500×1000×2500 |
Weight (kg) | 1000 | 1500 |
2 Our advantages
1. The rubber cutting machine is one of the raw material processing machinery in the rubber factory. It is mainly used to cut natural rubber or synthetic rubber into small pieces that are easy to mix to meet the requirements.Require
2. The glue cutting machine has a compact structure, easy operation, few wearing parts, and easy maintenance. It is an essential machine for raw material storage.
3. The glue cutting machine is mainly composed of a motor, a vane pump, a magnetic reversing valve, a relief valve, a driven cylinder, an oil pressure gauge tube, a hydraulic cylinder bracket, a glue cutting knife, a frame, a conveyor trough, etc. The oil cylinder adopts standard hydraulic cylinder. ; The frame is made of high-quality welded steel; the rubber cutter is made of 9CrSi or T8A, and its hardness reaches HRC60 after heat treatment. Underneath the cutter is a nylon plate to protect the blade.
2. The glue cutting machine has a compact structure, easy operation, few wearing parts, and easy maintenance. It is an essential machine for raw material storage.
3. The glue cutting machine is mainly composed of a motor, a vane pump, a magnetic reversing valve, a relief valve, a driven cylinder, an oil pressure gauge tube, a hydraulic cylinder bracket, a glue cutting knife, a frame, a conveyor trough, etc. The oil cylinder adopts standard hydraulic cylinder. ; The frame is made of high-quality welded steel; the rubber cutter is made of 9CrSi or T8A, and its hardness reaches HRC60 after heat treatment. Underneath the cutter is a nylon plate to protect the blade.

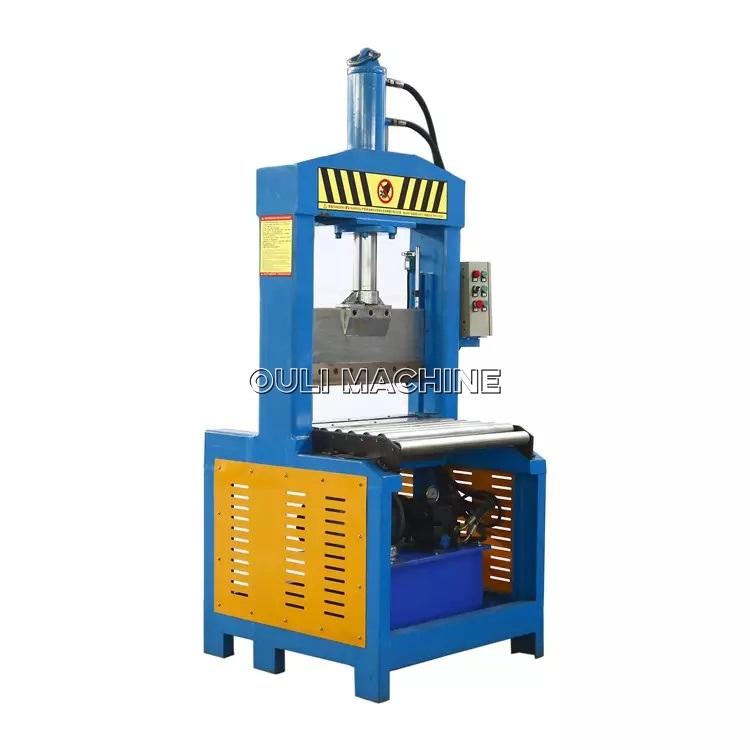

Table Structure
Piston stroke: 300mm

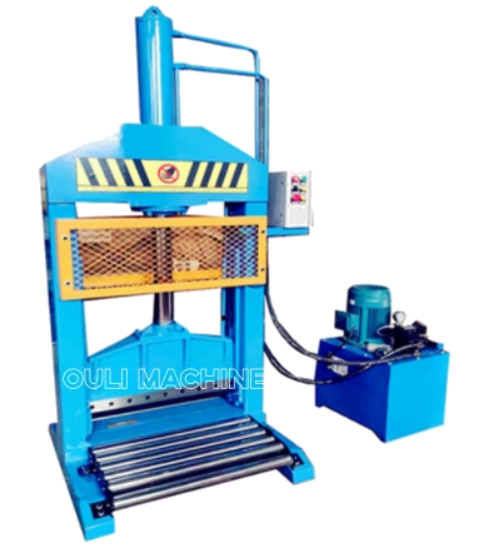

vertical structure
Piston stroke: 600MM
3 Manufacturing technology
