Automatic rubber strip cutting machine slitting machine rubber cutting slitting machine

Supplier: Zhengzhou Miles Tech Company Ltd.
Region: Henan, China
Contact: Mr Sun
Price: $2800.00 /set
Min. Order: 1 set

Click here to contact

Product details

thickness:	2-18mm	model:	MT-ZYS600, MT-ZYS600
Weight (kg):	260 kg	Material:	rubber
Applicable industries:	Hotels, clothing stores, building supplies stores, manufacturing plants, machinery repair shops, food and beverage factories, farms, restaurants, household, retail, food stores, print shops, construction, energy and mining, food and beverage stores, advertising agencies	strength:	2.2 kW
Cutting width:	600mm	After-sales service provided:	Free spare parts, on-site maintenance and repair services, video technical support, on-site installation, commissioning and training, online support
Year:	2020	Cut length:	1mm-9 meters
After Warranty Service:	Video technical support, online support, spare parts, on-site maintenance and repair services	weight:	260 kg
Origin:	Henan	brand:	milage
Warranty:	1 year	Voltage:	220V
size:	125011501120mm	payment terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Main selling points:	automatic	Power (kW):	2.2 kW
Supply capacity:	500 sets per month rubber strip cutting machine rubber cutting slitting machine	Showroom location:	Korea, Sri Lanka, South Africa, Japan, Australia, Canada, UK, USA, Italy, Germany, Saudi Arabia, Pakistan, Russia, Thailand
Cutting speed:	75 times/min	Health status:	new
port:	Shanghai, Ningbo, Qingdao, Tianjin, Shenzhen, Guangzhou, etc.	Cutting stroke (mm):	1-9000
Energy source:	electric	Breaking force (T):	1 ton
Model:	Automatic rubber strip cutting machine slitting machine rubber cutting slitting machine	Local service locations:	Malaysia, Korea, Sri Lanka, Ukraine, Tajikistan, UK, Germany, Saudi Arabia, Russia
Dimensions (LWH):	125011501120mm	Packaging Details:	wooden box. Automatic rubber strip cutting machine slitting machine rubber cutting slitting machine

Product Description

product information

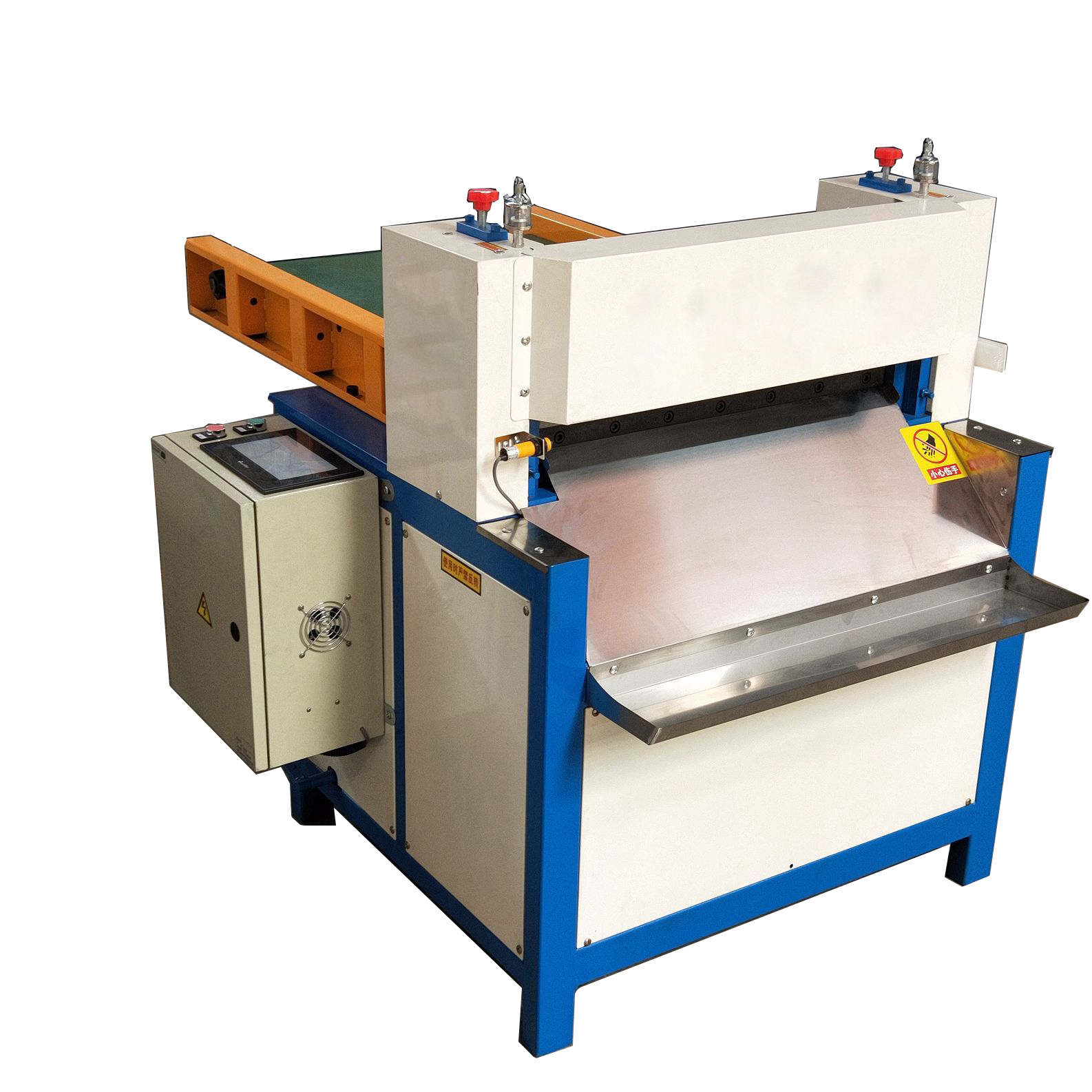

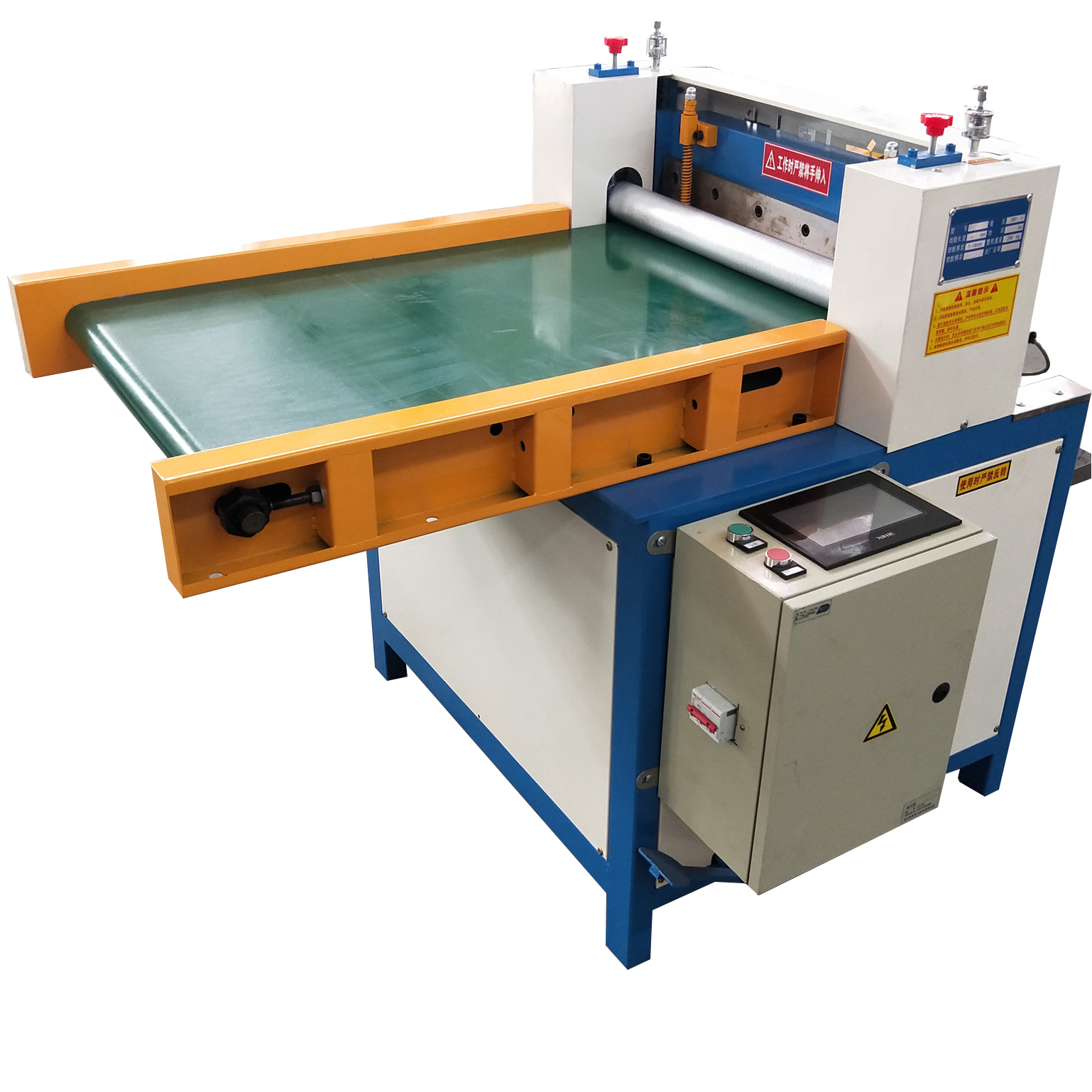

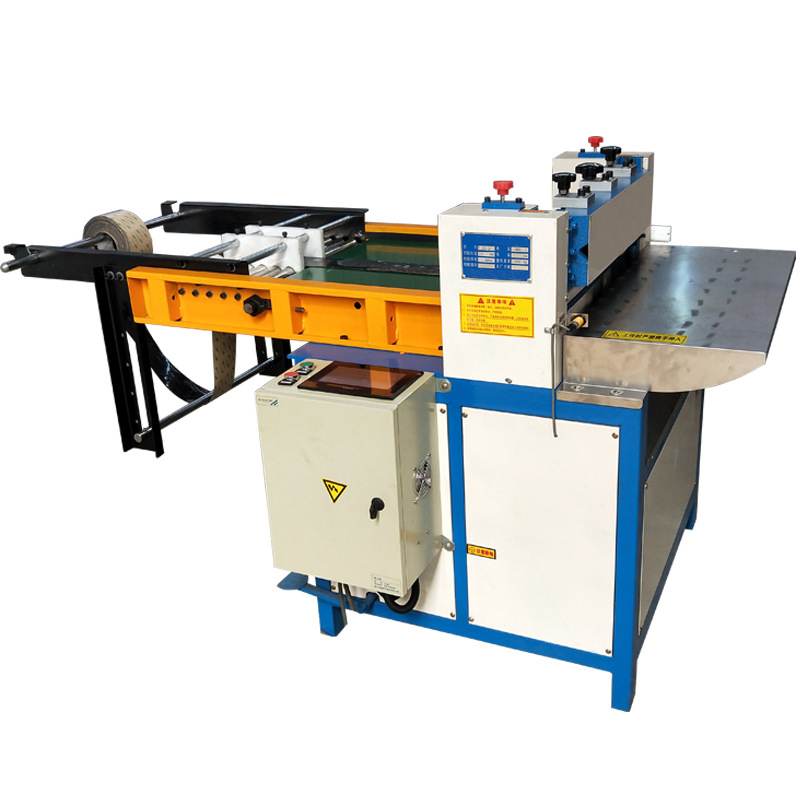

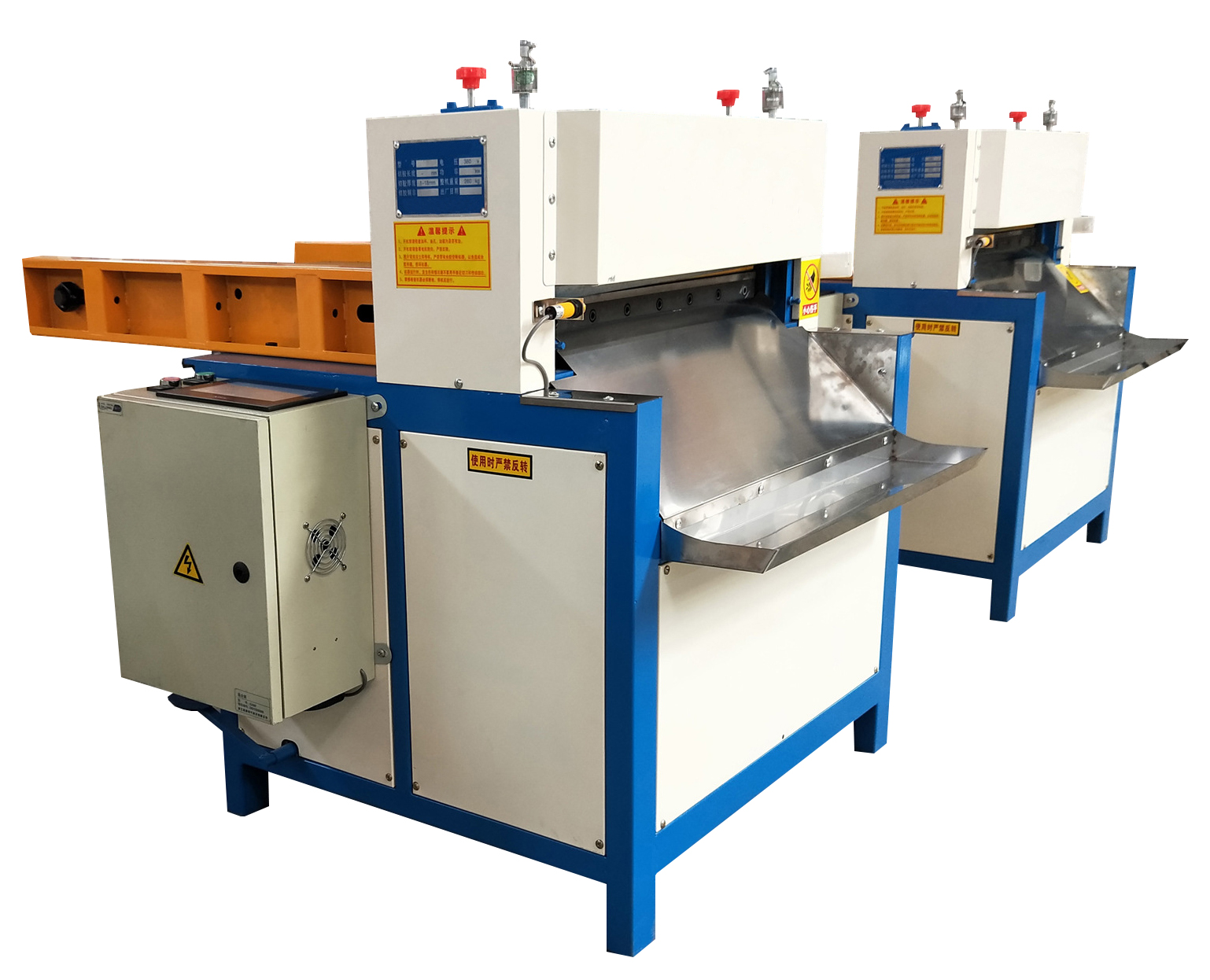

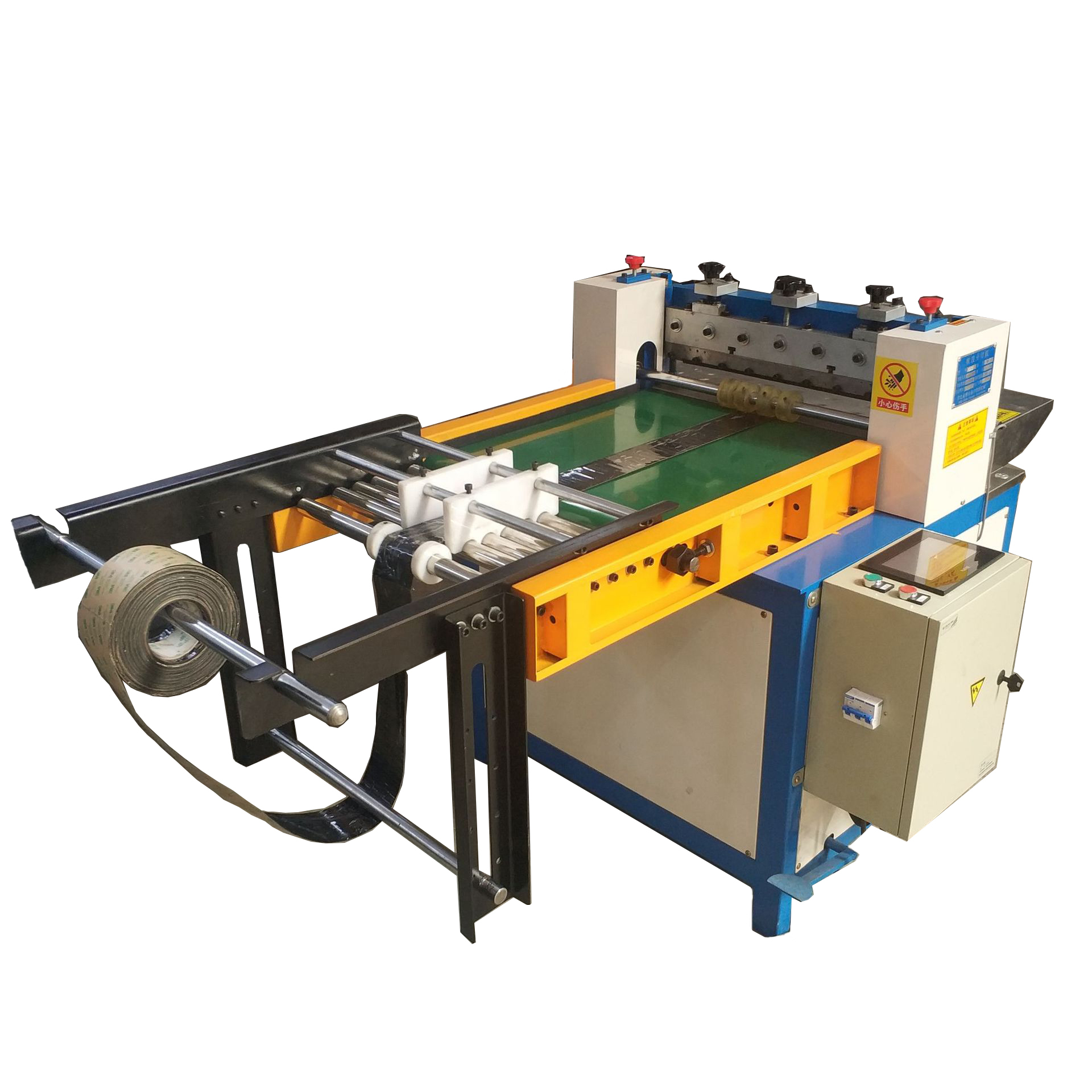

Automatic rubber strip cutting machine slitting machine rubber cutting slitting machine

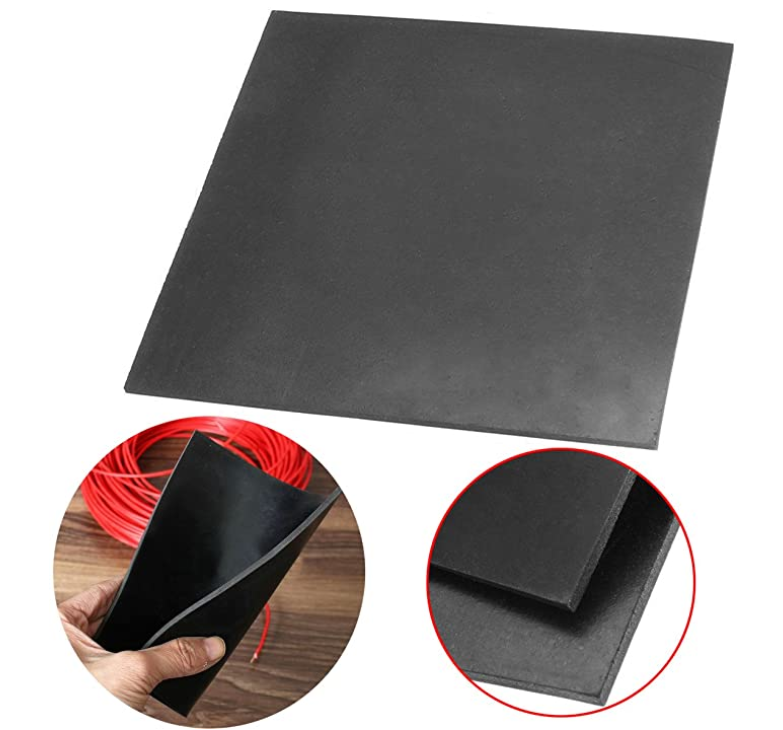

The rubber slitting/cutting machine replaces the backward process of manual material cutting, which ensures cutting accuracy, avoids material waste, improves work efficiency, and reduces costs. This machine is suitable for cutting rubber, silicone, mylar, film, leather, sponge, glass fiber, carbon fiber, paper, aluminum plate, etc.

Product Specifications and Parameters

Automatic rubber strip cutting machine slitting machine rubber cutting slitting machine

Model	MT-ZYG600	MT-ZYS600	MT-ZYS800	MT-ZYS1000	MT-ZYS1300	MT-ZYS1500
width	600mm	600mm	800mm	1000mm	1300mm	1500mm
length	1-65mm	1-9000mm
thickness	2-18mm	2-20mm	2-20mm	2-22mm	2-25mm	2-25mm
cutting speed	75 times/min	75 times/min	60 times/min	50 times/min	45 times/min	45 times/min
Bearing method	Conveyor + Platform	conveyor
Voltage	220V	220V	220V	220V	220V	220V
strength	2.2 kW	2.2 kW	3 kW	4 kW	5.5 kW	5.5 kW
size	20.81.1M	1.31.21.1M	1.51.21.1M	1.51.41.2M	1.61.51.2	2.11.71.2M
weight	260 kg	300 kg	380 kg	450 kg	650 kg	750 kg

feature

1. The CNC operating system adopts a famous brand (Xinjie) 7-inch touch screen and PLC, with fast response speed, long service life, and guaranteed after-sales service. The system screen has multi-dimensional storage pages, which is convenient for you to quickly set up.

2. The slider of the machine is made of copper, which has the advantages of self-lubricating, wear-resistant and long service life.
3. The power output of this machine adopts Hangzhou famous brand worm gear reducer, which has the advantages of low noise, good heat dissipation, long life, high transmission power and impact resistance.
4. The transmission system of this machine adopts toothed V-belt transmission, which has the advantages of low noise, high friction, wear resistance, no heat generation, and low power loss. Its price and service life are three times that of ordinary V-belts.
5. The blade material is made of alloy steel tungsten steel, which is sharp and wear-resistant, especially suitable for high-frequency cutting of rubber and other materials.
6. The PVC conveyor belt is easy to discharge, and the material does not deviate, so that the tension of the film feeding is constant, and the dimensional accuracy is guaranteed to the maximum extent.
feature

7. The appearance design patent of the stainless steel outlet has been registered, the design is reasonable, the slope is large, and the material slides smoothly without blocking the material.
8. The outlet is equipped with an infrared sensor switch to prevent accidental cutting.
