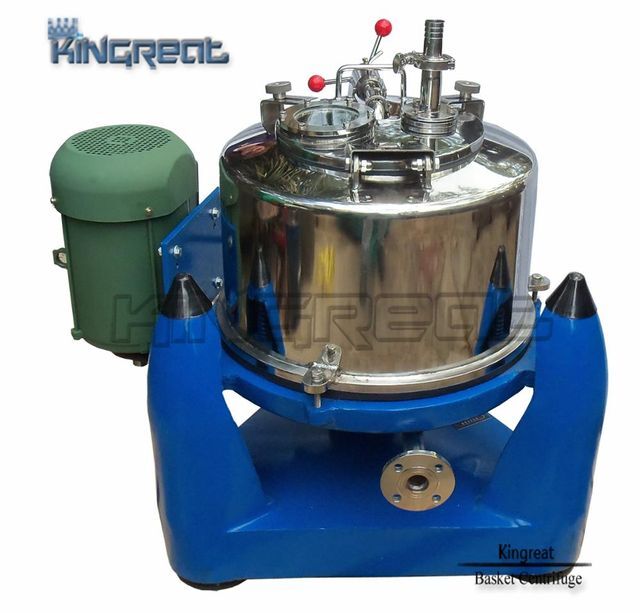

Economical Batch Operation Solid Basket Centrifuge from China
- 2850.00 1 - 2 sets
- 2680.00 >=3 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| port: | Nanjing, Shanghai, Ningbo | application: | Chemistry, Pharmacy, Food, etc. |
| Marketing Type: | Hot Products of 2019 | brand: | Kim Ritter |
| Packaging Details: | Film Packaging+Wooden Box Fumigation Solid Basket Centrifuge | weight: | 250 |
| payment terms: | L/C,Western Union,D/P,D/A,T/T | Health status: | new |
| Core Components Warranty: | 1 year | Mechanical test report: | if |
| Product Category: | Solid Basket Centrifuge | Electrical control cabinet: | optional |
| Supply capacity: | Solid Basket Centrifuge 50 sets per month | Dimensions (L*W*H): | Depends on model selection |
| describe: | Solid Basket Centrifuge | Showroom location: | U.S. |
| strength: | 2.2kW | place of origin; place of origin: | Jiangsu, China |
| Warranty: | 1 year | Voltage: | 110,220,380,440,460V |
| Operation: | batch | Main selling point: | competitive price |
| Core components: | solid bowl | Ministry of Commerce: | SS304, SS316L |
| Video external inspection: | if | Applicable industries: | Food & Beverage Plants, Energy & Mining, Chemical & Pharmaceutical |
| type: | centrifuge | freed: | Manual top discharge |
| Packaging Preview: |
Product Description

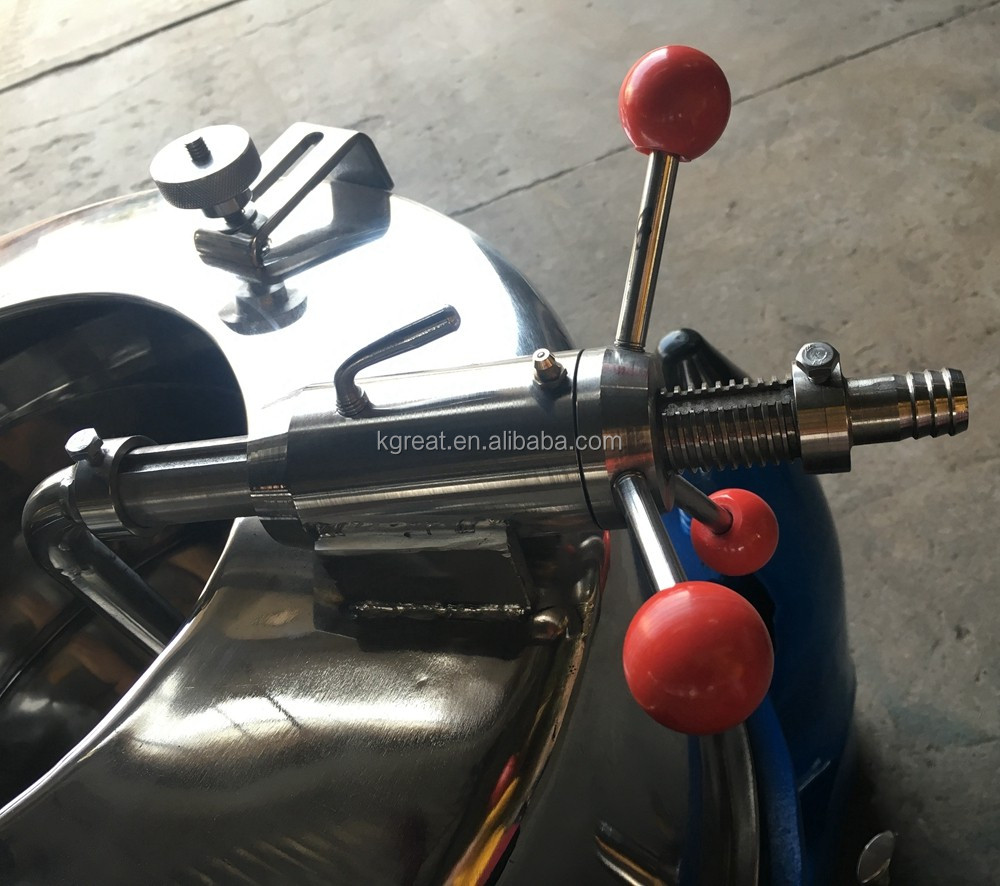

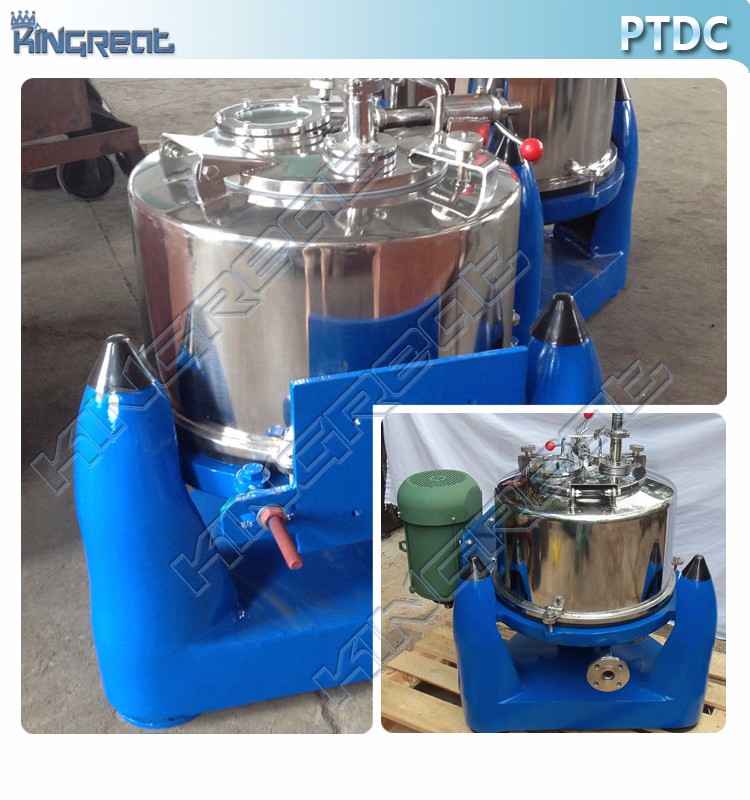

PTDC type centrifuge is a three-legged top discharge, intermittent operation sedimentation equipment. There are no holes on the drum. Under the action of centrifugal force, the heavier solid-phase materials are deposited on the drum wall to form a slag layer, and the light-phase materials form an inner liquid ring. The clarified liquid phase material can either overflow the baffle and flow out of the bowl, or be drawn out of the bowl through the skimmer during operation. After deceleration, the solid phase material can be scraped off by the scraping device.
technical parameter
Model | basket | strength (kilowatt) | weight (Kilogram) | Dimensions (L*W*H) (mm) | ||||||||
diameter. (mm) | volume (L) | capacity (Kilogram) | speed (change) | gravity | ||||||||
PTDC25 | 450 | 20 | 25 | 2200 | 1219 | 2.2 | 200 | 980*730*650 | ||||
PTDC50 | 600 | 40 | 50 | 1800 | 1088 | 4 | 580 | 1350*1080*800 | ||||
PTDC135 | 800 | 100 | 135 | 1500 | 1008 | 7.5 | 1000 | 1690*1380*1000 | ||||
PTDC200 | 1000 | 150 | 200 | 1200 | 806 | 11 | 1350 | 1890*1550*1000 | ||||

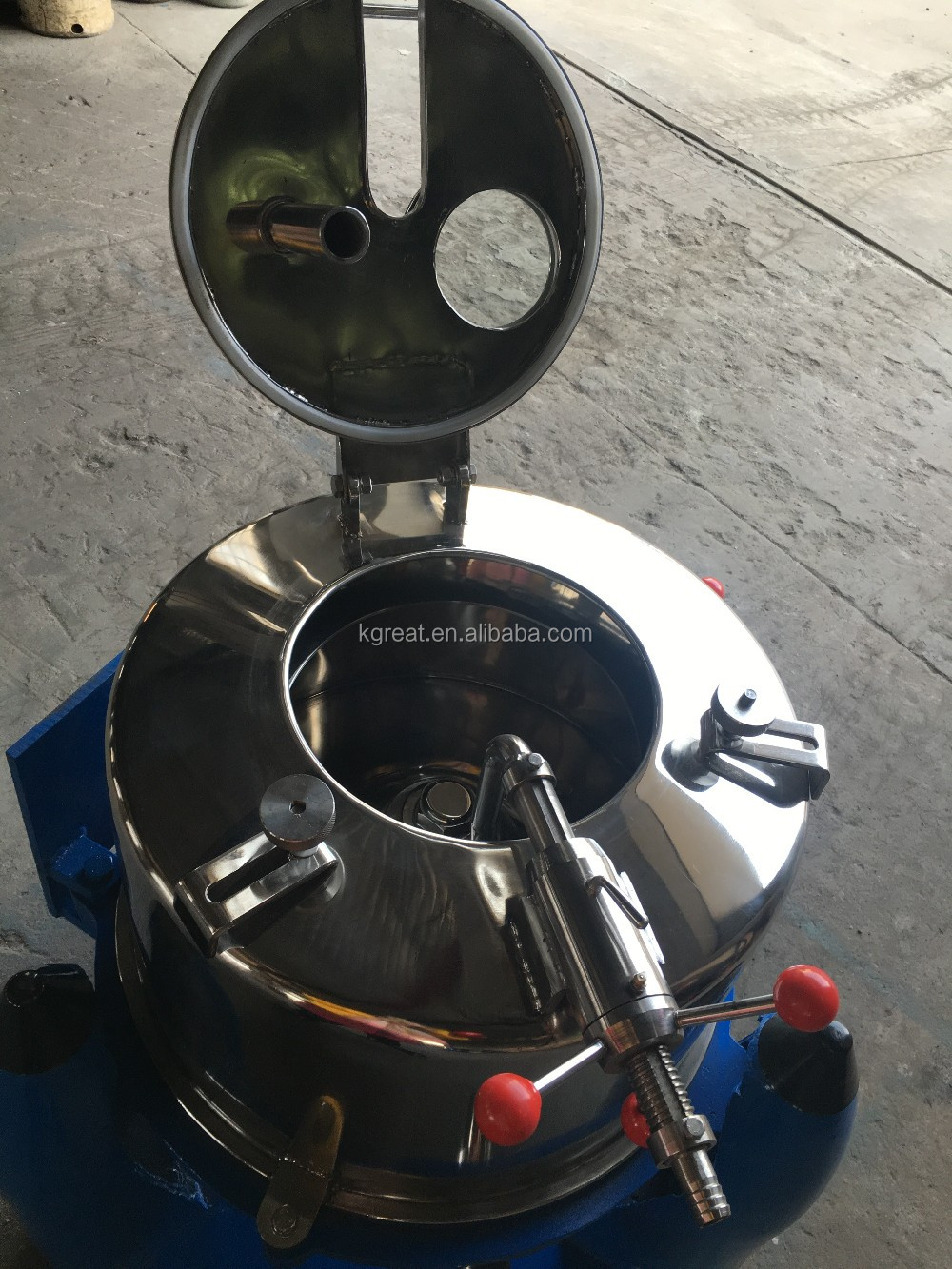

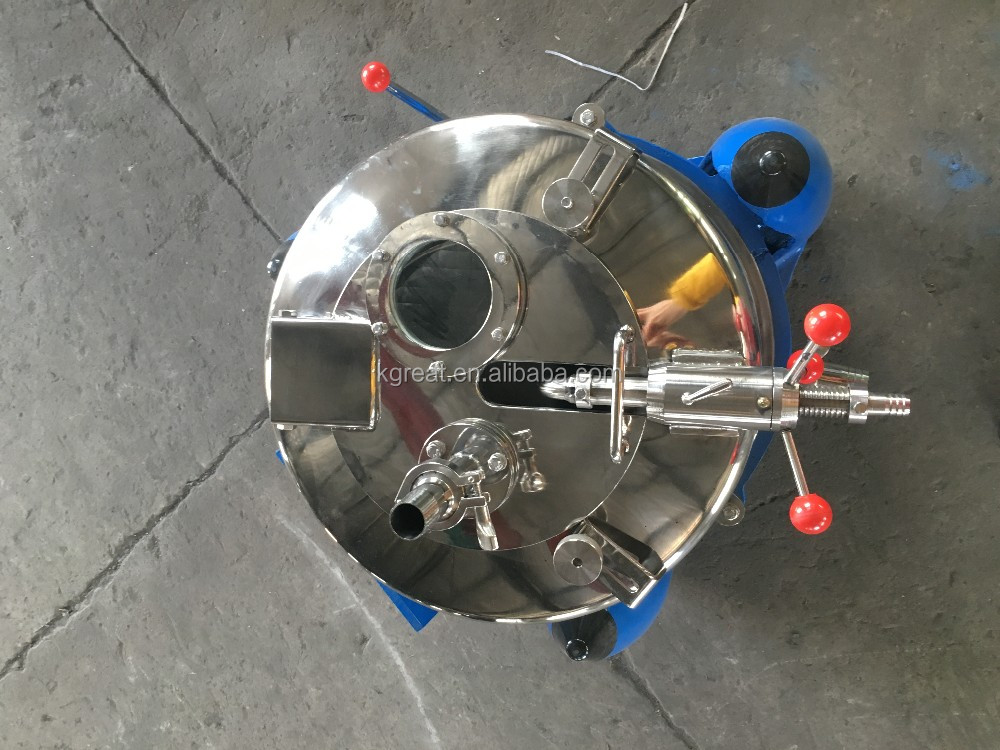

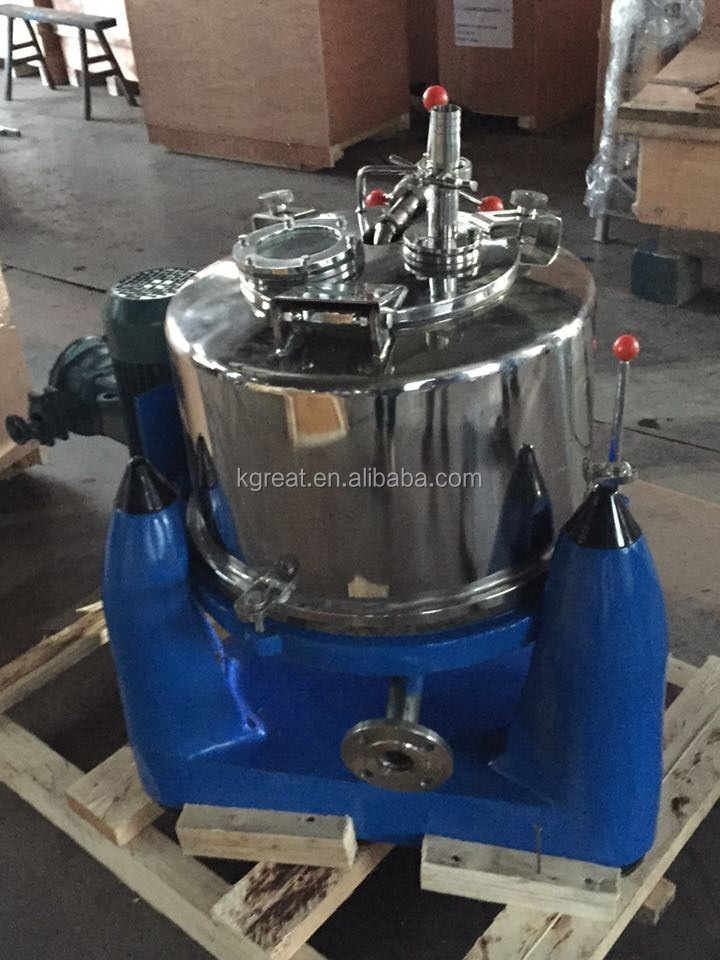

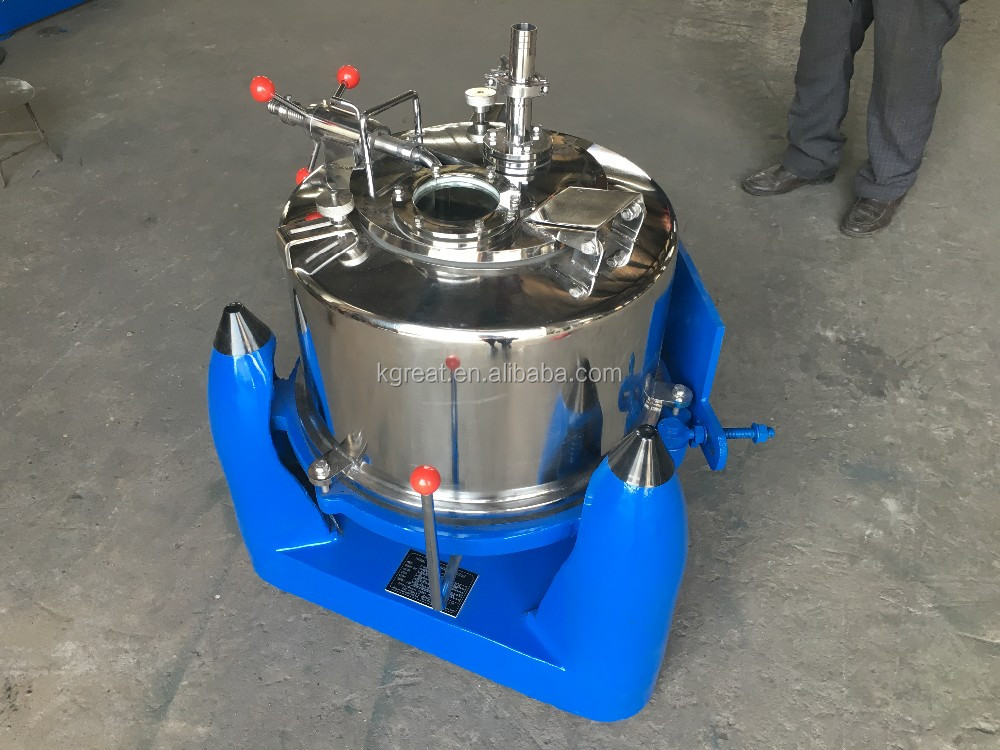

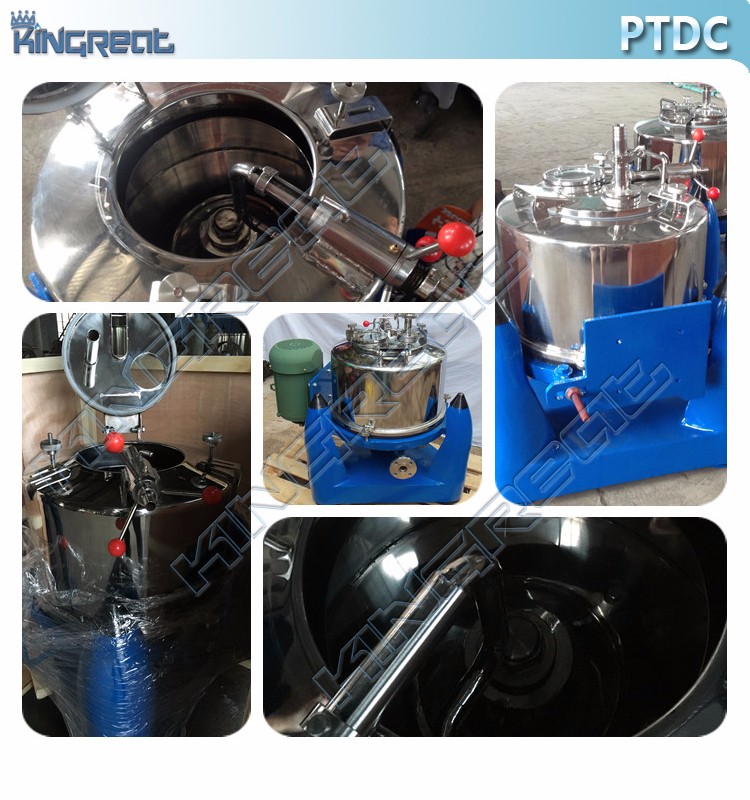

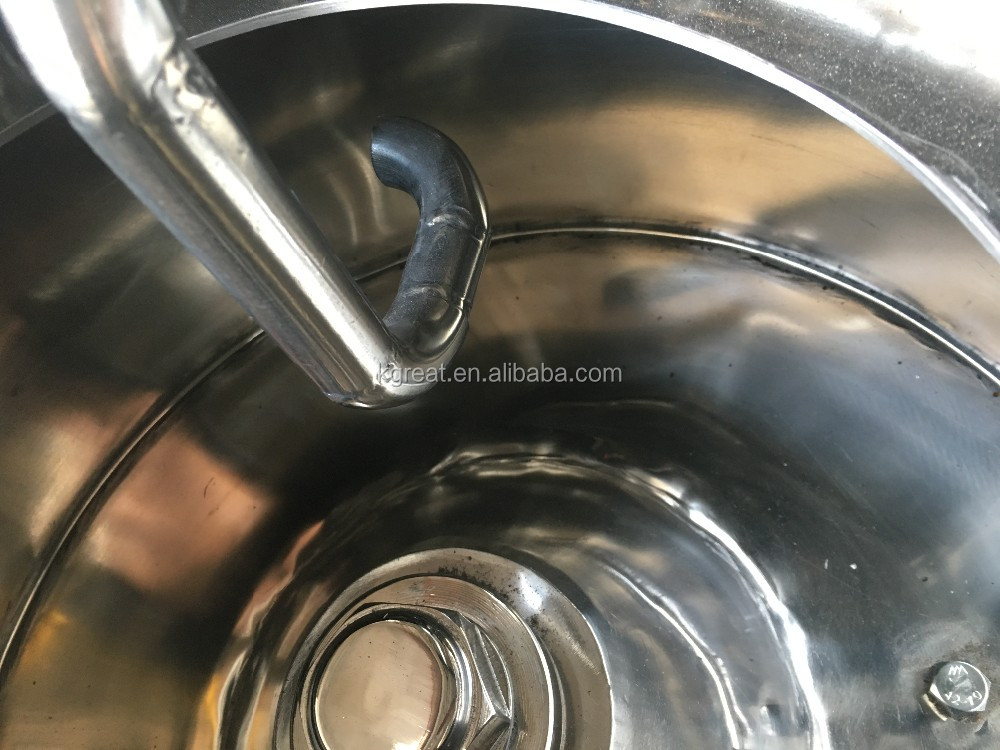

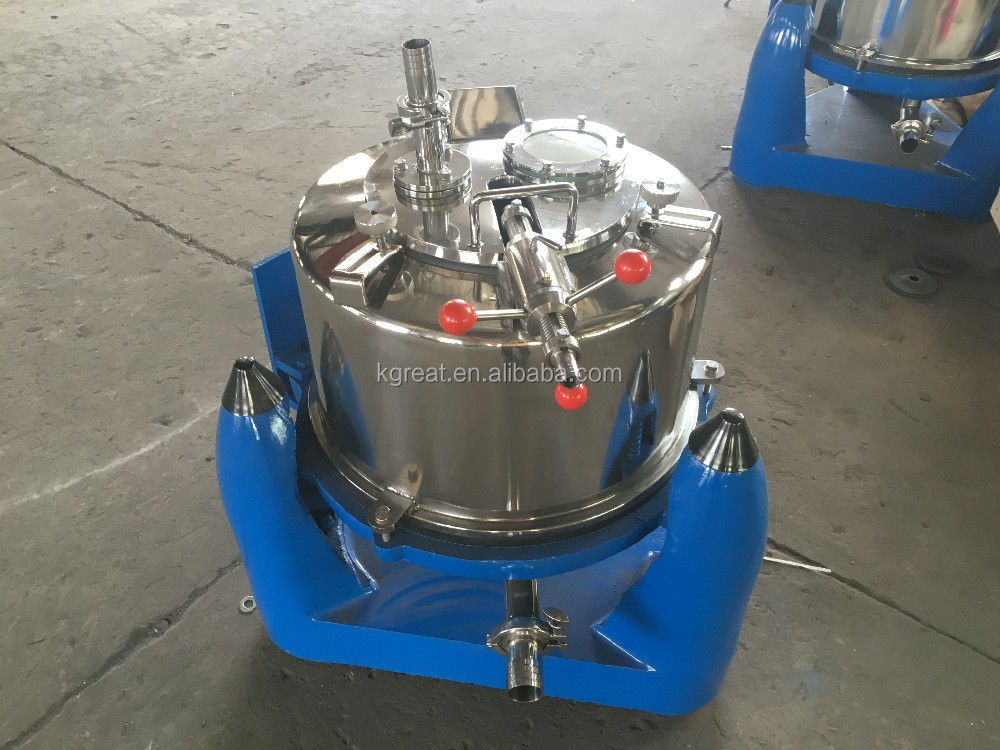

detailed image

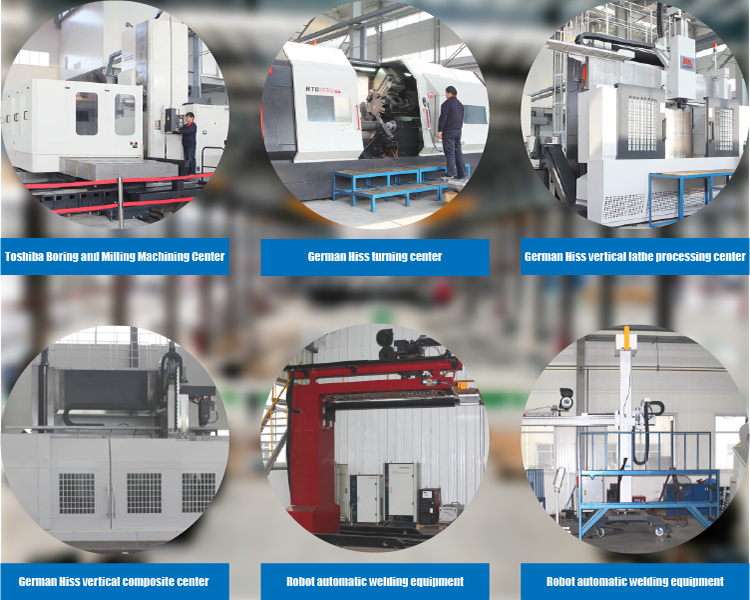

Processing Equipment

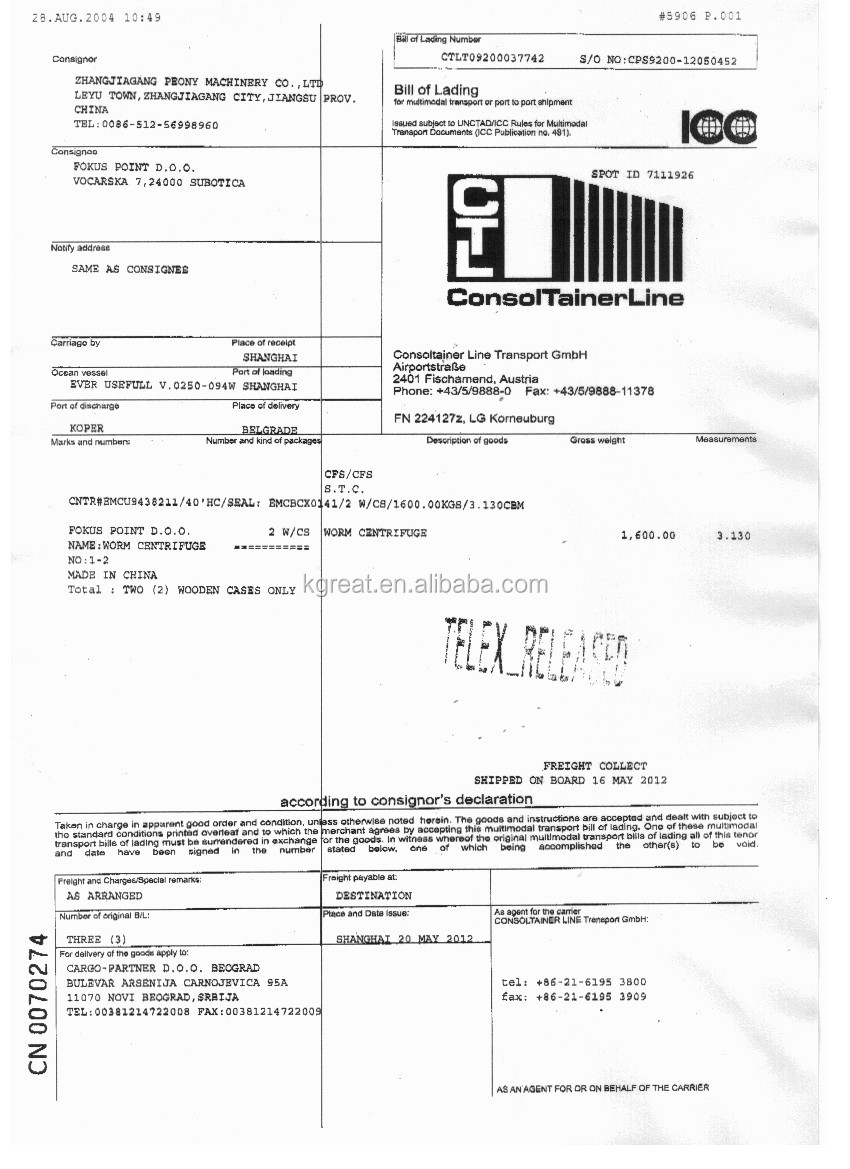

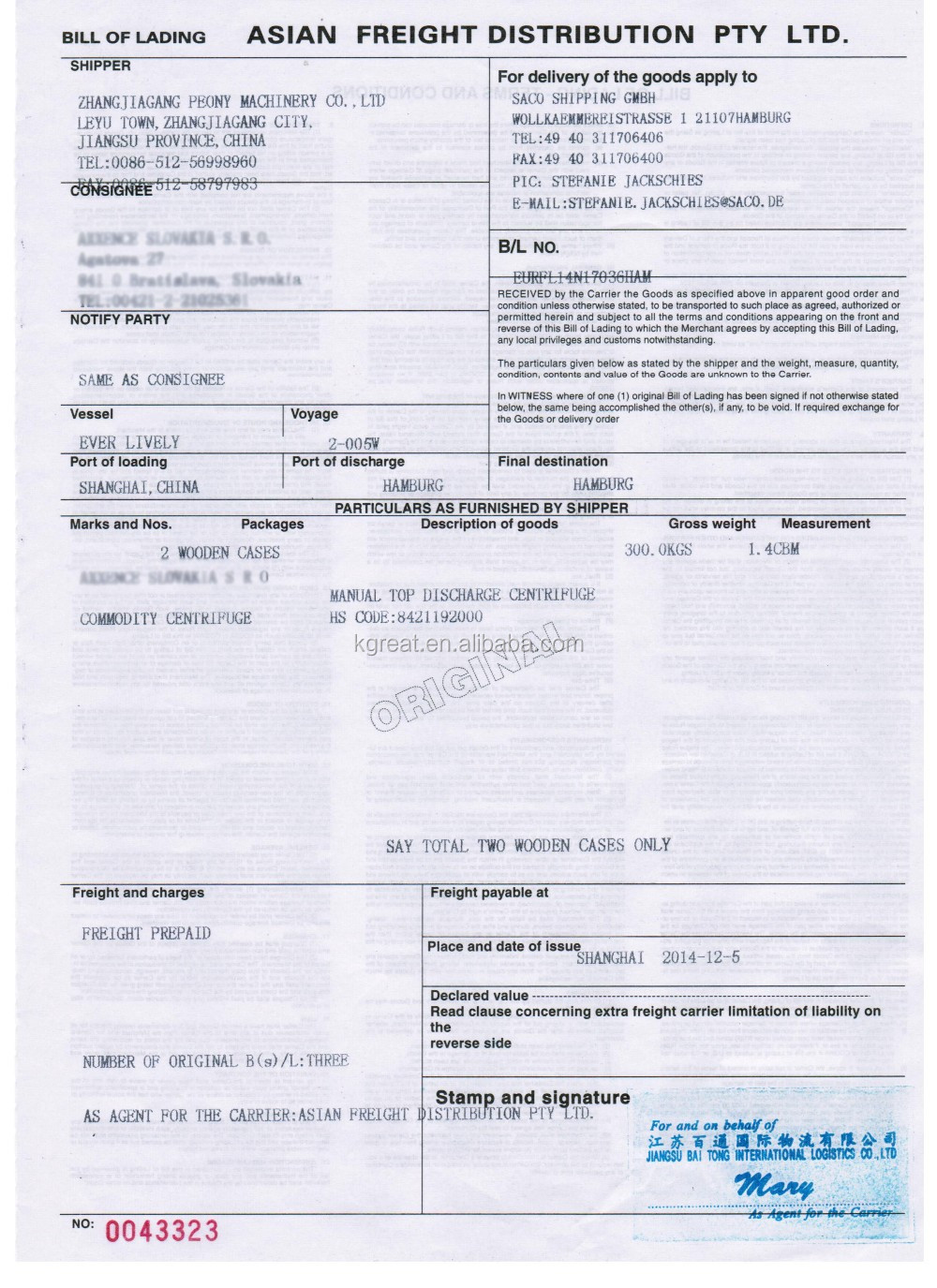

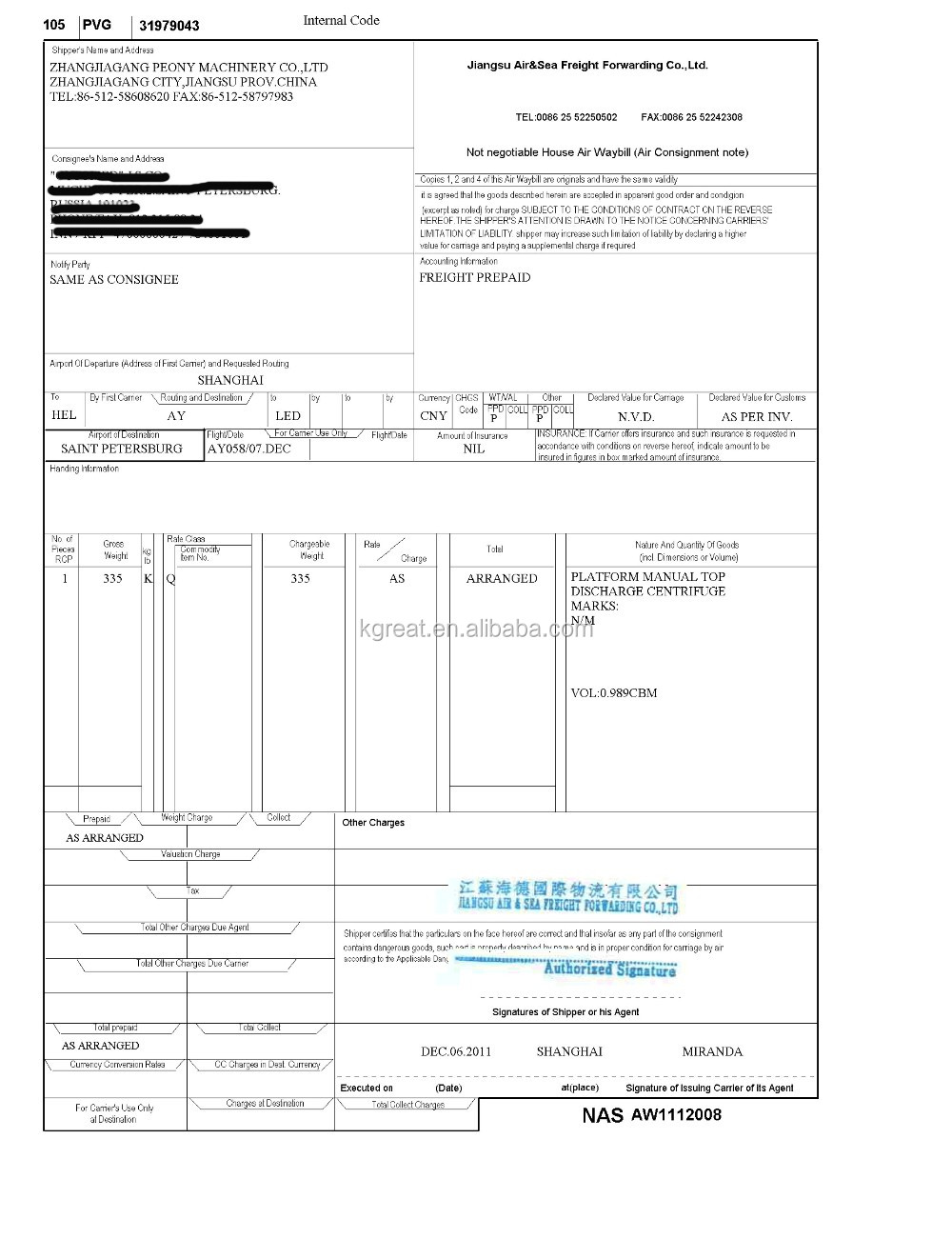

Bill of lading
