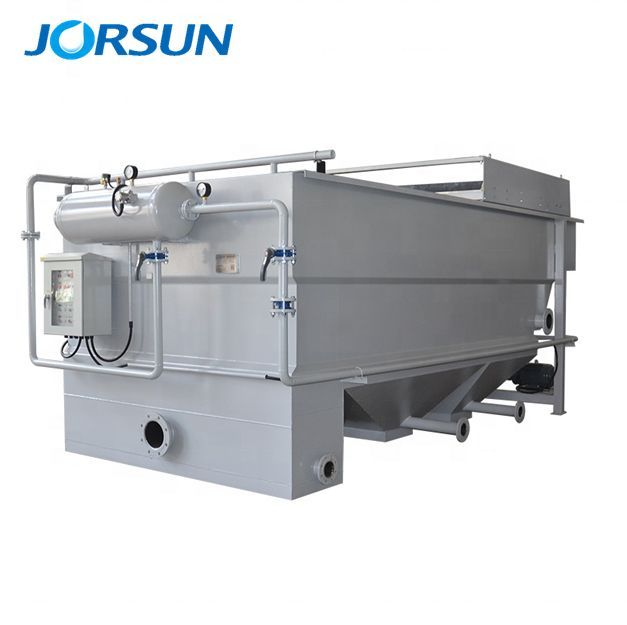

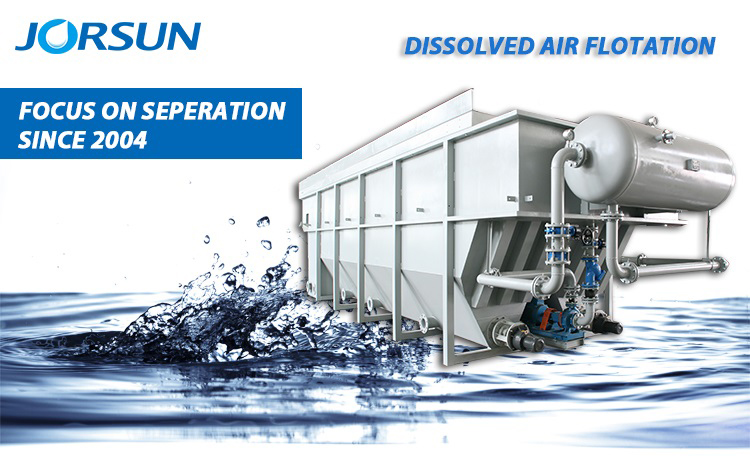

Liquid-solid separator DAF biogas dissolved air flotation for other water treatment equipment

Supplier: Shanghai Jorsun Environment Co., Ltd.
Region: Shanghai, China
Contact: Mr hari han
Price: $15446.00 / 1 - 1 sets
$13446.00 / >=2 sets
Min. Order: 1 set

Click here to contact

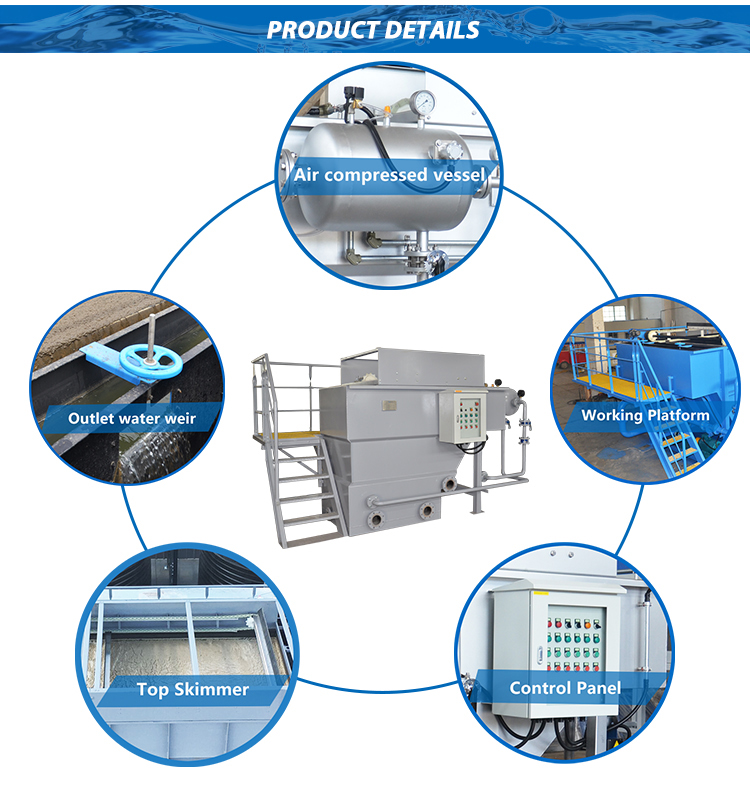

Product details

strength:	0.25-0.5 kW	Dimensions (LWH):	4.5m2.9m2.6m~12.5m4.8m2.9m
Package preview:		Video outbound inspection:	if

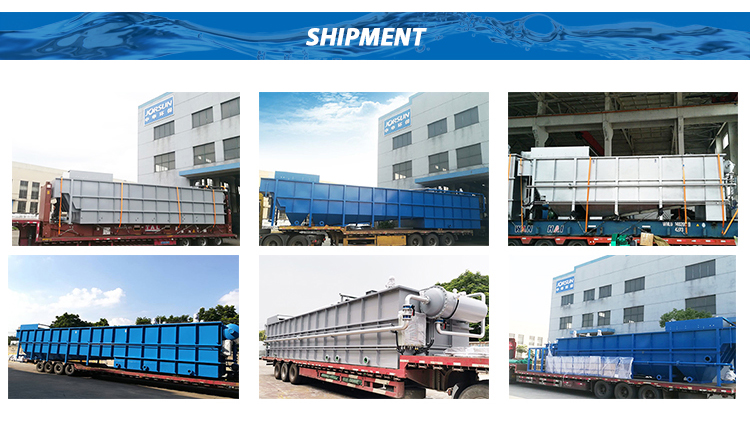

Packaging Details:	Ships by 20'GP 20'FR 40'HQ 40'FR, subject to order	payment terms:	L/C, T/T
brand:	Johnson	Dissolved air pump:	3 kW
Supply capacity:	500 sets per year	type:	separation device
Mechanical test report:	if	Main selling points:	competitive price
Core component warranty:	1 year	Origin:	China Shanghai
Air compressor:	0.75 kW	Health status:	new
capacity:	20 cubic meters / hour	Showroom location:	not any
Warranty:	1 year	port:	Shanghai
Applicable industries:	Building materials stores, manufacturing plants, machinery repair shops, food and beverage plants, farms, print shops, construction, energy and mining	Material:	carbon steel or stainless steel
Mud outlet:	100	Skimming system:	0.2 kW
Core components:	Engines, motors, pressure vessels, gears, pumps	Wastewater inlet (a) / outlet (b):	150
Voltage:	custom made	Marketing Type:	2020 New Products
weight:	1500	Name:	Johnson dissolved air flotation

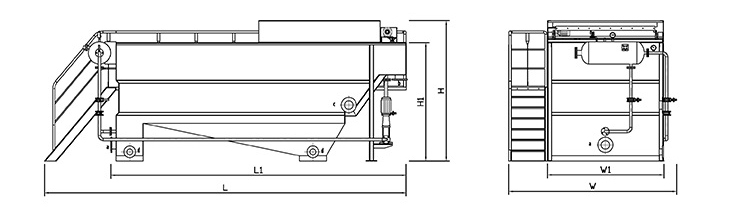

Model	capacity	Power (kW)			Size (m)			Nozzle List (DN)
Model	(m^3/hour)	recirculation pump	Air compressor	skimmer	L/L1	week/week 1	H/H1	import	exit	mud outlet
DAF2-010	~10	1.5	0.55	0.2	4.5/3.2	2.9/1.66	2.3/1.9	100	100	100
DAF2-015	~15	2.2	0.75	0.2	5.6/4.3	2.9/1.66	2.3/1.9	100	100	100
DAF2-020	~20	3.0/5.5	0.75	0.2	5.6/4.3	3.1/2.16	2.3/1.9	150	100	100
DAF2-030	~30	3.0/5.5	0.75	0.2	6.7/5.4	3.1/2.16	2.3/1.9	150	150	150
DAF2-040	~40	3.0/5.5	0.75	0.2	6.9/5.5	3.6/2.7	2.7/2.3	200	150	150
DAF2-050	~50	7.5	1.5	0.2	7.6/6.3	3.6/2.6	2.7/2.3	200	150	150
DAF2-060	~60	7.5	1.5	0.2	8.1/6.6	4.0/3.0	2.7/2.3	250	200	150
DAF2-070	~70	11	1.5	0.2	9.4/7.9	4.0/3.0	2.7/2.3	250	200	150
DAF2-080	~80	11	2.2	0.2	9.9/8.4	4.0/3.0	2.7/2.3	250	200	150
DAF2-100	~100	15	2.2	0.2	10.9/9.4	4.4/3.4	2.7/2.3	300	250	150
DAF2-120	~120	15	2.2	0.2	11.9/10.4	4.4/3.4	2.7/2.3	300	250	150
DAF2-150	~150	18.5	2.2	0.2	12.5/11.44	4.4/3.8	2.7/2.3	300	300	150

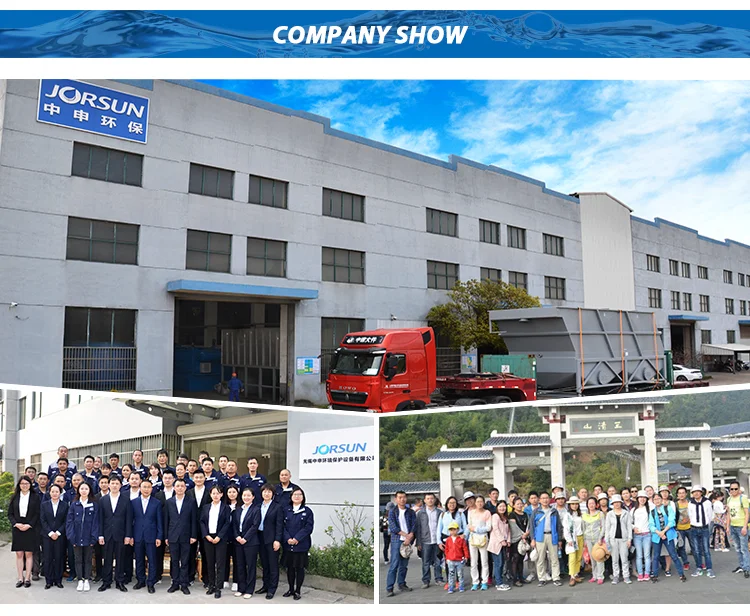

About Johnson

Johnson was established in Shanghai in 2004.
Qiaosen pursues the tenet of "focusing on separation and serving the environment". Committed to separation technology research and development, marketing, equipment manufacturing and service.
Johnson's main products and services include: XAF® series DAF, layer clarifier, integrated application. At present, there are more than 1,000 successful cases in more than 40 countries around the world, such as papermaking, petrochemical, printing and dyeing, leather, medicine, steel and other industries. Industries or fields such as iron and steel, electronics, food, river and community landscape water purification, advanced treatment of sewage treatment plants, and reuse of reclaimed water.
Qiaosen adheres to the company values of integrity, professionalism, safety and innovation to meet customer needs and win a wider range of customers.
Qiaosen pursues high quality, keeps innovating, and is determined to make more contributions to the cause of environmental protection, becoming a leader in water separation.

FAQ

Q: How to buy your creative products?

A: You can provide us your water source, water quality, flow rate and floor area (contact us for more details).

Q: How to pay?

A: TT and L/C are acceptable, TT will be more welcome. 30% deposit in advance before production, TT 70% balance in advance before loading.

Q: What's the delivery time?

A: It depends on the order quantity. Generally speaking, the delivery time will be within 4 to 6 weeks.

Q: How is the product packaged?

A: We use standard packaging. If you have special packaging requirements, we will pack as required, but the cost will be paid by the customer.

Q: How to prevent corrosion of your equipment?

A: We use world famous coatings, such as SigmaCoatings, PainBow, etc. What's more, we strictly follow the standard process for painting.

Q: How do you manufacture the equipment?

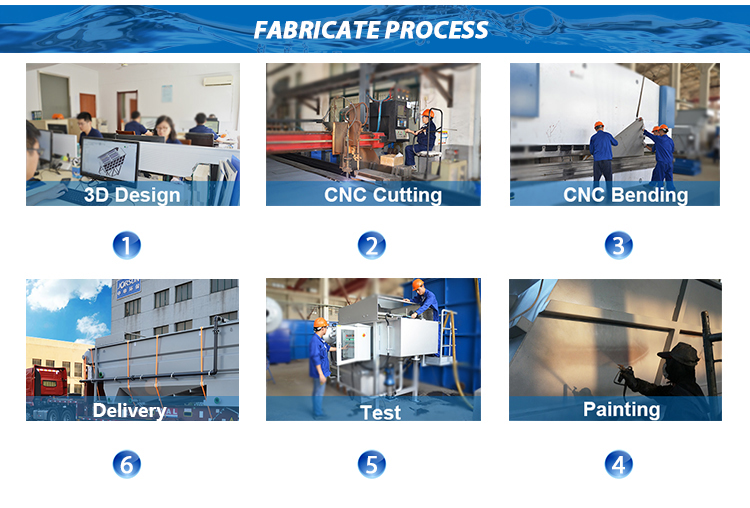

A: Our processing technology includes laser/plasma cutting, automatic welding, CNC cutting and bending.

Q: How to install the equipment after it arrives at the destination?

A: We will provide you with detailed illustrations. If necessary, we will send a technician to help you. But visa fees, air tickets, accommodation, wages will be paid by buyers.
