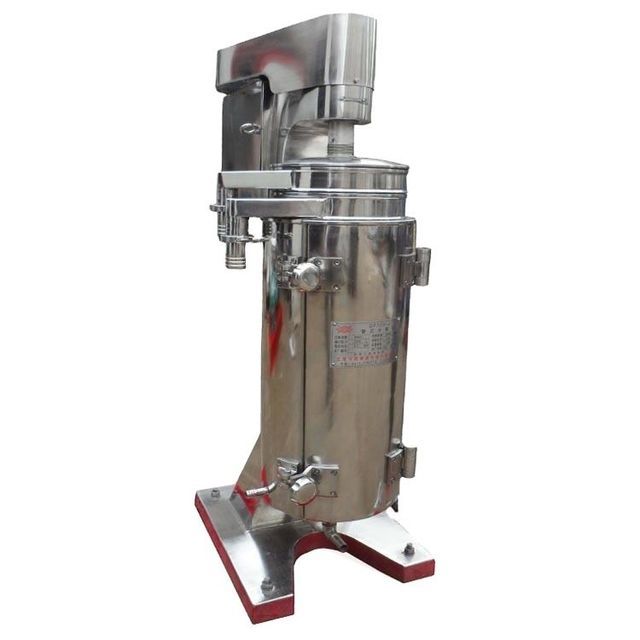

Plastic Coconut Oil Pipe Separator Centrifuge Tube Stainless Steel Made in China

Supplier: Liaoyang Zhonglian Pharmaceutical Machinery Co., Ltd.
Region: Liaoning, China
Contact: Ms Emily Peng
Price: $3400.00 /set
Min. Order: 1 set

Click here to contact

Product details

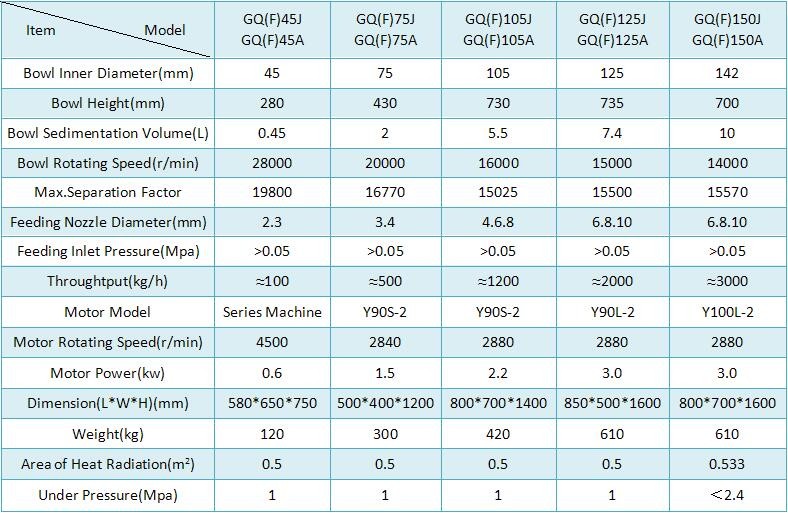

Main selling points:	Flexible manufacturing	brand:	area link
Applicable industries:	Food and beverage factory, food industry	Video outbound inspection:	if
Warranty:	1 year	Voltage:	380V
application:	Food chemical industry	Material:	Stainless steel 304/316L
capacity:	1200L/h (based on water)	type:	GF tube centrifuge, centrifuge
Function:	liquid liquid solid centrifuge	Package preview:
weight:	Chapter 420	describe:	Liquid separator
port:	Dalian seaport	Name:	Centrifuge
payment terms:	Letter of credit, wire transfer, credit card	strength:	2.2kW
Core components:	Bearings, motors, bowls	Showroom location:	not any
Mechanical test report:	if	Supply capacity:	1000 sets per year
Product Category:	Water separator	Drum diameter:	105mm
Core component warranty:	1 year	Place of origin:	Liaoning, China
Dimensions (lengthwidthheight):	8007001400mm	Operation:	Manual solid discharge

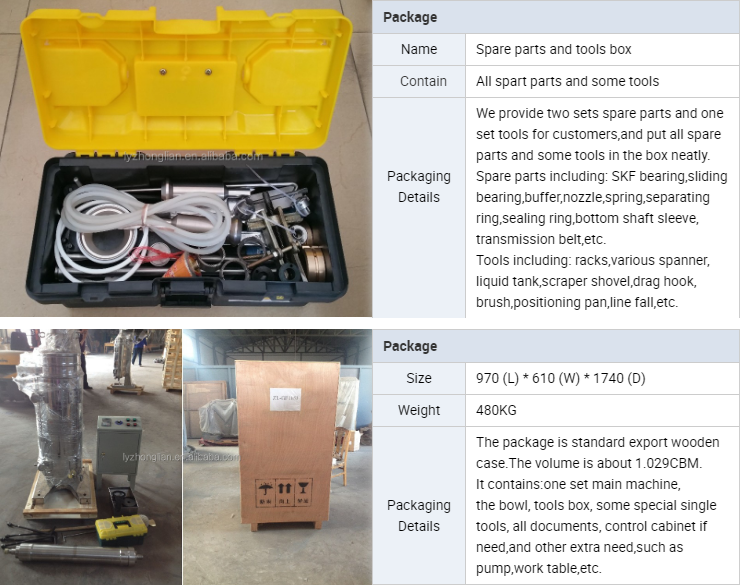

Packaging details:	Standard export wooden box packaging	Health status:	new
Marketing type:	normal product	Rotating speed:	16000 rpm

Product Description

main application

GF tubular centrifuge is used to separate various emulsions, especially suitable for liquid-liquid separation and liquid-liquid-solid separation in microgravity differences, such as the separation of various oils and micro-powders, and the extraction of plants, plasma and cells. liquid, separated cream.
(1) Oil-water separation: coconut oil, avocado oil, vegetable oil, engine oil, waste oil, etc.
(2) Clarification process for liquid solid products (oral liquid)
(3) Extraction of protein, seaweed, and jelly (plant extraction, herb extraction, pigments)
(4)Refined molasses
(5) Separation of animal blood cells and plasma
(6) Sedimentation of bacteria (yeast, Escherichia coli, lactic acid bacteria, Bacillus subtilis, Nitrobacter, etc.)
(7) Purification of paints, dyes, and various resins
(8) Processing of granular, crystalline and fibrous suspensions
(9) Separation of filterable sludge and non-filterable sludge
Tubular centrifuge, oil-water separator, coconut oil machine, solid-liquid separator

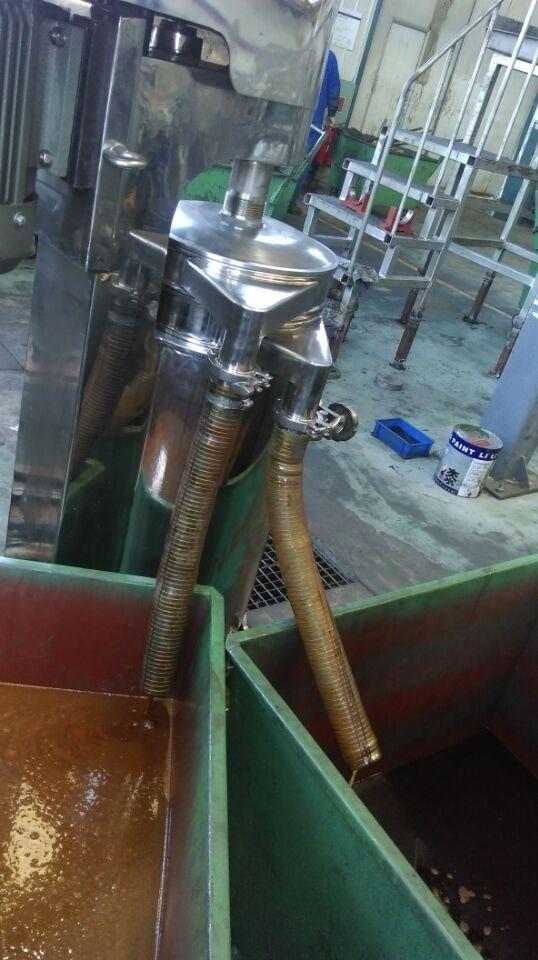

Lubricating oil separation

Oil separation

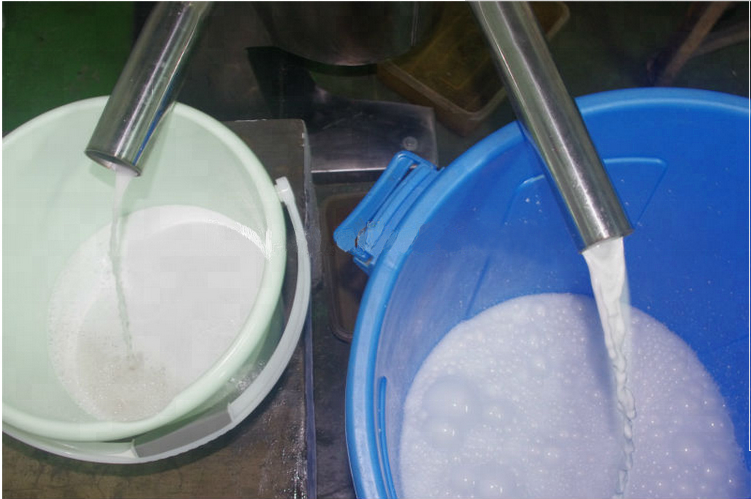

coconut oil isolate

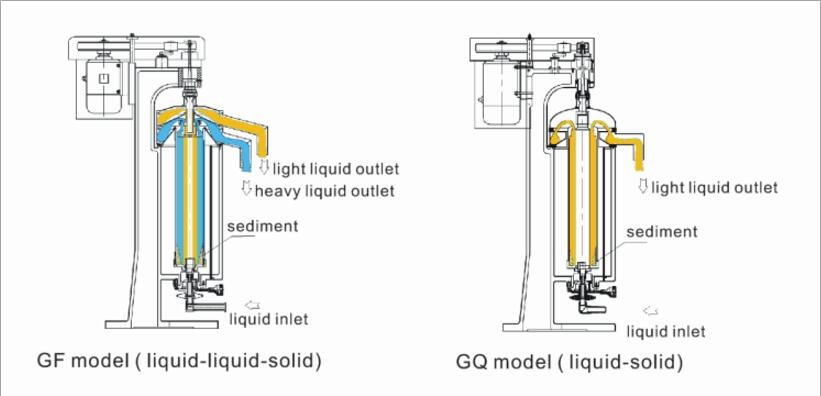

Structure and principle

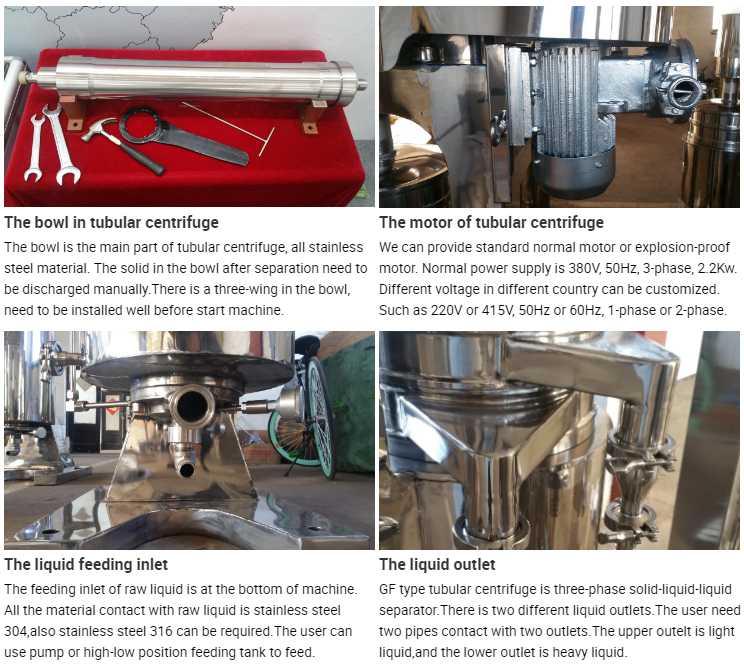

The high-speed separator consists of the main body, transmission components, drum liquid collecting tray, liquid inlet bearing seat, etc. The upper part of the drum is a flexible main shaft, and the lower part is a damped floating shaft. The main shaft is connected to the driven wheel through a transmission device. Coupling holder with buffer. The power is transmitted by the motor through the transmission belt and the tensioning wheel, causing the drum to rotate at high speed around its axis, forming a powerful centrifugal force field.
The liquid flows into the liquid inlet from the bottom, is forced to flow upward along the inner wall of the drum, and is separated into different layers according to different densities.
In the GF type separator, the liquid phase with high density forms an outer ring, and the liquid phase with low density forms an inner ring, which flows to the top of the drum and is

dischargedflow out from their respective liquid outlets. Microsolids deposit on the walls of a liquidAfter shutdown, the bowl needs to be dumped manually.
