Innovative solid decanter centrifuge

  • 8000.00 1 - 1 sets
  • 1900.00 >=2 sets
Min. Order: 1 set FOB PRICE
Registered Supplier Direct Contact Inquiry via Message
Product Details
Voltage:380vShowroom location:USA, Russia
Package preview:Core components:Bearings, gearboxes, motors, pumps
Health status:newproduct name:Decanter centrifuge
port:Xingang, Chinabrand:GN
weight:1000type:centrifuge
Supply capacity:50 sets per weekPay:Wire Transfer/Wire Transfer/Wire Transfer
Video shipment inspection:ifCore component warranty:1 year
Certification:CE ISO9001Warranty:12 months
Origin:Hebei chinaOnline video:supply
Warranty:5 yearsDimensions (L*W*H):1512mm*1200mm*1700mm
brand:GNMarketing Type:New Products 2020
transportation:maritimeKey words:Decanter centrifuge
Mechanical test report:ifPackaging Details:Wooden pallet or wooden box with plastic cover
Applicable industries:Building materials stores, manufacturing plants, machinery repair shops, food and beverage plants, farms, construction, energy and miningMain selling points:easy to operate
strength:15 kWpayment terms:L/C, Western Union, T/T, MoneyGram
Product Description

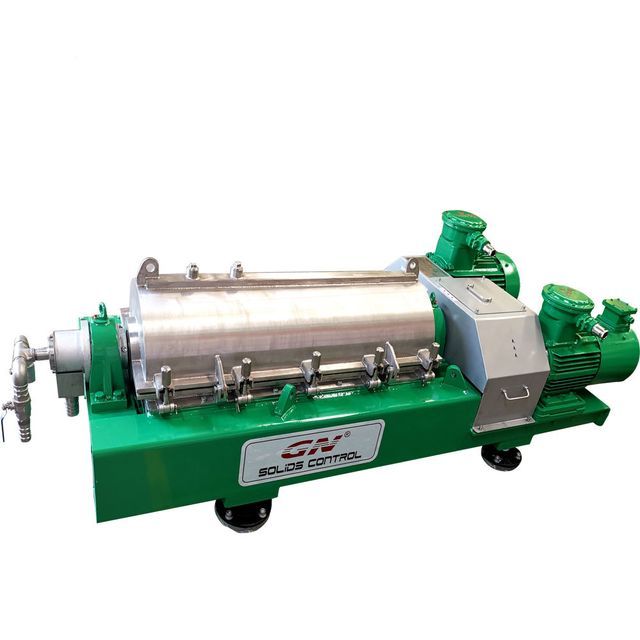

The GN-FD (Food Decanter) series decanter centrifuges are specially designed for processing delicate food and beverage products, where special hygiene standards are essential. The GN-FD series decanter centrifuges combine efficiency with excellent hygiene. GN-FD decanter centrifuge is widely used in fruit and vegetable juice, spice extraction, wine, grape juice production or dregs treatment. The GN-FD centrifuge is designed to minimize oxidation and maximize liquid extraction from materials in delicate foods and beverages. Specially designed sealing systems avoid air ingestion in breweries and in the production of a wide variety of beverages and viscous foods including fruit juices, tomato and soy protein isolates casein and lactose, coffee and tea, wine. GN-FD series decanter centrifuges have all the necessary components to meet food safety requirements
Maximum capacity
40-120 cubic meters per hour
bowel diameter
220mm-760mm
maximum gravity
3080G
main motor
45-160kw
rear drive motor
45-90kw
  • Main application of GN centrifuge

1 Solid phase control of oil and gas drilling mud
2 Drilling waste management
3 Oil sludge treatment
4 HDD trenchless mud cover
5 Bored pile and TBM mud dehydration
6 Wastewater treatment
7 Separation of chemical industry and medicine
8 Mining Separation
9 Segregation of Food and Beverage Industry
detailed image
Semi-automatic PET Blow Molding Machine Blow Molding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in various shapes.
Size Information
This design size chart
Model
224D
363S
452D
553
764A
capacity
130 l/min
30 cubic meters / hour
80 cubic meters / hour
114 cubic meters / hour
120 cubic meters / hour
Bowl diameter(mm)
224
360
450
550
760
Maximum G Force (G)
2492
2062
3084
3051
3000
cut point (um)
2-5
2-5
2-5
2-5
2-5
