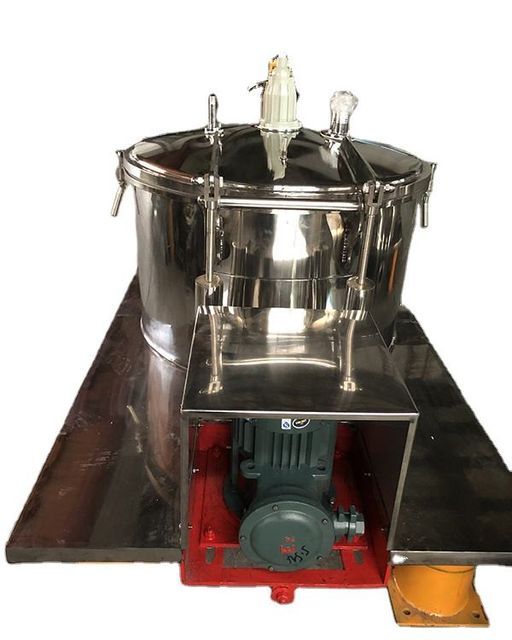

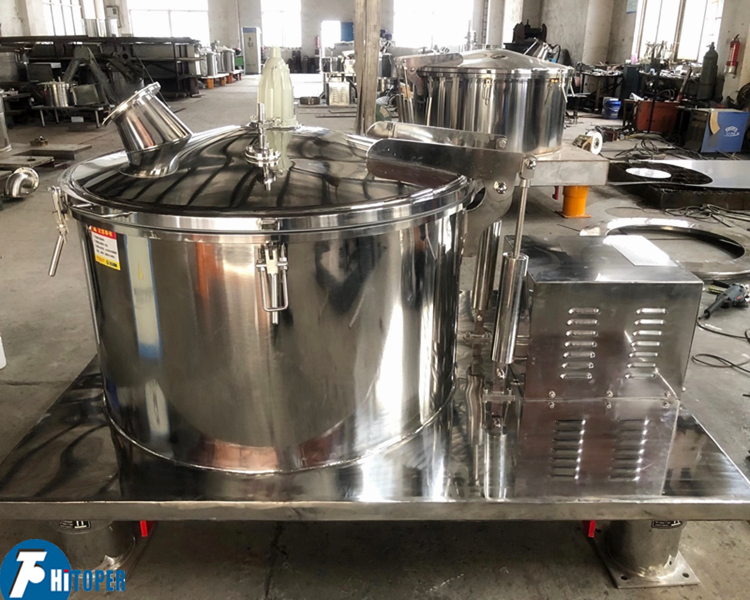

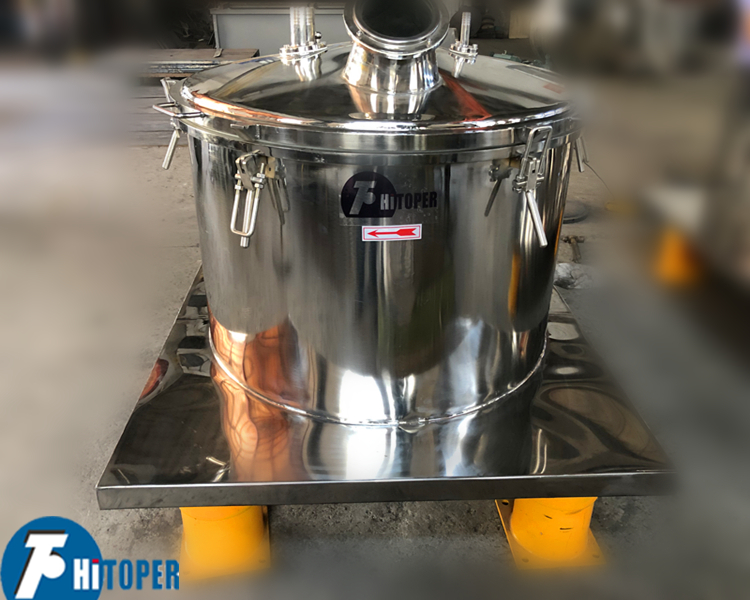

PSB800 vertical centrifuge uses centrifugal force to clean waste oil, top feeding and unloading

PSB800 vertical centrifuge uses centrifugal force to clean waste oil, top feeding and unloading

Structure and performance:

PD centrifuge is a filtration equipment with closed program tasks, intermittent operation, and hanging bags for off-site discharge. The material is fed into the drum from the top; under the action of the centrifugal force field, the liquid phase passes through the filter medium and is discharged out of the machine, while the solid phase material is trapped in the drum; after the machine is stopped, use a sling to lift out the liquid baffle together with the filter bag. Outside the machine, transfer to the designated unloading location. The centrifuge has the characteristics of smooth start, adjustable separation factor, large processing capacity, high efficiency, easy operation, fast unloading, good safety, clean environment, and low labor intensity.

 advantage:

This centrifuge has the advantages of smooth start, adjustable separation factor, large processing capacity, high efficiency, easy operation, fast unloading, good safety, clean environment, and low labor intensity.

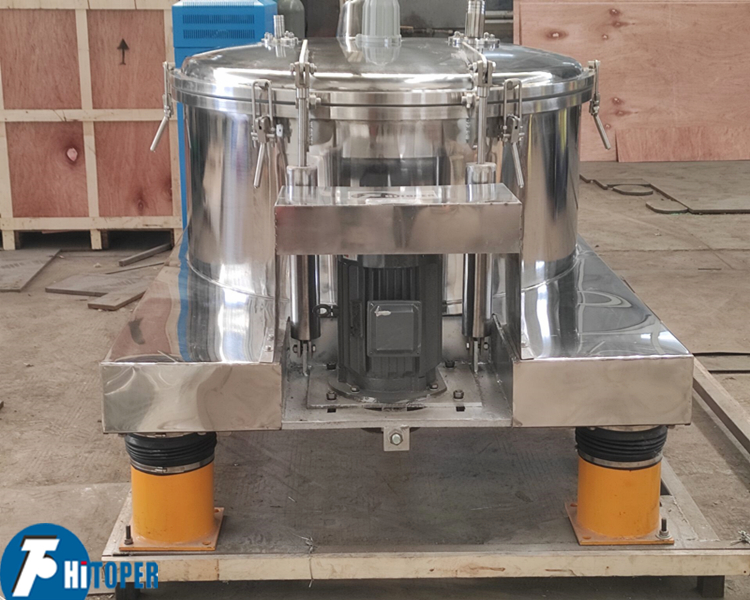

The PD centrifuge gets rid of the traditional suspended legs and uses flat counterweights and high-viscosity damping agent isolators to absorb vibrations. No concrete foundation is required for installation.

PD-type centrifuges all adopt fully-open large covers, quick-open hanging bag discharge, and have motor overheating, overload, over-current protection and other interlocking protection functions.

application:

It is suitable for the separation of suspensions containing solid particles with a diameter greater than 0.01mm. Especially suitable for filtering toxic and flammable materials. It is widely used in chemical, food, light industry and other industries. For example: gypsum, thiamine, sodium salt, iron sulfate, copper sulfate, nickel sulfate, potassium chloride, acetic acid, borax, soda, rubber additives, dyes, plastic raw materials, soap, grease, various resins, edible salt, MSG , food additives, starch sugar, vitamins, antibiotics, herbicides, pesticides, dehydration of copper, zinc, aluminum and other mineral powders, etc.

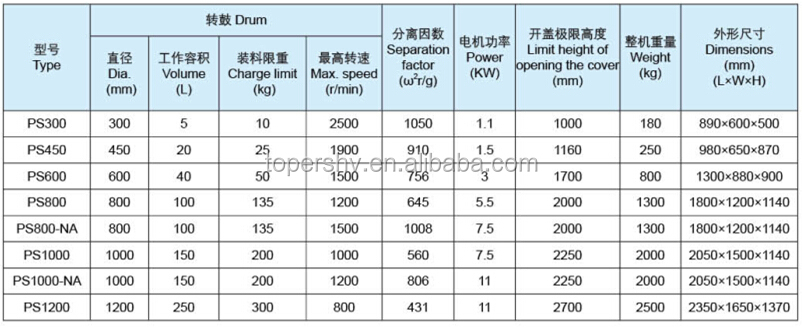

The main parameters:

Order instructions:

For different separation requirements, we specially select suitable models for customers. When generating an order, you can confirm the following conditions:

Machine base:

With or without foundation.

Material:

Components containing processed materials can be made of stainless steel, T, carbon steel, rubber lined, plastic lined, titanium alloy, Hastelloy, etc.

Drive mode:

It is driven by an ordinary explosion-proof motor or a frequency converter directly connected to an explosion-proof motor.

Braking method:

Mechanical braking or electric braking.

It can be designed and manufactured according to GMP specifications.

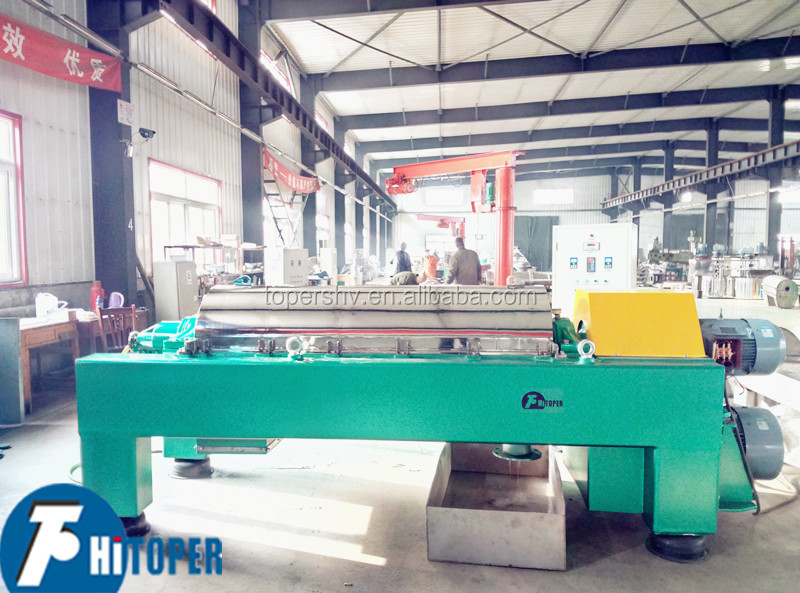

LW series decanter centrifuge

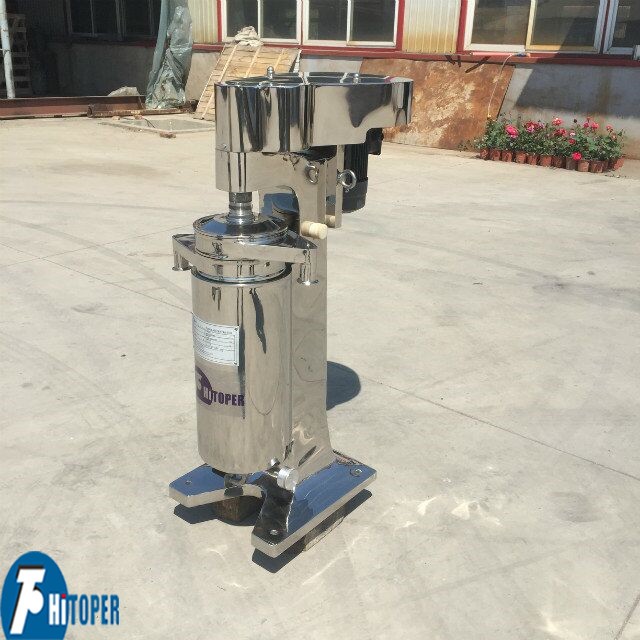

Tubular centrifuge

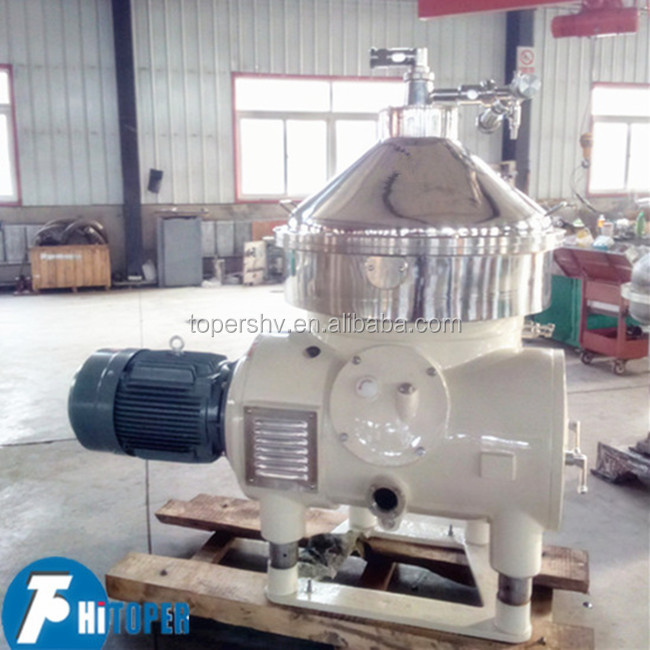

Disc centrifuge

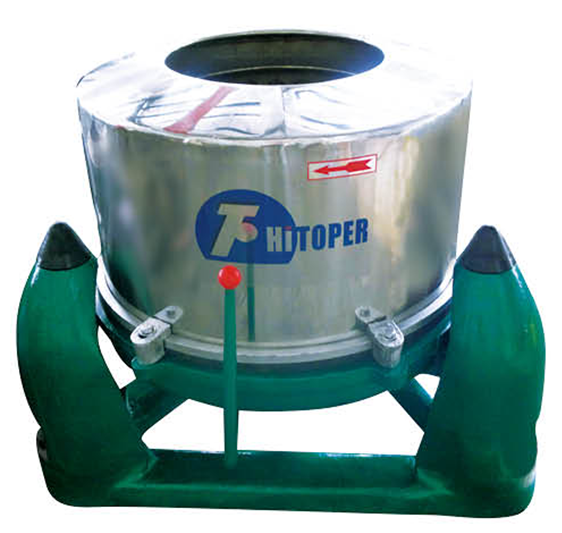

SS type centrifuge
