Convenient operating disc bowl vertical type fat controllable milk dairy machine

Product details
After-sales Service Provided:Online support;Application:milk, coconut water, juice, algae;
Warranty:1 year;MOC:0Cr13, DSS;
Brand Name:Kingreat;Power(W):4-22 kw;
Description:dairy machine;Structure:vertical;
Port:Nanjing, Shanghai, Ningbo;Applicable Industries:Food & Beverage Factory,Farms;
Separation phase:two/three phase, liquid-solid/liquid-liquid-solid;Certification:ISO;
Impurity after separation:less than 1ppm;Cream %:Controllable;
After-sales Service Provided:Engineers available to service machinery overseas;Operation:Automatic and continuous;
Control panel:With;Supply Ability:100 Set/Sets per Month for dairy machine;
Packaging Detail:Film wrapping+Wooden case fumigated for dairy machine;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Voltage:110v,220v,380v,440v,460v;Place of Origin:Jiangsu China;
Condition:New;Weight:450-1580 kg;
Dimension(L*W*H):depend on model choosing;

Convenient operating disc bowl vertical type fat controllable milk dairy machine

Product Description

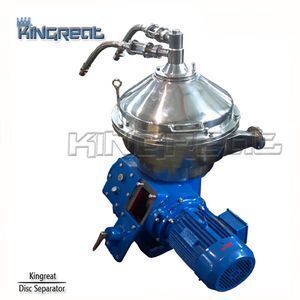

 Model PDSM dairy machine is mainly used for clarifying and purifying / defating of milk, as well as the similar oil to clarify the Liquid-Liquid-Solid three-phase materials. It is also widely used for the coconut water to separate the fat and impurity.





Technical Parameters



Model

 PDSM2000-CN

 PDSM3000-CN

PDSM5000-CN

PDSM10000-CN

PDSM20000-CN

Capacity (L/h)

 1000

 3000

5000

10000

20000

Motor power (KW)

 4

 7.5

11

15

22

Discharging type

Part discharging

Part discharging

Part discharging

Part discharging



Variable capacity



discharging



Output pressure of

clear liquid (MPa)

  ≥0.1

 ≤0.1

≤0.1

≤0.2

≤0.2

Net weigh (KG)

 785

 850

992

1270

1580

Overall dimension

 L × W × H(mm)

 954× 860 × 1359

1115 × 1063 × 1166

1370×1340×1610

1700x1490x1780

1479 ×1289 ×1583





After clarification, the impurity content in the fresh milk is less than 1mg/kg



+

Model

 PDSM1000-DN

 PDSM3000-DN

PDSM5000-DN

PDSM10000-DN

Capacity (L/h)

 1000

 3000

5000

10000

Motor power (KW)

 4

 7.5

15

18.5

Discharging type

Part discharging

Variable capacity discharge

Part discharging

Small valve discharging

Output pressure of

clear liquid (MPa)

 ≤0.2

 ≤0.1

≤0.1

≤0.2

Net weigh (KG)

 450

 614

1000

1250

Overall dimension

 L × W × H(mm)

 854× 885 × 1118

1120 × 850 × 1082

1270×1188×1560

1563x1382x1780



Detailed Images







Company Information
Nanjing Kingreat Machinery Co., Ltd is a subsidiary of China State Shipbuilding Corporation (CSSC Group), which was established in 1958. Covering an area of 650000m2, there are 2300 staff and employee in our company, 281 of them are technicians and engineers. It has obtained the approvals and certifications of both ISO9001:2008 quality control system and the military product quality certificate, BV and CE certificates. Some of our machines gained the new technology invent patent.

We are one of the world's leading manufacturers of disc centrifuges, decanters, separation systems and marine equipment. We focus on food production, environmental protection, energy recycling, chemistry and marine. Now there are over 150 series of decanter centrifuges and disc separators used both home and abroad.



Our Partner





Our Services

1. 12 months guarantee period from machine arriving date.

2. Abundant spare parts in stock are available to provide.

3. Our technicians could be dispatched for overseas service.

4. 7*24 hours technical consultation.

5. Your workers could get trained both in our factory and yours.

6. Routine tracing till the machine work properly will be done timely.

7. We will remind you to do the normal maintenance.

8. Your suggestions or any comments & reflection would be treated in priority.

9. Marketing team will visit you during our visit in your country if you require.



FAQ

1.  How can we visit your factory?

     If you come from abroad, air to Shanghai airport, then take bullet train, about 1 hour from Shanghai to Nanjing South Station; if you come from our domestic city, air or train directly to Nanjing, we will pick you up both in the airport and railway station.



2.  Can we visit your end user or contact them?

     Yes, users are in domestic and abroad, we can provide you the name list, you can go there or contact for more info.



3.  How do you protect the quality?

     Our factory is a state owned enterprise with more than 100 years experience, strict operation policy is performed, advanced processing machines guarantee the precision of all components, workers with operation license, parts get multiprocessing, transmission & electrical parts are of international famous brand. Series of test and inspection are done in the whole producing stage.



4.  Will you dispatch technicians for installation and commissioning?

     Yes, we can, we do lots of service, please refer to our after sales part.



5.  What is your advantages compared with your competitors?

     Quality and experience. We are the top centrifuge supplier in China, our designs and structures are similar to world famous brands.



6.  Is your price competitive?

     Our price is not the lowest in China as for high quality, but we promise, for the same quality and collocation, our price is the most favourite, for the same price, our quality is definately superior to other brand.



7.  Do you have OEM serive? Do you supply the parts?

     Yes, we do, as long as you provide us your drawing and detailed requirements.



8.  Do you supply second hand centrifuge?

     No, we only provide brand new machine.



9.  Do you have agent or service center in my country?

     We have some partnership in several countries as Indonesia, Brazil, USA, etc. Your are warmly welcomed to work as our agent. At this moment, we have no service center abroad, but we can provide overseas spot and online technical service in time.



10. How can we easily find out the most fit centrifuges?

      We have experienced engineer team to help you make the model selection, as long as you provide us the detailed processing material characteristics.



11. What payment mode you accept?

      TT and LC at sight.
