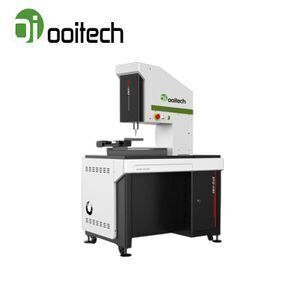

Ooitech 20w Solar Cells Cutter Silicone Wafer Laser Cutting Machine details
Certification:CE,ISO;Laser Type:Fiber Laser;
Place of Origin:China (Mainland);Cooling Mode:Air Cooling;
Package Type:plywood box;Control Software:Laser scribing software;
Brand Name:Ooi;CNC or Not:Yes;
Single gross weight:200 KG;After-sales Service Provided:Field installation, commissioning and training;
Applicable Material:Solar cell wafer;Selling Units:Single item;
Application:Laser Scribing;Warranty:1 Year;
Delivery Detail:0 days after payment;Graphic Format Supported:PLT;
Single package size:104X71X171 cm;
Product Description
+

Solar Sell Scribing Machine Function

scribing or cutting the Solar Cells and Silicon Wafers in solar PV industry, including the mono-si (mono crystalline silicon) and poly-si (poly crystalline silicon) solar cells and silicon wafer.

Solar Sell Scribing Machine Main Features


1. Using the Germany IPG FIBER laser or China Raycus Fiber laser or Max fiber laser

service time over 100,000hours.

Stronger adaptability to environment

better beam quality and higher speed than Diode Pump and YAG Krypton type.

No need to replace the laser module and Krypton lamp.

2. Work table: X-Y movable

Solar cell can be automatic absoption

3. Air cooling, compact structure, small size

4. Higher conversion efficency,

lower operating cost, save power consumption, cost and shorter maintenance time;

5. Laser Pulse width is more narrow,

Higher peak power, faster scribing cutting speed

6.Long time uninterrupted continuous maintenance-free operation,

no consumable wearing parts to replace

7. Stepper motor or servo motor different cost.

+
Technical Parameter
Model
OLS-20F
Laser Wavelength
1064nm
Laser Power
20W
Scribing Width
30μm
Scribing Speed
200mm/s
Scribing Accuracy
±10μm
Working Area
350x350mm (13.8in*13.8in)
Temperature Control Precision
0.5°C
Working Power
220V/50Hz/1KvA
Working Table
negative pressure absorbing and dust
Cooling Method
Forced air cooling

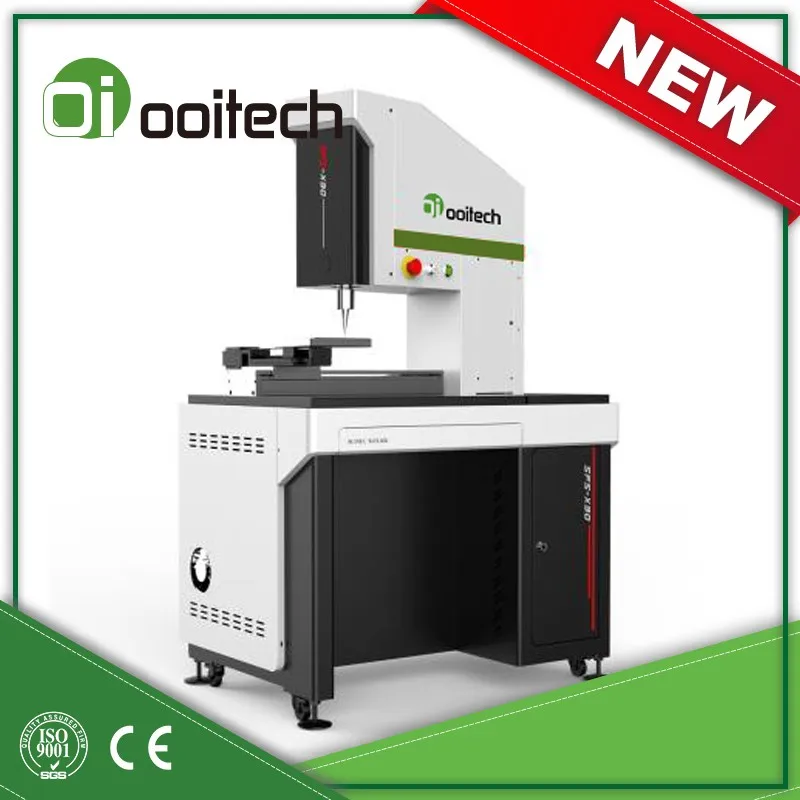

Detailed Images
+
+

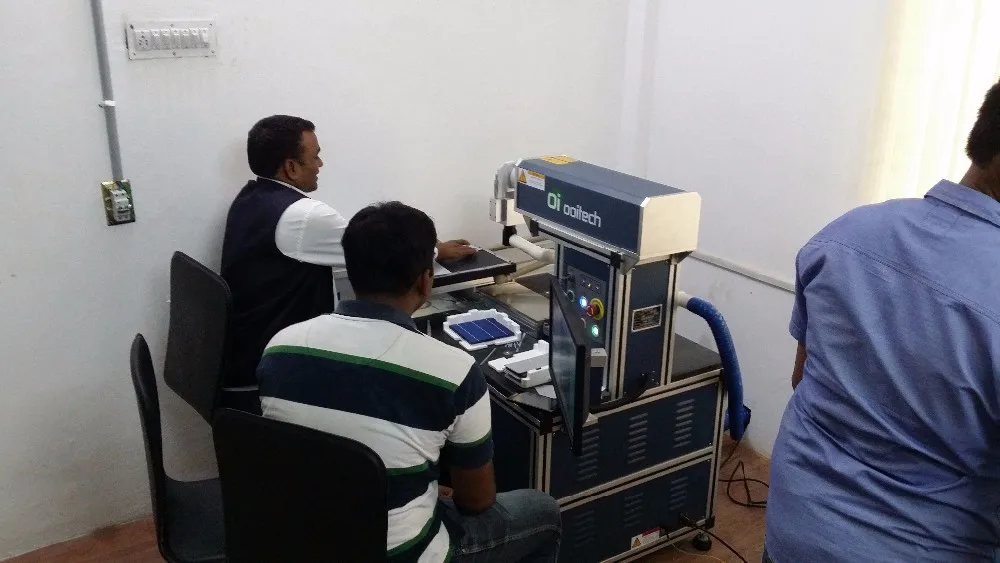

Our Customer
+
Packing & Delivery

Packing Details : Standard export Veneer Case.

Delivery Details : 5~10 working days after receiving buyer's payment.
