High-Speed Solar Cell Laser Cutting Machine details
CNC or Not:yes;Core Components:PLC;
After Warranty Service:Online support;Graphic Format Supported:PLT;
After-sales Service Provided:Field installation, commissioning and training;Certification:ce,ISO;
Applicable Material:Solar cell wafer;Single package size:104X71X171 cm;
Control Software:Laser scribing software;Weight (KG):2000;
Single gross weight:200.0 KG;Applicable Industries:solar panel production line;
Condition:New;Place of Origin:Hubei China;
Laser Source Brand:RAYCUS;Brand Name:Ooitech;
Warranty of core components:1 Year;Warranty:1 Year;
Key Selling Points:High Productivity;Video outgoing-inspection:Provided;
Showroom Location:None;Local Service Location:None;
Laser Type:Fiber Laser;Marketing Type:New Product 2020;
Selling Units:Single item;Machinery Test Report:Provided;
Application:Laser Scribing;Packaging Detail:plywood box;

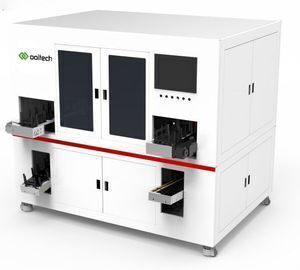

High-Speed Solar Cell Laser Cutting Machine

Product Description





[ Technical Parameters ]

Model

OLS-4000

Laser wavelength

1064nm

Laser power

60W

Scribing width

40μm

Scribing speed

550mm/s

Scribing depth

0~200um

Applicable Cell Size

156*156mm-210*210mm

Divide Equally

1/2 pieces ( can update to 1/3 or 1/4 pieces)

Working power

380V/50Hz/10kvA

Capacity

3400pcs cell/hour (full cell)

Cooling method

Forced air cooling









Scribing or cutting the Solar Cells and Silicon Wafers in the solar PV industry, including the mono-si (monocrystalline silicon) and poly-si (polycrystalline silicon)solar cells and the silicon wafer.



1. Using the 1064nm infrared light source, fixed optical path, good beam quality, thin laser scribing width, small heat-affected zone. cell cutting section is more neat, less damage to the  solar cell, and cutting high precision



2.High speed cutting solar cells, max speed could be 4000 PCS Per hour.



3. Industrial CCD detection system

  2 million pixel industrial CCD, high-precision detection and location; High-Precision Positioning: ±0.1mm

4. Automatic level high.

It can automatic feeding, automatic positioning and scribing, automatic splitting, and automatic loading the cutted small cells into box.



5. Air cooling, compact structure, small size



6. Higher conversion efficiency

lower operating cost, save power consumption, cost and shorter maintenance time;



7. Laser Pulse width is more narrow

Higher peak power, faster scribing cutting speed;



8.Long time uninterrupted continuous maintenance-free operation

  no consumable wearing parts to replace;





Packaging & Shipping





Company Information



FAQ

Q: Equipment Quality, Reliability Warranty?

1) Every machine in the detection process, through specialized testing equipment and facilities,
before machine out of our factory machine text 24 hours.
2) All of our machines have a 1-year quality Warranty from customers receive the machine. The company has built life-long correspondence files.

Q: Why choose us?

A: Doing business with Ooitech is SAFE and BENEFICIAL. Ooitech qualified Alibaba Trade Assurance

the project, Which means Alibaba will refund if there is any quality problem after your buying.
We are onsite checked by Alibaba. The supplier assessment report can be download on our company

profile site. A reliable supplier ensures the safety of your fund.CE and UL approved machines bring good

quality, and reasonable price helps you make profits from our machine.



Q: Do you have Training to Customer?

A: We will supply the machine operation manual in the English version.
For installation and operation, including introduction for the composing of equipment, working
principle of equipment, common knowledge of computers, controlling principle of electric devices,
daily maintenance measures of equipment. Personal demonstration for installation and adjusting
of equipment, operation of equipment, programming of the computer.
Users can dispatch representatives to our factory for 2-3 days for training. We are responsible for
training them free of charge. While all the charges including traveling charges and accommodation
will be afforded by the user.

 Q: What are your terms of payment?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
