2014 New 156mm 125mm 6 inch Solar Cell Laser Cutting Machine details
Supply Ability:30 Unit/Units per Month;Laser wavelength:1064nm;
Scribing accuracy:±10μm;Cooling Mode:Water Cooling;
Product Name:156 125 solar Solar Cell Laser Cutting Machine/Laser Scribing Machine;Machine Function:cribing or cutting the Solar Cells and Silicon Wafers;
Port:shanghai;Certification:CE,ISO;
Packaging Detail:stand export veneer case;Laser power:50W solar cell laser cutting machine;
Graphic Format Supported:PLT;Scribing width:50μm;
Scribing speed:120mm/s;Place of Origin:Hubei China;
Model Number:OLS-50D;Control Software:Laser scribing software;
Payment Terms:L/C,T/T,Western Union,MoneyGram,ESCROW;Brand Name:Wuhan Ooi;
Laser Type:Diode;Delivery Detail:5 days;
Applicable Material:Solar cell, silicon wafer;Application:Laser Scribing;
CNC or Not:Yes;Working area:350x350mm (13.8in*13.8in);
Working power:380V(220V)/50Hz/3kvA;After-sales Service Provided:Engineers available to service machinery overseas;
Cooling way:water cooling;

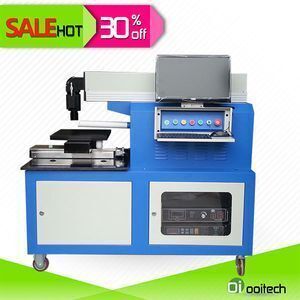

2014 New 156mm 125mm 6 inch Solar Cell Laser Cutting Machine



Model: OLS-50D

+
Solar Cell Laser Cutting Machine Function



scribing or cutting the Solar Cells and Silicon Wafers in solar PV industry, including the mono-si (mono crystalline silicon) and poly-si (poly crystalline silicon) solar cells and silicon wafer.



+
Silicon Wafer Cutting Machine Features

1. Using the Diode Side Pump or Semiconductor side pump laser

    service time over  12,000hours.

     better beam quality and higher speed than YAG Krypton type.

     No need to replace the Krypton lamp

2. Import UK acousto optic modulator, high qualiy

3. Work table: X-Y movable

             Solar cell can be automatic absoption, no need to use foot pedal

             350*350mm size

4.Unified constant water chiller: stable and reliable for long period running



5. higher integration, better beam quality and higher speed, but lower processing

 cost and shorter maintenance time;



6.  no exterior connect

7.  Easy to instal and move the equipment;

8. Improved and new generation machine, Updated 5.0 software;



+
Solar Cell Laser Cutting Machine Technical Parameters





+

Model

OLS-50D

Laser wavelength

1064nm

Laser power

50W

Scribing width

50μm

Scribing speed

120mm/s

Scribing accuracy

±10μm

Working area

350x350mm (13.8in*13.8in)

Temperature control precision

0.5°C

Working power

380V(220V)/50Hz/3kvA

Working table

negative pressure absorbing and dust elimination

Cooling method

Unified rotative homothermal water cooling



+

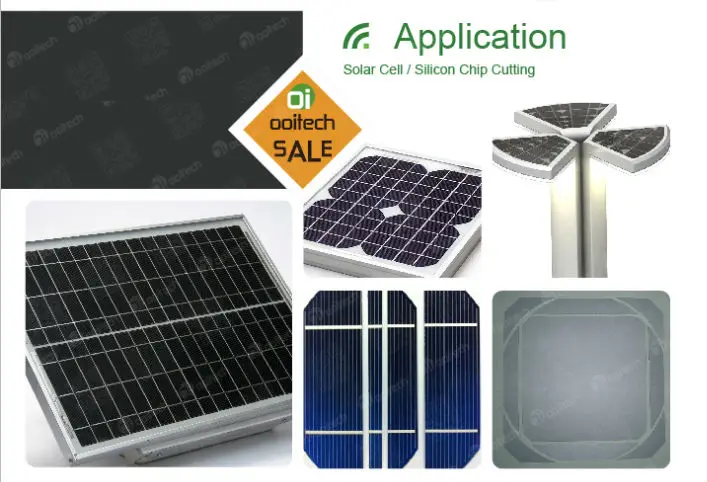

Solar Cell Laser Cutting Machine Application

+
Solar Cell Laser Cutting Machine Main Parts

+
Solar Cell Laser Cutting Machine in Solar Panel Production Line
