ETCR6200 High Precision DC Clamp Leakage Meter Automotive Leakage Current Clamp Meter 0ma-60.0a AC/DC Digital Only

Supplier: Guangzhou ETCR Electronic Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Johnson Zhang
Price: $69.70 / 1 - 23 pieces
$59.09 / 24 - 99 pieces
$52.00 / >=100 pieces
Min. Order: 1 piece

Click here to contact

Product details

weight:	240 grams	Operating temperature:	-10℃-50℃, within 2%rdg
Measuring range:	0mA~60.0A AC/DC	Single package size:	22X11X8 cm
Display type:	numbers only	accuracy:	±2%rdg±5dgt
Sales unit:	single product	Gross weight per piece:	0.500 kg
voltage:	9V	scope:	0mA~60.0A AC/DC
Meter size:	170mm70mm38mm	aspect:	Length, width and height: 168mm65mm34mm
place of origin; place of origin:	Guangdong, China	model:	ETCR6200
power supply:	Alkaline battery 6LR61 9V, continuous work for 40 hours	Accuracy class:	±2%rdg±5dgt
brand:	ETCR	Working current:	10mA
CT size:	25mm*30mm	Resolution:	1mA AC/DC

Product Description

ETCR6200 High Precision DC Clamp Leakage Meter Automotive Leakage Current Clamp Meter

scope	0mA~60.0A AC/DC
Resolution	1mA AC/DC
accuracy	±2%rdg±5dgt
CT size	25mm×30mm
Meter size	170mm×70mm×38mm
weight	240 grams
power supply	Alkaline battery 6LR61 9V, continuous work for 40 hours
Working current	10mA
LCD size	35mm×21.5mm; display area: 32mm×15mm
Sampling Rate	2 times/sec
Communication Interface	With RS232 interface, the stored data can be uploaded to the computer for saving and printing.
Communication parameters	Baud rate: 9600, data bits: 8, stop bits: 1, parity bit: NONE
data storage	99 groups, flashing "FULL" symbol indicates that the storage is full
data retention	Data hold function: "DH" symbol display
overflow display	Overrange overflow function: "OL A" symbol display
Polarity indication	Automatically identify and display "—" symbol during DC current test
Automatic shut-down	After 5 minutes of power on, it will automatically shut down without any operation to reduce power consumption.
battery voltage	When the battery voltage is lower than 7.2V, a low voltage symbol will be displayed and a reminder to replace the battery
Line voltage	Circuit test below 600V
transfer	automatically

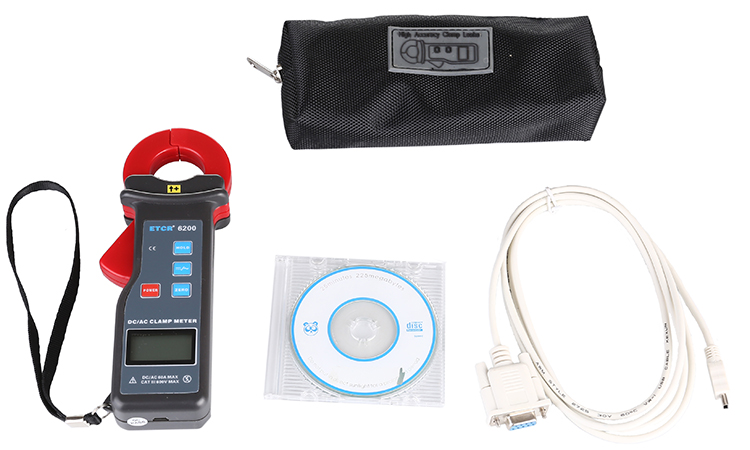

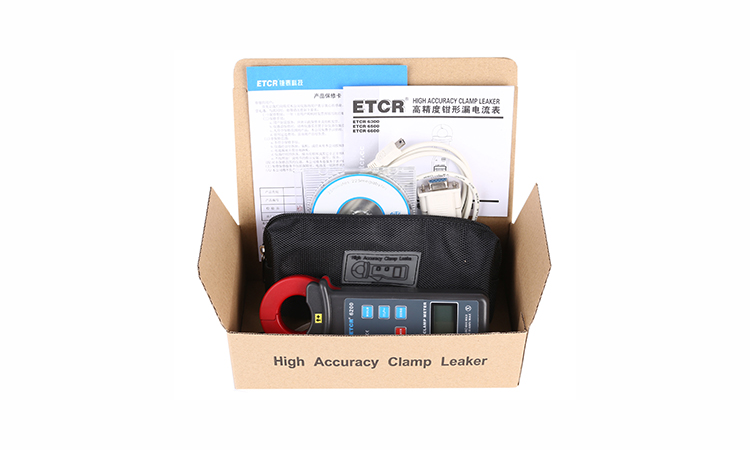

Accessories	Instrument: 1PCS; RS232 communication line: 1PCS; Software CD: 1COPY; Bag: 1PCS
