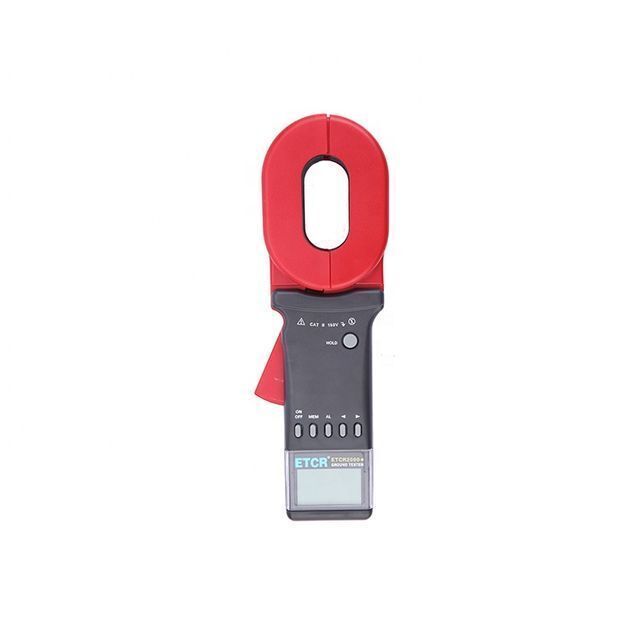

High Accuracy Clamp Meter ETCR2000+ Earth Resistance Tester Clamp Digital Only
- 201.55 1 - 29 pieces
- 177.36 30 - 99 pieces
- 171.32 >=100 pieces
| Single gross weight: | 2.5 KG; | Power Supply: | 6VDC ( 4 PCS of No.5 Alkaline dry batteries); |
| Model Number: | ETCR2000+; | Single Measurement Time: | 0.5 second; |
| Jaw Opening Size: | 32mm; | Data memory: | 99 Sets; |
| Dimensions: | 285mm*85mm*56mm; | Packaging Detail: | "2.5KG/PCS 6PCS/CTN"; |
| Place of Origin: | Guangdong China; | Protection class: | Double insulation; |
| Selling Units: | Single item; | Alarm Threshold Setting Range: | Resistance:1-199Ω; |
| RS232 Interface: | Optional; | Audible and visible alarm: | "du-du-du" for alarming , press AL for on/off; |
| LCD Screen: | 4 Digits LCD display, 47mm*28.5mm; | Brand Name: | ETCR; |
| Single package size: | 37X13X24 cm; | Measuring Range: | 0.010Ω-1200Ω; |
| Shift: | Automatically; | Display Type: | Digital Only; |
| Accuracy Class: | ±1%±0.01Ω; |
High Accuracy Clamp Meter ETCR2000+ Earth Resistance Tester Clamp Earth Resistance Tester
|

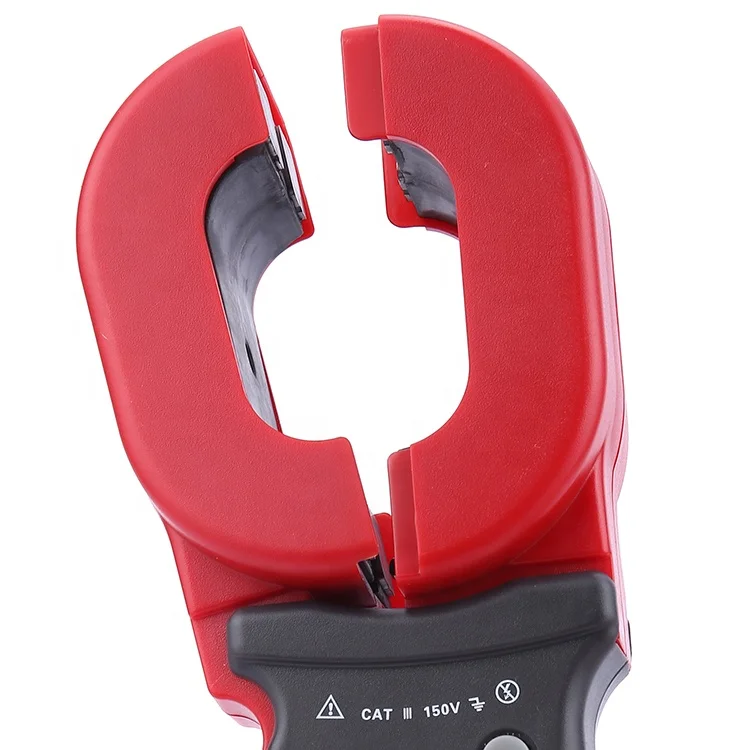

Clamp Size |
65mm×32mm |
|||
|
Tester Size |
285mm×85mm×56mm |
|||
|
Tester Weight |
1160g(With batteries) (han |
|||
|
Resistance Range |
Range |
Resolution |
Accuracy |
|
|
0.010Ω-0.099Ω |
0.001Ω |
±(1%+0.01Ω) |
||
|
0.10Ω-0.99Ω |
0.01Ω |
±(1%+0.01Ω) |
||
|
1.0Ω-49.9Ω |
0.1Ω |
±(1%+0.1Ω) |
||
|
50.0Ω-99.5Ω |
0.5Ω |
±(1.5%+0.5Ω) |
||
|
100Ω-199Ω |
1Ω |
±(2%+1Ω) |
||
|
200Ω-395Ω |
5Ω |
±(5%+5Ω) |
||
|
400-590Ω |
10Ω |
±(10%+10Ω) |
||
|
600Ω-880Ω |
20Ω |
±(20%+20Ω) |
||
|
900Ω-1200Ω |
30Ω |
±(25%+30Ω) |
||
|
Power Supply |
DC: 6V ( 4 PCS of LR6 Alkaline batteries) |
|||
|
Time for single measurement |
0.5 second |
|||
|
LCD Screen |
4 Digits LCD display, Screen L×W: 47mm×28.5mm |
|||
|
Data memory |
99 Sets |
|||
|
Audible and visible alarm |
“du—du—du” for alarming , press AL for on/off |
|||
|
Alarm Threshold Setting Range |
Resistance:1-199Ω |
|||
|
Protection class |
Double insulation |
|||
|
Shift |
Automatically |
|||
|
External magnet / electric field |
<40A/m;<1V/m |
|||
|
Frequency for resistance test |
>1KHz |
|||
|
RS232 Interface |
Optional |
|||
|

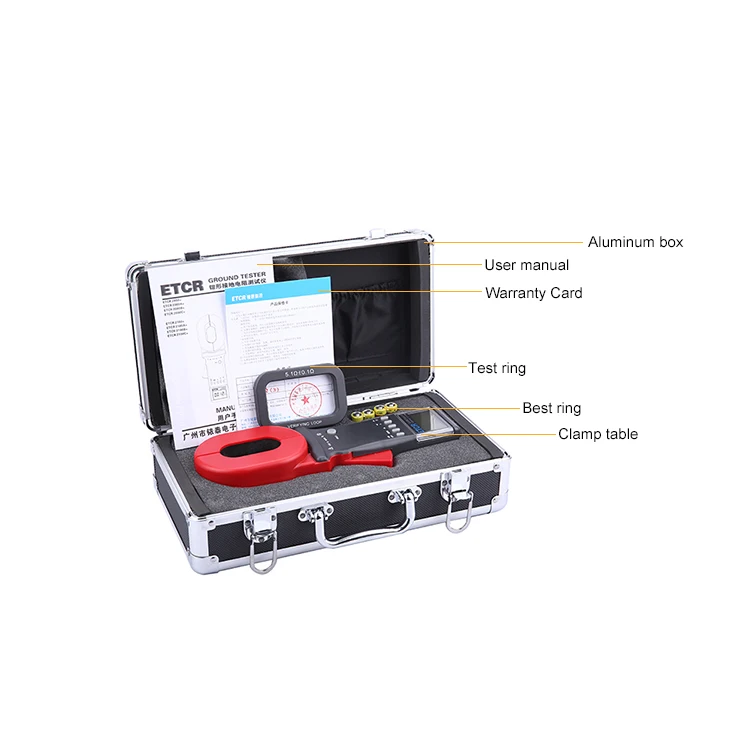

Accessories |

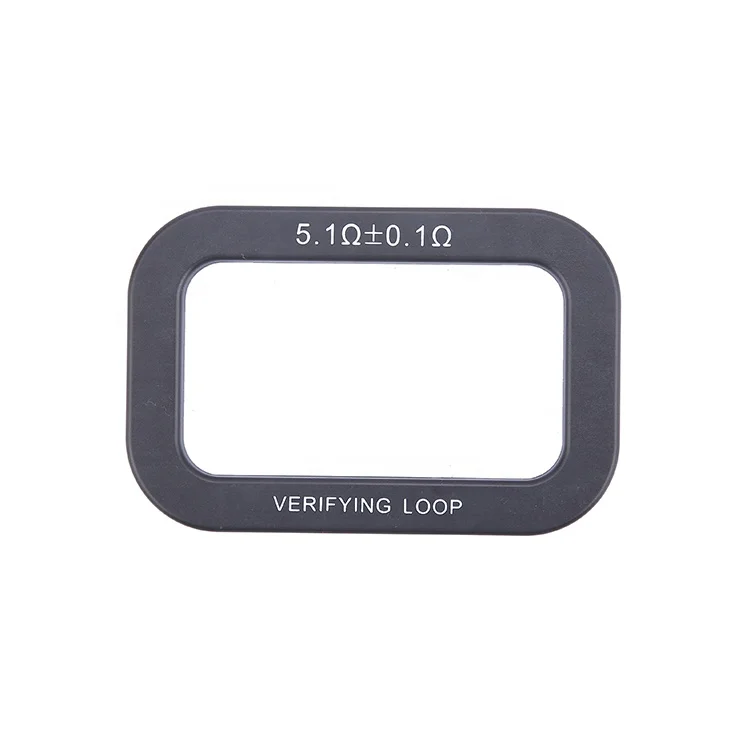

Meter: 1 piece; Test Ring: 1 Piece; Meter Suitcase: 1 Piece |
|||
1.Q: Are you trading company or manufacturer?
A: We are factory.
We have R&D department, OEM& ODM services available.
2.Q: How long is your delivery time?
A: We will arrange shipment in 3~5 days after check the payment.
3.Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample, but not for free; you need pay charge and the cost of freight.
4.Q: What is your term of payment?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance, balance before shipment.
5.Q: What is the payment method?
A: We can accept Bank Transfer, PayPal, Western Union, Money Gram, Cash etc.
6.Q: Will you provide OEM service?
A: OEM & ODM services available
7.Q: How long is the product warranty?
A: 2 years.
