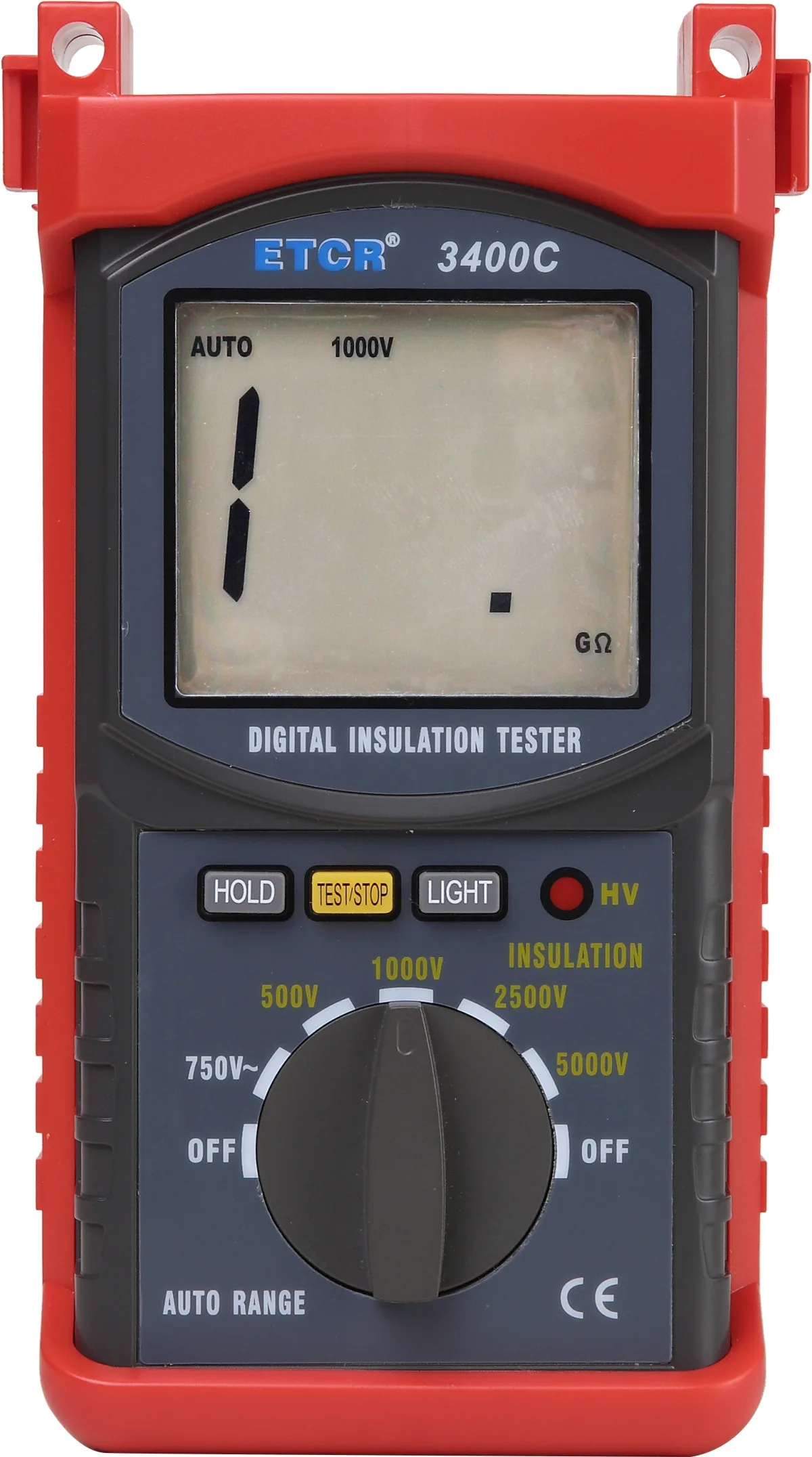

5KV High Voltage Insulation Resistance Tester ETCR3400C

Supplier: Guangzhou ETCR Electronic Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Johnson Zhang
Price: $100.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Package Type:	1PCS/CARTON;	Brand Name:	ETCR;
Testing Voltage:	500V/1000V/2500V/5000V;	Place of Origin:	Guangdong China (Mainland);
Dimensions:	21812275mm;	Operating Temperature:	-10~40 Degree;
Accuracy Class:	3%*rdg+5dgt;	Model Number:	ETCR3400C;
Single gross weight:	1 KG;	Measuring Range:	1MΩ~200GΩ;
Single package size:	25X15X8 cm;	Delivery Detail:	0 days after payment;
Package Preview:	https://sc02.alicdn.com/kf/HTB1V3K2IkOWBuNjSsppq6xPgpXae.jpg_640x640.jpg;	Display Type:	Digital Only;
Selling Units:	Single item;

Product Description

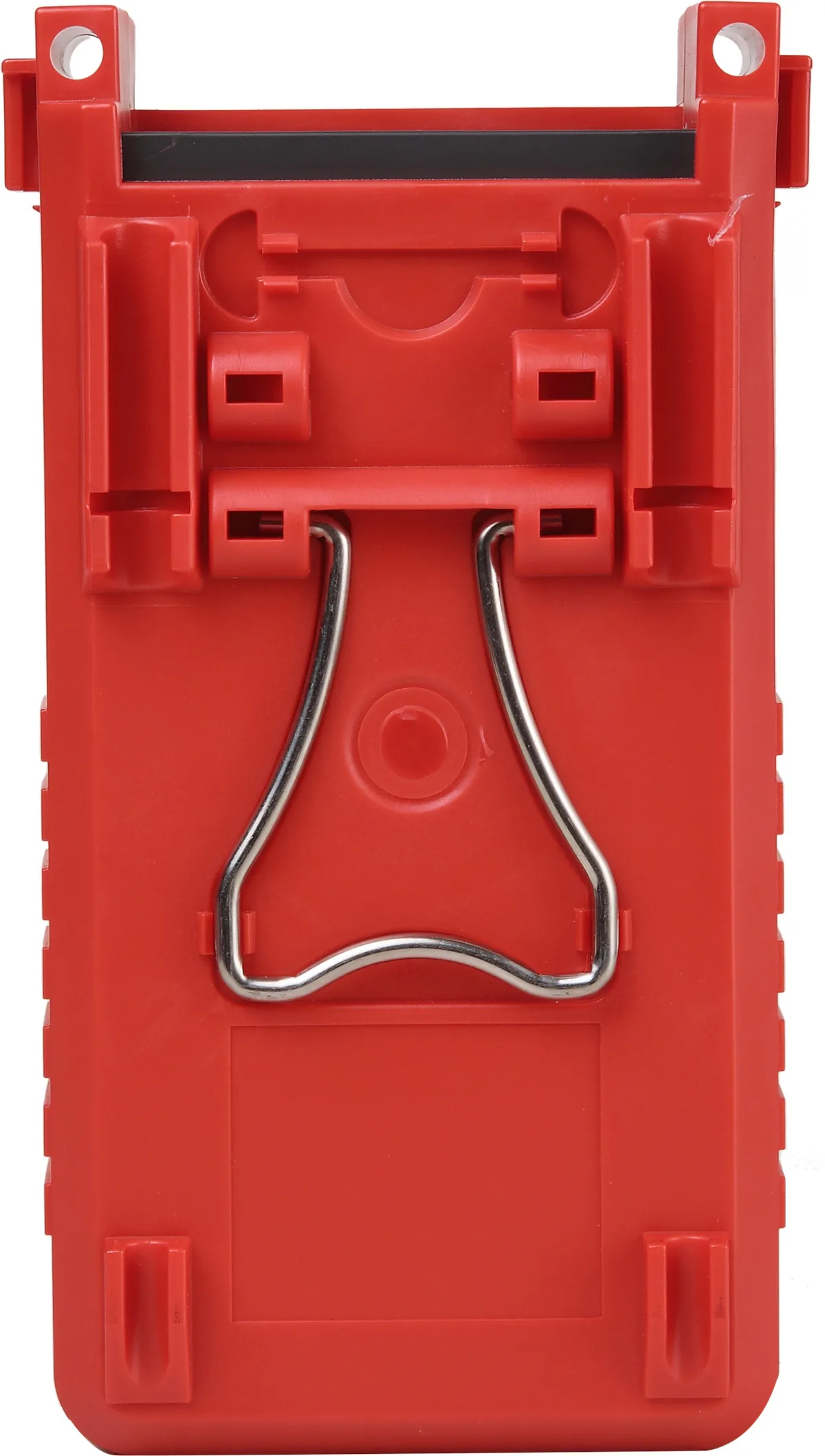

1. Higher precision, easy and reliable operation. It has anti-vibration sleeve, dustproof and moisture-proof structure to adapt to outdoor working environment.

2. Low-power CMOS dual-integration A/D conversion IC, auto-zero, auto-polarity display, and over range indication. Perfect protection circuit to effectively prevent damage from counter voltage.

3. Short circuit output current 1mA.

4. With AC voltage test function.

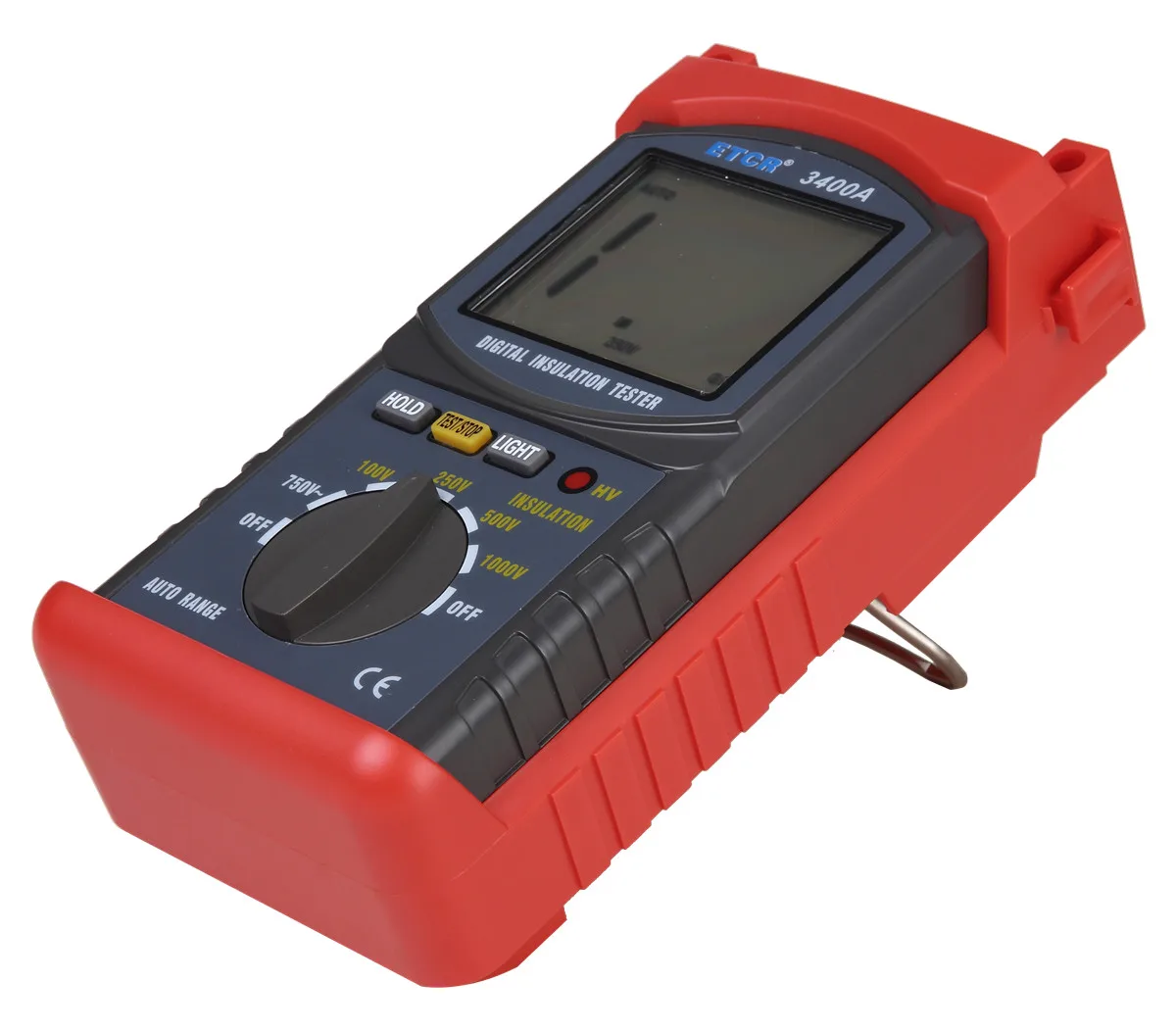

Model	ETCR3400A	ETCR3400B	ETCR3400C
Voltage Max	1000V	2500V	5000V
Testing Rating Voltage	100V/250V/500V/1000V	250V/500V/1000V/2500V	500V/1000V/2500V/5000V
Resistance Range	1MΩ~20GΩ	1MΩ~20GΩ	1MΩ~200GΩ
Resistance Accuracy (23±5℃ RH<75%)	Accuracy: 1MΩ~200MΩ±(3%×rdg+5dgt); min resolution: 10 kΩ
	Accuracy: 200MΩ~10GΩ±(5%×rdg+5dgt); min resolution: 100KΩ
	Accuracy: 10GΩ~200GΩ±(10%×rdg+5dgt); min resolution: 10 MΩ
Voltage Accuracy	Range: AC 0~750V; Accuracy: ±(2%×rdg+5dgt); Resolution: 1V
Frequency Range	40~400Hz
Power Supply	6PCS 1.5V 5th batteries (R6AA SUM-3)
LCD	68×55mm(Height of character is 35mm)
Data Retention	“HOLD”
Backlight	“LIGHT”
Low Voltage Indication	When “ ” is displayed, the battery should be replaced in time.
Dimensions	218×122×75mm
Weight	900g (Battery included)
Working Environment	-10℃~40℃; Below 80%rh
Store Environment	-10℃~60℃; Below 85%rh
Safety Protocol	Comply with the IEC-1010 double insulation, environmental pollution degree 2 degrees, over-voltage category II safety standard promulgated by the International Electrotechnical Commission

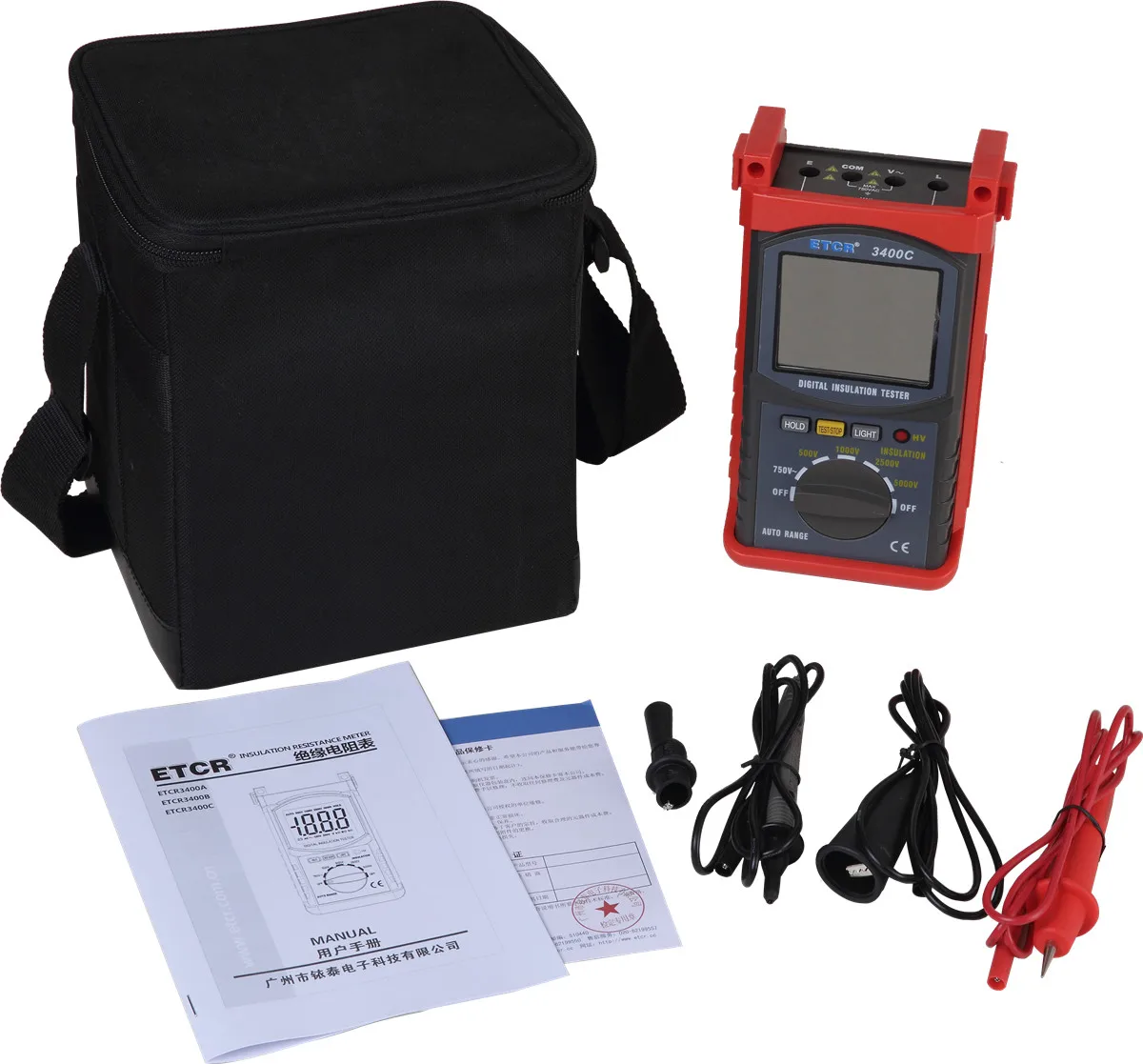

Accessories	Instrument: 1 piece; test line: 1 set; tool kit: 1 piece
