|Package Preview:||;||Payment Terms:||L/C,D/A,D/P,T/T,Western Union,MoneyGram;|
|Body heater:||Customized;||Port:||Shanghai port;|
|Packaging Detail:||Standard seaworhty package for Electric Wire and Cable Extrusion Production Line;||Place of Origin:||Jiangsu China;|
|Application:||Extruder compound of PVC, PE, LSHF...;||Usage:||Extruding;|
|Model Number:||SJ30X25 ~ SJ200X25 series;||Supply Ability:||1000 Set/Sets per Year;|
|Brittleness:||< grade 2;||Name:||Electric Wire and Cable Extrusion Production Line;|
|Standard:||as customers' requirements;||Nitrogen depth:||0.5~0.7mm;|
|Hardness:||> 940;||Brand Name:||Comflex;|
|Package:||Standard seaworthy package;||Screw:||Single-screw;|

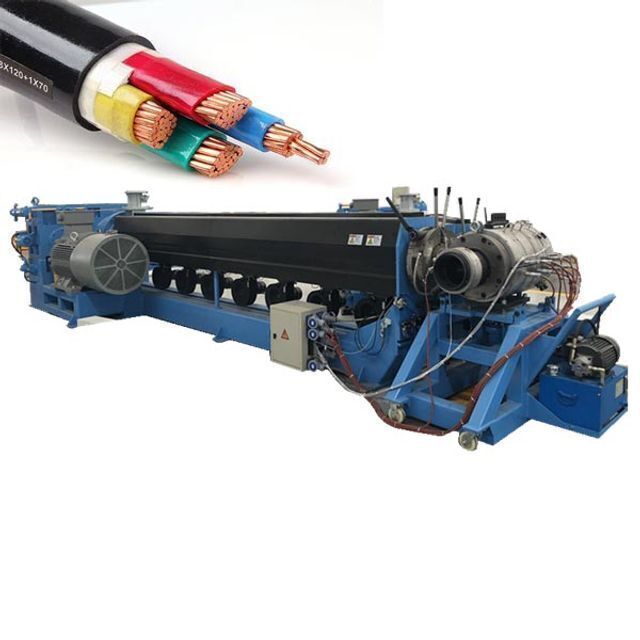

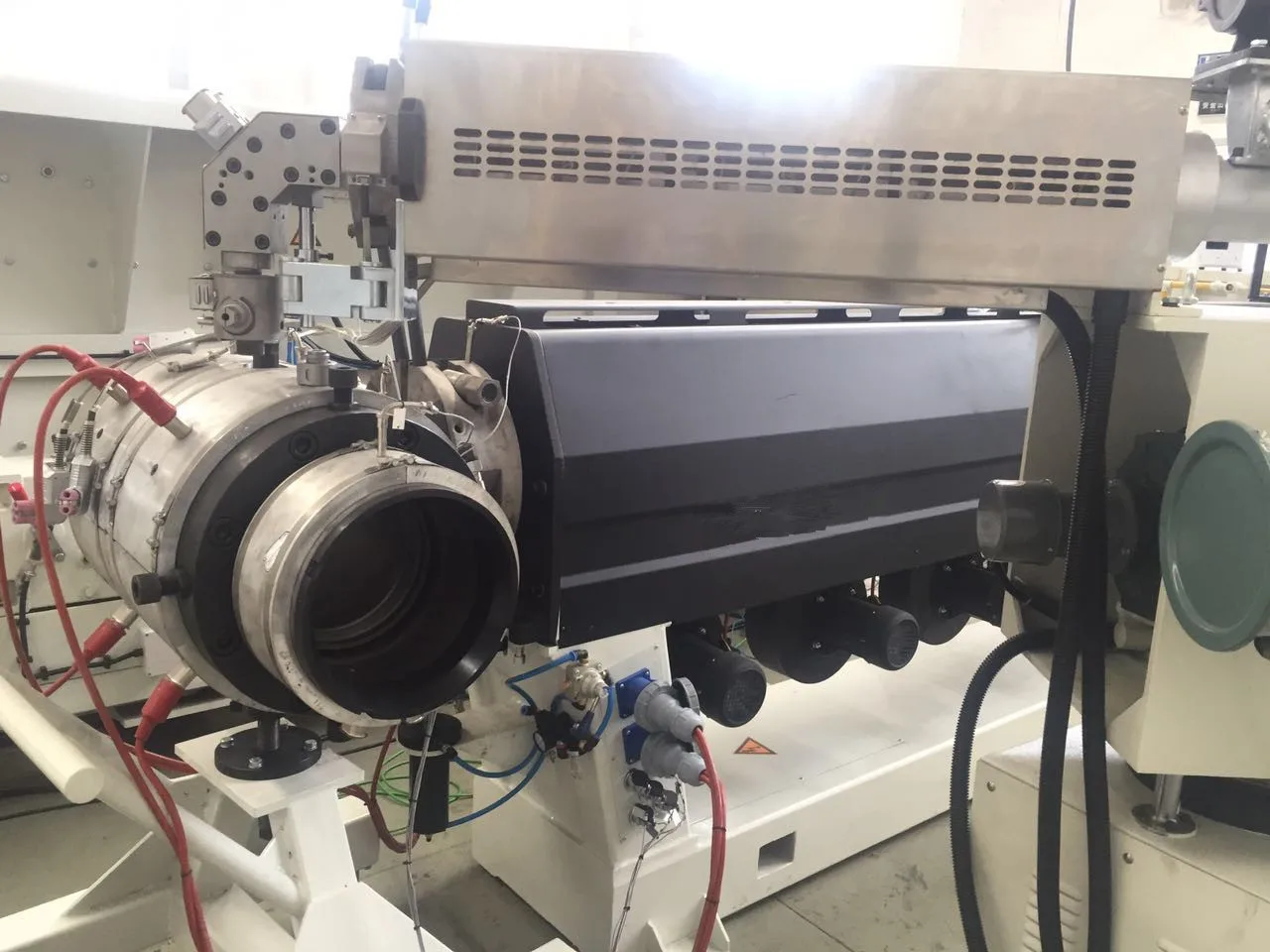

I SJ30 X 25 ~ SJ200 X 25 Plastic extruder
- Integral frame has nice rigidity and intensity, made of high quality recetangle steel, easy for installation work.
- Screw & barrel are special designed, made of 38 CrMoAIA precision processing high quality alloy steel, with precision processing treatment, surface is nitrogen treated, nitrogen depth is within >0.5mm~<0.7mm, hardness is >940, brittleness is not big than grade 2.
- Suitable for use special screw to extruder compound of PVC, PE, LSHF (Low-smoke halogen-free), satisfy customers different technics requirements.
- Adopt high quality hardness gears (JHM series) special gearbox, which has advantage such as big capacity, high precision, low noise, high coefficient of safety, and long working life.
- The main extruder of Dia. 90~200 series adopt independent motor for oil pump circulation and cooling, which is more safe and reliable.
- (Optional part) Special designed material feeding device has drain out exit, it is convenient to change material during line stop, save time and material.
- Cross-head connection is "half-type", easy for assembling work and it is reliable.
- Body heater has three types for customers's choice:
1.) casting AI heater
2.) ceramic heater & cooper fin radiator
3.) new type induction heater
Main technical parameters:
|Type & Size||Screw Dia. (mm)||L/D ratio||Screw speed (rpm)||Main motor (kw)||Barrel heating power (kw)||Temp. contr. zones (body/cross head)||Max. output capacity (PVC) (kg/h)|

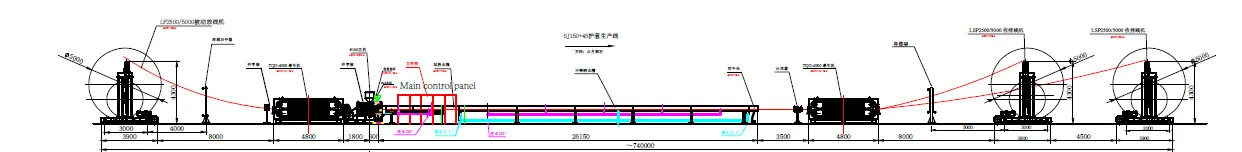

II. SJ30 X 25 ~ SJ200 X 25 series insulation & sheathing extrusion production line
- This production line is used for producing PVC, PE, LSHF (Low-smoke halogen free) cable insulation layer or sheathing layer.
Main technical parmaters:
Extruder spec.: Dia 30, 45, 65, 90, 120, 150, 200 etc.
Screw parameters: L/D ratio: 25:1 or 30:1
Type: tapered screw, LSHF screw or BM type (user's option)
Whole stainless steel cooling water tank: total length 12-32m (depends on types) unit end is equipped with telescopic water tank.
Traveling distance is 300-600mm
Caterpillar: TQD 100~4000 caterpillar puller (depend on actual type)
Line speed: 30m - 200m/min (depending on actual type)
Tke up and pay-off reels specification: PN500-PN5000 (depend on actual type)
- The line can be configured and combined flexibly depending on technological requirements, thus featuring easy use.
- Extruder main unit and puller are driven by Z4 DC motor (or frequency conversion motor), controlled by imported full-digital speed-control device.
- Extruder body and head are equipped with RKC temperature control instrument with control-accuracy < ±2°C.

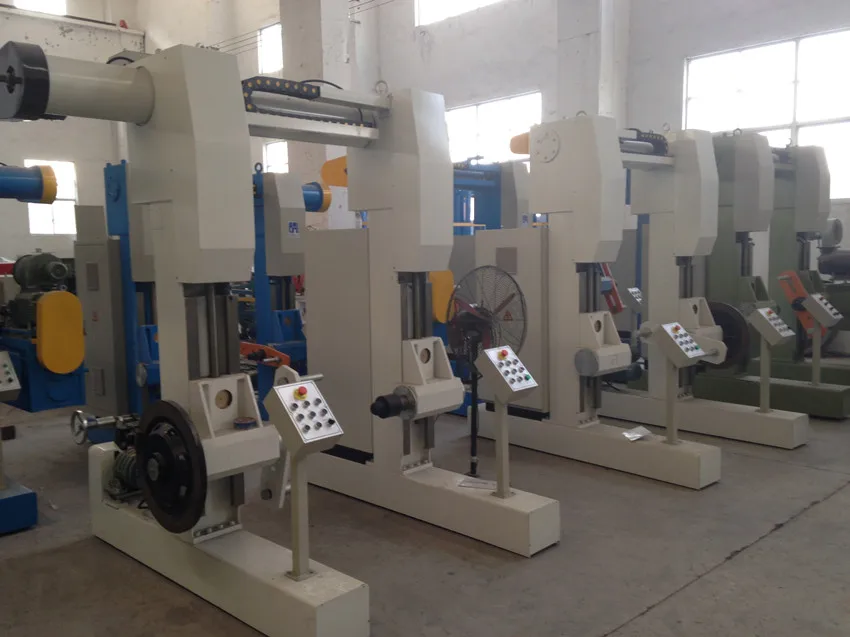

- Pay-off & Take-up adopts new shaftless structure (portal type or gantry type), bobbin loading & unloading without crane.
- Large sheath machine unit adopts front and rear double-hauling, equipped with special synchronous control circuit, ensuring that the cables are not scratched and damaged un water tank.
- The line is controlled by PLC, featuring steady and reliable preformance. It is possible for users to adopt industrial computer (PC) and main-control touch screen.
- The line is centrally controlled, to realize automatic production.

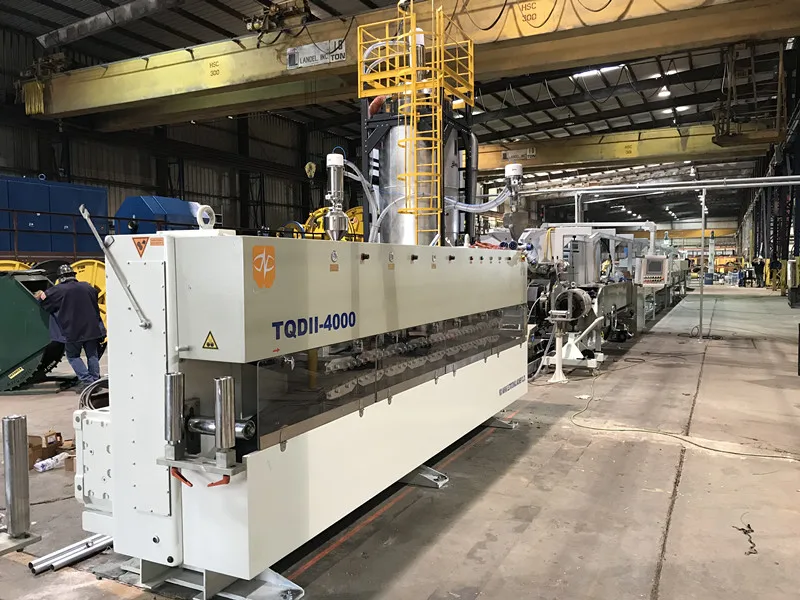

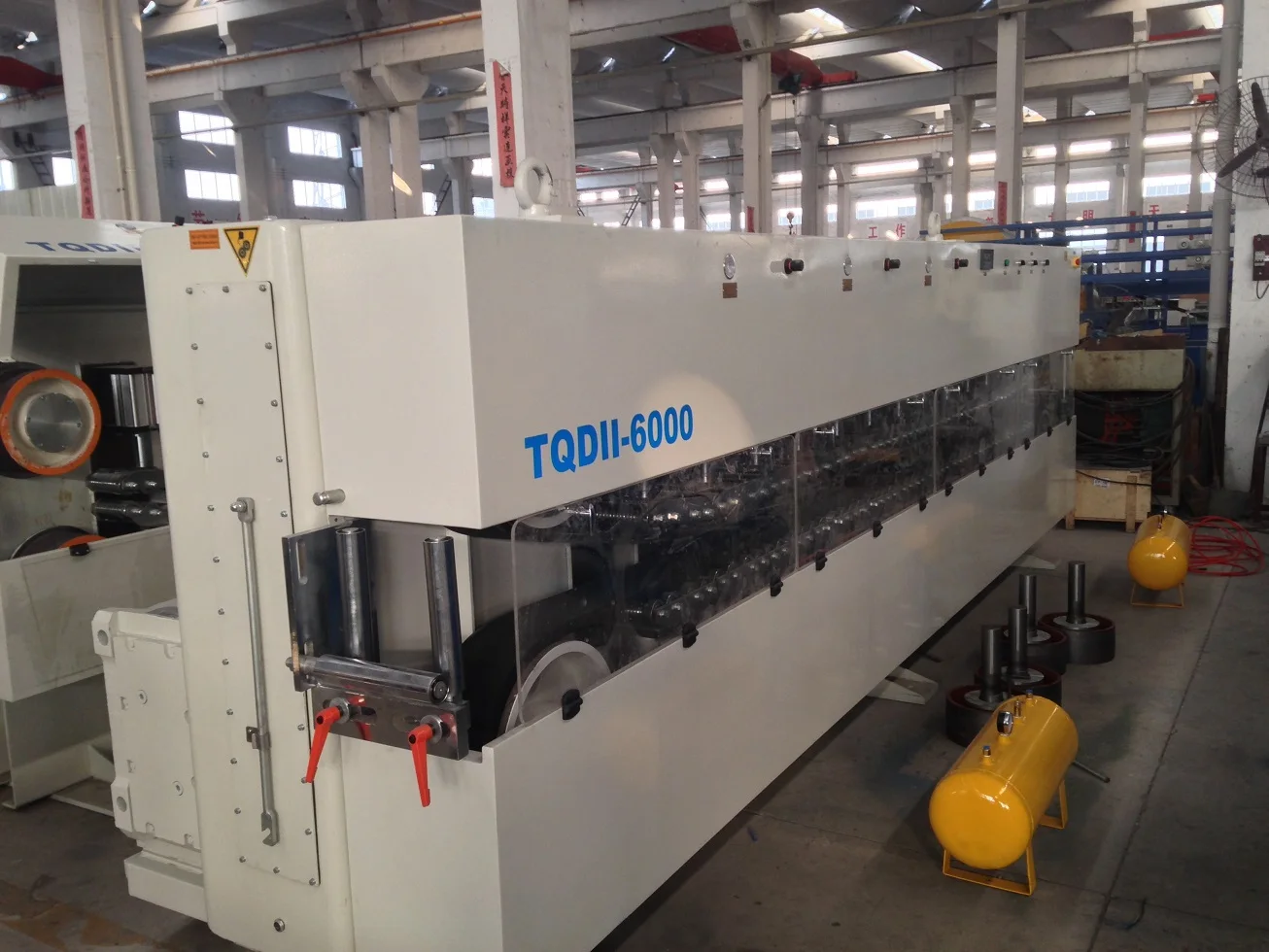

III. TQD series pneumatic belt caterpillar
- Mainly for usage of wire and cable production line in single or in front and rear double haul-off purpose.
Structure and feature:
- Integral frame has nice appearance which is welded by high quality bending steel
- Equipment transmission is via motor - gearbox - gear reducer - up& low helical gear - hard drive structure, transmission is smooth, high loading capacity, easy maintenance.
- Whole series has more than 10 sizes from 200kg to 15000kg, two kinds of speed regulation structure of Z4 DC motor and frequency motor could be choose at customer' needs.
- Equipped with electronical meter counter, real-time display line speed and length.
- Prepare transmission shaft structure, for matching production of laying up production line, armoring production line, and copper tape screen and lapping production line.
- Tension is controlled by magnetic powder clutch, use for front haul-off device of insulation and sheathing production line, tension is instantaneous adjustable, to prevent cable scrape in the water trough, and insure synchronization and diameter of cable.
- The small size caterpillar has whole frame with movable function, convenient for customer use to special technical requirement, and efficiently increase belt life.
|Type & Spec.||Type 200||Type 300||Type 500||Type 800||Type 1250||Type 1600||Type 2000||Type 2500||Type 3200||Type 4000||Type 5000||Type 6000||Type 10000||Type 15000|
|Dia. of cable through max (mm)||2-20||5-25||5-40||8-60||10-80||15-100||20-120||20-130||25-150||30-180||50-200||60-200||80-300||80-300|
|Max. traction force (kg)||200||300||500||800||1250||1600||2000||2500||3200||4000||5000||6000||10000||15000|
|Belt grip length (mm)||520||620||750||1200||1500||1900||2100||2400||2700||2900||3250||3600||4800||5000|
|Belt width (mm)||70||70||80||100||120||120||135||140||145||165||165||170||240||180*2|
|Number of cylinder (pair)||3||3||3||5||5||6||7||8||9||9||10||11||14||14+14|
|Motor power (kw)||3||4||5.5||7.5||7.5||11||11||15||15||18.5||22||30||37||55|
|Motor speed (rpm)||1500||1500||1500||1500||1500||1500||1500||1500||1500||1500||1500||1500||1500||1500|
|Center height (mm)||1000||1000||1000||1000||1000||1000||1000||1000||1000||1000||1000||1000||1000||1350|

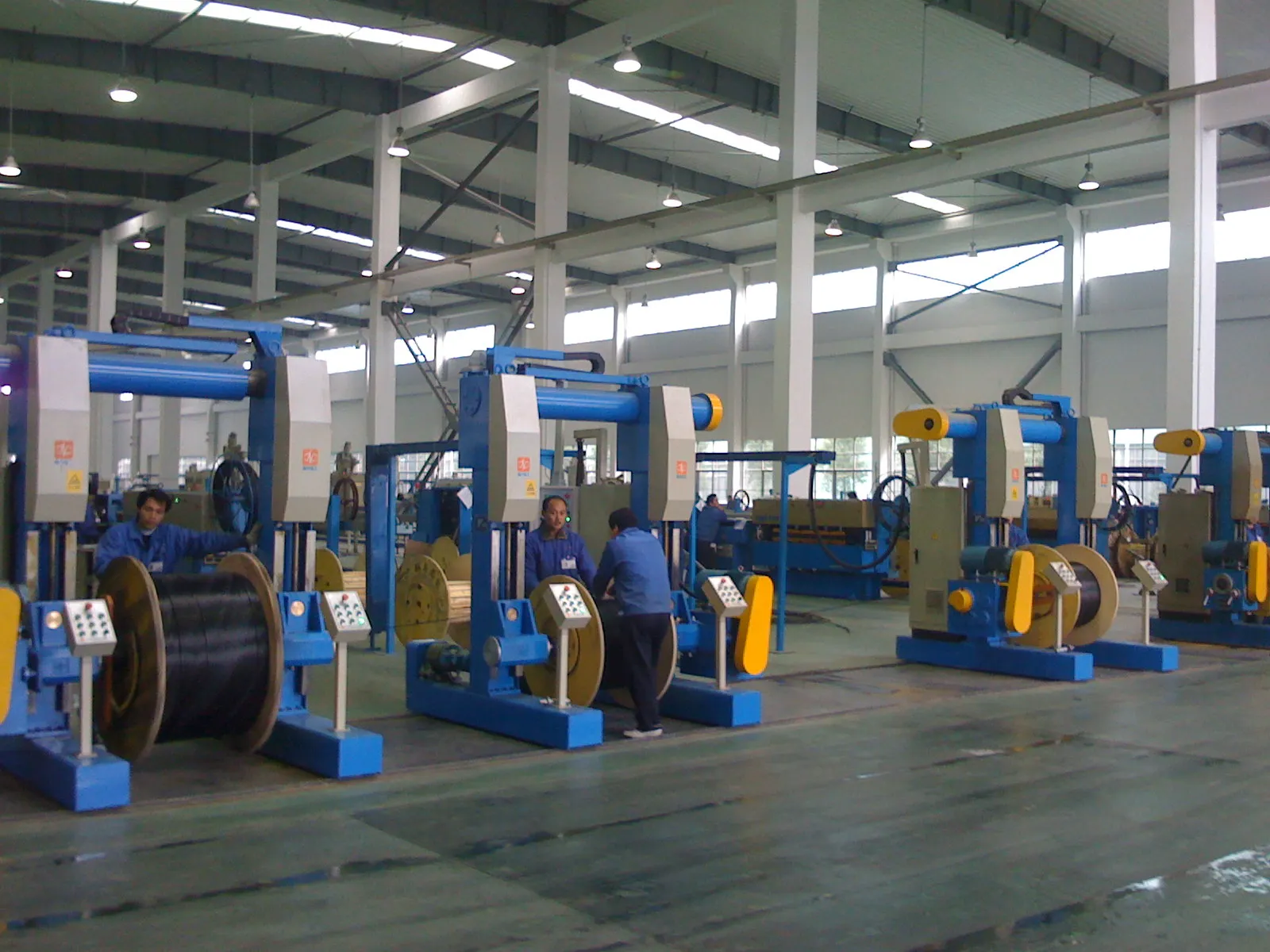

IV. Manufacturing plant

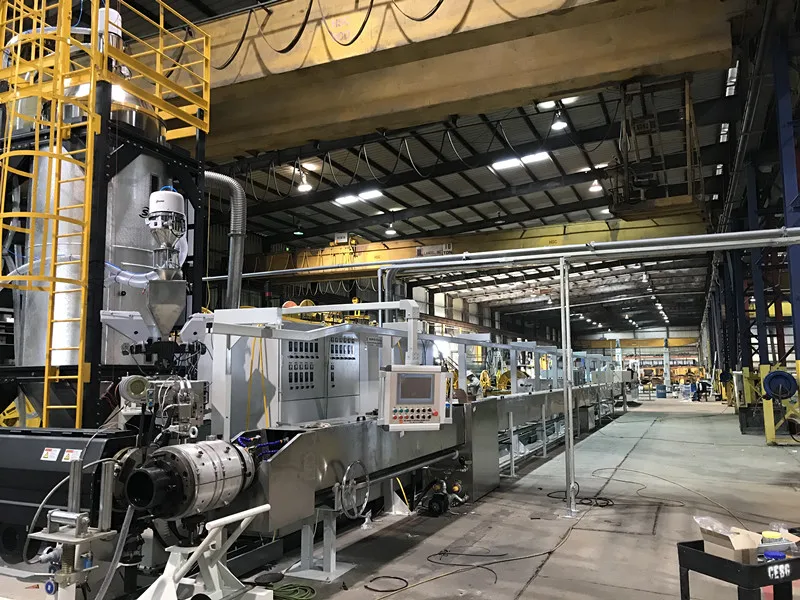

V. Successful projects
