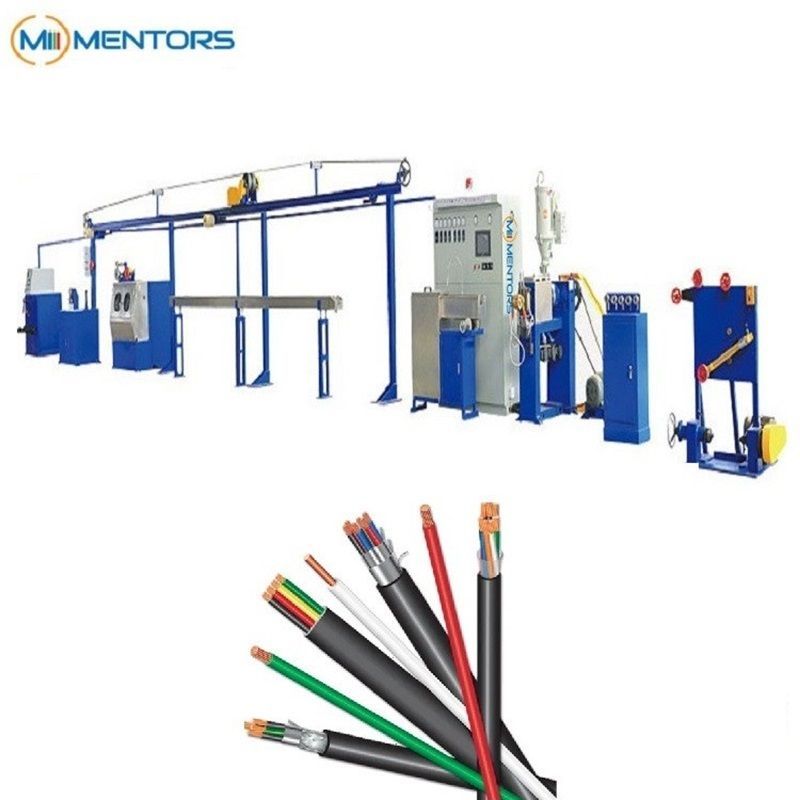

Teflon Extruder/Teflon FEP Fpa ETFE Cable Extrusion Production Line
1. Application:
This type machine is used for making teflon cable.
2-Main feature:
It's Suitable for FEP (gather the whole fluorine B propylene , also called F46), FPA and ETFE (also called 40) fluorplastic production.
3-Parameters:
Type | SY-40 | SY-45 | SY-50 | SY-65 |
Core diameter (mm) | 0.8-2.5 | 1-3 | 1.5-5 | 2-8 |
Screw length/diameter | 25:1 | 25:1 | 25:1 | 25:1 |
Temperature control | 4+2 | |||
Heating power(kw) | 15 | 18 | 18 | 25 |
Main servo motor(kw) | 11 | 11 | 11 | 25 |
Traction servo motor(kw) | 2.2 | 2.2 | 3.7 | 3.7 |
Max extrusion capacity(kg/h) | 30 | 35 | 45 | 100 |
Max line speed(m/min) | 180 | 180 | 180 | 180 |

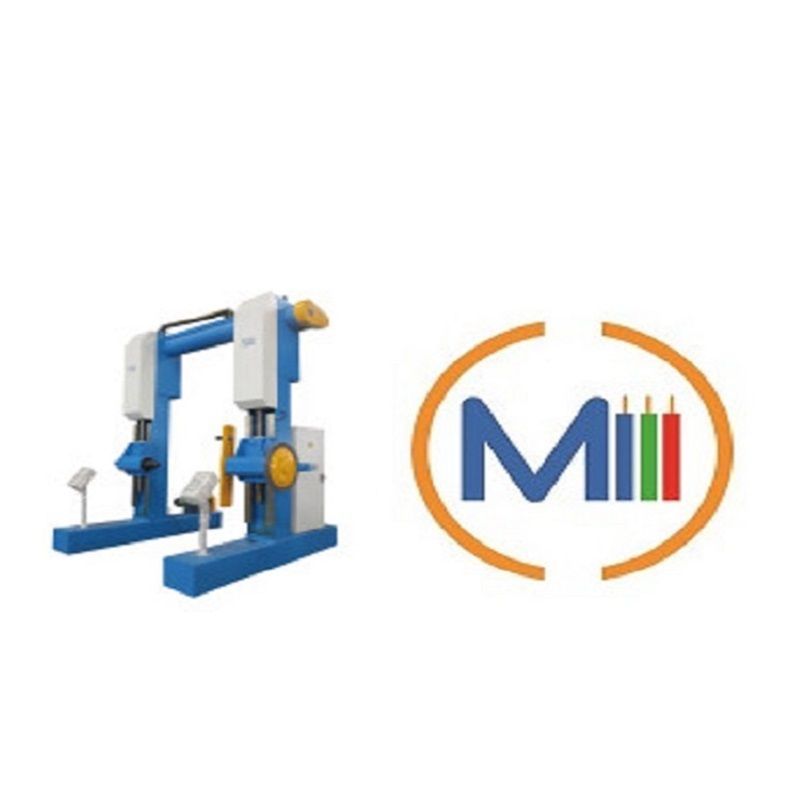

Pay-off | Shaft active pay-off 300-500 | |||
Take-up | 400-630 shaft take-up machine with motor; 3kw+inverter+screw traversing | |||
Size (m) | 20×1.5×2.1 | 20×1.6×2.1 | 20×1.7×2.1 | 20×2.5×2.1 |
Weight (T) | 7 | 7.5 | 8 | 9.5 |
4-Advantages:
1)Screw cylinder: New steel No.3 GH113 (with the American GDA material) able to bear the high temperature corrosion.
2)Head: New steel No.3 GH113 material special-purpose adjustable or automatic type.
3)Heating up system use high-temperature resistance copper alloy.
4)Quality control:Outer diameter detection feedback device to control product outside diameter, concentricity etc.
