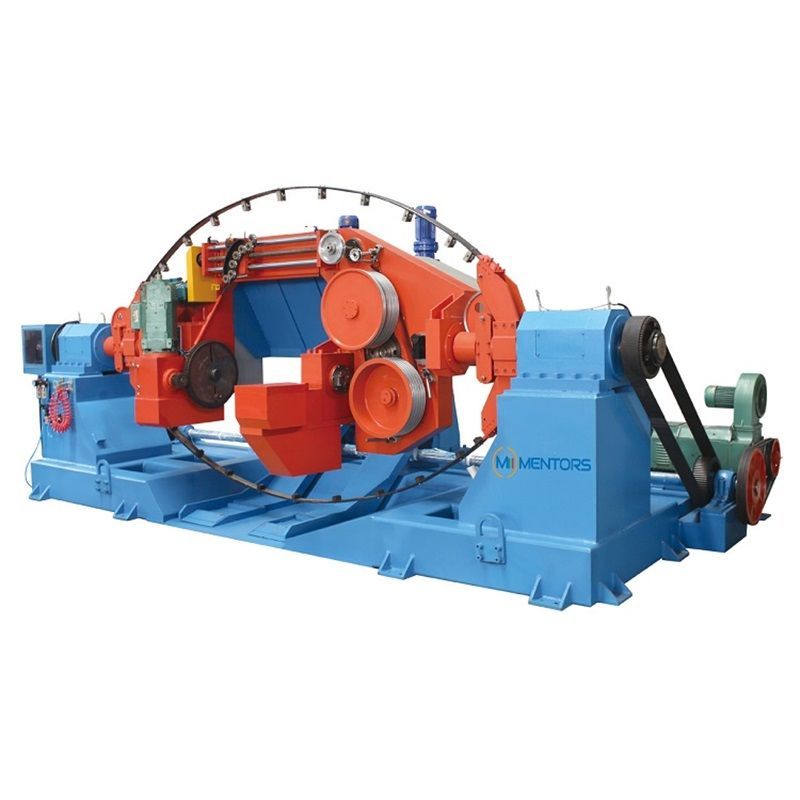

1250 Automatic Wire Buncher
1. Application:
This type machine is used for twisting bare copper or aluminum wire with big size.
2-Main feature:
It is used for twisting copper or Aluminum wire with 7 wires.

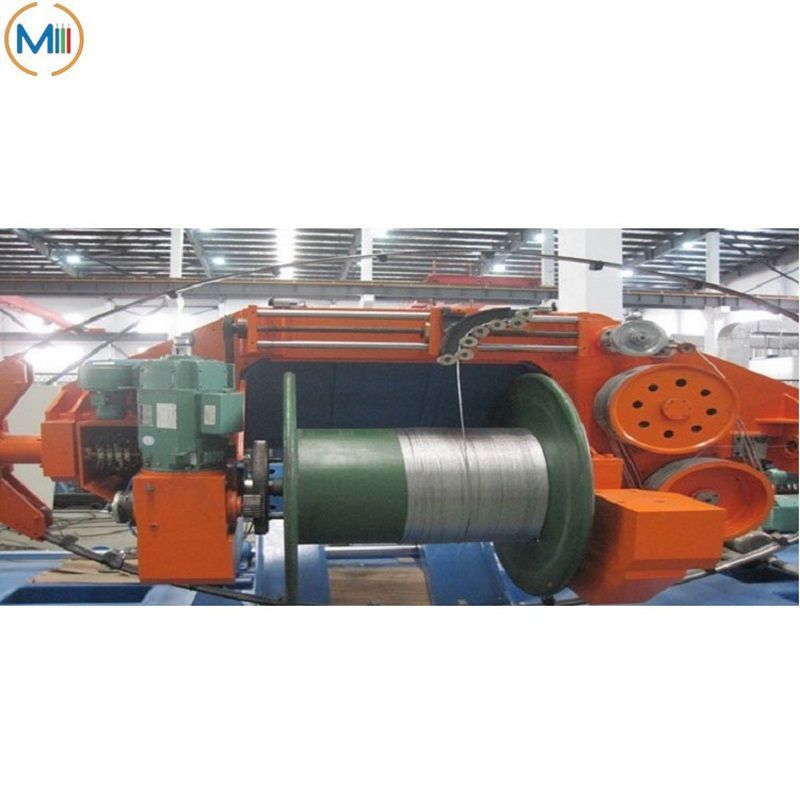

1)Take-up bobbin: 1250
2)Max speed: 800r/min
3) Raw material: copper wire, Aluminum wire
4) Twisting type: double twist
3-Parameters:
Machine type | SY-1250 |
Wire product of stand | Twisting 7 copper wires or aluminum wire |
Cooper wire individual | Φ1.0-3.0 MM |
Finish stranded wire/max. | 10 mm φ/max |
Finish stranded wire/Max. | 15mm φ/max |
Section of strand-twisting (Flexible strand) | 3.5÷70mm2(6AWG÷450MCM) |
Section of strand-twisting (Semi-frametwisting1+6) | 3.5÷50mm2(6÷1/0AWG) |
Section of compaction Cu | 3.5÷50mm2(6AWG÷300MCM) |
Section of compaction Al | 3.5÷70mm2(6AWG÷301MCM) |
Line speed/Max. | 150mpm/max |
Stand pitch(mm) | 40-350mm |
Rotate speed | 8000rpm/max.(1600TPM) |
Load weight/Max. | 3000KG |
Standing Direction | S,Z Direction |
Main motor(DC/AC/HP) | 45kw D.C. motor |
Drive of Capstan(DC/AC/HP) | 30kw D.C. motor |
Drive of take-up unit(DC/AC/HP) | 7.5kw D.C. motor |
Drive of traverser | 0.75kw Inverter motor |
Drive of loading&unloading | 1.5kw Inverter motor |
Take-up bobbin size | 1250mm |
4-Advantages:
1) More stability, high production efficiency, low noise and easy to operation.
2) Spring bow can prolong the life.
3) Take-up tension is controlled by magnetic powder clutch or mechanical type.
4) If the wire breaks, the machine can stop automatically.
