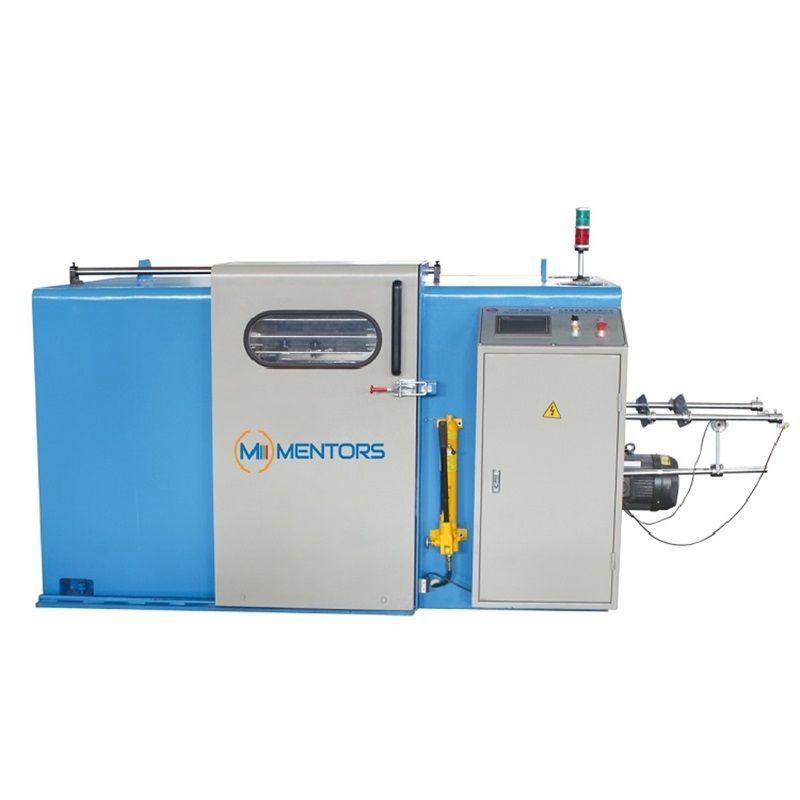

Wire Buncher Machine
1-Application:
This type machine is mainly used for annealed twisting copper wire.
2-Feature:
1)Types: 300,500,630,800
2)Max speed: 2500-3000r/min
3) Raw material: copper wire, tin coated wire
4) Twisting type: double twist
3-Main Specification:
Machine type | SY-300P | SY-500P | SY-500P/B | SY-650P | SY-800P |
Use | For bunching bare copper, tinned wire, enameled wire | ||||
Control type | PPLC+HMI+Inverter control | ||||
Twisting section area((mm²) | 0.035~0.45 | 0.05~2.50 | 0.05~4.00 | 0.18~6.00 | 2.50~16.00 |
Copper wire dia.(mm) | 0.05~0.25 | 0.10~0.45 | 0.10~0.52 | 0.18~1.00 | 0.50~1.20 |
Twisting direction | S or Z | ||||
Take-up tension | tension controlled by magnetic clutch | ||||
Max main shaft speed | 3000r/min | 3000r/min | 2500r/min | 2000r/min | 1200r/min |
Bobbin loading&unloading type | Hydraulic type | ||||
Max bobbin dia. | 300 | 500 | 500 | 630 | 800 |
Auto stop unit | While reach setting length, inside outside wire break, or other error auto stops | ||||
Brake | Magnetic brake | ||||
Motor power(KW) | 4 | 5.5 | 5.5 | 7.5 | 11 |
Main shaft center height | 630mm | 700mm | 700mm | 850mm | 900mm |
4-Advantages:
1) More stability, high production efficiency, low noise and easy to operation.
2) Spring bow can prolong the life.
3) Take-up tension is controlled by magnetic powder clutch or mechanical type.
4) If the wire breaks, the machine can stop automatically.
