ZHG-B-12 High speed Bobbin Winder Wire Winding Machine

Supplier: Wuxi Longterm Machinery Technologies Co., Ltd.
Region: Jiangsu, China
Contact: Ms Kelly Huang
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Local Service Location:	India,Russia;	Delivery time:	30 days;
Warranty of core components:	1 Year;	Decker No.:	1 / 2 / 3 deckers;
Machinery Test Report:	Provided;	Port:	CHINA MAIN PORT;
Video outgoing-inspection:	Provided;	Supply Ability:	15 Set/Sets per Month;
Using wire material:	Stainless steel, galvanized steel, carbon steel, cooper wire;	Applicable Industries:	Manufacturing Plant;
Condition:	New;	Marketing Type:	Ordinary Product;
After-sales Service Provided:	Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support;	Using wire diameter:	0.3mm to 0.8mm;
Braiding diameter:	4mm to 600mm;	Showroom Location:	India,Russia;
Warranty time:	12 month;	Braiding angle:	54°44";
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;	Warranty:	1 Year;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Spindles No.:	16 to 128 spindles;
Place of Origin:	Jiangsu China;	Core Components:	PLC;
Brand Name:	HLT;	Packaging Detail:	Suitable for sea transportation;

Product Description

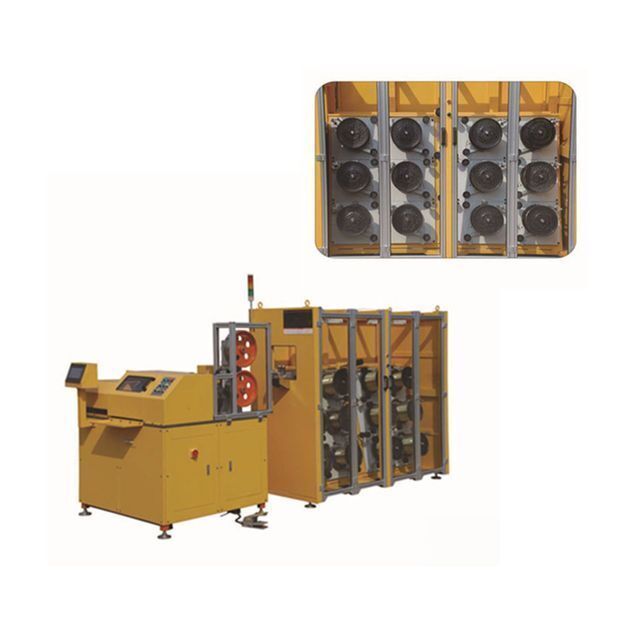

18-ly Rewinding machine

Winding diameter(mm): 2-18 Rotation speed (r/min): 180-570 Wire diameter(mm): 0.25-0.5 Winding speed(m/min): 50 Dimension (pay-off rack): 2700*1350*2000mm Dimension (winder): 1510*1240*1500mm Weight (KG): 1300

Rewinding machine with sound proof

Soundproof cover can reduce the noise of the machine, this machine should be customized.

Related machine

Stainless steel sleeve braiding machine
Flexible Hose Braiding Machine
The wire braiding machines we can make as follows:
braiding machine Wire diameter: 0.3mm to 0.8mm
No.of spindles:16 to 156 spindle braiding machine
ID of the braids:4mm to 600mm
Material of wires:stainless steel,galvanized carbon steel, copper wire

Stainless steel sleeve braiding machine technical parameter:

Flexible Hose Braiding Machine

Type No.	Braid ID (mm)	Rotation speed of spindle (r/min)	Braiding angle	Pitch(mm)	Pulling speed(m/h)	No.of carriers	Motor power(LW)
BG-16	4-10	24.8	54^。44‘	9-22	13-33	16	Y132M1-6 4.0KW
BG-20	6-13	19.8	54^。44‘	13-29	15-34.5	20	Y132M1-6 4.0KW
BG-24	10-31	14.25	54^。44‘	22-69	21-66	24	Y132M1-6 4.0KW
BG-36	15-45	10	54^。44‘	33-100	22-66	36	Y132M1-6 5.5KW
BG-48	30-75	7.25	54^。44‘	66-166	29-72	48	Y132M1-6 7.5KW
BG-64	51-110	4.56	54^。44‘	67-240	18.6-102	64	Y160M1-6 11KW
BG-72	80-150	4.25	54^。44‘	170-330	44-83	72	Y160M1-6 11KW
BG-96	150-400	2.75	54^。44‘	240-750	50-120	96	Y160M1-6 11KW

Techinical drawing of wire braiding machine

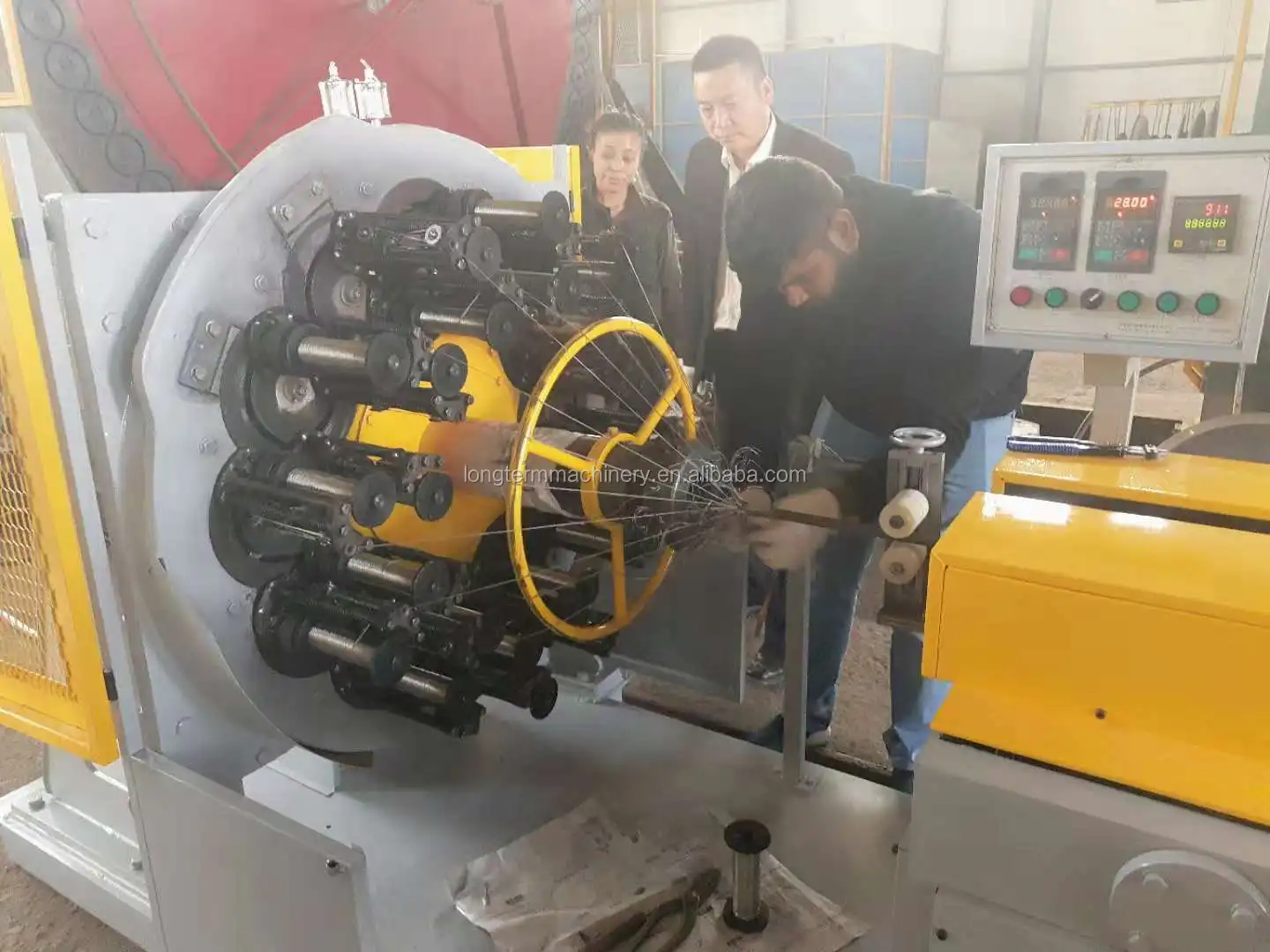

Stainless steel sleeve braiding machine showing as below

48 Single decker wire braiding machine

Braiding diameter (mm): 30-75 Carrier rotation speed (r/min): 7.25 Braiding angle: 54°44” Braiding pitch (mm): 66-166 Pulling speed (M/H): 29-72 Carrier NO.: 48 Dimension (L*W*H): 3850*1900*2150 Weight (KG): 4000kg

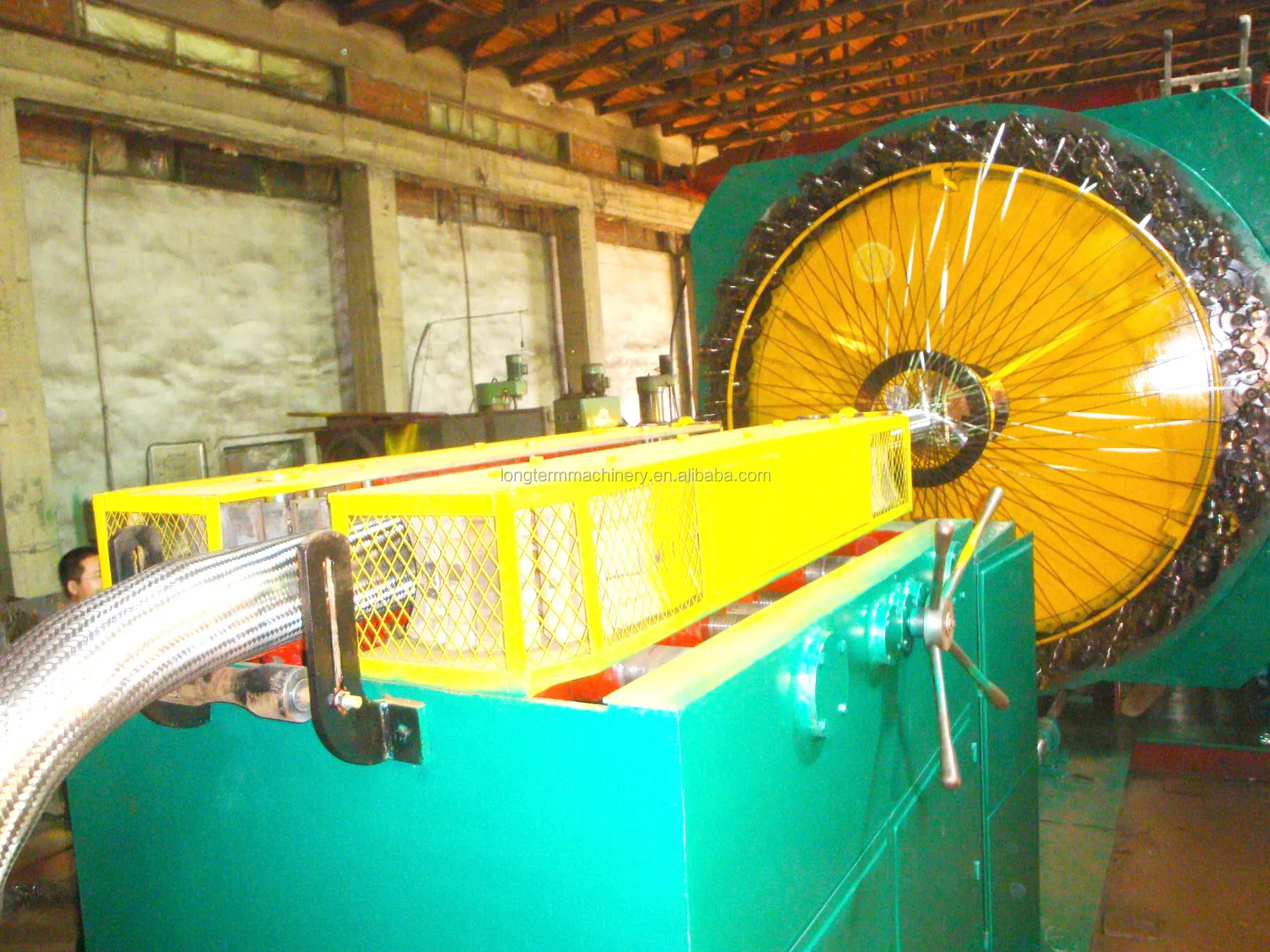

96 Double decker wire braiding machine

Braiding diameter (mm): 150-400 Carrier rotation speed (r/min): 2.75 Braiding angle: 54°44” Braiding pitch (mm): 240-750 Pulling speed (M/H): 50-120 Carrier NO.: 96 Dimension (L*W*H): 5770*3360*3600 Weight (KG): 17500kg

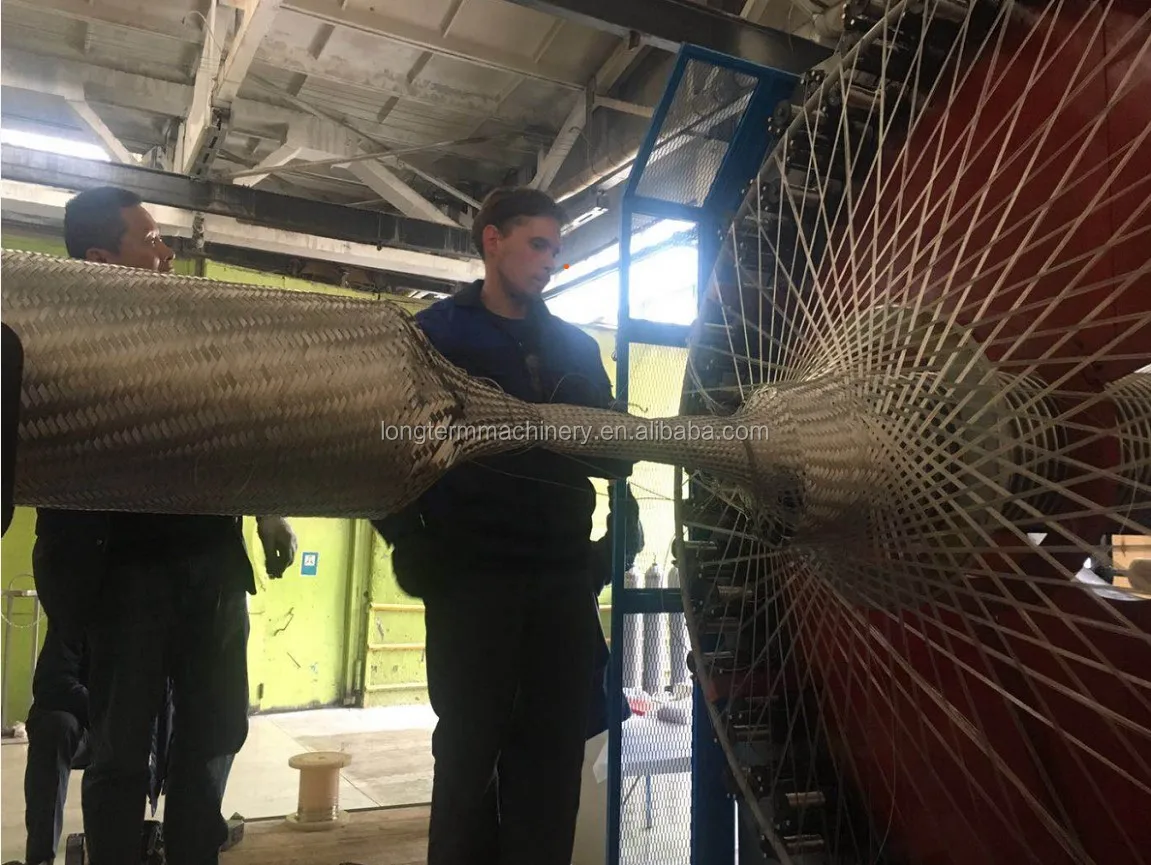

48 Double decker wire braiding machine

Wire braiding machine with sound proof

Soundproof cover can reduce the noise of the machine, this machine should be customized.

Detailed Images

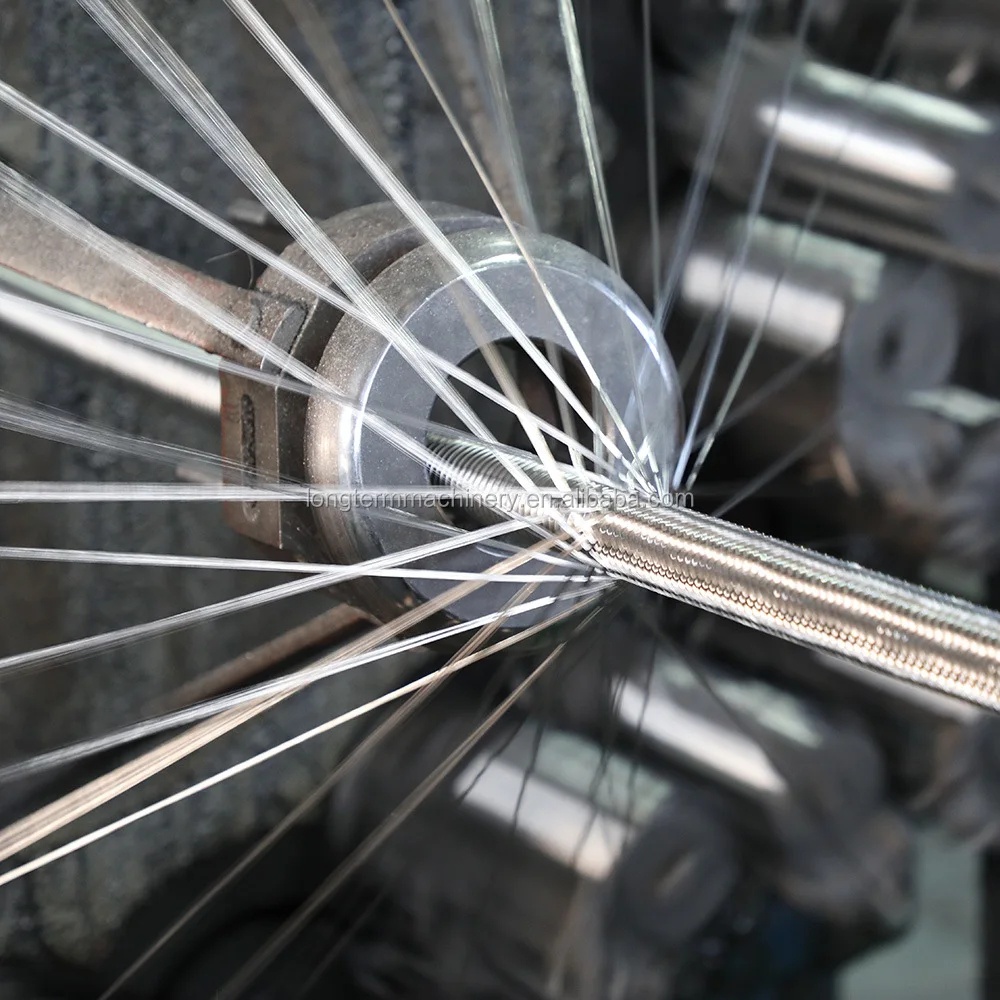

Finished products of wire braiding machine

Our braiding machine can be widely used for braiding hoses and metal hoses.

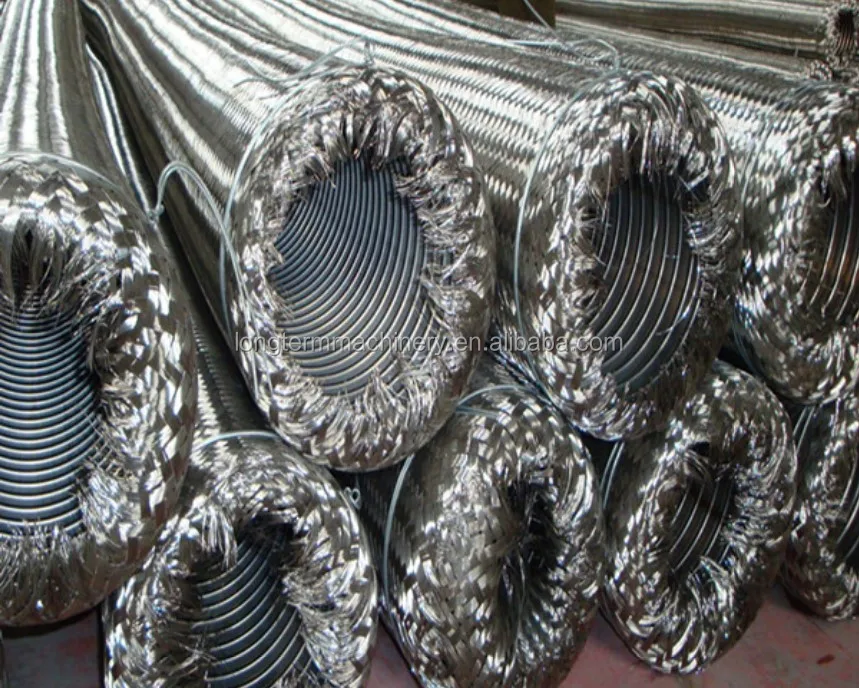

wire braids for rubber hose

wire braids only

wire braids for metal hose

Related Accessories

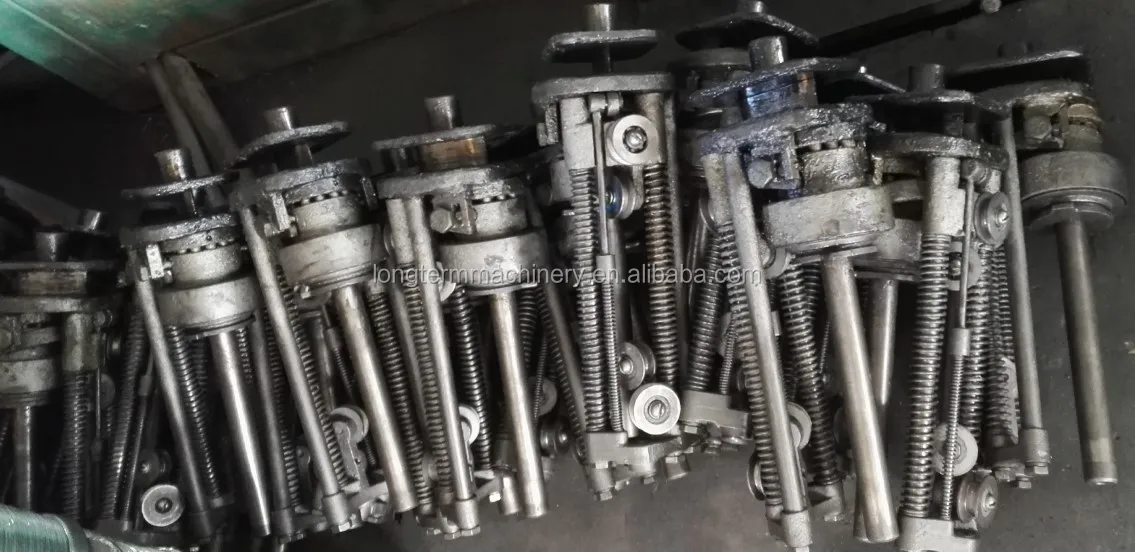

Spindle&Carrier of wire braiding machine

service life :1-3 year, can replace some spare parts.

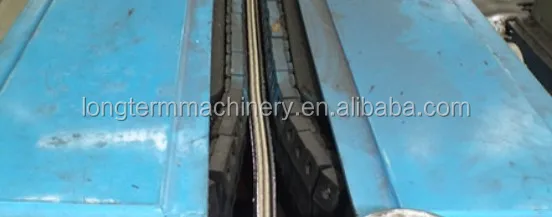

Caterpillar of braiding machine

Name: Caterpillar
Brand: HLT
Original: China
Domestic famous engines, strong driving force, low electrica consumption, high economic benefits

Flexible Hose Braiding Machine

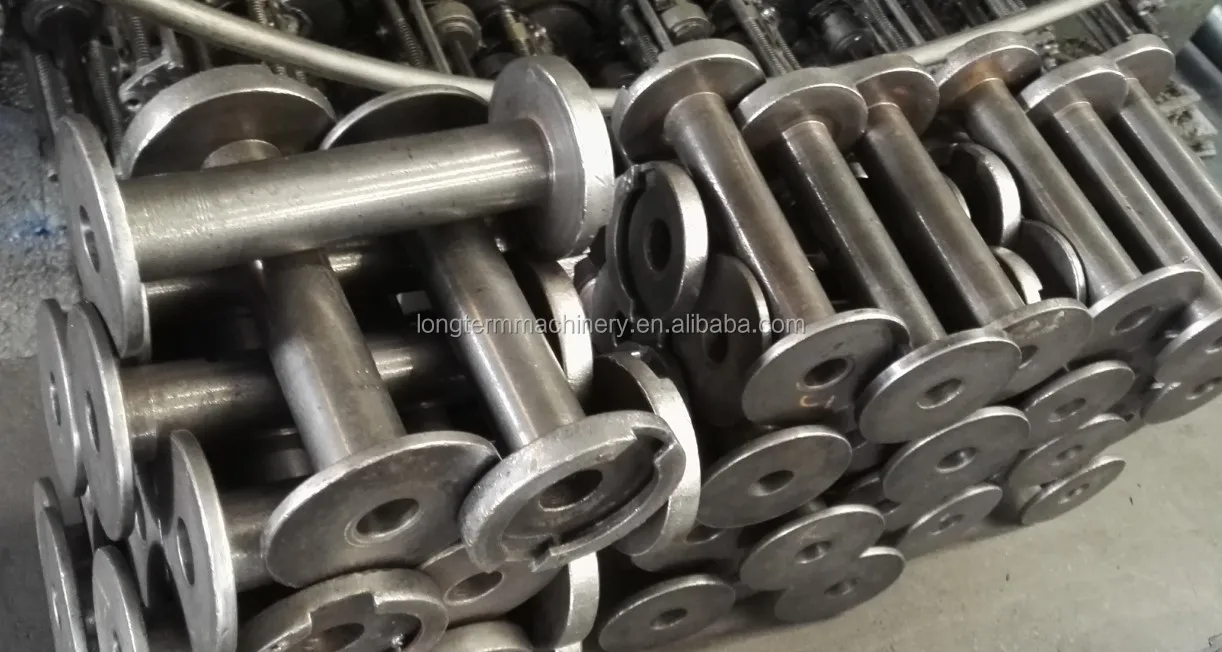

Bobbin of wire braiding machine

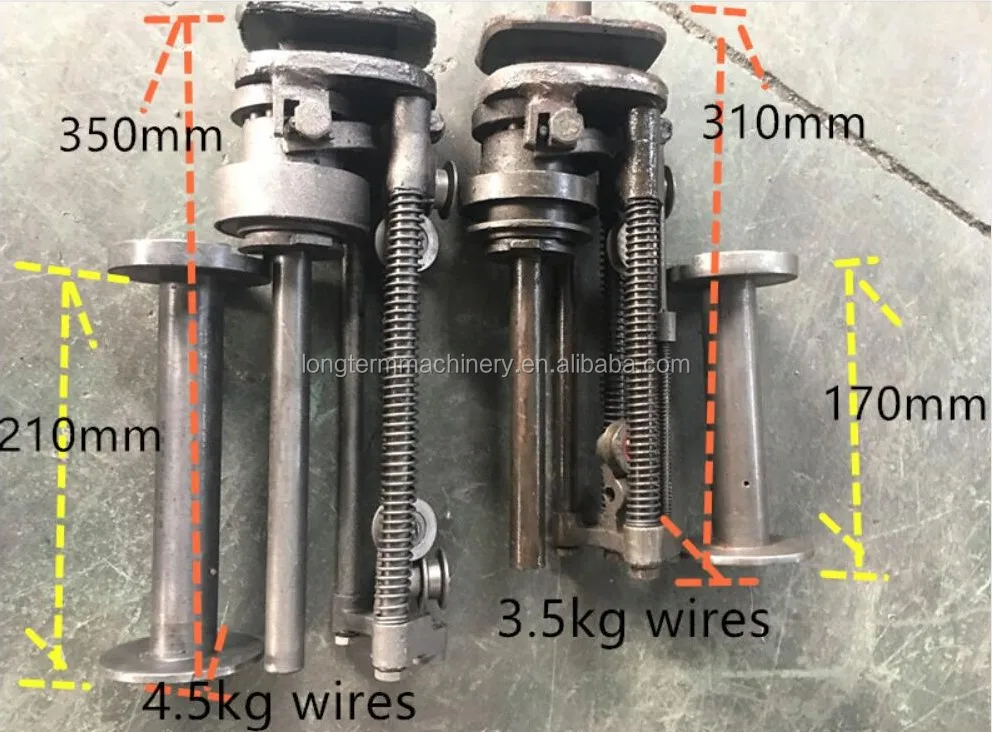

Length of bobbin:170mm If you want to use bobbin on 156 carriers wire braiding machine, the length of bobbin should be 210mm

Flexible Hose Braiding Machine

Certifications

Packing & Delivery

Packaging
Size	2000mm1500mm1500mm
Weight	3-4 ton
Packing details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request

Delievery

We have professional domestic inland transportation team for Stainless steel sleeve braiding machine

Our service

Customers ' trainning in our factory

After-sale service

Our team

222

We are the professional manufacturer of all types of metal flexible metal hose and machinery, with more than 25 years of experience. Our wire braiding machine can be used for many kind of hoses, such as corrugated metal hose,square lock and interlock hose/ conduit, rubber hose. The hoses are widely used in many industries: gas hose, water hose ,chemical hose, etc..Annular and corrugated metal hose: ID8 till ID600 on different machine.

FAQ

1. Why choose us as your supplier?
We are most professional in steel wire braiding machine with more than 30 years of experience
2. What wires can you machine braid?
A. Stainless steel wire
B. Copper lad steel wire
C. Copper wire
3. What application of your braiding machine?
Popular for both rubber hose and metal hose manufacturing

We need to know the following information to quote you correct machineries:
1.What outer diameter of the hose you want to braid?
2. Structure of the braid?
How many carriers/bobbins you need for braiding your hose? For instance, 24, 36,64,72,96,128 carrier, etc..
If you want to know more about our braiding machine please click here.
