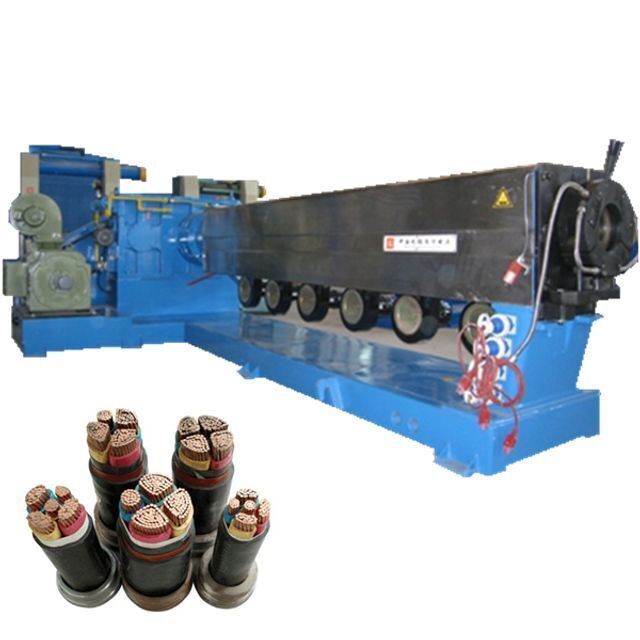

Power cable extrusion production line/ electrical wire extruder/ power wire cable extruding
- 10000.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Model Number: | 200+120; | Port: | Shanghai port; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Brand Name: | HLT; |
| Usage: | Extruding; | Screw: | Single-screw; |
| Nitrogen Depth: | 0.5~0.7mm; | Application: | Cable Extruder; |
| Length to diameter ratio: | 25:1; | Supply Ability: | 500 Set/Sets per Year; |
| Place of Origin: | Jiangsu China; | Condition: | New; |
| Hardness: | >940; | After-sales service: | Available; |
| Packaging Detail: | Standard seaworthy package; | Package Preview: | ; |
| Certification: | ISO 9001:2008; | Product Name: | Extrusion production line of ultra high pressure double layer sheath; |
| Warranty: | 1 Year; |
Company Introduction
We are specialized in manufacturer extrusion products. It has professional and independent research and development center,products are widely used in optical fiber cable, wire and cable industry, cable rope industry, etc.
Product Description
Application
This equipment can be used for loos tube punching oil gysts cable in the production of inner and outer sheath. At the same time
can also be used for parallel twin wire center tube type cable totally medium messenger aerial cable extrusion production.
can also be used for parallel twin wire center tube type cable totally medium messenger aerial cable extrusion production.
- Extursion production line of ultra high pressure 200+120 double layer sheath
Production line is suitable for medium and high voltage single core or multiple core power cable sheath of extruded and double layer extruded at a time.
Suitable material for PVC,PE,low smoke zero halogen,conductive PVC,and conductive PE and so on.

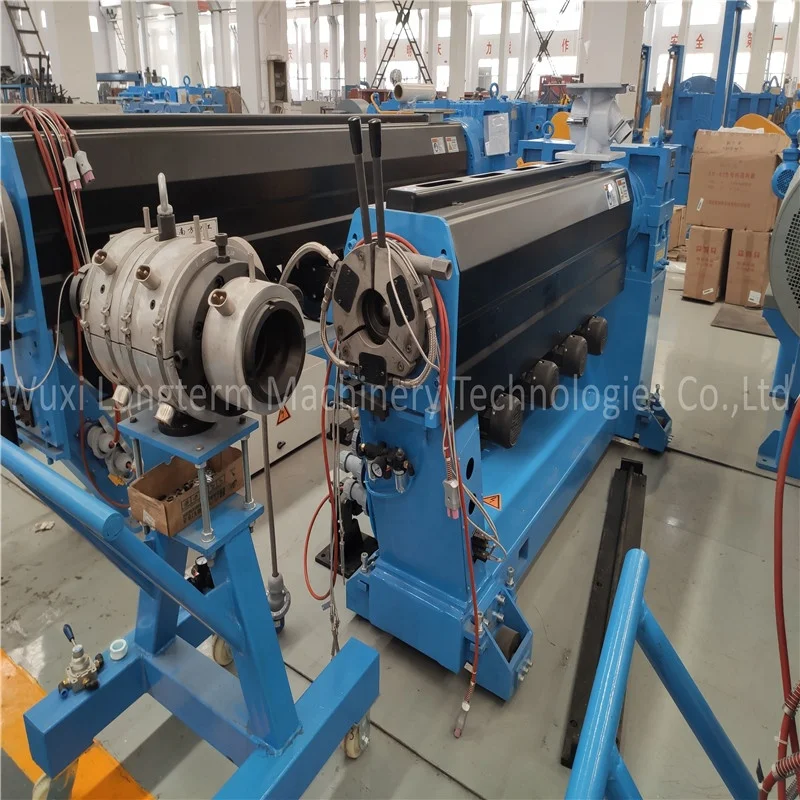

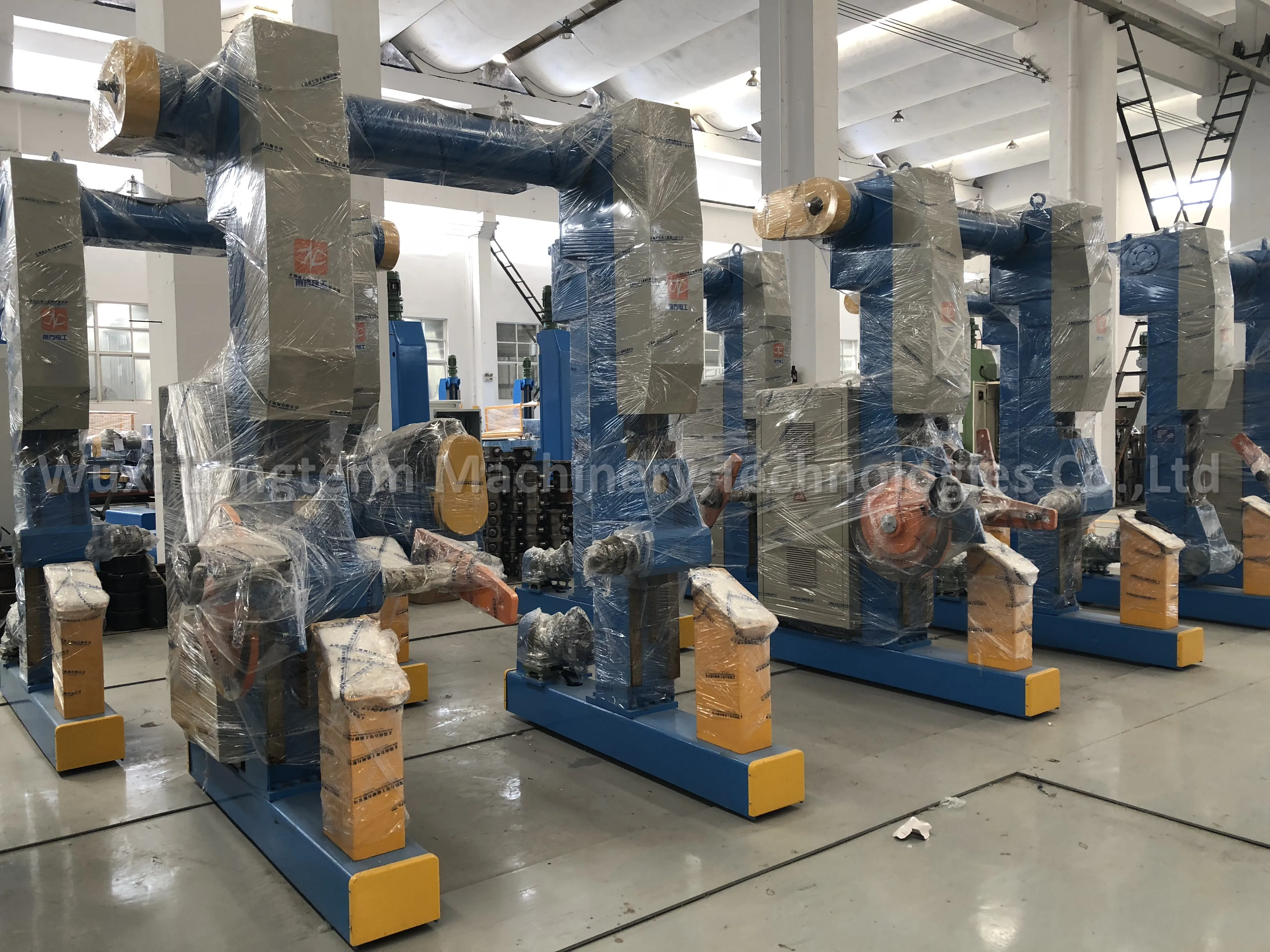

Detailed Images
Details of products after extruding
Technical parameters
Core diameter | φ55~φ160mm |
Out of outer diameter | φ70~φ180mm |
The screw diameter | φ200mm; φ120mm |
Length to diameter ratio | 25:1 |
Maximum extrusion（φ200） | PVC≦1000kg/h |
Maximum extrusion（φ120） | PVC≦500kg/h |
The production line speed | 1.0-30m/min |
Maximum traction | ≦32000N |
Steel specification | φ2000~φ4200mm |
The line plate specification | φ2000~φ4200mm |
Related Machine
After Sales Service
FAQ
Enable us send you accurate machine offer. pls kindly send us the following information:
1. Coil diameter (we need to know the take up and pay off machine size)
2. Extrusion speed
3. Extrusion thickness
4. What is material of outer sheath.(PVC or PE or HDPE or MDPE or TPU? )
2. Extrusion speed
3. Extrusion thickness
4. What is material of outer sheath.(PVC or PE or HDPE or MDPE or TPU? )
