Cable steel wire braiding machine, spindle braiding machine for rubber hose

Supplier: Wuxi Longterm Machinery Technologies Co., Ltd.
Region: Jiangsu, China
Contact: Ms Kelly Huang
Price: $30000.00 / 1 - 1 sets
$25000.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

Machine type:	automatic;	Dimension(LWH):	442530552590;
Machinery Test Report:	Provided;	automation:	automatic;
control:	PLC control;	Certification:	CE/ISO;
Showroom Location:	Turkey,Brazil,Indonesia,India,Thailand;	Application:	rubber hose, cable;
After-sales Service Provided:	Free spare parts,Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service;	Weight:	1000kgs;
Warranty:	1 Year;	Warranty of core components:	1 Year;
Marketing Type:	Hot Product 2021;	requirement:	customized;
Core Components:	PLC,Engine,Bearing,Motor,Gear;	Place of Origin:	Jiangsu China;
Port:	Shanghai, China;	Name:	steel wire braiding machine;
Production Capacity:	100 sets/month;	Power:	5.5KW,5.5kw;
Size:	442530552590;	Type:	PLC control;
Packaging Detail:	standard seaworthy package for dn50 stainless steel braided corrugated hose and welded fitting;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Condition:	New;	Motor:	western brand;
Local Service Location:	Turkey,India,Malaysia;	Package Preview:	;
efficiency:	high edfficiency;	Applicable Industries:	Building Material Shops,Manufacturing Plant,Home Use,Construction works ,Other;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;	Supply Ability:	1000000000 Meter/Meters per Year;
Brand Name:	Comflex;	operation:	easy to operate;
Key Selling Points:	Automatic;	Video outgoing-inspection:	Provided;

Cable steel wire braiding machine

Product Description

Stainless steel wire braiding machine

Flexible Hose Braiding Machine
The wire braiding machines we can make as follows:
braiding machine Wire diameter: 0.3mm to 0.8mm
No.of spindles:16 to 156 spindle braiding machine
ID of the braids:4mm to 600mm
Material of wires:stainless steel,galvanized carbon steel, copper wire

Stainless steel sleeve braiding machine technical parameter:

Type No.	Braid ID (mm)	rotation speed of spindle r/min	braiding angle	Pitch(mm)	pulling speed (m/h)	no.of carriers	Motor power(KW)
BG-16	4-10	24.8	54°44'	9-22	13-33	16	Y132M1-6 5.5KW
BG-20	6--13	19.8	54°44'	13-29	15-34.5	20	Y132M1-6 5.5KW
BG-24	10--31	14.25	54°44'	22--69	21--66	24	Y132M1-6 5.5KW
BG-36	15--45	10	54°44'	33--100	22--66	36	Y132M1-6 6.0KW
BG-48	30--75	7.25	54°44'	66--166	29--72	20	Y132M1-6 9.5KW
BG-64	51--110	4.56	54°44'	67--240	18.6--102	64	Y160L-6 11.5KW
BG-72	80--150	4.25	54°44'	170--330	44--83	72	Y160L-6 11.5KW
BG-96	150--400	2.75	54°44'	240--750	50--120	96	Y160L-6 22.5KW
BG-112	115-400	2.778	54°44'	310-800	42-130	112	Y100L-6 19KW
BG-128	180-500	2.088	54°44'	500-1300	72-300	128	Y100L-6 20.5KW

Title goes here.

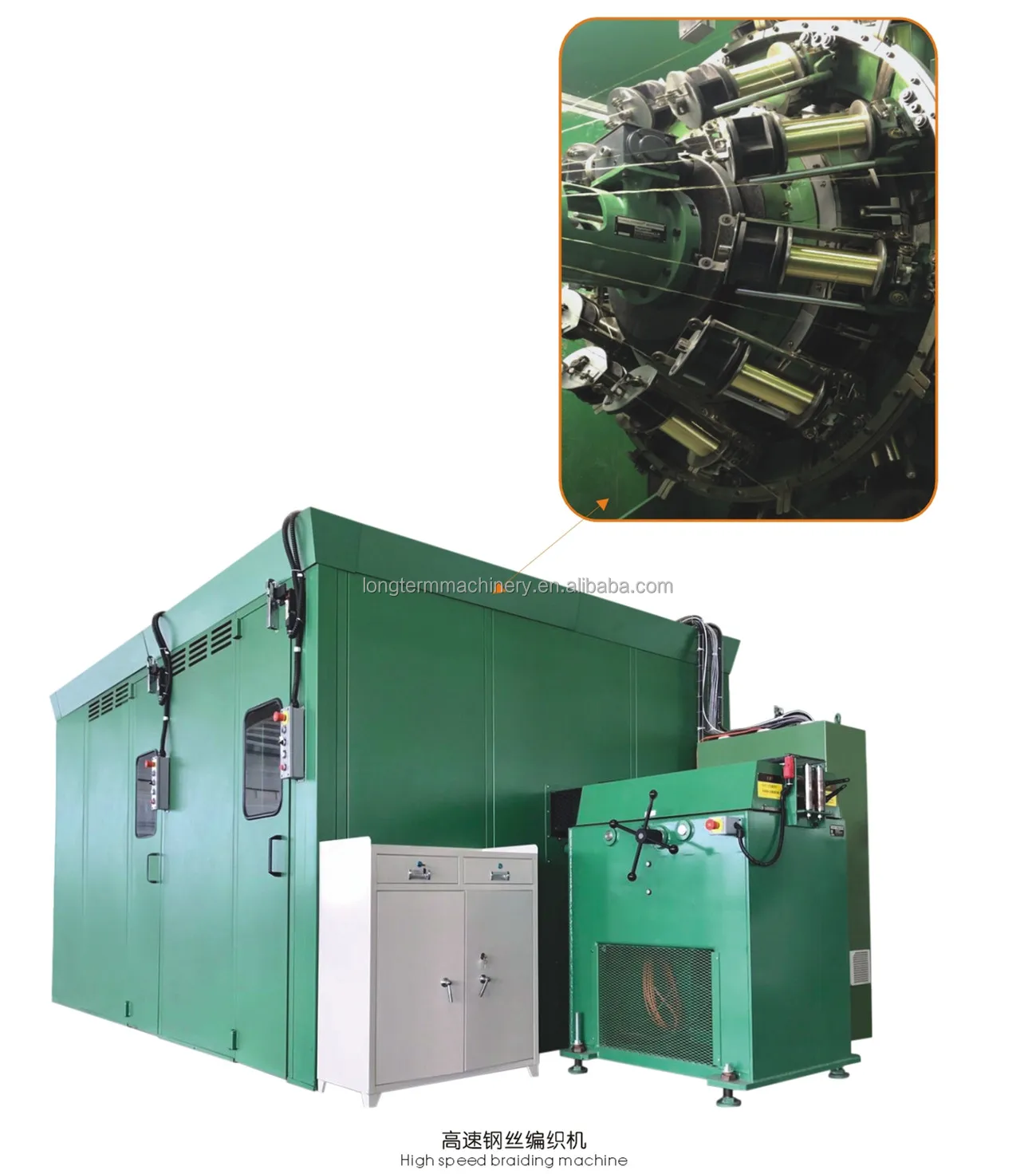

BJZ-36 spindle-2S CNC high speed wire braiding machine
1. Control form: automatic digital control (PLC + man-machine interface) 2. Drive motor: frequency conversion + servo motor
(frequency conversion control of woven part, traction servo drive) 3. Weaving diameter (maximum) mm: Φ60 4. Spool capacity kg:
7~7.5 5. Weaving pitch: 30-179 6. Total power: 25 7. Revolutions of spindle r/min: 23 (design speed) 18 (actual working speed) 8.
Number of braided layers: 2 layers 9. Overall dimension mm: 6300*2309*2300 (length * width * height) 10. Muffler protection: full
muffler protection room

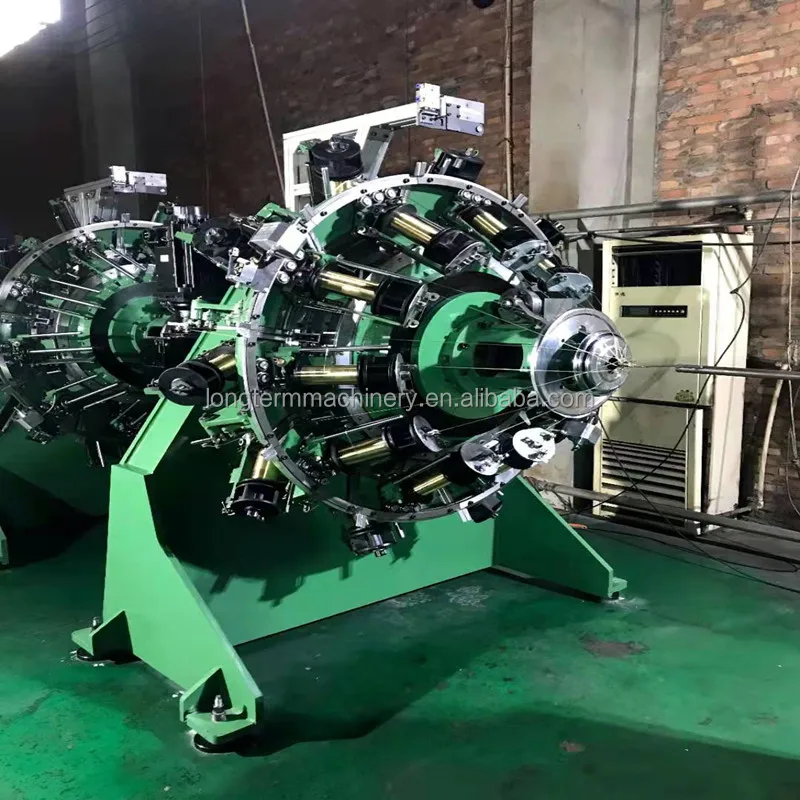

48 Double decker wire braiding machine
Braiding diameter (mm): 30-75 Carrier rotation speed (r/min): 7.25 Braiding angle: 54°44” Braiding pitch (mm): 66-166 Pulling
speed (M/H): 29-72 Carrier NO.: 48 Dimension (L*W*H): 3850*1900*2150 Weight (KG): 4000kg

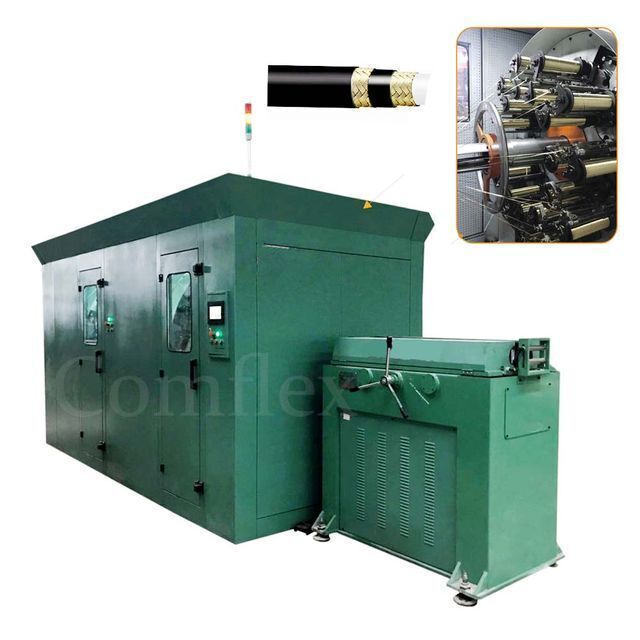

ZGB-36 linear wire weaving machine

1. working principle: rotary type

2. Number of spindles: 36 pieces/plate 3. Number of braiding layers: 1 layer 4. control form: automatic digital control (PLC+
man-machine interface) 5. Drive motor: full servo motor drive 6. spindle speed: 40r/min (design speed), 36r/min (actual working
speed) 7. spool capacity: 13kg 8. hose braiding diameter (maximum) : Φ32mm 9. weaving pitch: 18-130mm 10. center height: 1311mm
11. Total power: 18KW 12. overall size: 4425*3055*2590.

222

Details

Packing & Delivery

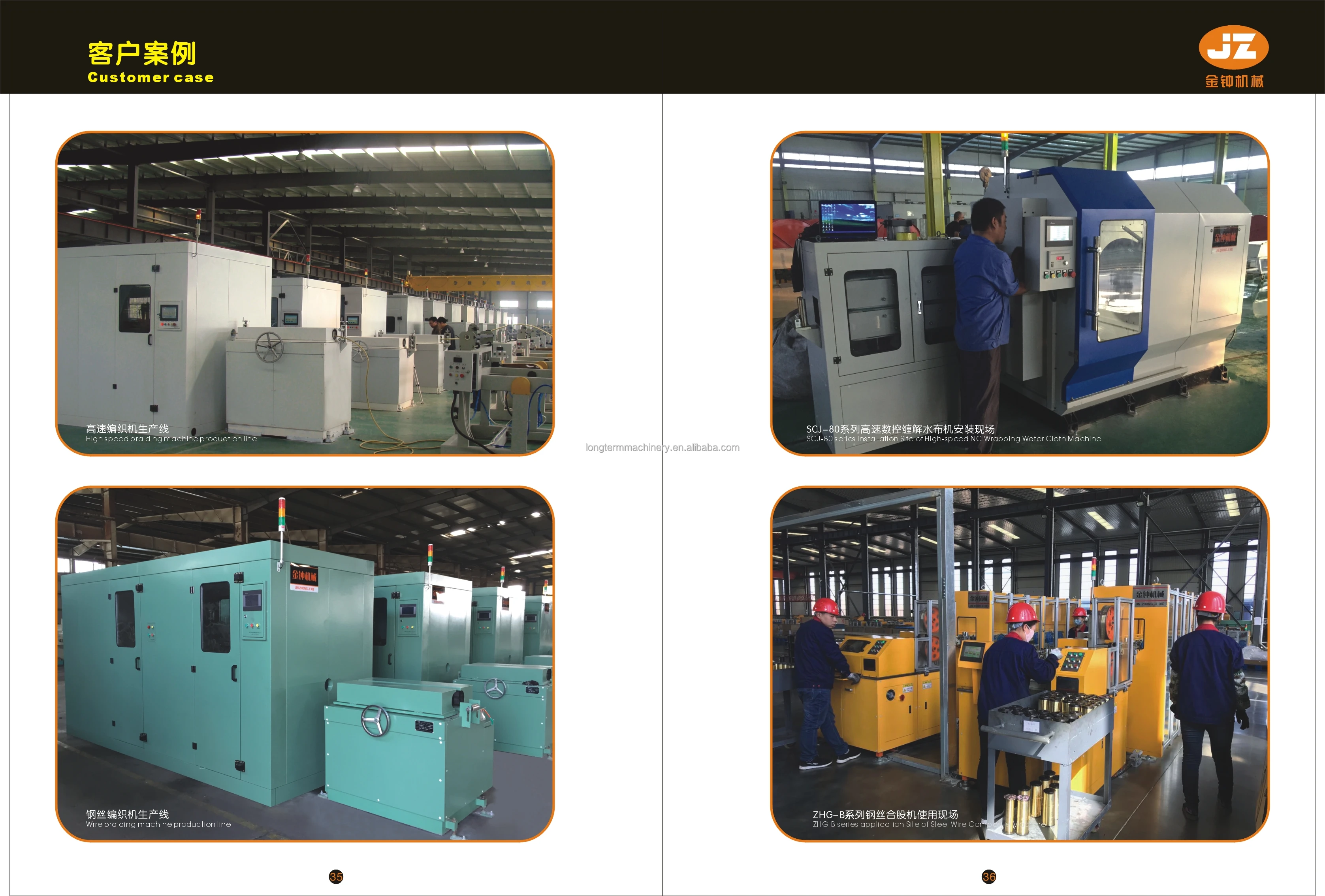

Customs visiting

Company Profile

FAQ

1. Why choose us as your supplier?
We are most professional in steel wire braiding machine with more than 30 years of experience
2. What wires can you machine braid?
A. Stainless steel wire
B. Copper lad steel wire
C. Copper wire
3. What application of your braiding machine?

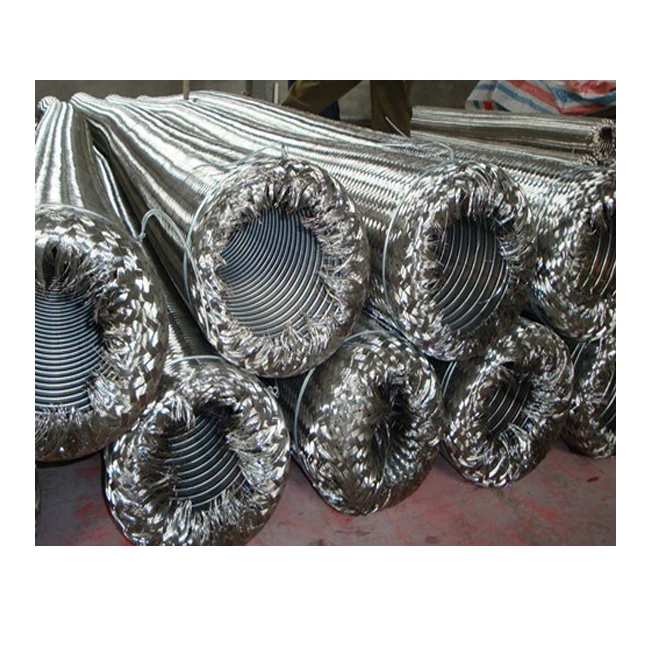

Popular for both rubber hose and metal hose manufacturing

We need to know the following information to quote you correct machineries:
1.What outer diameter of the hose you want to braid?
2. Structure of the braid?
How many carriers/bobbins you need for braiding your hose? For instance, 24, 36,64,72,96,128 carrier, etc..
If you want to know more about our braiding machine please click here.
