Turnkey project LPG gas cylinder production line for new plant, LPG gas cylinder Machinery &

Product details
After-sales Service Provided:Online support,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Engineers available to service machinery overseas;Port:Chna Mainly seaport;
Brand Name:Longterm;Machine Type:Cold Forging Machine;
Warranty:1 YEAR;making size:6kg, 12kg, 25kg, 48kg, or customized;
machine brand:Longterm machinery technologies co.,ltd;Showroom Location:INDIA;
cylinder diameter:250~800mm or customized;Certification:China standard for LPG gas cylinder production line;
Supply Ability:500 Set/Sets per Year Apply to LPG gas cylinder production line;Payment Terms:L/C,D/A,D/P,T/T;
machine support:technical support and oversea installation;usage:LPG gas cylinder;
machine power:Customized for LPG gas cylinder production line;Place of Origin:Jiangsu China;
Applicable Industries:Manufacturing Plant;Local Service Location:INDIA;
Key Selling Points:Easy to operate;Packaging Detail:Standard export package for Turnkey project LPG gas cylinder production line for new plant;
cylinder thickness:2.5~4mm or customized;After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;

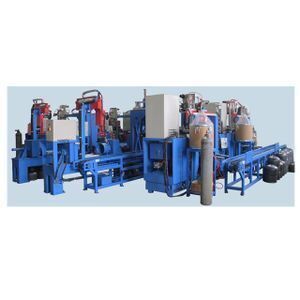

LPG Production Line

1.De-coil and punching machine

For small round sheet cutting from big sheet(material preparing for shell) ( with mould): 2pcs/per punching, 8pcs/minute.

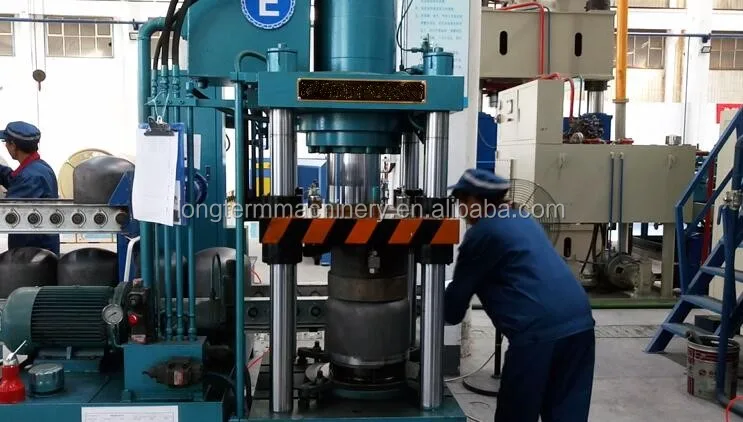

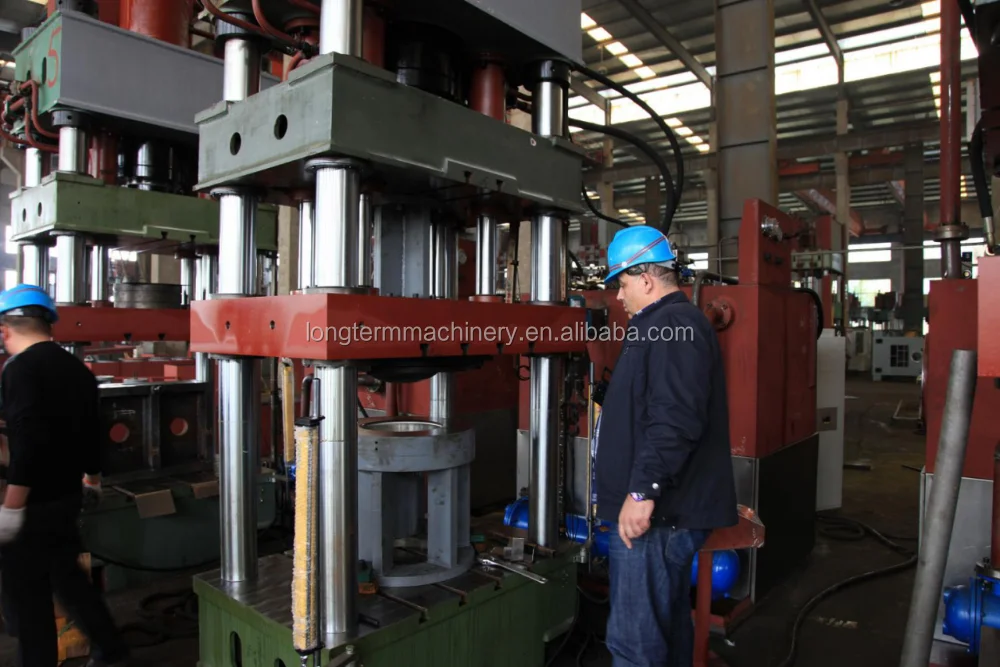

2. Power press drawing the head

Press the round sheet into a shell with dies.
Blank holder force: 1000KN
Tensile force: 2000KN
Main motor power: 44KW
Maximum slider stroke: 700mm
The beading slide block stroke: 400mm
The weight of the machine: 12tons

3. Automatic trimming machine

This machine is reliable, easy to operate.
Motor power: 5.5KW
The air pressure: 0.6Mpa
Process time: 20s
The weight of machine: 1.5tons

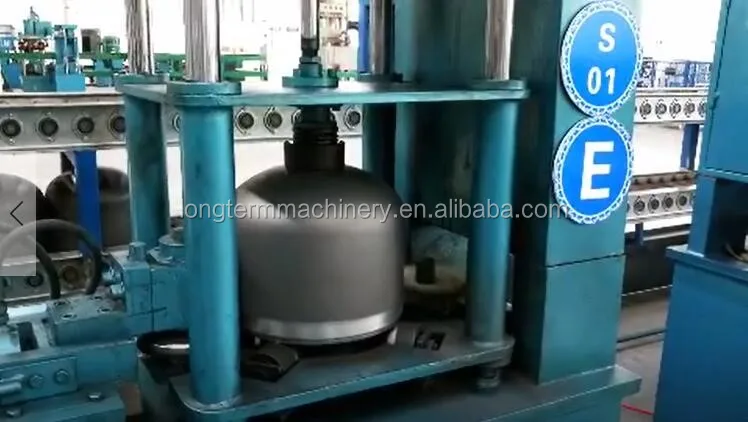

4.End dish necking cleaning machine

Motor power:7KW
Air pressure:0.6Mpa
Process time:15s
The weight of machine:1.5Tons

5.Hole punching machine

Punch the hole on head of the cylinder
Electric power: 5.5KW
Punching speed: 180pcs/hour
Weight of machine: 1.5ton

6.Valve Seat Welding Machine

To complete the welding of valve seat ring joints. Ensure uniform forming, good appearance, weld penetration and weld width meets the technological requirements, the clamping is convenient. Using submerged arc welding technology, girth welding at one time

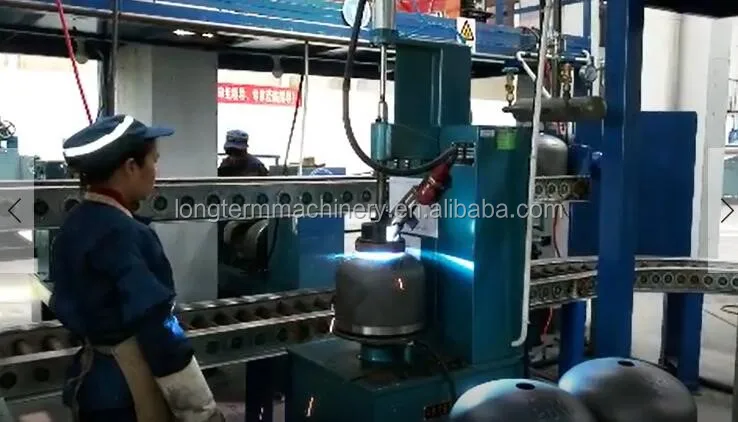

7. Handle welding machine

Complete cylinder base girth automatic welding. To ensure concentricity, uniform forming, good appearance, weld penetration and weld width meet the technological requirements, the clamping is convenient. CO2 gas shield welding process, complete in one time welding.

8. Bottom base welding machine

Motor power: 0.55KW
Air pressure: 0.5-0.7Mpa
Voltage: 380V
Welding speed: 15s/pcs
Weight of machine: 1.5ton
Thickness of steel sheet: 2-4mm

9. Assembling Machine

To assemble both halves of the cylinder together and get ready for welding
Motor power: 0.25KW
Air pressure: 0.5-0.7Mpa
Voltage: 220V
Weight of machine: 1.5ton

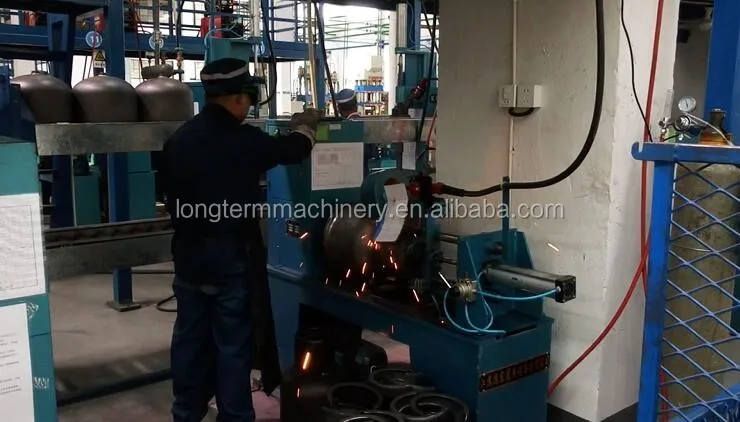

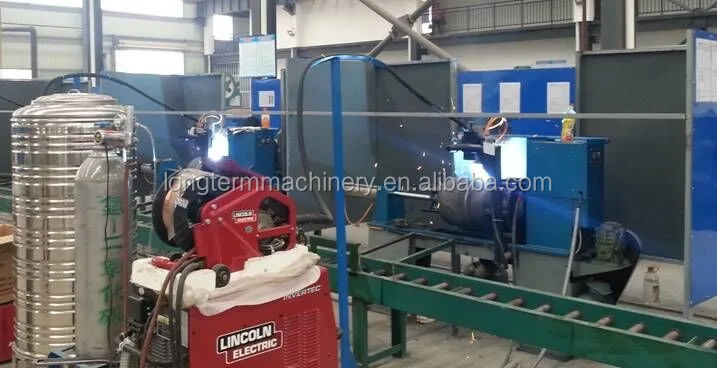

10. Auto circumferential welding machine

Motor power: 0.55KW
Air pressure: 0.6Mpa
Voltage: 380V
Welding speed: 120s/pcs
Weight of machine: 1.5ton
Thickness of steel sheet: 2-4mm

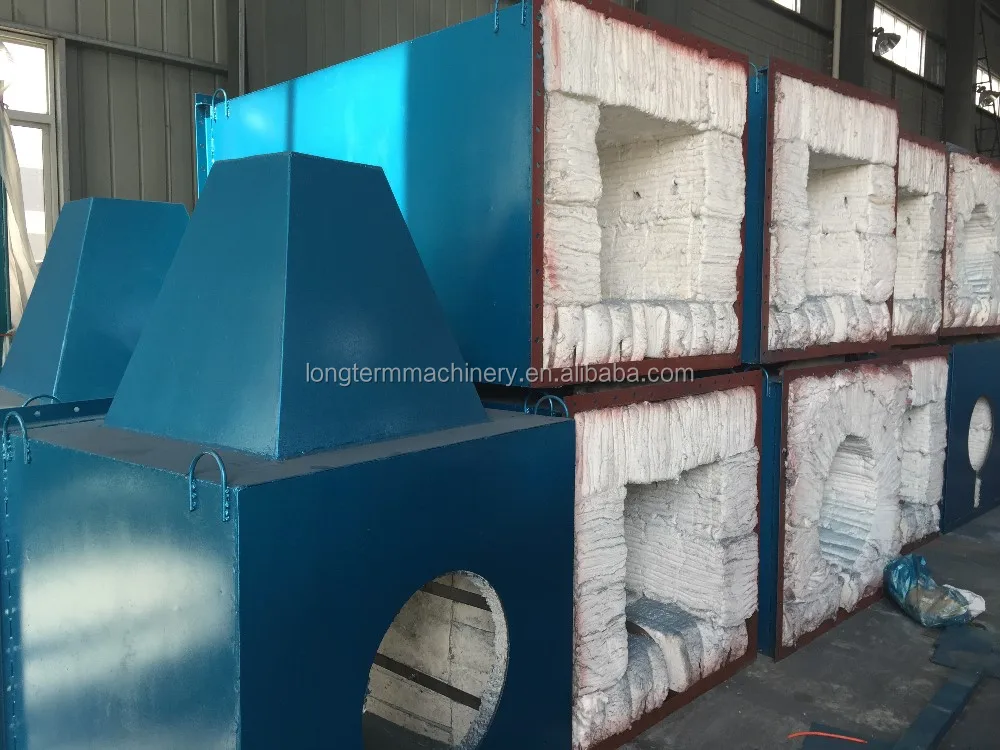

11. Heat treatment

Production speed: 75pcs/hour
Feeding type: chain drive feeding, cylinder feeding
Size of cylinder available: 320*700-420*1250mm
Size of machine:125000*1390*1560mm

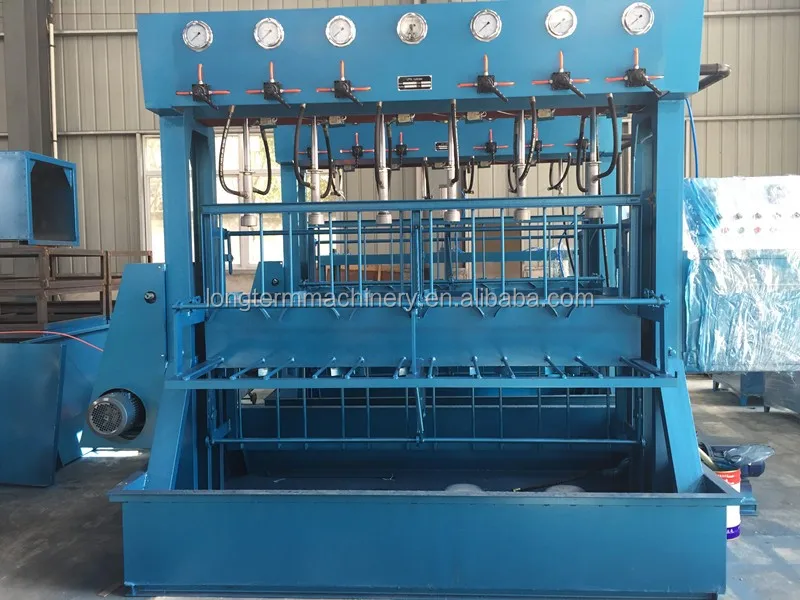

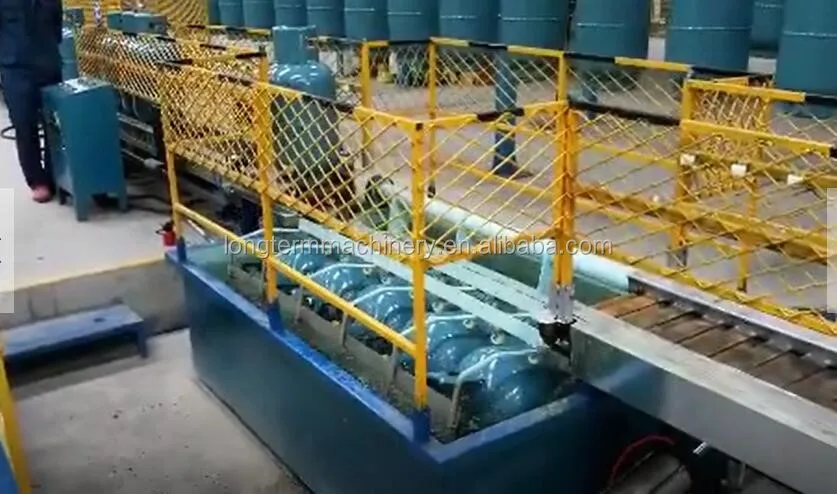

12. Hydro Testing Machine

13. Drying machine

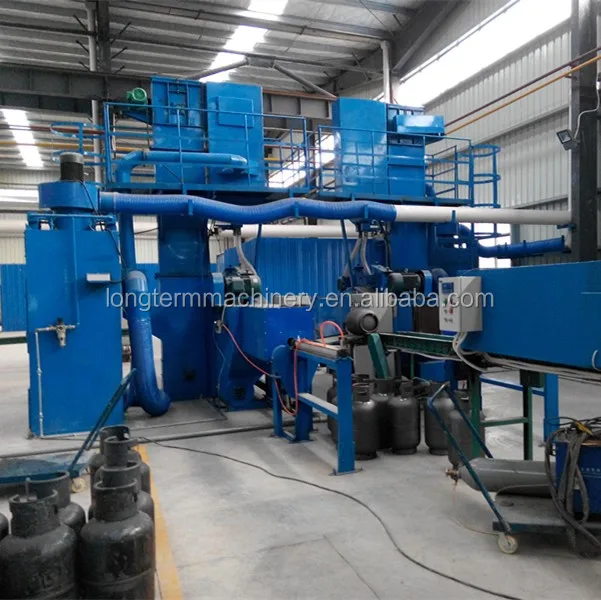

14. Shot Blasting Machine

Hook quantity unit: 2pcs
Loading weight: 2*600kg
No. of blasting machine: 2 sets
Working efficiency: 150-200pcs/hour
Total power: 35K
Working voltage: 380V 50Hz
Weight of machine: 16ton

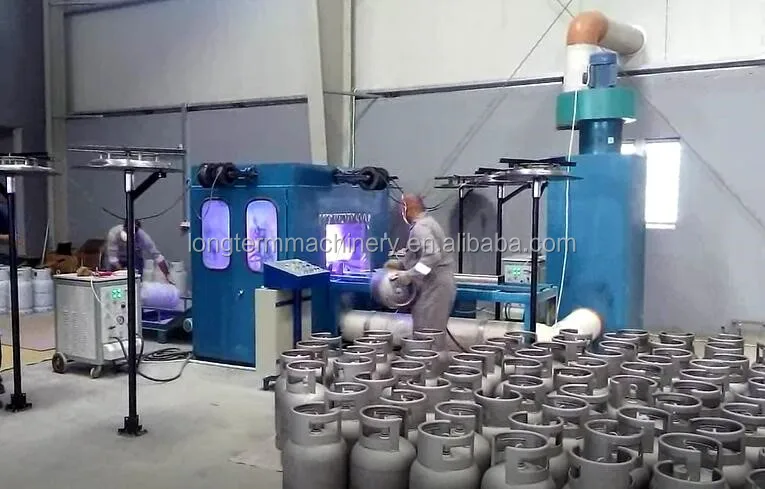

15.Zinc Metalizing Machine

Arc spraying zinc machine total power: 15KVA*N
Vacuum cleaner engine power: 5.5KW
The compressed air input pressure: 0.55~7Mpa
Diameter of the zinc wire: 2-3mm
Rated input voltage: 220V~280V
Productivity: Max. 90 pcs/hour
Zinc wire consumption: 93 kgs/hour

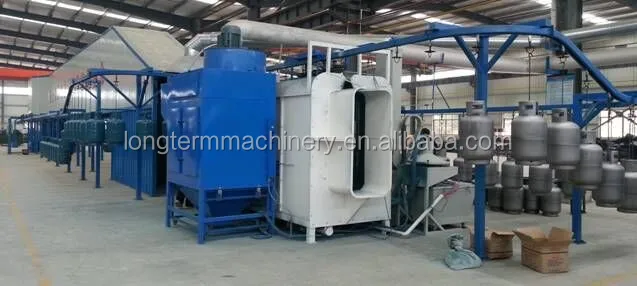

16. Powder Coating Line

Working voltage: 380V, 50Hz

Air pressure: 0.4~0.6Mpa

Tower power: 15KW

Working effiency: 180pcs/hour

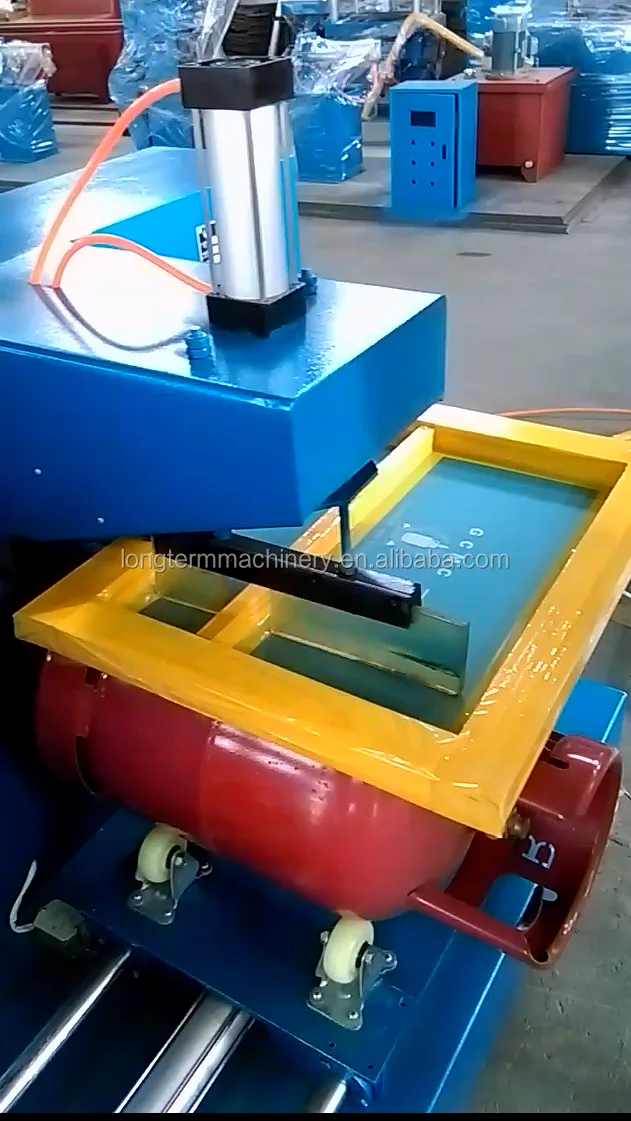

17. Printing machine

Printing size(L*W): 700*600mm

Production efficiency: 2pcs/min

Ink consumption: ≤2g/pc

Weight: 0.5T

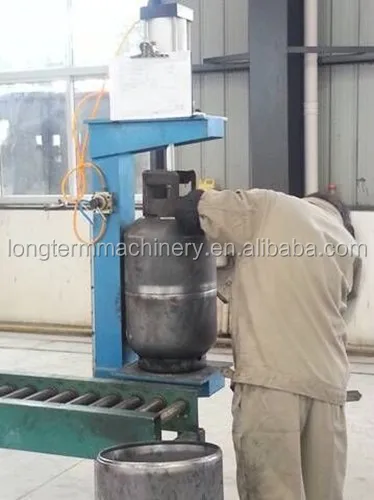

18. Valve mounting machine

Motor power: 2.2KW
Speed ratio: 1:59
Voltage: 220V
Welding speed: 24rpm
Weight of machine: 0.9ton

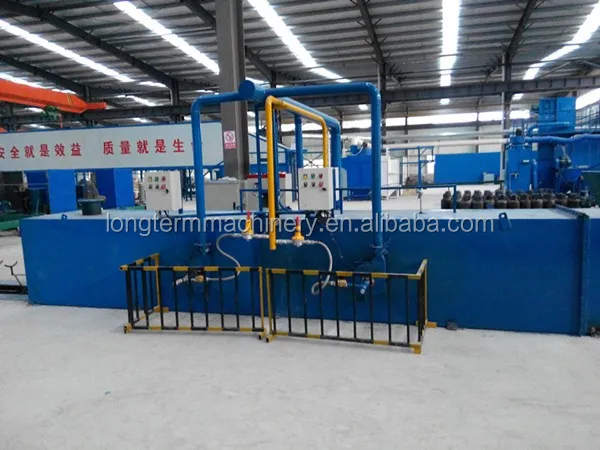

19. Air leakage testing machine

Air pressure: 0.6Mpa
Air test pressure: 2.2Mpa
Holding time: 60s
Motor power: 3KW?
Weight of machine: 1.8ton
Size of cylinder available: 320*700-420*1250mm

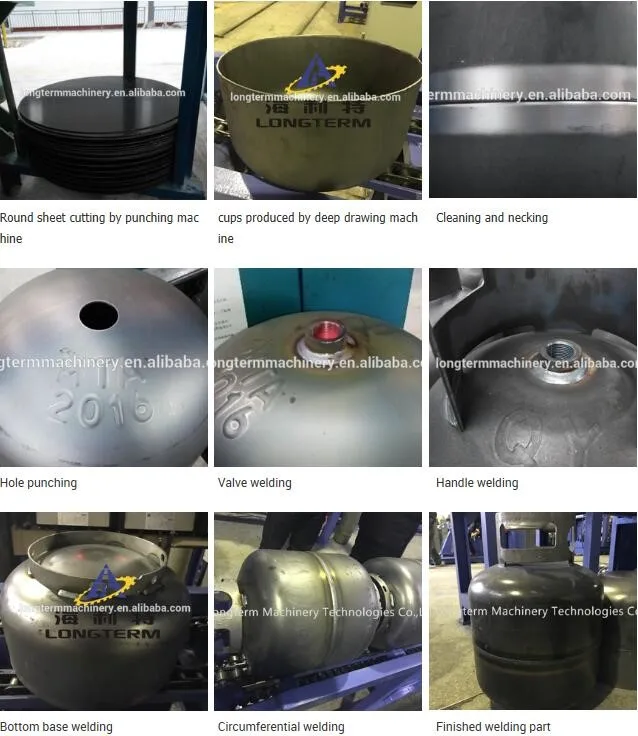

Production process
Related machine

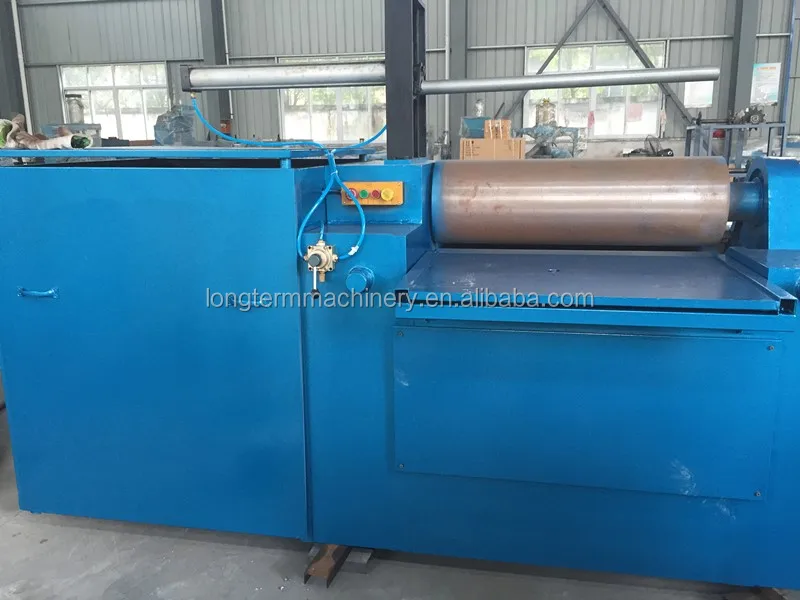

Rolling machine

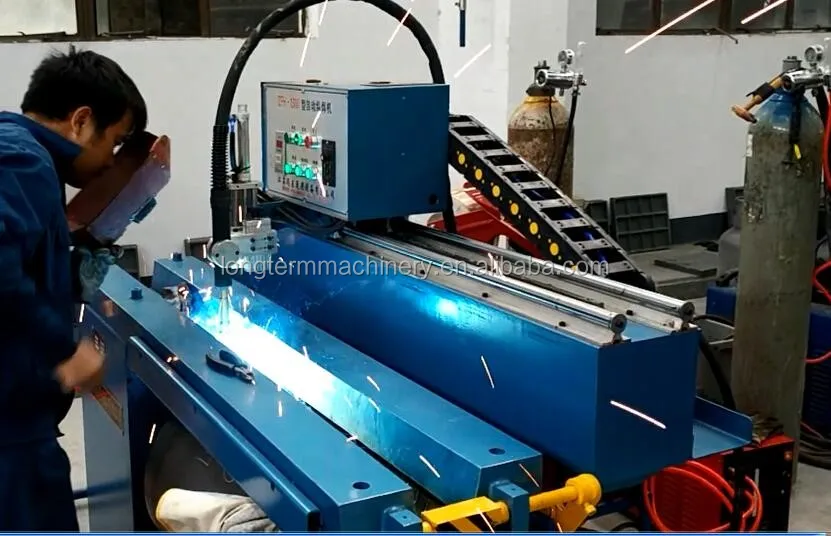

Longitudinal welding machine

Double head circumferential welding machine

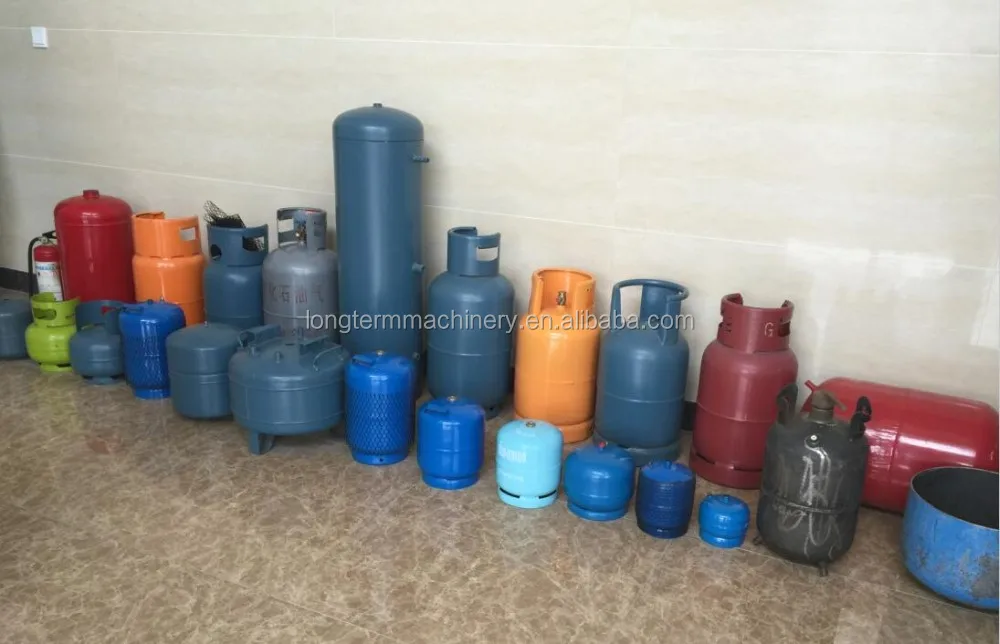

LPG cylinders

Making different kinds of LPG cylinders as customer's requireents

Packing & Delivery

Standard export package

Company Information

Wuxi Longterm Machiney Technology Co., Ltd is one of the largest-scale professional design and manufacturer of various types of steel cylinders automatic production line and testing line, filling, cleaning, painting. Our company sell equipments domestic and overseas. Main product: automatic production line, all kinds of steel cylinders(liquefied petroleum gas cylinder, natural gas vehicle cylinder, winding bottle, dissolved acetylene cylinder, fire industrial cylinder, etc.), complete sets of testing equipment.
We creat first-class products and professional sales level, we also provide strong technical support for pre-sales advice and after-sales service. More information for our company, pls click here.

Our customers

Turnkey project LPG gas cylinder production line for new plant

Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers’ requirement.

Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.

Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

Enable us provide the most suitable proposal for you, please tell me following details:
1.Technical Drawing of the cylinders you want to make?
2.What size of cylinder you want to produce?(6kg, 12kg)
3.What diameter and thickness of the cylinder you want to make?
4.Are you new in this area or you already have some machines in the workshop?
5.Capacity you require, i.e. how many pieces and sizes you want to make per day?

If you want to know more about our machines, please click here.
