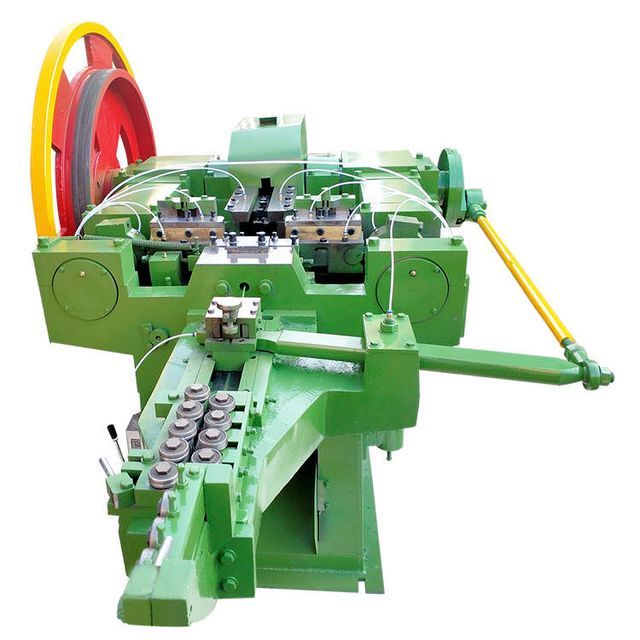

Cheap 1-6 inch wire nailing equipment Z94 series concrete nailing machine

Supplier: Beijing Double Dragon International Industrial & Mining Machinery Co., Ltd.
Region: Beijing, China
Contact: Mr Macros Zhang
Price: $1680.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply capacity:	500 units per month	Main selling points:	competitive price
payment terms:	Letter of credit, wire transfer	Mechanical test report:	if
Weight (kg):	2000	brand:	dragon
Applicable industries:	Construction engineering, nail factory	Core components:	engine
capacity:	A wide range of	Health status:	new
type:	SD-1000	Packaging details:	Plywood packaging (according to customer requirements)
color:	green or customizable	Core component warranty:	1 year
Warranty:	2 years	port:	major ports in china
Showroom location:	not any	raw material:	Low carbon steel wire
brand:	dragon	Marketing type:	2020 new products
Certificate:	EU CE, ISO	Video outbound inspection:	if
Function:	Make nails shiny	Place of origin:	Henan, China
Type of machine:	nail polisher

1. Functions of wire nail polishing machine:

1). The wire nail polishing machine is used to polish the nails to make them shiny and not easy to rust.

2). The capacity of wire nail polishing machine is 400KG and 1000KG each time.

2. The process of ordinary wire nail making machine:
1. Waste wire - waste wire drawing machine - nail forming - nail polishing - finished nails - packaging

2. New wire—drawing machine—nail making—polishing—finished nails—packaging

Step 1 -Wire drawing machine: to get the fine diameter we need.
Step 2--Nail making machine: get nails of different sizes.
third step--Nail Polisher: Make your nails shiny.

three. Steel nail polishing machine specifications:

Techonica	unit	Z94-4C	Z94-3C	Z94-2C	Z94-1C	Z94-5.5C	Z94-6A
The maximum diameter	mm	4.5	3.4	2.8	1.6	5.5	6.0
minimum diameter	mm	2.8	1.8	1.2	0.9	4.1	4.1
maximum length	mm	100	75	50	25	150	180
minimum length	mm	50	25	16	9	100	100
design output	pieces/minute	260	280	300	450	220	220
Motor Power	kilowatt	4	3	2.2	1.5	5.5	11
weight	Kilogram	1900	1200	950	750	2500	6000
