Industrial thermal fluid heater/Thermal oil boiler

Click here to contact
Product details
Supply Ability:50 Set/Sets per Month SET;Pressure:High Pressure;
Brand Name:bidragon;Packaging Detail:ply wood case (based on customers' requirements);
Thermal Power:120,0000Kcal;Warranty:1 YEAR;
Local Service Location:None;Output:Steam;
Fuel Type:oil, gas, LPG, etc.;Applicable Industries:Heating Equipment;
Structure:Fire Tube;Voltage:308V or customized;
Showroom Location:None;Heat output temperature:340℃;
Condition:New,New;Heating efficiency:90%;
Place of Origin:Heilongjiang China;Design pressure:1.0 Mpa;
Style:Horizontal;Port:china main ports;
Operation:easy;Fuel:Oil-fired;
Payment Terms:L/C,T/T;Name:oil/gas fired thermal oil heater;
After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;Usage:Industrial;
Type:Natural Circulation;After-sales Service Provided:Engineers available to service machinery overseas;
Certification:ISO 9001:2000;Key Selling Points:Easy to Operate;

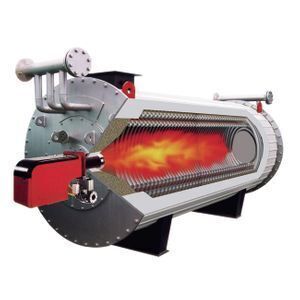

Industrial thermal fluid heater/Thermal oil boiler



1.    Brief introduction:

Thermal oil heater takes diesel, gas, town gas as fuel. Three pass and wet back structure enhance it’s thermal efficiency and lower flue gas temperature. Thicker insulated material layer makes radiating at minimum limit.

All boilers are assembly structure which is easy for installation by just connecting system device by pipes. Intelligent system control makes boiler operation easier and more simple. Controller with imitation screen display has auto igniting, burning, circulation pumps control, alarm, etc. functions.

 Industrial thermal fluid heater/Thermal oil boiler

2.    Main characters:

<1>.  High automaticity, prompt start and stop, high reliability.

<2>.  High thermal efficiency, completely burning, stable output, better adaptability to variable load.

<3>.   Compact structure, small area requirement.

<4>.   Less auxiliaries, easy installation.

<5>.   Less pollutant emission, can reach higher Environmental protection index.

 Industrial thermal fluid heater/Thermal oil boiler

3.     Thermal Oil Heater System Diagram



Industrial thermal fluid heater/Thermal oil boiler

4.Parameters:



Model No.

Thermal power(kcal/h)

Heating efficiency

(%)

Max. working temp.(℃)

Medium circulation(M3/H)

Transport size

(mm)

Weight

(Kg)

YY(Q)W-120Y(Q)

10*104

≥92.26

340

12.5

Φ1060*2045

1215

YY(Q)W-240Y(Q)

20*104

≥92.26

340

18

Φ1020*1980

1355

YY(Q)W-350Y(Q)

30*104

≥92.26

340

30

Φ1212*2310

1590

YY(Q)W-500Y(Q)

40*104

≥92.26

340

30

Φ1212*2730

1680

YY(Q)W-700Y(Q)

60*104

≥92.26

340

60

Φ1400*3410

2715

YY(Q)W-930Y(Q)

80*104

≥92.26

340

80

Φ1616*3400

3142

YY(Q)W-1200Y(Q)

100*104

≥92.26

340

100

Φ1616*4000

3660

YY(Q)W-1400Y(Q)

120*104

≥92.26

340

100

Φ1820*4905

5420

YY(Q)W-2000Y(Q)

160*104

≥92.26

340

100

Φ1840*4950

7850

YY(Q)W-2400Y(Q)

200*104

≥92.26

340

160

Φ2060*4700

8850

YY(Q)W-3000Y(Q)

250*104

≥92.26

340

180

Φ2060*5450

9210

YY(Q)W-3500Y(Q)

300*104

≥92.26

340

200

Φ2430*5965

9960

YY(Q)W-4100Y(Q)

350*104

≥92.26

340

250

Φ2630*6990

1120

YY(Q)W-4700Y(Q)

400*104

≥92.26

340

250

Φ2830*7100

1230

 Industrial thermal fluid heater/Thermal oil boiler

5.Application:

The series of thermal oil heater is widely used in the following industries:



l  Petrochemical Industries:polymerization, melted, condensation, distillation, removal H2.



l  Oil industry:fat and acid distillation, grease decomposition, concentrated, esterification, vacuum deodorizer, high-temperature cooking, advanced salad oil.



l  Synthetic fiber industry: polymerization, melt spinning, extending; drying.



l  Textile printing and dyeing industry: heat setting, hot melt dyeing, melt bake calendering drying, high temperature stenter, oar yarn.



l  Plastics and rubber industry:hot pressing, hot cast, vulcanization molding, calendering injection machine, plastic mixer, conveyor dryer, screw extruder.



l  Paper Industry: dry, corrugated paper processing, egg tray, food cardboard drying, calendering machine, roller.



l  Timber industry: multilayer plywood, fiberboard molding, plywood, wood drying, steaming equipment.



l  Building materials industry: road bitumen heating, gypsum board drying, heating bitumen concrete, concrete elements curing, drying equipment.



l  Air-conditioning industry:industrial plants, residential and hotel building heating.



l  Detergent Industry: cooking boiler, autoclave, spray-washing tower, a conveyorized dryer, lipolysis device distillation column.



l  The automotive industry:the tunnel-type drying room, degreasing baths, phosphate processing equipment.



l  Electrical equipment industry: calendering machine, the platen machines, vacuum pan, dryer.

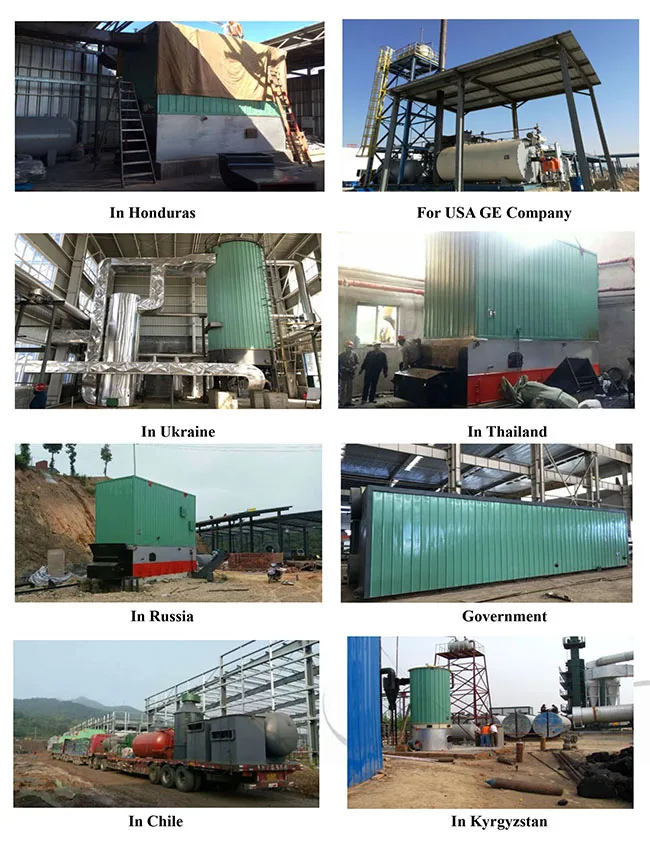

6.Hot Oil Boiler Cases:
